Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh

Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh

SKU: C1200-24FP-4X-RF
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$569.99 $569.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

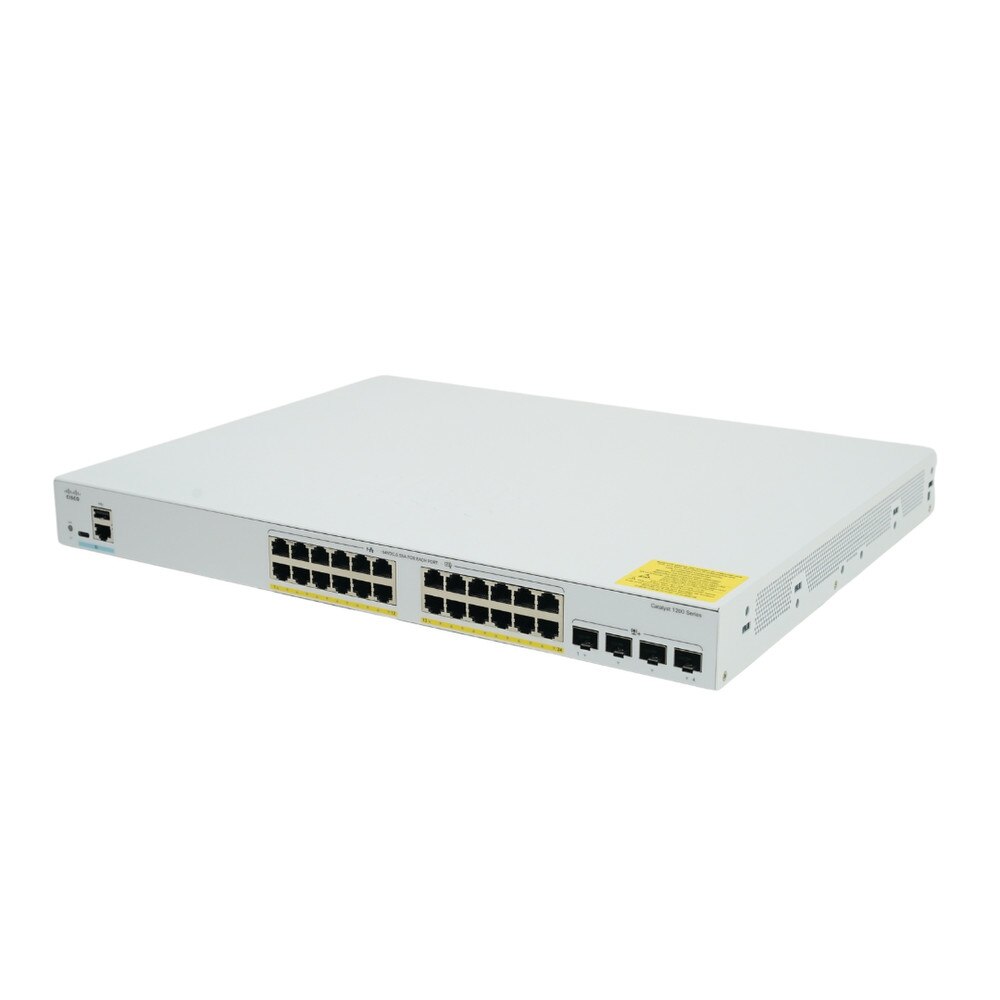

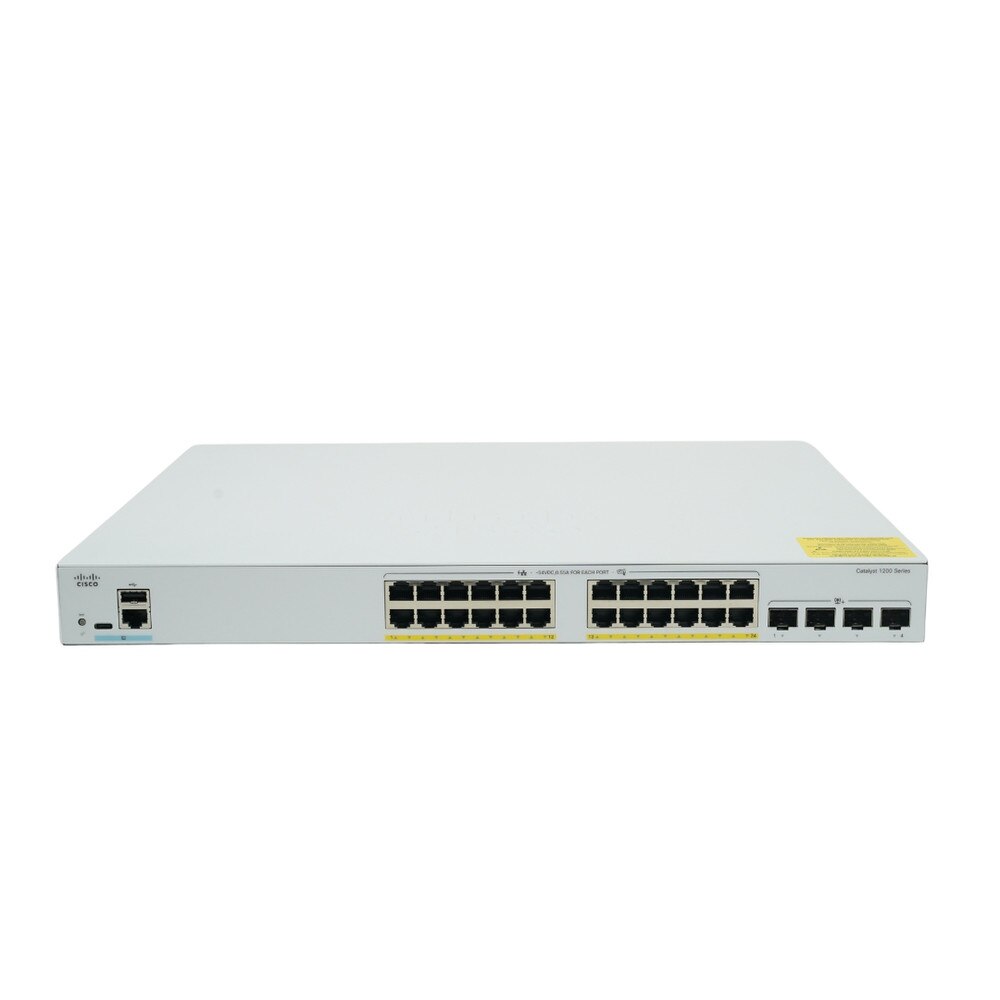

Overview of Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh

The Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch is a high-performance, smart-managed switch intended to meet the networking requirements of small to medium-sized businesses. This versatile switch offers strong connectivity, advanced security features, and simple management, making it an excellent choice for improving network infrastructure. The Cisco Catalyst C1200-24FP-4X is intended to be a strong foundation for your business network. Its PoE+ capability facilitates the deployment of powered devices by eliminating the need for additional power sources and cabling. The switch's smart management features enable simple configuration, monitoring, and troubleshooting, making it an excellent choice for businesses without a dedicated IT staff. With its advanced security features, the C1200-24FP-4X protects your network from unauthorized access and potential threats. The switch's energy-efficient design and fanless operation make it ideal for office environments that require low noise levels. The switch's compact form factor and versatile mounting options make it suitable for a wide range of deployment scenarios, from desktop to rack-mounted installations.


Key Features of Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch


• 24 Gigabit Ethernet ports with full PoE+ capability

• 4 x 10 Gigabit SFP+ uplink ports for high-speed connectivity

• Total PoE power budget of 375W

• Layer 3 smart switch capabilities

• Cloud-managed through Cisco Business Dashboard and mobile app

• Advanced security features including Access Control Lists (ACLs)

• Fanless design for quiet operation

• Compact form factor suitable for desktop or rack-mount installation

• Energy-efficient design, reducing power consumption up to 58% compared to previous generations

• Limited lifetime warranty with ongoing software updates

• Simple network management and configuration through intuitive interfaces

• Supports Layer 2 and basic Layer 3 static routing features

• Designed for small to medium-sized businesses

• Combines performance, security, and reliability in an affordable package

• Flexible deployment options for various business environments

Specifications

Specifications for Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh

Manufacturer Cisco
Manufacturer Part Number C1200-24FP-4X-RF
Product Name Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch
Product Type Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps
Capacity
MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size
8000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Encryption Algorithm
SSL
Authentication Method
RADIUS
Features
BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, 1 fan, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 1.4 GHz
RAM
1 GB DDR4 SDRAM
Flash Memory
512 MB
Status Indicators
System, PoE, link/activity/speed
Interfaces
24 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories

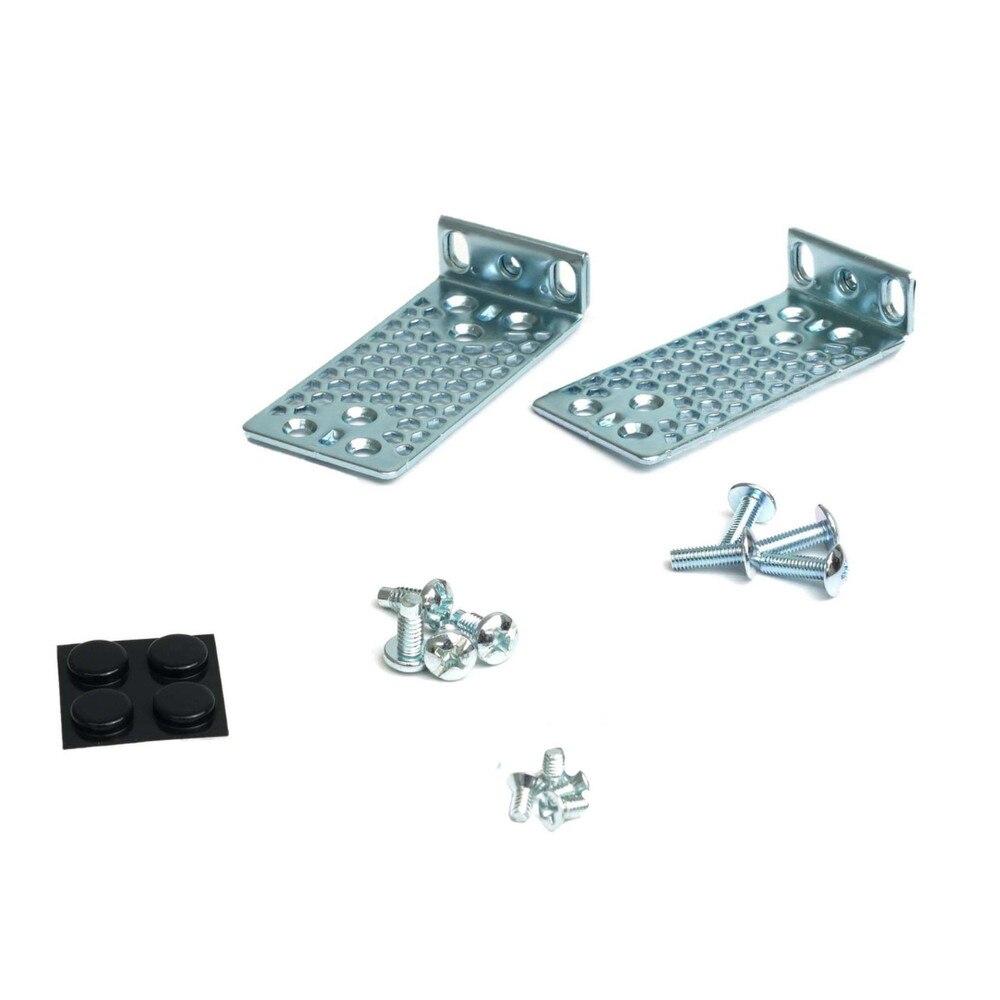

Mounting kit, pointer card
MTBF
698,220 hours
Compliant Standards
Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595
Width
17.5 in
Depth
13.6 in
Height
1.7 in
Weight
10.14 lbs
Service & Support
Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% RH (non-condensing)

User Guides

Frequently Asked Questions

Cisco Catalyst C1200-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)



What is the total PoE budget for the switch?
  • The switch has a total PoE budget of 375W, which allows you to power several PoE devices.
  • Which PoE standards are supported by the switch?
  • The switch is compatible with both PoE (802.3af) and PoE+ (802.3at) standards for powering multiple devices.
  • How many of the 24 ports support PoE?
  • The switch has 24 ports that support full PoE/PoE+.
  • What types of uplink ports does this switch have?
  • The switch has four SFP+ ports for 10-Gigabit uplinks, allowing for high-speed network expansion.
  • Can this switch be used in a large enterprise network?
  • Yes, the switch is appropriate for large enterprise networks because of its high capacity, PoE capabilities, and SFP+ uplinks.
  • What is the total switching capacity of the switch?
  • The switch's total switching capacity is 128 Gbps.
  • Does the switch support remote management?
  • Yes, the switch can be managed remotely using a web interface, CLI, or SNMP.
  • Can the SFP+ uplinks support fiber or copper cables?
  • The SFP+ ports can connect fiber cables with the appropriate SFP+ modules for single-mode or multi-mode connections.
  • What is the maximum distance supported by the SFP+ uplinks?
  • The distance varies depending on the SFP+ module used, ranging from a few meters for short-range modules to up to ten kilometers for long-range modules.
  • Does the switch support VLANs?
  • Yes, the switch does support VLANs for network segmentation and management.
  • Is the switch compatible with Cisco's DNA (Digital Network Architecture)?
  • While the switch is not part of Cisco's DNA portfolio, it works well with other Cisco networking solutions.
  • What security features does the switch include?
  • The switch supports 802.1X authentication, access control lists (ACLs), and port security.
  • Can the switch be rack-mounted?
  • Yes, the switch is designed for 1U rack mounting and comes with rack mounting brackets.
  • What types of devices can be powered using PoE on this switch?
  • The switch's PoE ports can power devices like IP phones, wireless access points, and IP cameras.
  • Does the switch support Quality of Service (QoS)?
  • Yes, the switch supports QoS, which prioritizes critical network traffic such as voice and video.
  • How do I back up the switch configuration?
  • You can back up the configuration using the web interface, CLI, or a TFTP server.
  • What are the operating temperature and humidity ranges for the switch?
  • The switch works in temperatures ranging from 0°C to 40°C (32°F to 104°F) and humidity levels of 10% to 90% non-condensing.
  • Can the switch be reset to factory settings?
  • Yes, you can reset the switch to factory settings via the CLI or a physical reset button, if one is available.
  • Does the switch support Spanning Tree Protocol (STP)?
  • Yes, the switch supports STP, including both Rapid STP (RSTP) and Multiple STP (MSTP) for loop prevention.
  • What are the power consumption and energy efficiency features of the switch?
  • The switch is designed to be energy efficient, with Energy Efficient Ethernet (EEE) reducing power consumption based on network traffic.
