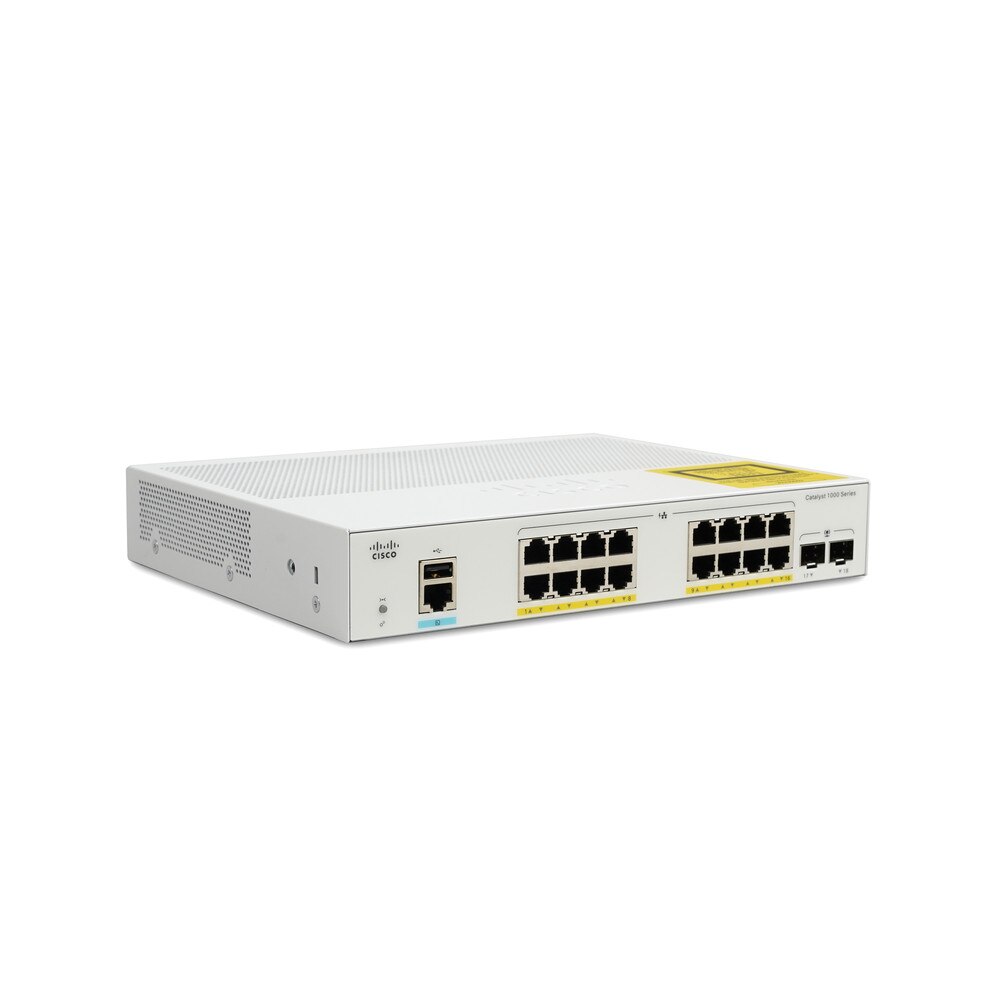

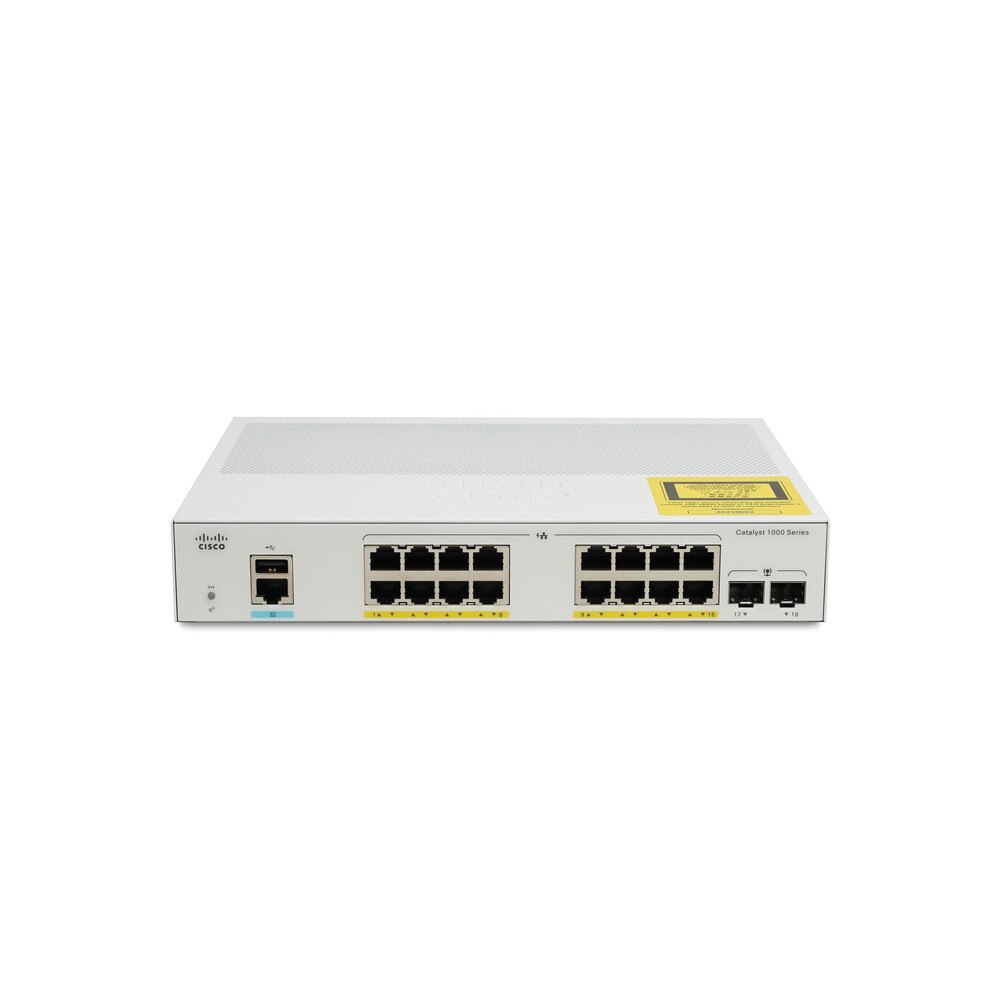

Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks | New

Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks | New

SKU: C1000-16P-E-2G-L-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$649.99 $649.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks | New

The Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks is a trustworthy and high-performance networking solution for small enterprises and branch locations. With powerful Layer 2 features, Power over Ethernet Plus (PoE+), and strong security, this switch is excellent for enabling current business applications such as IoT installations, IP telephony, and wireless access points. This Catalyst switch has 16 Gigabit Ethernet PoE+ ports and a total power budget of 120W, allowing it to power IP phones, cameras, and access points directly over the network connection. It also has two Gigabit SFP uplink ports for fast fiber connectivity to core networks or other switches. The switch's fanless operation for silent performance, small design, and straightforward management choices via CLI or web UI provide seamless deployment and reliable performance in any workspace.


Key Features of Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks


• 16 PoE+ Ports provides up to 30W per port with a total power budget of 120W for powering connected devices.

• 2 SFP Uplink Ports with high-speed fiber connectivity for network expansion and scalability.

• Layer 2 Switching includes VLANs, QoS, link aggregation, and IGMP snooping for traffic optimization.

• Advanced Security offers features like 802.1X authentication, ACLs, and port security to protect the network.

• Fanless Design with silent operation suitable for noise-sensitive environments like offices or classrooms.

• Energy Efficiency complies with Energy Efficient Ethernet (EEE) standards for reduced power consumption.

• Compact Form Factor with space-saving design fits easily into rack-mounted or standalone setups.

• Managed through CLI or an intuitive web-based interface for ease of use.

• Supports forwarding bandwidth of 18 Gbps and switching bandwidth of 36 Gbps.


Benefits of Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks


🗹 PoE+ eliminates the need for separate power adapters, reducing cable clutter.

🗹 SFP uplink ports enable high-speed connections to other switches or core networks.

🗹 Protect sensitive data with advanced security features like ACLs and 802.1X authentication.

🗹 Layer 2 traffic management ensures efficient handling of network traffic.

🗹 Fanless design ensures quiet performance in noise-sensitive environments.

🗹 Energy-efficient technologies help reduce operational costs over time.

🗹 Fits neatly into any workspace without taking up excessive space.

🗹 Intuitive management options simplify installation and configuration.

🗹 Built with Cisco’s trusted quality for long-term use in demanding environments.

🗹 Advanced features ensure compatibility with evolving business needs.

Specifications

Specifications for Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks | New

ManufacturerCisco
Manufacturer Part NumberC1000-16P-E-2G-L
Product NameCisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Forwarding bandwidth: 18 Gbps ¦ Switching bandwidth: 36 Gbps ¦ Forwarding rate (64‑byte L3 packets): 26.78 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A

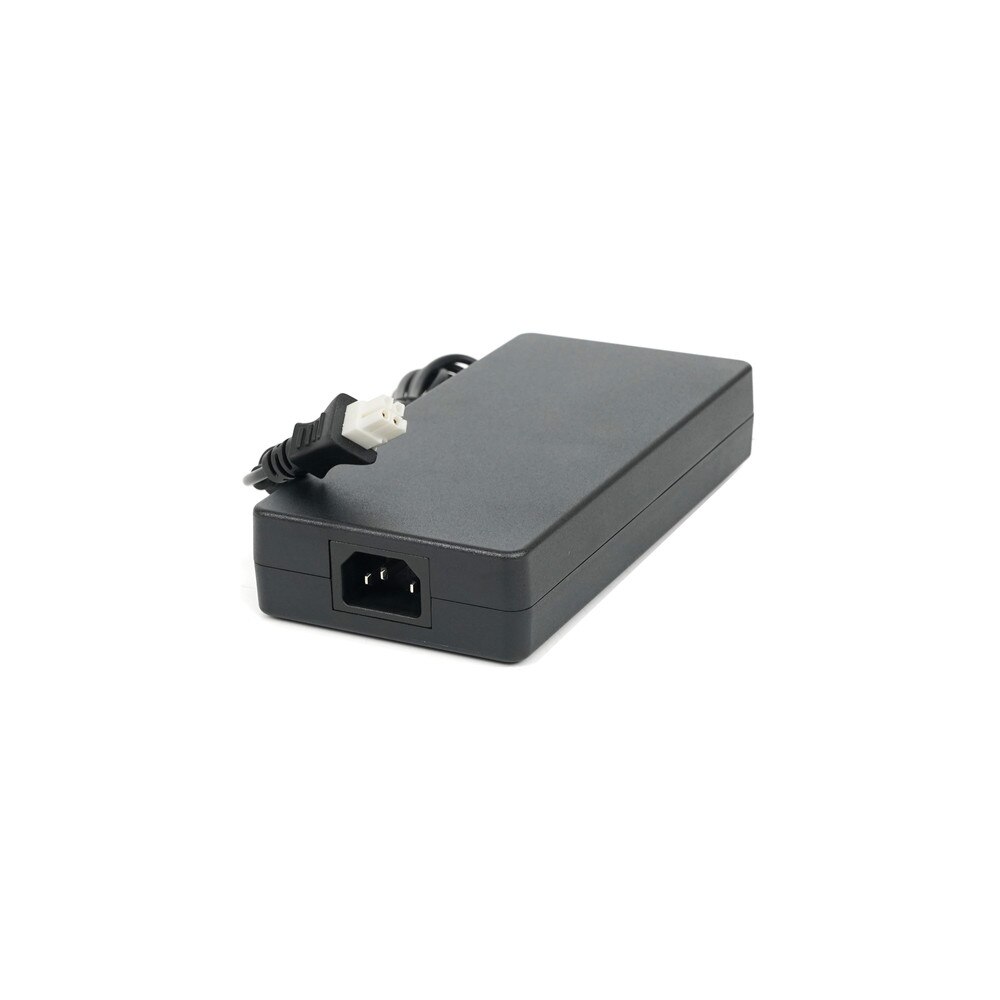

Power Device
External power adapter
Installed Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Width
10.6 in
Depth
8.3 in
Height
1.7 in
Weight
3.13 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 90%
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95%

User Guides

Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks Data Sheet

Frequently Asked Questions

Cisco Catalyst 1000-16P-E-2G-L 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Uplinks
Frequently Asked Questions (FAQ's)



What are the key features of the Cisco Catalyst 1000-16P-E-2G-L switch?
  • The switch features 16 Gigabit Ethernet PoE ports, 2 Gigabit SFP uplinks, Layer 2 switching and an energy-efficient design. It supports 240W PoE power and advanced security features.
    • Does the Cisco Catalyst 1000-16P-E-2G-L support Power over Ethernet (PoE)?
  • Yes, it supports PoE with a total budget of 240W, allowing it to power devices like IP phones, cameras and wireless access points.
    • Can the Cisco Catalyst 1000-16P-E-2G-L be used for small business networks?
  • Yes, it is ideal for small to medium-sized business networks, offering advanced management features and PoE support for connected devices.
    • How do I manage the Cisco Catalyst 1000-16P-E-2G-L switch?
  • The switch can be managed via a web-based interface, Cisco Configuration Professional or through command-line interface (CLI) for more advanced configurations.​
    • What is the maximum switching capacity of the Cisco Catalyst 1000-16P-E-2G-L?
  • The switch has a maximum switching capacity of 36 Gbps and a forwarding rate of 26.78 Mpps.
    • Does the Cisco Catalyst 1000-16P-E-2G-L support VLAN configuration?
  • Yes, it supports VLANs, allowing network segmentation for improved security and performance.
    • Is the Cisco Catalyst 1000-16P-E-2G-L stackable?
  • No, the C1000 series does not support physical stacking, but it can be managed and monitored in groups for easier administration.
    • Can the Cisco Catalyst 1000-16P-E-2G-L be used for voice and video traffic?
  • Yes, it supports Quality of Service (QoS) to prioritize voice, video and other critical network traffic.
    • What type of uplink ports are available on the Cisco Catalyst 1000-16P-E-2G-L?
  • It features 2 Gigabit Ethernet SFP uplink ports, providing high-speed connectivity to other switches or network devices.
    • Does the Cisco Catalyst C1000-16P-E-2G-L support IPv6?
  • Yes, it supports IPv6, ensuring compatibility with modern network environments.
    • How do I configure the PoE settings on the Cisco Catalyst 1000-16P-E-2G-L?
  • PoE settings can be configured through the web interface, Cisco Configuration Professional or CLI, allowing for power management of connected devices.
    • Is the Cisco Catalyst 1000-16P-E-2G-L fanless?
  • Yes, the switch is fanless, making it ideal for deployment in noise-sensitive environments like offices and classrooms.
    • What security features does the Cisco Catalyst 1000-16P-E-2G-L offer?
  • It includes features like access control lists (ACLs), 802.1X authentication, and port security to help protect the network from unauthorized access.
    • Can the Cisco Catalyst 1000-16P-E-2G-L be used for surveillance networks?
  • Yes, its PoE capabilities make it suitable for powering IP cameras and other surveillance equipment.
    • How do I update the firmware on the Cisco Catalyst 1000-16P-E-2G-L?
  • Firmware updates can be applied via the web-based interface or using CLI commands, with downloads available from Cisco's official website.
    • Does the Cisco Catalyst 1000-16P-E-2G-L support link aggregation?
  • Yes, it supports link aggregation to increase bandwidth and provide redundancy for critical connections.
    • Can I monitor the power consumption on the Cisco Catalyst 1000-16P-E-2G-L?
  • Yes, the switch allows for monitoring PoE power consumption and can be configured to manage power usage effectively.
    • What mounting options are available for the Cisco Catalyst 1000-16P-E-2G-L?
  • The switch can be mounted in a standard 19-inch rack or used as a desktop unit, providing flexible deployment options.
    • Is the Cisco Catalyst 1000-16P-E-2G-L suitable for outdoor installations?
  • No, it is designed for indoor use only. For outdoor installations, a suitable enclosure would be required.
    • Does the Cisco Catalyst 1000-16P-E-2G-L support remote management?
  • Yes, it supports remote management through protocols like SNMP, Telnet, and SSH, making it easy to manage from different locations.
