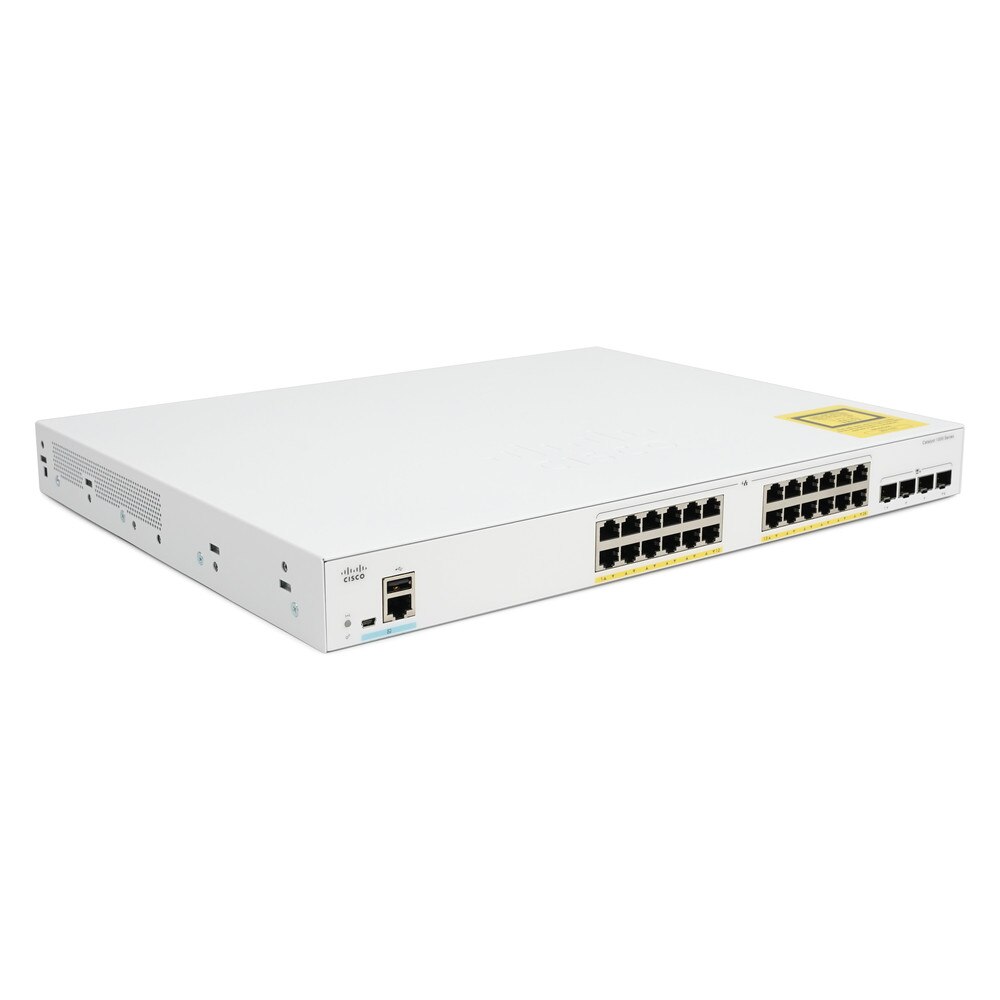

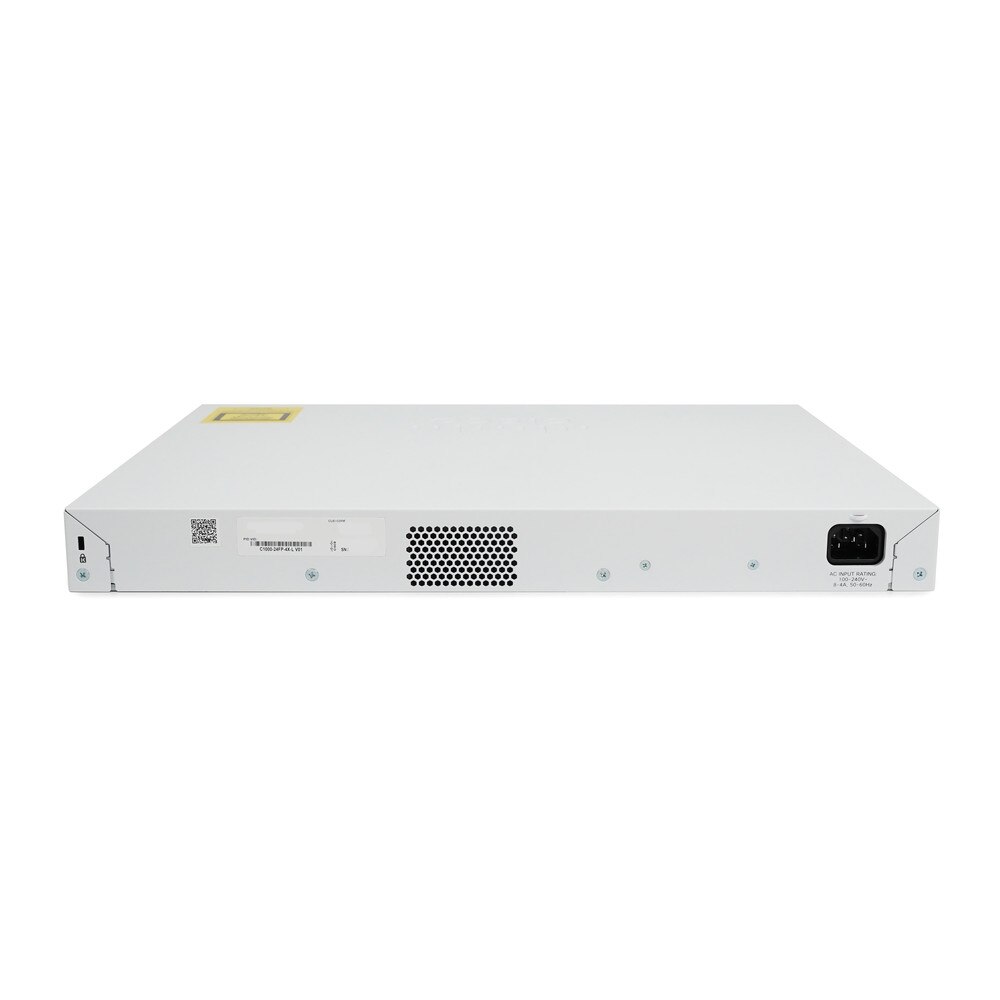

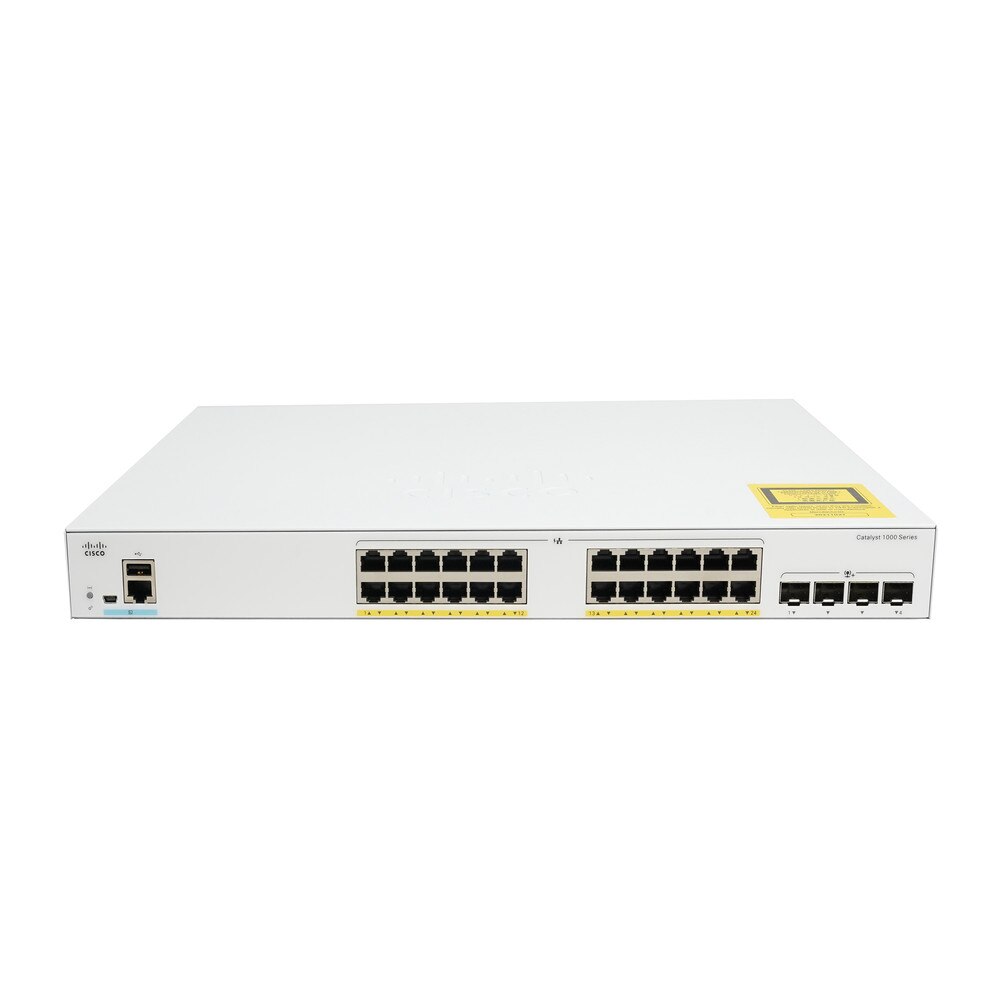

Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+ | Refresh

Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+ | Refresh

SKU: C1000-24FP-4X-L-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$889.99 $889.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+ | Refresh

The Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+ is an enterprise-grade Layer 2 managed switch built for enterprises that require high-power PoE+ and 10G uplink connectivity. This powerful network switch combines full PoE+ capabilities with high-speed uplinks, making it suitable for deploying IP phones, wireless access points, and high-bandwidth applications. The C1000-24FP-4X-L provides 370W of PoE+ power across 24 Gigabit Ethernet ports and four 10G SFP+ uplink connectors for increased network expansion. With comprehensive security features and dependable performance, this switch is an excellent choice for demanding commercial networks.


Key Features of Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+


• 24 Gigabit Ethernet ports with PoE+ support

• 370W PoE+ power budget for connected devices

• 4 SFP+ uplink ports supporting 10G connectivity

• Layer 2 switching with advanced management features

• 128 Gbps switching capacity

• Web-based GUI and CLI management options

• Enhanced network security features

• Zero-touch deployment capability

• Energy-efficient design with EEE support

• VLAN support for network segmentation

• Quality of Service (QoS) capabilities

• 512MB DRAM and 256MB Flash memory

• IPv6 First Hop Security

• Perpetual PoE+ power delivery

• Limited lifetime warranty

Specifications

Specification for Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+ | Refresh

ManufacturerCisco
Manufacturer Part NumberC1000-24FP-4X-L-RF
Product NameCisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status
Interfaces
24 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A
Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
MTBF
2,026,793 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Width
17.5 in
Depth
13.6 in
Height
1.7 in
Weight
10.14 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 90%
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95%

User Guides

Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+ Data Sheet

Frequently Asked Questions

Cisco Catalyst C1000-24FP-4X-L 24-Port Gigabit PoE+ Managed Switch with SFP+

Frequently Asked Questions (FAQ's)



What is the total PoE budget of the Cisco Catalyst C1000-24FP-4X-L switch?
  • The switch has a PoE budget of 370W, allowing it to power several PoE devices simultaneously.
    • How many uplink ports does the C1000-24FP-4X-L have, and what are their speeds?
  • It includes four 10-Gigabit Ethernet SFP+ uplink ports for fast communication.
    • Is the Cisco Catalyst C1000-24FP-4X-L suitable for small businesses?
  • Yes, it's intended for small firms and branch offices, with enterprise-level Layer 2 access.
    • Does this switch support Layer 3 routing?
  • No, Cisco Catalyst 1000 Series switches, such as the C1000-24FP-4X-L, are Layer 2 switches.
    • What management options are available for this switch?
  • It allows for management via a Command-Line Interface (CLI) and an on-board web UI.
    • Is the C1000-24FP-4X-L fanless?
  • No, this model is not fanless.
    • Does the switch support Quality of Service (QoS) features?
  • Yes, the Cisco Catalyst 1000 Series switches include QoS functionality for prioritizing network traffic.
    • Does the switch support IPv6?
  • Yes, it supports IPv6.
    • What security features are included in the C1000-24FP-4X-L?
  • It provides Layer 2 threat defense features, such as MAC, IP, and ARP spoofing protection, storm management, and dynamic ARP inspection.
    • Can this switch be mounted in a standard 19-inch rack?
  • Yes, it is intended for normal rack mounting.
    • What is the power consumption of the C1000-24FP-4X-L?
  • The highest power consumption is 406 watts.
    • What is the replacement model for the C1000-24FP-4X-L?
  • Catalyst 1300 24-port GE, Full PoE, 4x10G SFP+ (C1300-24FP-4X) is the successor product.
    • What is the warranty period for this switch?
  • The Cisco Catalyst 1000 Series switches include a limited lifetime hardware warranty.
    • Does the Cisco Catalyst C1000-24FP-4X-L support stacking?
  • The Cisco Catalyst 1000 Series switches, including the C1000-24FP-4X-L, do not enable stacking.
    • Does the switch support Energy Efficient Ethernet (EEE)?
  • Yes, Cisco Catalyst 1000 Series switches offer Energy Efficient Ethernet (EEE) in accordance with IEEE 802.3az standards.
    • What is the operating temperature range for the C1000-24FP-4X-L?
  • The working temperature ranges from 32°F to 113°F (0°C to 45°C).
    • Can the switch be managed using Cisco Network Assistant?
  • No, the Cisco Catalyst 1000 Series switches are administered using a Command-Line Interface (CLI) and an on-board web interface; they do not support Cisco Network Assistant.
    • Does the C1000-24FP-4X-L support QoS (Quality of Service) features?
  • Yes, it does support QoS features.
    • Is the C1000-24FP-4X-L suitable for industrial environments?
  • The Cisco Catalyst 1000 Series switches are intended for small enterprises and branch offices. Cisco's Industrial Ethernet switch series is designed for industrial situations.
    • What is the forwarding capacity of the C1000-24FP-4X-L?
  • The forwarding capacity is 56 Gbps.
