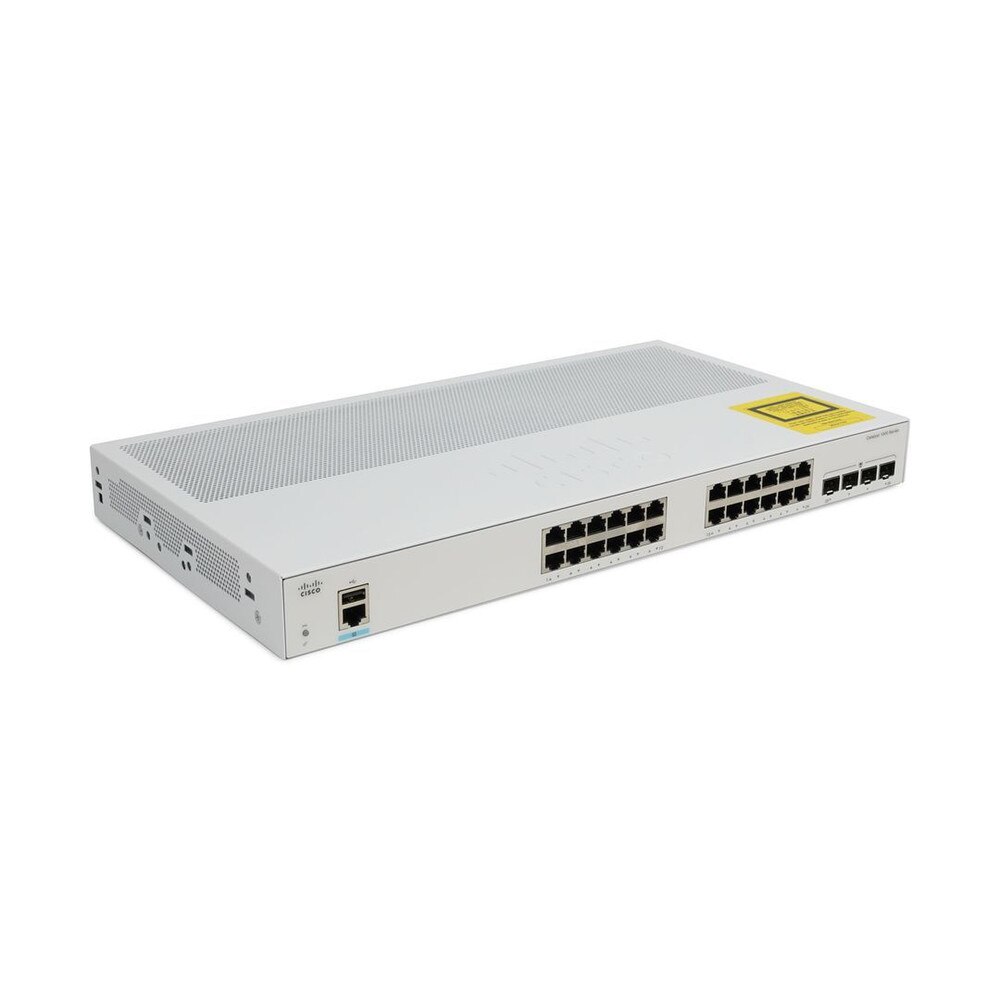

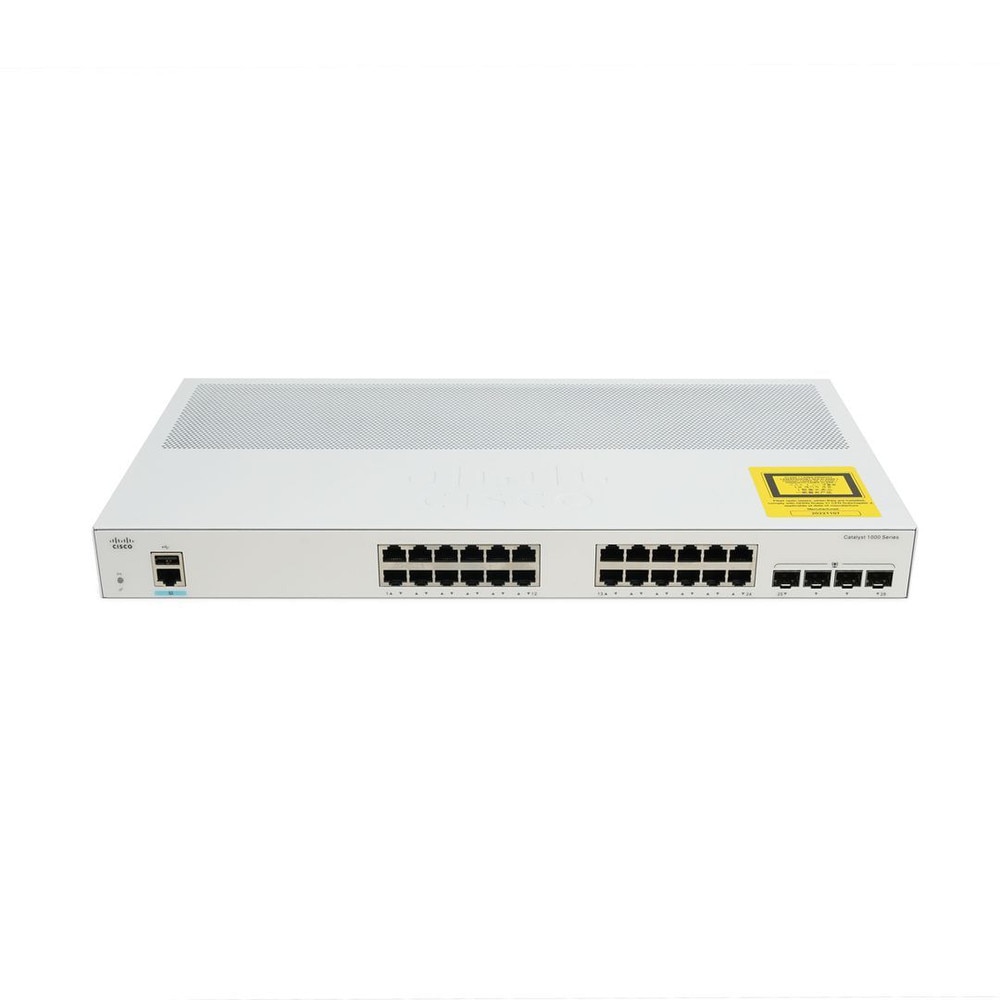

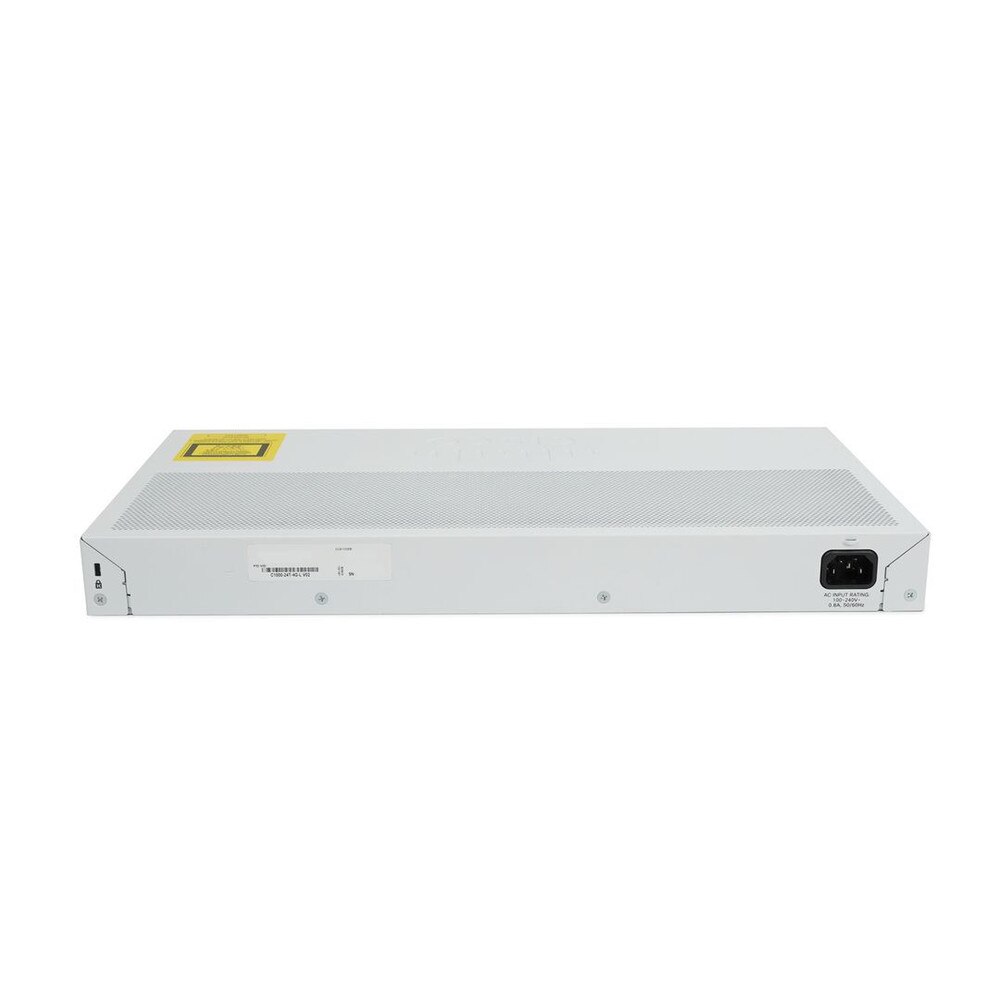

Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch | New

Overview of Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch | New

The Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch is a high-performance, enterprise-grade Layer 2 switch designed for small businesses, branch offices and expanding networks that require dependable connectivity and strong security. This managed switch, which can be mounted in a rack, has 24 Gigabit Ethernet ports and four dedicated 1G SFP uplink ports. It allows for seamless expansion, high-speed data transfers, and flexible fiber uplink options for integrating network backbones. The C1000-24T-4G-L, equipped with an 800 MHz ARM processor and 512MB RAM, provides a switching capacity of 56 Gbps and a forwarding rate of 41.67 Mpps, guaranteeing smooth operation for applications that require high bandwidth and for IoT deployments. With easy-to-use web-based and command-line management interfaces, network administrators can configure, monitor and secure the network with ease. Advanced Layer 2 functionalities—such as VLANs, QoS, IGMP snooping and thorough 802.1x authentication—aid in managing access, optimizing traffic and safeguarding sensitive information. With its fanless design, it operates silently, making it perfect for office settings; at the same time, energy-efficient technologies lower power consumption. The C1000-24T-4G-L, which is supported by Cisco’s limited lifetime warranty and exceptional support, is a future-ready option for reliable, scalable networking.

Key Features of Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch

• 24 x 10/100/1000 Gigabit Ethernet Ports with high-speed connectivity for desktops, printers and IP devices.

• 4 x 1G SFP Uplink Ports with flexible fiber uplinks for network expansion and backbone integration.

• 56 Gbps Switching Capacity that handles large data volumes with a 41.67 Mpps forwarding rate for smooth performance.

• Fanless, Rack-Mountable Design with silent operation and easy installation in any business environment.

• Advanced Security with 802.1x authentication, Access Control Lists (ACLs), BPDU Guard and SPAN for comprehensive network protection.

• Layer 2 Features with VLAN support, QoS, IGMP/MLD snooping, STP/RSTP/MSTP and link aggregation for efficient traffic management.

• Easy Management that configure and monitor via intuitive web UI or CLI; supports SNMP, SSH and RADIUS/TACACS+ authentication.

• Energy Efficient that supports Energy Efficient Ethernet (EEE) to reduce power usage without sacrificing performance.

• Robust Hardware with 800 MHz ARM CPU, 512MB RAM, 256MB flash memory for reliable, responsive operation.

• Compact & Durable with 17.5 x 9.4 x 1.7 in. (44.5 x 24 x 4.39 cm), 5.8 lbs (2.63 kg), with a sturdy, rack-mountable chassis.

Benefits of Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch

🗹 Easily add more devices and expand your network with 24 Gigabit ports and four SFP uplinks.

🗹 Protect your business with advanced access controls, authentication and network monitoring features.

🗹 Fanless design ensures quiet operation, while intuitive management tools simplify setup and maintenance.

🗹 High switching capacity and robust hardware deliver smooth, uninterrupted data transfers for critical applications.

🗹 Cisco’s quality engineering, lifetime warranty and flexible features support evolving business needs.

🗹 Ideal for small offices, branch locations and IoT environments requiring dependable, high-speed networking.

Specifications for Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch | New
