  • Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks | Refresh

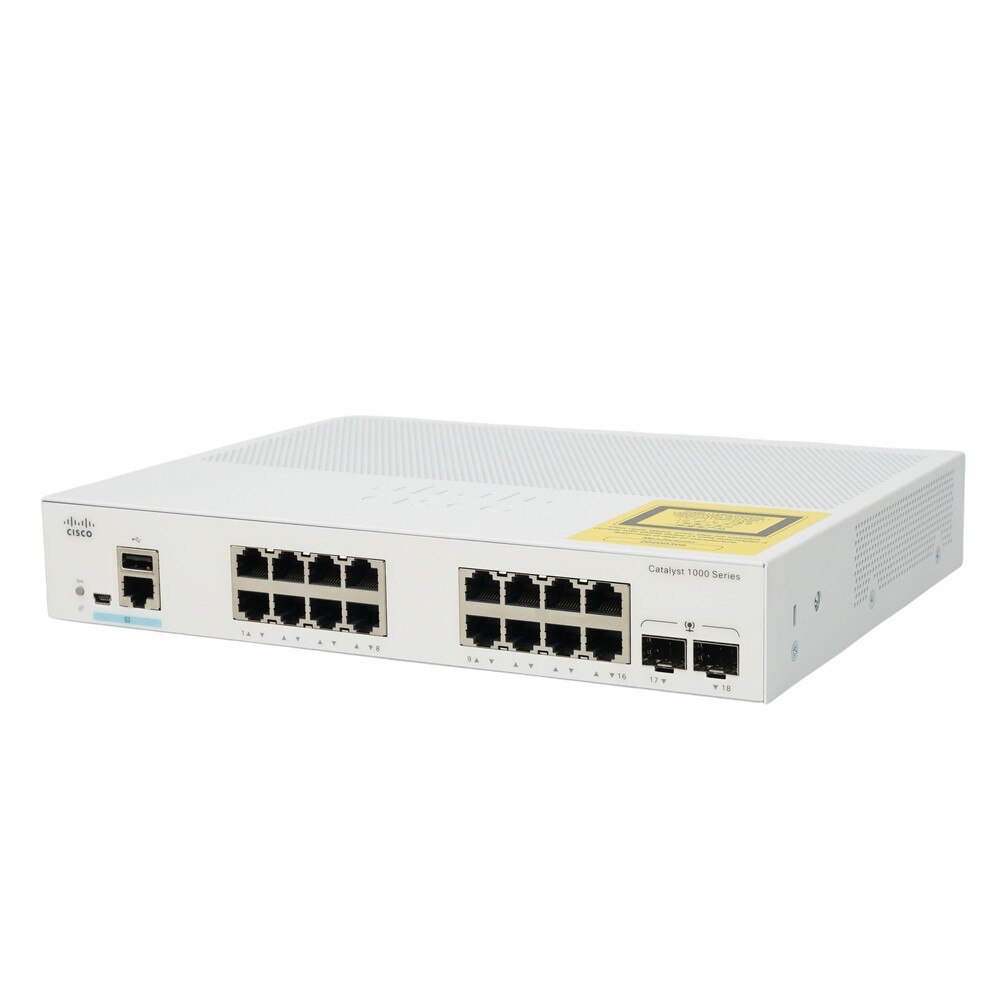

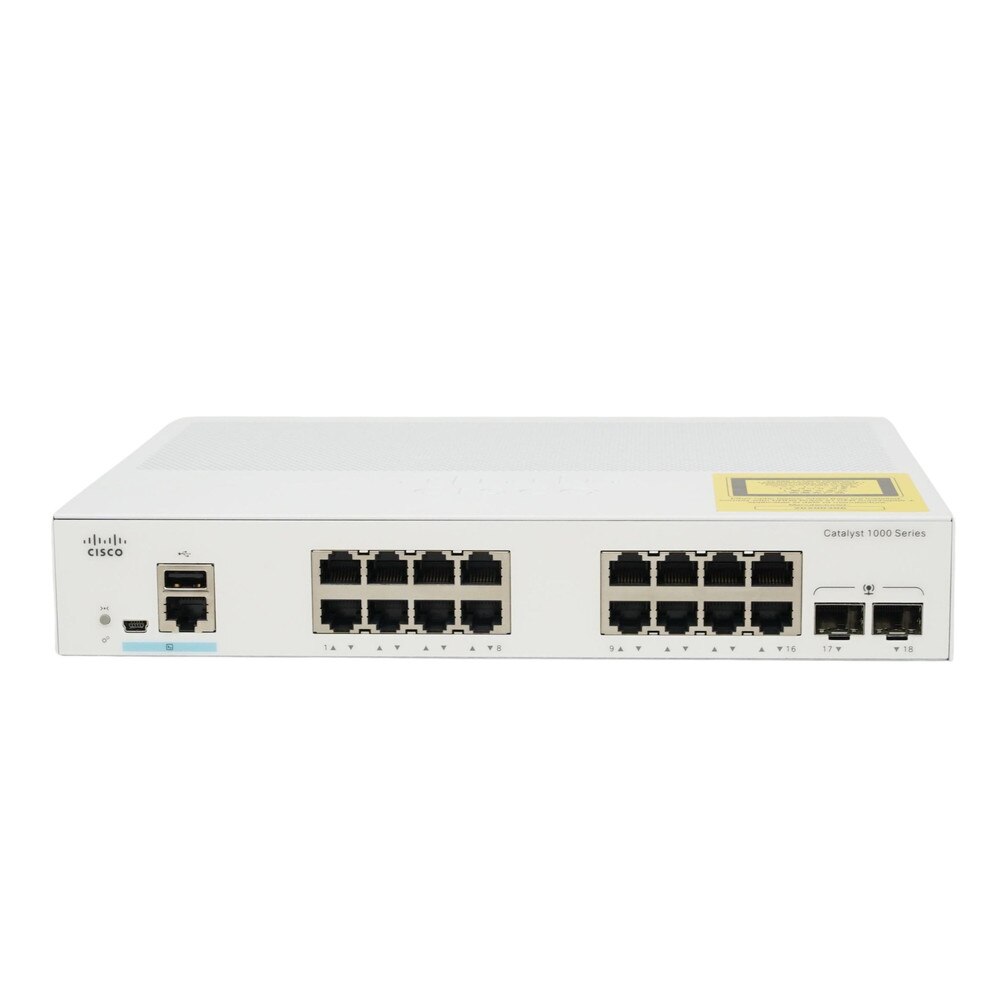

Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks | Refresh

Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks | Refresh

SKU: C1000-16T-E-2G-L-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$184.99 $184.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks | Refresh

The Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks is a trustworthy and feature-rich networking solution intended for small businesses and branch offices. This Layer 2 managed switch, with its high-speed connectivity, superior security features and simplified management, is excellent for supporting current corporate applications such as IoT devices, IP telephony and data-intensive processes. The Catalyst 1000-16T-E-2G-L includes 16 Gigabit Ethernet ports for quick and efficient device connectivity, as well as two SFP uplink ports for high-speed fiber connections to core networks or additional switches. With a switching capacity of 36 Gbps and a forwarding bandwidth of 18 Gbps, this switch enables seamless data flow between devices. Its compact, rack-mountable design and fanless operation make it ideal for noise-sensitive locations such as offices and classrooms. Advanced Layer 2 features like VLANs, Quality of Service (QoS) and IGMP snooping improve traffic management, while strong security measures safeguard the network from illegal access.


Key Features of Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks


• 16 Gigabit Ethernet Ports with high-speed connectivity for computers, printers, IP phones and other devices.

• 2 SFP Uplink Ports enables seamless network expansion with high-speed fiber connections.

• Layer 2 Switching includes VLANs, QoS, IGMP snooping and link aggregation for optimized traffic management.

• Advanced Security features ACLs, IEEE 802.1X authentication, port security and IP source guard.

• Fanless Design with silent operation suitable for noise-sensitive environments.

• Energy Efficiency complies with Energy Efficient Ethernet (EEE) standards to reduce power consumption.

• Rack-mountable design fits neatly into small spaces.

• Managed via CLI or an intuitive web-based interface.

• Supports forwarding bandwidth of 18 Gbps and switching bandwidth of 36 Gbps.


Benefits of Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks


🗹 Provides reliable high-speed connections for a variety of devices and applications.

🗹 SFP uplink ports enable easy integration with core networks or additional switches.

🗹 Protect sensitive data with advanced security features like ACLs and port authentication.

🗹 Layer 2 features ensure efficient handling of network traffic for improved performance.

🗹 Fanless design ensures quiet performance in noise-sensitive environments like offices or classrooms.

🗹 Energy-efficient technologies help reduce operational costs over time.

🗹 Fits neatly into any workspace without taking up excessive space.

🗹 Intuitive management options simplify installation and configuration.

🗹 Built with Cisco’s trusted quality for long-term use in demanding environments.

🗹 Advanced features ensure compatibility with evolving business needs.

Specifications

Specification for Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks | Refresh

ManufacturerCisco
Manufacturer Part NumberC1000-16T-E-2G-L-RF
Product NameCisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Performance
Forwarding bandwidth: 18 Gbps ¦ Switching bandwidth: 36 Gbps ¦ Forwarding rate (64‑byte L3 packets): 26.78 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status
Interfaces
16 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A

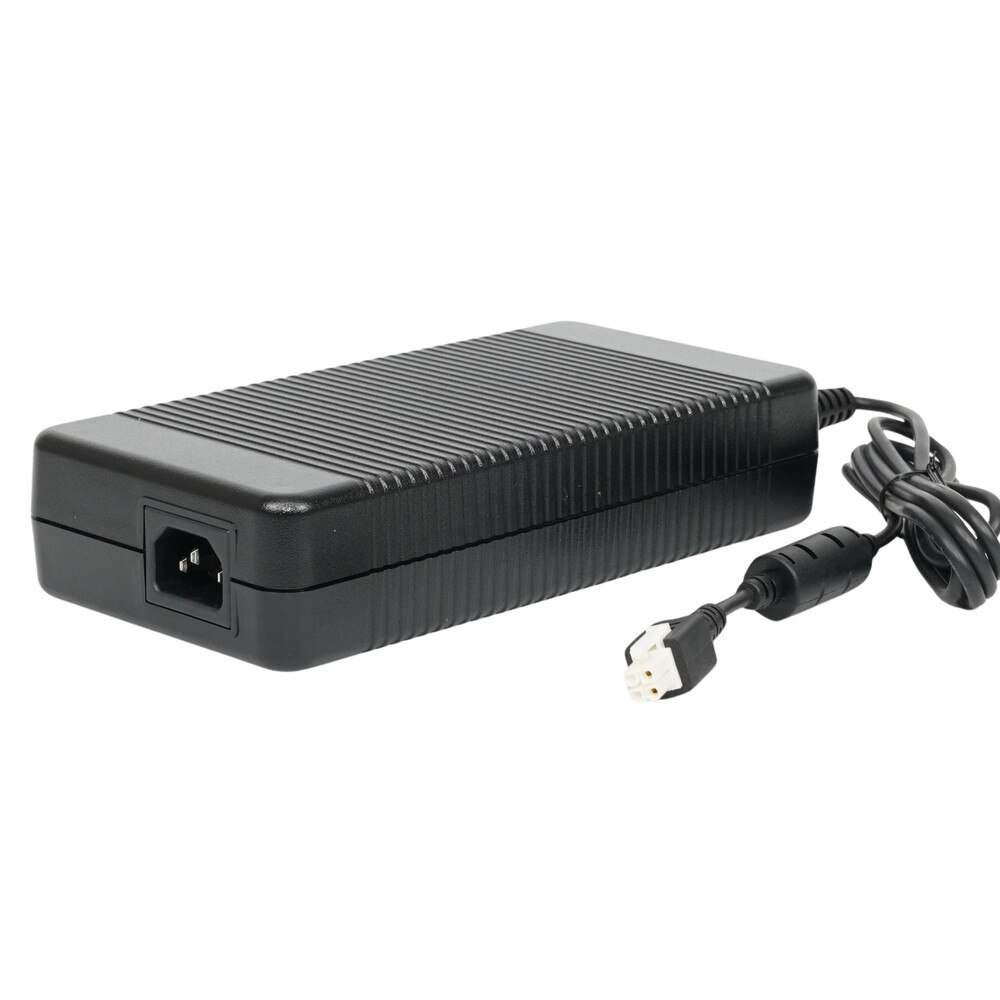

Power Device
External power adapter
Installed Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Width
10.6 in
Depth
8.3 in
Height
1.7 in
Weight
3.13 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 90%
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95%

User Guides

Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks Data Sheet

Frequently Asked Questions

Cisco Catalyst 1000-16T-E-2G-L 16-Port Gigabit Ethernet Managed Switch with 2 SFP Uplinks | New
Frequently Asked Questions (FAQ's)



What is the port configuration of the Cisco Catalyst 1000-16T-E-2G-L?
  • The switch includes 16 Gigabit Ethernet ports and two SFP uplink ports.
    • Is the Cisco Catalyst 1000-16T-E-2G-L a managed switch?
  • Yes, this is a fully managed Layer 2 switch.
    • Does this switch support PoE (Power over Ethernet)?
  • No, the 1000-16T-E-2G-L does not support PoE.
    • Can this switch be mounted in a rack?
  • Yes, it is compatible with rack mounting when using the required rack-mount kit.​
    • What security features are included in this switch?
  • It supports VLANs, Access Control Lists (ACLs), 802.1X authentication and port security.
    • Does the switch have a fan?
  • No, this switch has a fanless design for silent operation.
    • What is the maximum switching capacity of the Cisco Catalyst 1000-16T-E-2G-L?
  • The switch's switching capacity is 38.69 Gbps.
    • Is the Cisco Catalyst 1000-16T-E-2G-L stackable?
  • No, this model does not allow physical stacking.
    • What management interfaces are available for this switch?
  • It can be managed using a web-based interface, the Command Line Interface (CLI), or the Cisco Network Assistant (CNA).
    • Can this switch be used in an office environment?
  • Yes, its fanless design makes it ideal for noise-sensitive locations such as workplaces.
    • What kind of uplink ports does the switch have?
  • It features two SFP uplink connectors for fiber communication.
    • Does the switch support VLANs?
  • Yes, it can handle up to 256 active VLANs.
    • Is the switch compatible with Cisco DNA Center?
  • The C1000 series does not support Cisco DNA Center.
    • Does this switch support Quality of Service (QoS)?
  • Yes, it supports basic QoS capabilities for prioritizing network traffic.
    • What is the power consumption of this switch?
  • The average power consumption is 11.1 watts.
    • What is the operating temperature range for the Cisco Catalyst 1000-16T-E-2G-L?
  • The working temperature ranges from 0°C to 45°C (32°F to 113°F).
    • Does the switch have support for Link Aggregation (EtherChannel)?
  • Yes, it allows link aggregation with up to eight active ports per EtherChannel.
    • Can I configure port mirroring on this switch?
  • Yes, it does allow port mirroring for traffic analysis and monitoring.
    • Is the Cisco 1000-16T-E-2G-L suitable for small and medium-sized businesses?
  • Yes, it is specifically built for small and medium-sized organizations who require managed network solutions.
    • Does the switch support IPv6?
  • Yes, the switch can handle IPv6 for both management and data traffic.
