Overview
Overview for Cisco Catalyst C1000-8T-2G-L-RF 8-Port Gigabit Managed Network Switch | Refresh

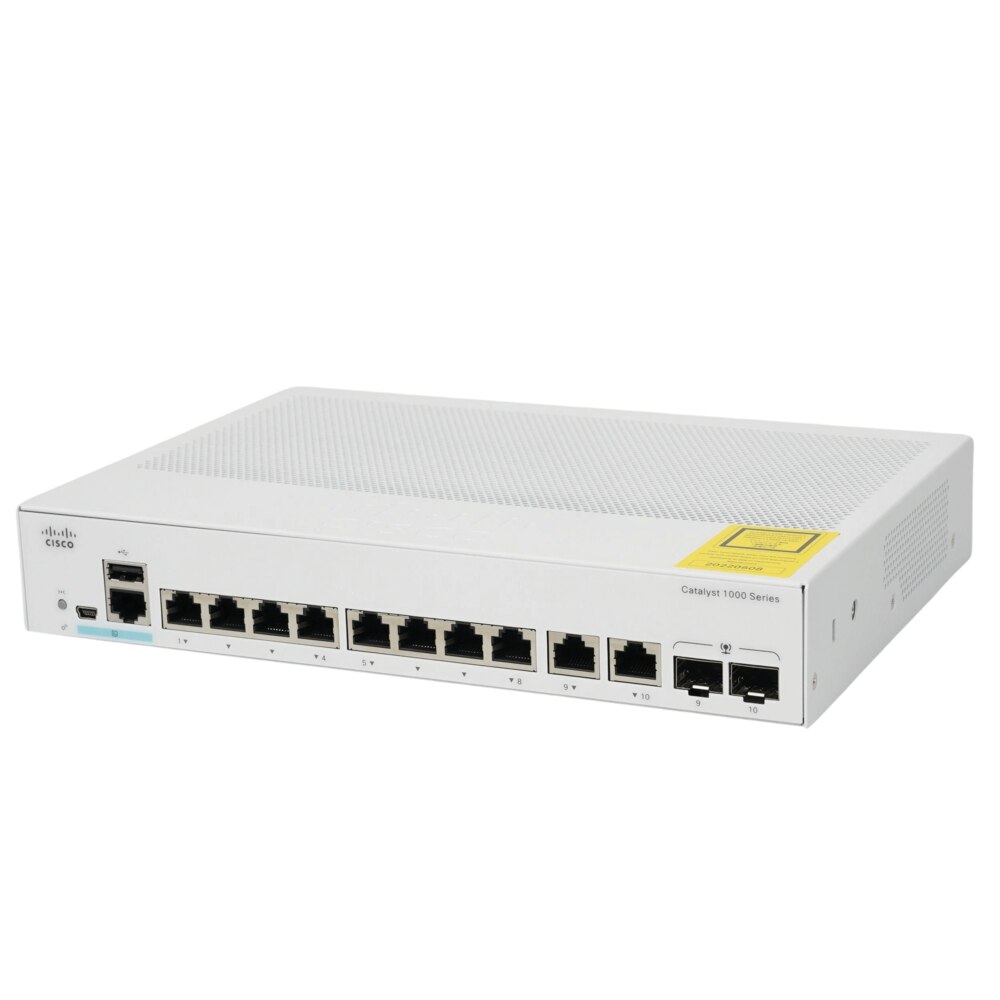

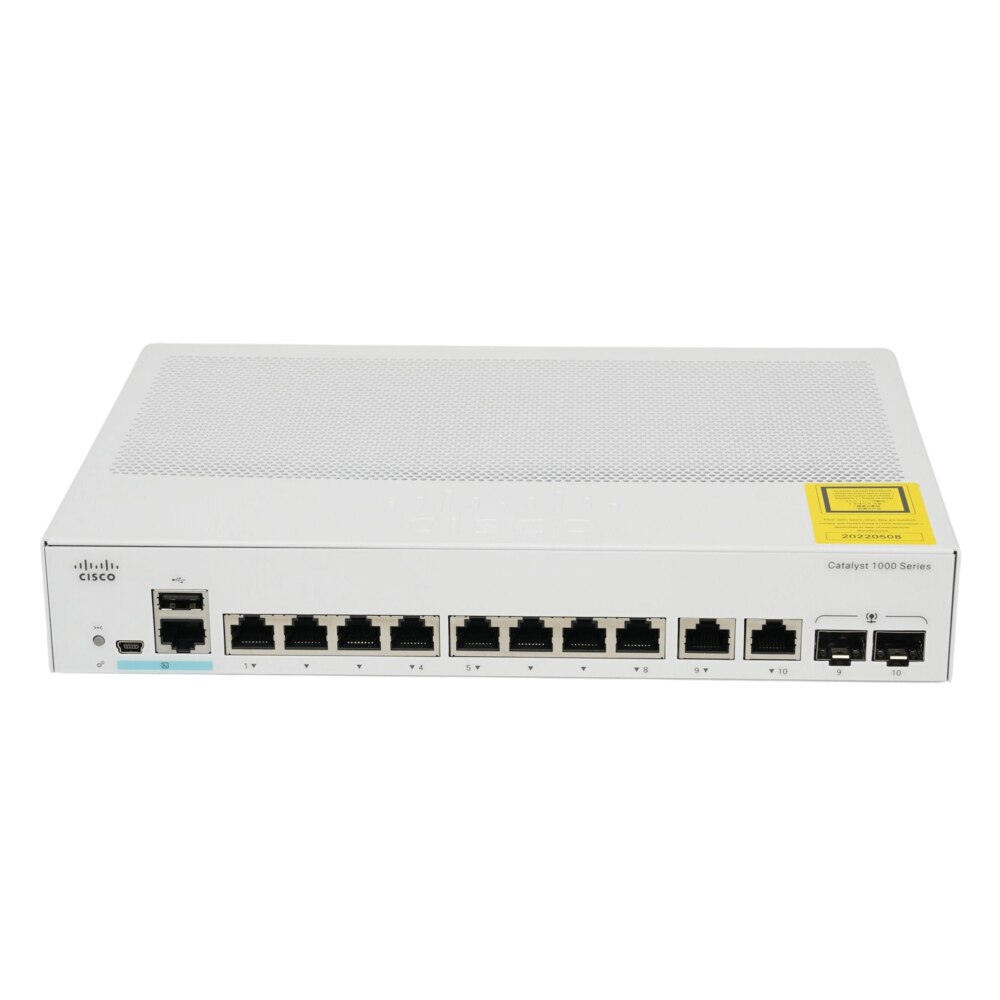

The Cisco Catalyst C1000-8T-2G-L-RF 8-Port Gigabit Managed Network Switch is a powerful 8-port Gigabit managed network switch aimed at small to medium-sized businesses and branch offices. This versatile device provides enterprise-class features in a small and affordable package, making it an excellent choice for organizations looking to improve their network infrastructure. With 8 Gigabit Ethernet ports, the switch provides exceptional network performance, allowing for fast data transfers and smooth communication between connected devices. Its two combo uplink ports provide additional options for network expansion and connectivity to other network segments.
With its robust management capabilities, the C1000-8T-2G-L enables network administrators to monitor and customize the network to meet specific needs. The switch supports VLANs, which allows for more efficient network segmentation and improved security. This switch prioritizes security by including access control lists (ACLs), port security, and other advanced security measures to prevent unauthorized access and potential threats.
The Cisco Catalyst C1000-8T-2G-L supports Quality of Service (QoS), which ensures that critical applications and services have adequate bandwidth and priority. This feature is especially useful for businesses that rely on voice, video, or other latency-sensitive applications. Designed with energy efficiency in mind, the switch includes features such as Energy Efficient Ethernet (EEE), which reduces power consumption during periods of low network activity. This not only helps to reduce operational costs, but it also aligns with environmentally responsible business practices. The C1000-8T-2G-L's compact form factor makes it suitable for a variety of deployment scenarios, including rack-mounting and desktop use. Its solid construction ensures dependable performance and longevity.
Key Features of Cisco Catalyst C1000-8T-2G-L-RF 8-Port Gigabit Managed Network Switch
• 8 Gigabit Ethernet ports with PoE+ support and 2 combo uplink ports (1G SFP or RJ-45).
• Provides a 67W PoE budget for powering connected devices.
• Offers forwarding bandwidth of 10 Gbps, switching bandwidth of 20 Gbps, and a forwarding rate of 14.88 Mpps for 64-byte L3 packets.
• Enterprise-class fixed managed Gigabit Ethernet Layer 2 switch capabilities.
• Supports Cisco IOS software with both CLI (command-line interface) and an easy-to-use web user interface.
• Includes support for 802.1x authentication, Switched Port Analyzer (SPAN), Access Control Lists, and Bridge Protocol Data Unit (BPDU) Guard.
• Supports up to 256 active VLANs and 4094 VLAN IDs.
• Capable of handling jumbo frames up to 10240 bytes.
• Supports IGMP, MLDv2, MLD, MSTP, RSTP, and STP.
• Offers multiple protocols including SNMP, RMON, Telnet, HTTP, TFTP, SSH, CLI, NTP, ICMP, DHCP, and more.
• Supports Kerberos, Secure Shell (SSH), RADIUS, and TACACS+.
• Employs intelligent power management for flexible power allocation across all 30W ports, with perpetual PoE ensuring power is maintained during switch reloads
Specifications
Specification for Cisco Catalyst C1000-8T-2G-L-RF 8-Port Gigabit Managed Network Switch | Refresh
Manufacturer | Cisco |
Manufacturer Part Number | C1000-8T-2G-L-RF |
Product Name | Cisco Catalyst C1000-8T-2G-L-RF 8-Port Gigabit Managed Network Switch |
Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) |
Performance | Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64‑byte L3 packets): 14.88 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 10.6 in |
Depth | 7.3 in |
Height | 1.7 in |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
