Overview of Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch | Refresh
The Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch is a compact, enterprise-grade Layer 2 switch designed for small businesses, branch offices and essential IoT deployments. This switch provides strong, dependable connectivity for applications that demand high bandwidth and for smooth network growth, due to its eight high-speed Gigabit Ethernet ports and two combo Gigabit SFP uplink ports. The C1000-8T-E-2G-L, driven by Cisco IOS Software, provides intuitive management through CLI and web UI, simplifying the configuration, monitoring and securing of networks with advanced features for administrators. The switch guarantees seamless and continuous data transfers, due to its 20 Gbps switching bandwidth and 14.88 Mpps forwarding rate. With its design that uses no fans and conserves energy, it operates silently—perfect for offices where noise is a concern. Granular network segmentation, efficient traffic management and robust protection against unauthorized access are made possible by enhanced Layer 2 features like VLANs, QoS, IGMP snooping and comprehensive security protocols. This switch's compact, rack-mountable design combined with Cisco's well-known reliability makes it a future-proof option for expanding business networks.
Key Features of Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch
• 8 x 10/100/1000 Gigabit Ethernet Ports delivers high-speed wired connectivity for desktops, printers and IP devices.
• 2 x Combo Gigabit SFP Uplink Ports with flexible fiber or copper uplinks for seamless network expansion and backbone integration.
• 20 Gbps Switching Bandwidth & 14.88 Mpps Forwarding Rate ensures fast, reliable data transfers for demanding business applications.
• Fanless, Silent Operation that is perfect for office and noise-sensitive environments.
• Advanced Security with 802.1x authentication, Access Control Lists (ACLs), BPDU Guard, DHCP snooping and port security for comprehensive protection.
• Layer 2 Features with VLANs, QoS, IGMP/MLD snooping, STP/RSTP/MSTP, jumbo frame support and link aggregation for efficient traffic management.
• Easy Management that configure and monitor via intuitive web UI or CLI; supports SNMP, SSH, RADIUS, TACACS+ and more.
• Energy Efficient that supports Energy Efficient Ethernet (EEE) for reduced power consumption.
• Robust Hardware with ARM v7 800 MHz CPU, 512 MB RAM, 256 MB flash memory for reliable performance.
• Compact, Rack-Mountable Design that fits easily in small spaces or standard racks, weighing just 3.41 lbs (1.55 kg).
Benefits of Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch
🗹 Combo uplink ports and high port density make scaling your network simple and cost-effective.
🗹 Advanced access controls, authentication and threat protection features safeguard sensitive business data and devices.
🗹 High switching capacity and robust hardware ensure uninterrupted connectivity for critical operations.
🗹 User-friendly web UI and Cisco IOS CLI make setup, monitoring, and troubleshooting efficient for IT teams.
🗹 Compact, fanless design is ideal for open offices, retail and environments where noise reduction is essential.
🗹 Energy-efficient operation lowers power consumption and aligns with green business practices.
🗹 Cisco’s quality engineering provide long-term value and peace of mind.
Specifications
Specifications for Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-8T-E-2G-L-RF |
| Product Name | Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch |
| Product Type | Networking Switch |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) |
| Performance | Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64‑byte L3 packets): 14.88 Mpps |
| Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Status |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |

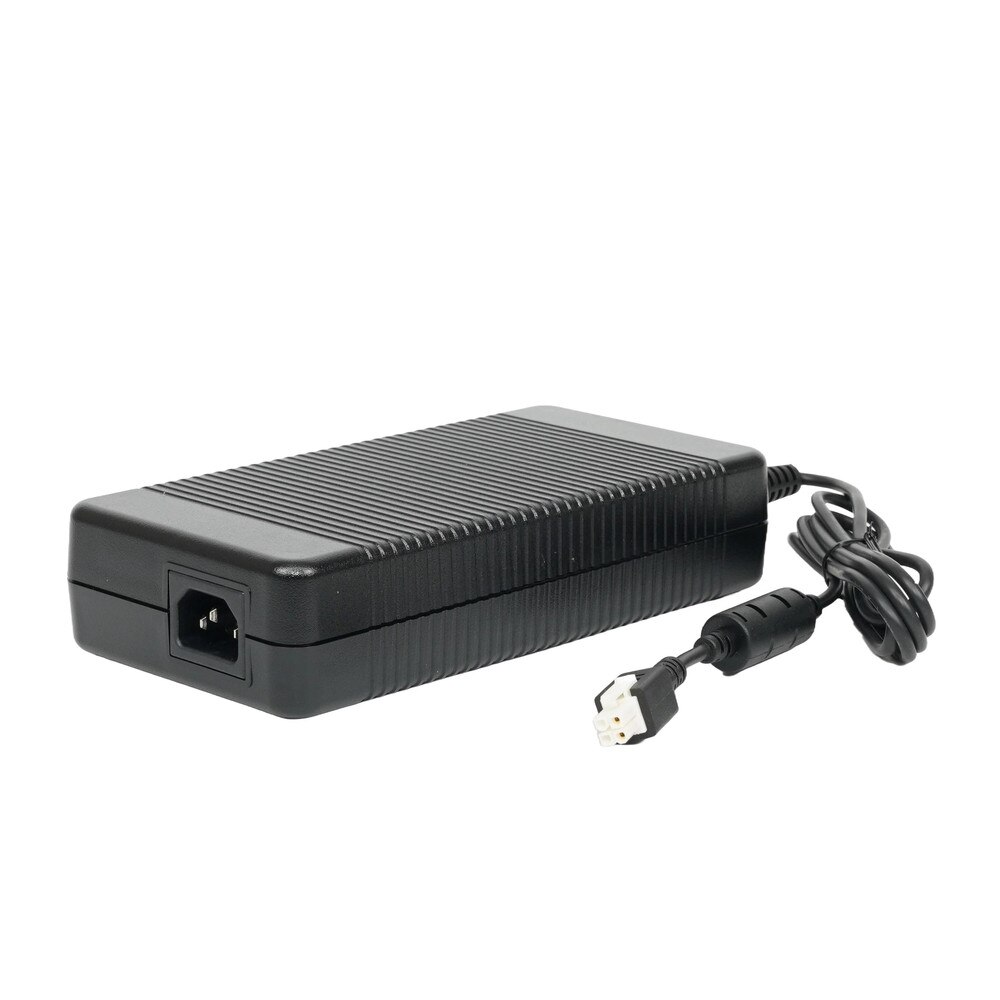

| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
| Width | 26.8 cm |
| Depth | 18.5 cm |
| Height | 4.39 cm |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% |
User Guides
Frequently Asked Questions
Cisco Catalyst C1000-8T-E-2G-L 8-Port Gigabit Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C1000-8T-E-2G-L? The Cisco Catalyst C1000-8T-E-2G-L is an 8-port Gigabit managed network switch designed for small and medium-sized businesses, offering advanced security and management features.
How many ports does the Cisco Catalyst C1000-8T-E-2G-L support? It supports 8 Gigabit Ethernet ports and 2 Gigabit SFP uplink ports.
Is the Cisco Catalyst C1000-8T-E-2G-L a managed switch? Yes, it is a fully managed switch with advanced Layer 2 features for optimized performance and security.
Can the Cisco Catalyst C1000-8T-E-2G-L be used in a stackable configuration? No, this model does not support stacking but offers standalone functionality with robust management options.
What type of uplink ports are available on the Cisco Catalyst C1000-8T-E-2G-L? It has 2 SFP Gigabit uplink ports for high-speed fiber or copper connections.
Does the Cisco Catalyst C1000-8T-E-2G-L support Power over Ethernet (PoE)? No, this model does not support PoE. For PoE functionality, you would need a different variant of the Cisco Catalyst C1000 series.
What is the switching capacity of the Cisco Catalyst C1000-8T-E-2G-L? The switch has a switching capacity of 20 Gbps, providing high-performance network traffic management.
Does the Cisco Catalyst C1000-8T-E-2G-L support VLANs? Yes, it supports Virtual LANs (VLANs) for network segmentation and improved traffic management.
What is the maximum power consumption of the Cisco Catalyst C1000-8T-E-2G-L? The maximum power consumption is approximately 14.8W.
Does the Cisco Catalyst C1000-8T-E-2G-L support Quality of Service (QoS)? Yes, it supports advanced QoS features to prioritize critical network traffic and ensure optimal performance.
Can the Cisco Catalyst C1000-8T-E-2G-L be used for network security? Yes, it includes advanced security features such as port security, 802.1X authentication, and access control lists (ACLs).
Is there a web-based interface for managing the Cisco Catalyst C1000-8T-E-2G-L? Yes, the switch can be managed via a user-friendly web-based interface, as well as through CLI, SNMP, and other tools.
Does the Cisco Catalyst C1000-8T-E-2G-L support network redundancy? Yes, it supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for network redundancy.
What is the operating temperature range for the Cisco Catalyst C1000-8T-E-2G-L? The operating temperature range is between 32°F to 113°F (0°C to 45°C), suitable for most indoor environments.
What Layer 2 features are supported by the Cisco Catalyst C1000-8T-E-2G-L? It supports Layer 2 features such as VLANs, trunking, STP, RSTP, and link aggregation for enhanced network management.
Is the Cisco Catalyst C1000-8T-E-2G-L suitable for small businesses? Yes, this switch is ideal for small to medium-sized businesses that require robust performance, security, and easy management.
How can the Cisco Catalyst C1000-8T-E-2G-L be managed remotely? It can be managed remotely via Cisco DNA Center, web-based GUI, or CLI for network administrators.
Does the Cisco Catalyst C1000-8T-E-2G-L support IPv6? Yes, the switch is IPv6-ready, allowing for compatibility with modern network protocols.
Can I prioritize traffic with the Cisco Catalyst C1000-8T-E-2G-L? Yes, it supports traffic prioritization using QoS, ensuring important data like voice and video gets precedence over other types of traffic.
What is the default IP address of the Cisco Catalyst C1000-8T-E-2G-L? The default IP address for management is 192.168.1.254.
