🗹 24 x Gigabit Ethernet PoE+ Ports
🗹 4 x Gigabit SFP Ports
🗹 56 Gb/s Switching Capacity
🗹 41.67 Mpps Forwarding Rate
🗹 800 MHz ARM Processor
🗹 512MB RAM
🗹 195W Power Budget
🗹 Rack-Mountable Design
🗹 Comprehensive Security
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

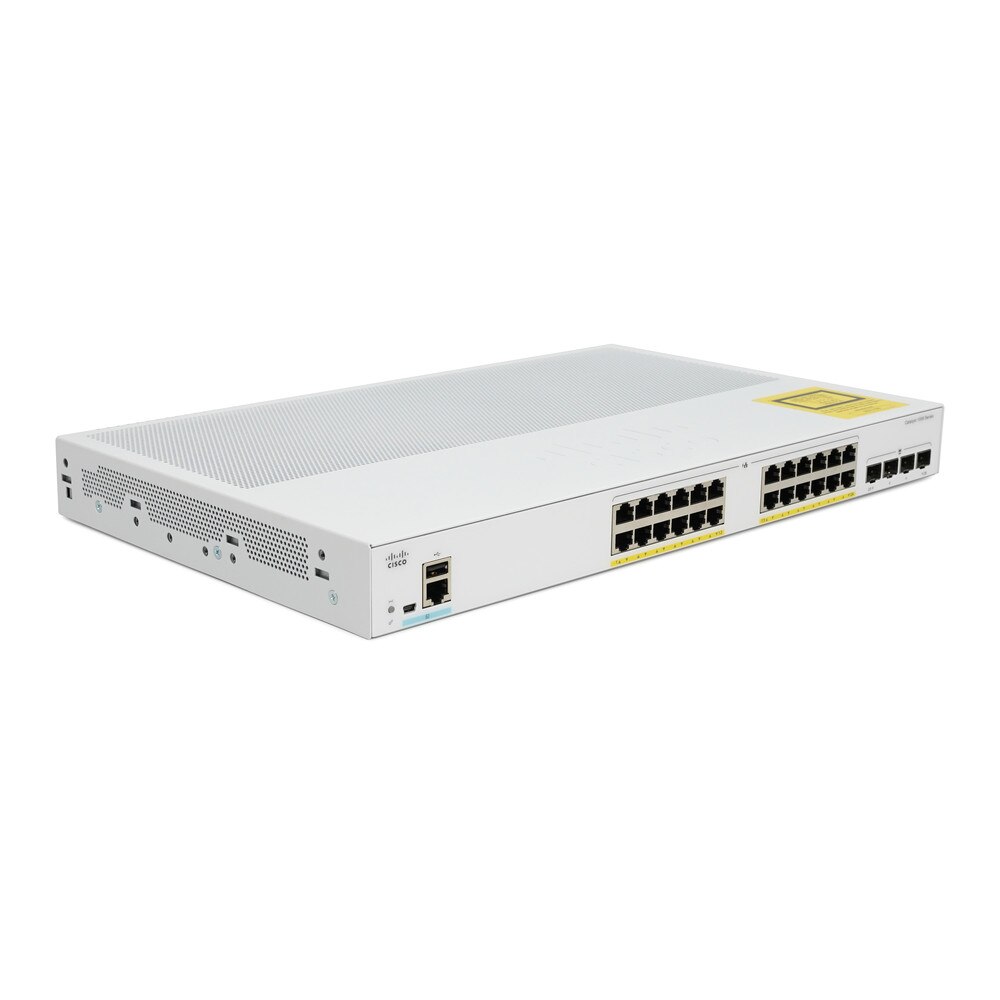

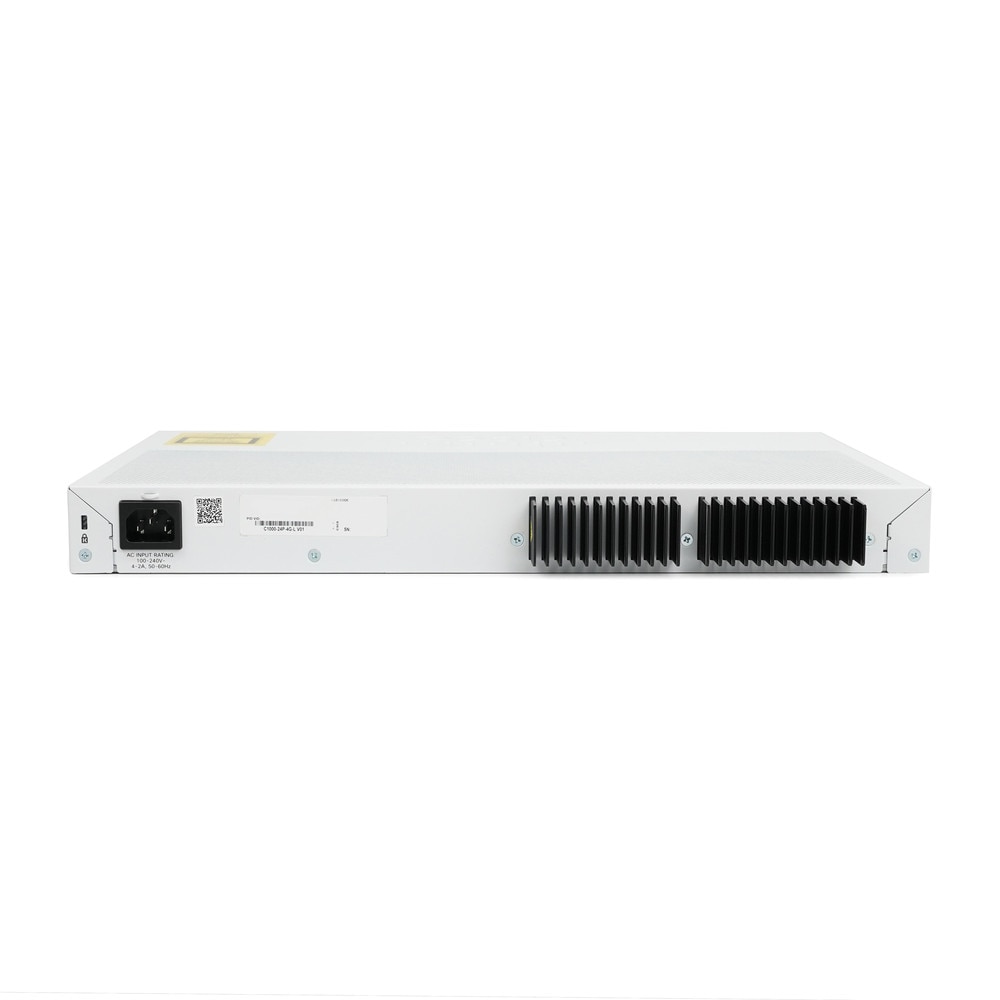

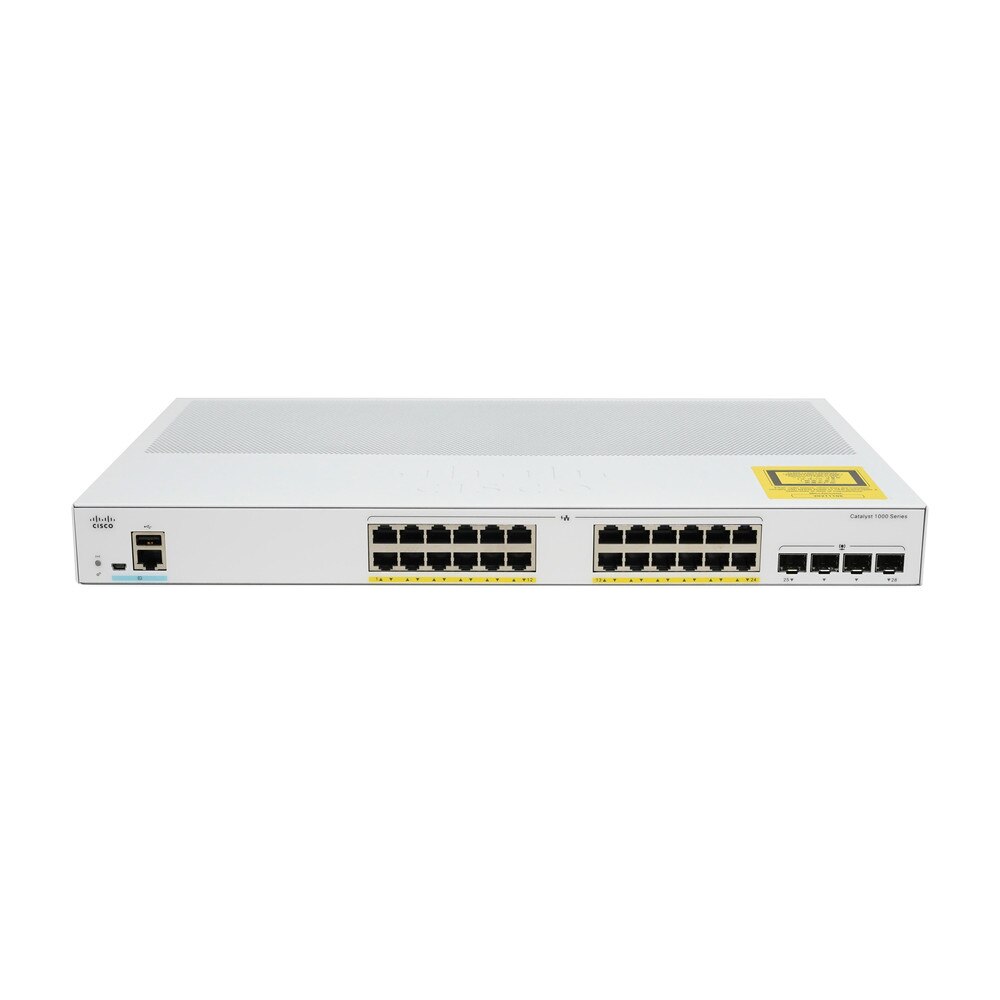

The Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch is a powerful managed network switch designed for branch offices and small businesses. This enterprise-class Layer 2 switch's compact, rack-mountable form factor combines security, performance and flexibility. The C1000-24P-4G-L features 24 Gigabit Ethernet ports with PoE+ functionality and a 195W power budget, along with four 1G SFP uplink ports for enhanced connectivity. Its 800 MHz ARM CPU and 512MB of RAM enable reliable performance with a forwarding rate of 41.67 Mbps and a switching capacity of 56 Gbps.
• 24 Gigabit Ethernet ports with PoE+ support (195W budget)
• Four 1G SFP uplink ports for flexible network expansion
• Intelligent PoE management with Perpetual PoE functionality
• Layer 2 switching capabilities with advanced QoS features
• Comprehensive security features including 802.1x, SPAN, and ACLs
• Easy management via web-based interface or command-line interface
• Fanless design for quiet operation
• Support for up to 16,000 MAC addresses
• IPv4 and IPv6 compatible for future-proof networking
• Cisco IOS software for reliable and familiar operation
🗹 Enhance network performance with Gigabit speeds and PoE+ support
🗹 Simplify deployment of IP phones, cameras, and wireless access points
🗹 Improve network reliability with advanced QoS and redundancy features
🗹 Secure your network with comprehensive threat defense capabilities
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with flexible uplink options
🗹 Simplify management and troubleshooting with intuitive interfaces
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with IPv6 support and software updates
🗹 Leverage Cisco's renowned quality and support for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-24P-4G-L |
| Product Name | Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 195 W |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
MTBF | 2,026,793 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 17.5 in |
Depth | 11.8 in |
Height | 1.7 in |
Weight | 7.78 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
