Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch | New
SKU: C1000-8P-E-2G-L-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

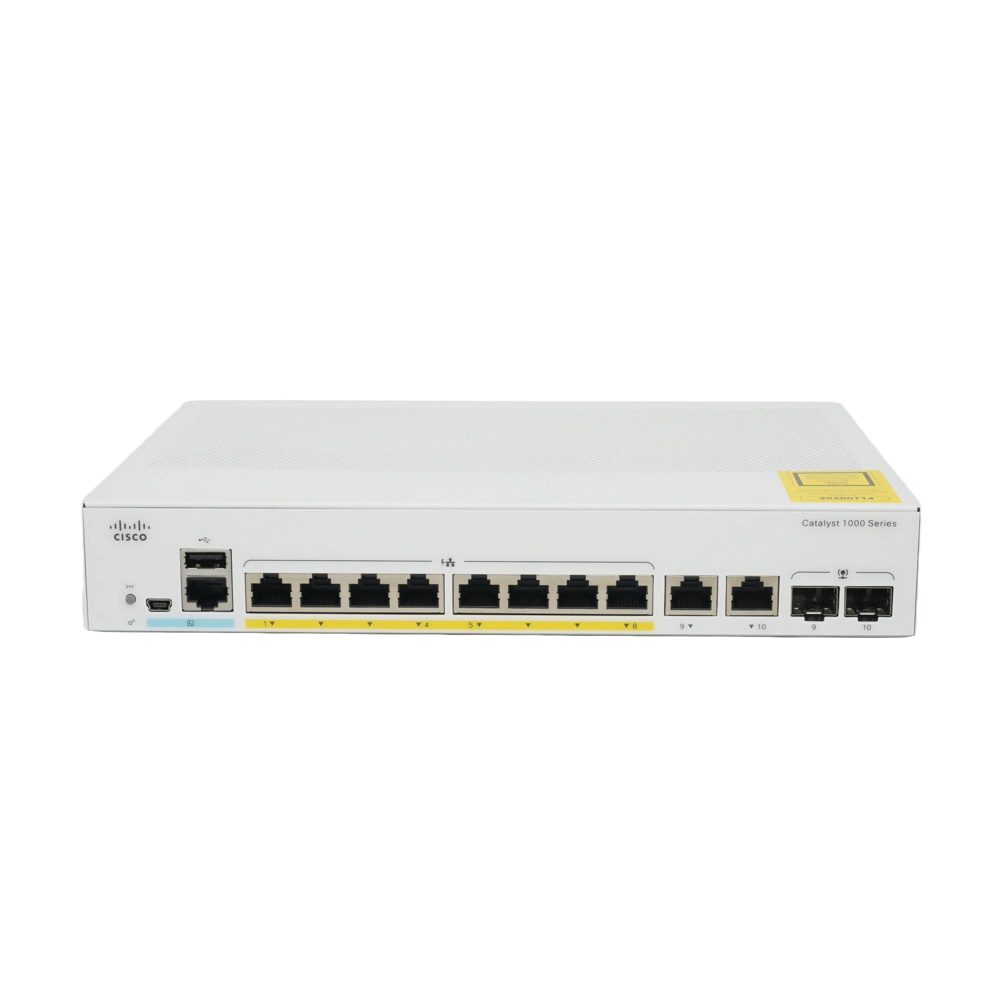

Overview of Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch | New
The Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch is a powerful and versatile 8-port Gigabit PoE+ managed network switch intended for small to medium-sized businesses and branch offices. This enterprise-class switch strikes the perfect balance of performance, features, and affordability, making it an excellent choice for organizations looking to improve their network infrastructure. The switch delivers exceptional performance for critical business applications and IoT deployments. Its PoE+ capability allows it to power devices like IP phones, wireless access points, and security cameras directly via Ethernet cable, making installation easier and clutter-free.
The C1000-8P-E-2G-L has a 10 Gbps forwarding bandwidth and a 20 Gbps switching bandwidth, ensuring smooth data transfer even in demanding network environments. It can handle up to 256 active VLANs and 4094 VLAN IDs, allowing for flexible network segmentation. This switch prioritizes security and supports a variety of authentication methods such as Kerberos, SSH, RADIUS, and TACACS+. It also includes advanced security features such as Access Control Lists (ACLs) and Network Admission Control (NAC), which protect against unauthorized access and malicious attacks.
The Cisco Catalyst C1000-8P-E-2G-L is simple to administer, with both a command-line interface and an intuitive web-based management interface. It supports single IP management, which allows up to eight switches to be managed from a single IP address, making network administration easier. This switch's compact design and energy-efficient operation make it suitable for deployment in a variety of environments. It supports Energy Efficient Ethernet (EEE), which reduces power consumption during times of low network activity, resulting in lower operational costs.
Key Features of Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch
• 8 Gigabit Ethernet ports with PoE+ support and 2 combo uplink ports (1G SFP or RJ-45).
• Provides a 67W PoE budget for powering connected devices.
• Offers forwarding bandwidth of 10 Gbps, switching bandwidth of 20 Gbps, and a forwarding rate of 14.88 Mpps for 64-byte L3 packets.
• Enterprise-class fixed managed Gigabit Ethernet Layer 2 switch capabilities.
• Supports Cisco IOS software with both CLI (command-line interface) and an easy-to-use web user interface.
• Includes support for 802.1x authentication, Switched Port Analyzer (SPAN), Access Control Lists, and Bridge Protocol Data Unit (BPDU) Guard.
• Supports up to 256 active VLANs and 4094 VLAN IDs.
• Capable of handling jumbo frames up to 10240 bytes.
• Supports IGMP, MLDv2, MLD, MSTP, RSTP, and STP.
• Offers multiple protocols including SNMP, RMON, Telnet, HTTP, TFTP, SSH, CLI, NTP, ICMP, DHCP, and more.
• Supports Kerberos, Secure Shell (SSH), RADIUS, and TACACS+.
• Employs intelligent power management for flexible power allocation across all 30W ports, with perpetual PoE ensuring power is maintained during switch reloads
Specifications
Specifications for Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-8P-E-2G-L |
| Product Name | Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Network Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 67 W |
Performance | Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64‑byte L3 packets): 14.88 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |

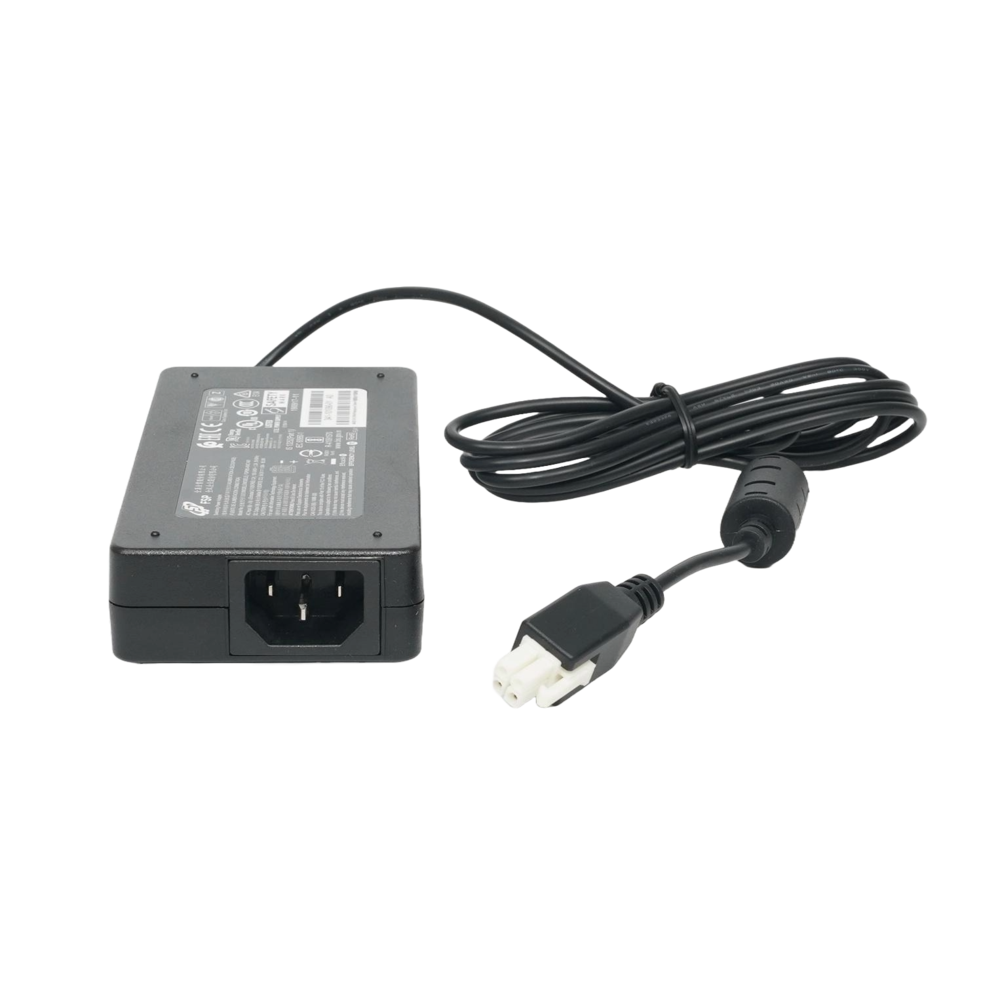

Power Device | External power adapter |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 10.6 in |
Depth | 7.3 in |
Height | 1.7 in |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
User Guides
Frequently Asked Questions
Cisco Catalyst C1000-8P-E-2G-L 8-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C1000-8P-E-2G-L switch? It is an 8-port Gigabit Ethernet managed switch with PoE+ support and 2 Gigabit SFP uplinks.
What does PoE+ mean? PoE+ (Power over Ethernet Plus) technology enables the switch to provide up to 30W of power per port to connected devices such as IP phones, cameras, and wireless access points.
What is the total PoE power budget of this switch? The total PoE power budget is 120 watts.
What are the uplink ports on this switch? The switch features 2 Gigabit SFP uplink ports.
Is the switch suitable for small to medium-sized businesses? Yes, it is designed for small and medium-sized businesses that require dependable and secure network connectivity.
What security features does this switch offer? It protects against unauthorized access and network attacks by incorporating IEEE 802.1X, port security, and DHCP snooping.
Can this switch be managed via a web interface? Yes, it can be managed via Cisco's user-friendly web interface.
Does the switch support energy-saving features? Yes, it does support Cisco Energy Efficient Ethernet (EEE) and other energy-saving features.
What is the switching capacity of the Cisco Catalyst C1000-8FP-E-2G-L? The switch has a capacity of 20 Gbps.
What is the forwarding rate of this switch? The forwarding rate is 14.88 million packets per second (Mpps).
What are the dimensions of the switch? Dimensions: 1.75 x 10.56 x 9.44 inches.
What is the weight of the switch? The switch weighs 4.85 pounds.
Can this switch be integrated into an existing Cisco network? Yes, it can work seamlessly with an existing Cisco network.
Is the switch stackable? No, the Cisco Catalyst C1000-8P-E-2G-L does not stack.
Does the switch support Quality of Service (QoS)? Yes, it supports QoS for prioritizing network traffic.
What management options are available for this switch? A web-based interface, Cisco Network Assistant, CLI, and SNMP are among the management options available.
Can this switch be used in harsh environments? It is intended for use in standard office settings; for harsher environments, a ruggedized switch is recommended.
Does the switch support VLANs? Yes, it supports virtual LANs (VLANs) to segment network traffic.
Is there a warranty for the Cisco Catalyst C1000-8P-E-2G-L switch? Yes, it includes Cisco's standard limited lifetime hardware warranty.
Where can I find support and documentation for this switch? Support and documentation are available on the Cisco website and through Cisco customer support services.
