Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion | New
SKU: C9200-NM-4G-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion | New

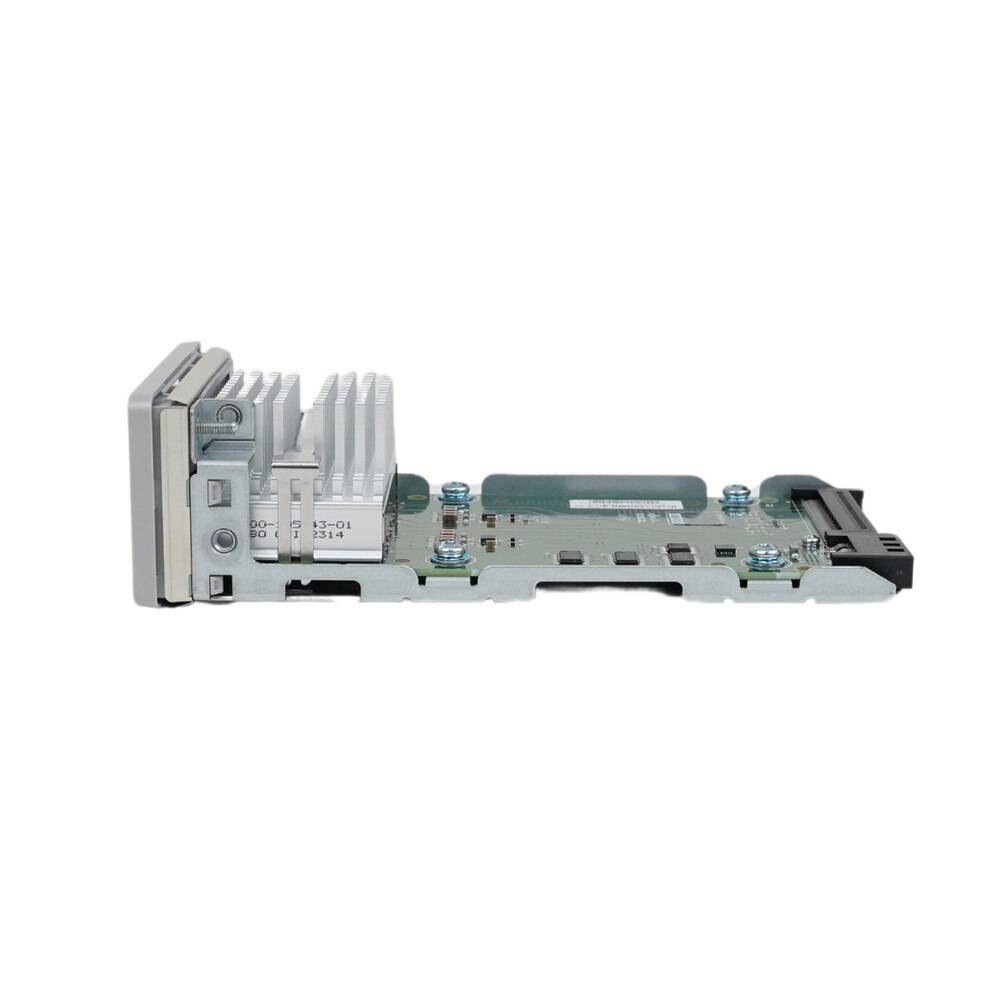

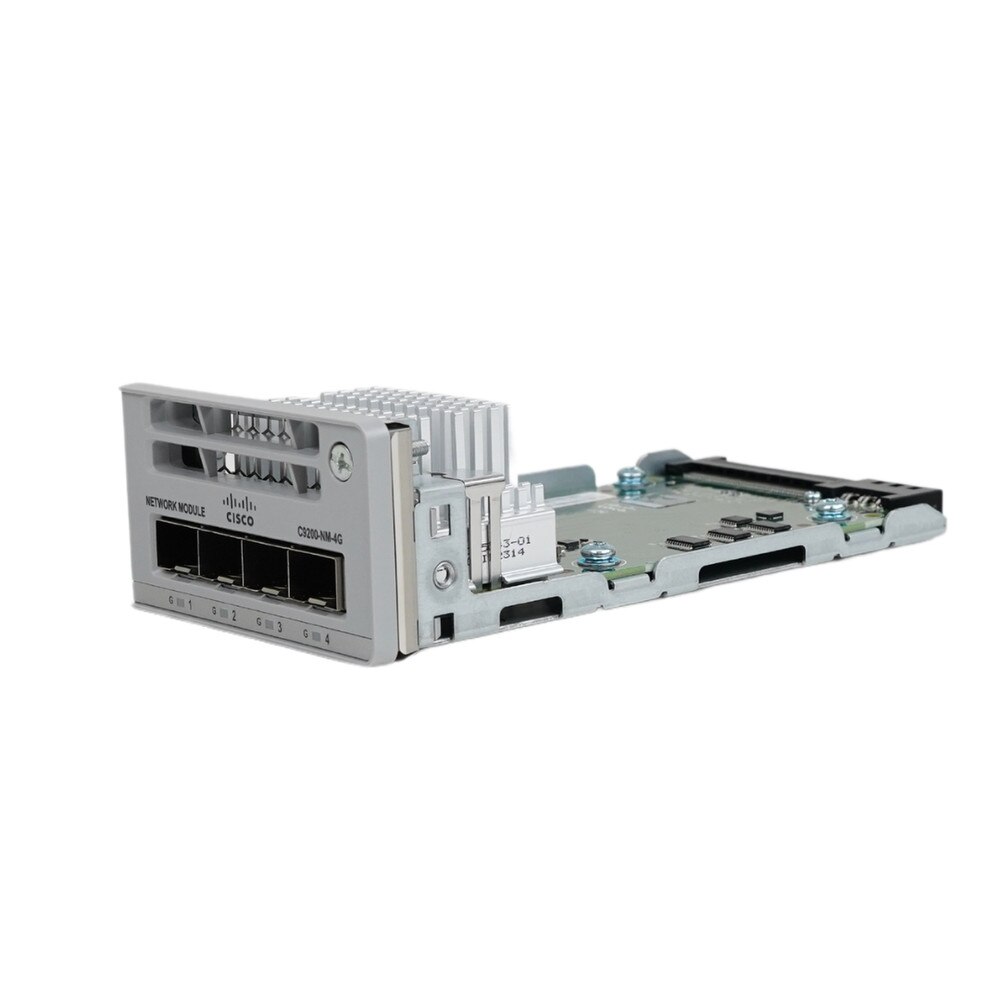

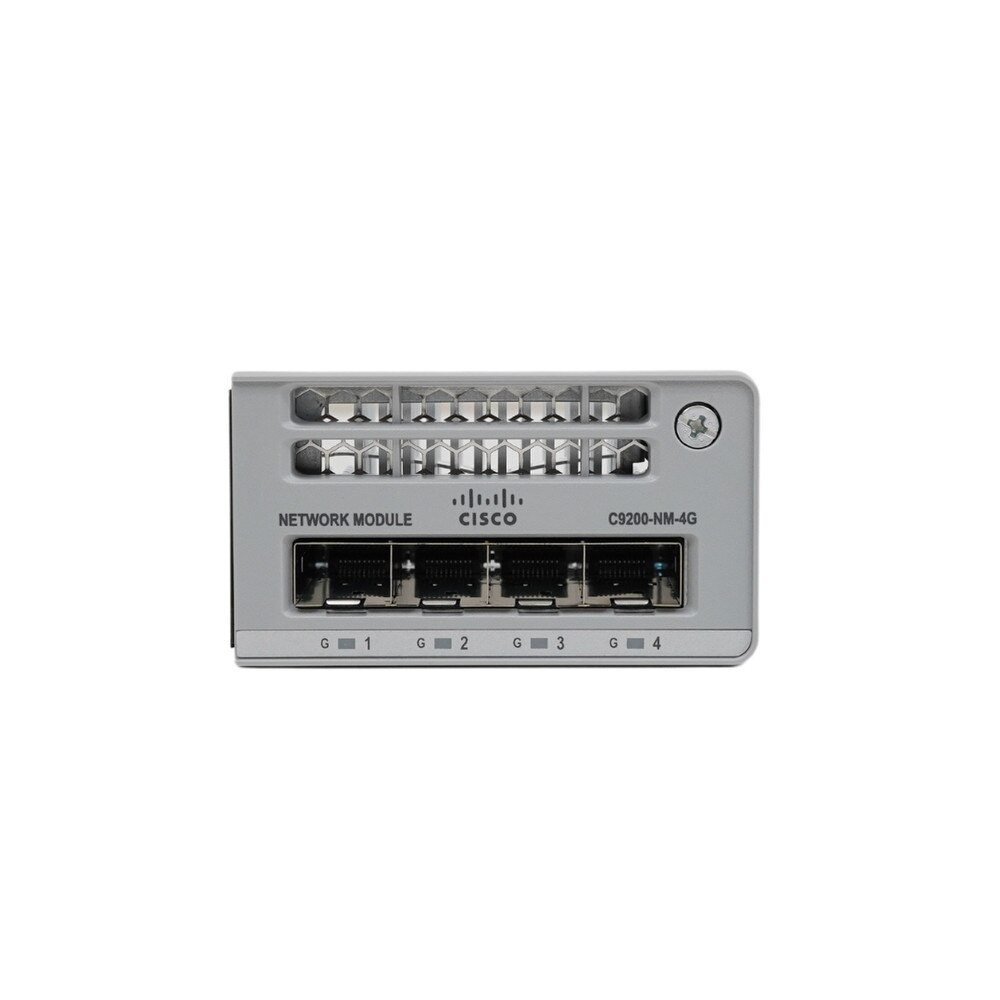

The Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion is a versatile expansion module that improves the connectivity of Cisco Catalyst 9200 switches. This small module gives your switch four Gigabit Ethernet ports, allowing you to easily expand your network infrastructure and connect more devices. The C9200-NM-4G module works with several Catalyst 9200 series switches, including the C9200-24T, C9200-48P, and C9200-48T models. It seamlessly integrates with your existing switch, adding ports for devices like computers, IP phones, security cameras, and wireless routers. The C9200-NM-4G 4-Port Gigabit Ethernet Network Module is an excellent choice for businesses looking to expand their network infrastructure without adding additional switches. Its small footprint and simple installation make it an ideal solution for increasing connectivity in small to medium-sized networks.
Key Features of Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion
• 4 Gigabit Ethernet Ports offers high-speed connectivity for various network devices, ensuring reliable data transfer.
• The module can be easily installed in the expansion slot of compatible Catalyst 9200 switches, simplifying the expansion process.
• Advanced Security Features incorporates security features like access control lists (ACLs) and advanced network segmentation, protecting your network from potential threats.
• The ports can be configured as access ports or uplink ports, depending on your network requirements.
• Designed specifically for Cisco Catalyst 9200 series switches, ensuring seamless integration and optimal performance.
• Engineered for high reliability and performance, the C9200-NM-4G module enhances the overall capabilities of your Catalyst 9200 switch.
Specifications
Specifications for Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9200-NM-4G |
| Product Name | Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion |
| Product Type | Expansion Module |
Form Factor | Plug-in module |
Ports | Gigabit Ethernet x 4 |
Connectivity Technology | Wired |
Data Link Protocol | Gigabit Ethernet |
Data Transfer Rate | 1 Gbps |
Interfaces | 4 |
Designed For | P/N: C9200-48PL-A++, C9200-48PL-E++, C9200L-24P-4G-E-INTERPAPER, C9200L-48P-4G-E |
User Guides
Frequently Asked Questions
Cisco Catalyst C9200-NM-4G 4-Port Network Module Expansion
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C9200-NM-4G Network Module? It is an expansion module for Cisco Catalyst 9200 Series switches that adds four 1 Gigabit Ethernet (1GE) ports for additional uplink connections.
Which Cisco Catalyst switches are compatible with the C9200-NM-4G? It is compatible with Cisco's Catalyst 9200 Series switches.
What is the maximum data rate supported by the C9200-NM-4G? The module can handle a maximum data rate of 1 Gbps per port.
Can the C9200-NM-4G Network Module be used for stacking? No, the C9200-NM-4G is not a stacking module; it is only for uplink connections.
How many ports does the C9200-NM-4G provide? It comes with four 1GE ports.
What types of connections can the C9200-NM-4G support? It supports 1 Gigabit Ethernet connections, which are ideal for connecting to other network devices.
Is the C9200-NM-4G hot-swappable? Yes, the C9200-NM-4G can be hot-swapped, which means it can be installed and removed without turning off the switch.
What are the dimensions of the C9200-NM-4G Network Module? The dimensions are about 1.0 x 4.0 x 6.5 inches (2.5 x 10.1 x 16.5 cm).
Does the C9200-NM-4G require any additional power supply? No, it runs on power supplied by the Cisco Catalyst 9200 switch chassis.
Can the C9200-NM-4G be used with other network modules simultaneously? Yes, depending on the switch model, multiple network modules can be installed in separate slots.
What kind of transceivers are supported by the C9200-NM-4G? It is compatible with Cisco SFP (Small Form Factor Pluggable) transceivers.
How does the C9200-NM-4G improve network flexibility? It allows for more uplink capacity, which improves network segmentation and traffic management.
Is the C9200-NM-4G compatible with older Cisco switches? No, it was created specifically for Cisco Catalyst 9200 Series switches.
Can the C9200-NM-4G be used to connect to multiple switches simultaneously? Yes, the four ports can be used to connect to various switches or devices, enabling flexible network configurations.
Can the C9200-NM-4G be used in a data center environment? Yes, it's appropriate for data center, campus, and branch network deployments.
Does the C9200-NM-4G support Power over Ethernet (PoE)? This module does not support PoE. It is only for network uplink purposes.
How is the C9200-NM-4G installed? It is installed in a Cisco Catalyst 9200 Series switch's uplink module slot without the use of any tools.
What operating temperature range is supported by the C9200-NM-4G? It has an operating temperature range of 32°F to 104°F (0°C to 40°C).
Can the C9200-NM-4G be used for both copper and fiber connections? Yes, depending on the SFP transceivers used, it can handle both copper and fiber connections.
How does the C9200-NM-4G contribute to network security? It supports Cisco security features such as encrypted communications and secure boot, which ensure secure network operations.
