Overview of Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch | New

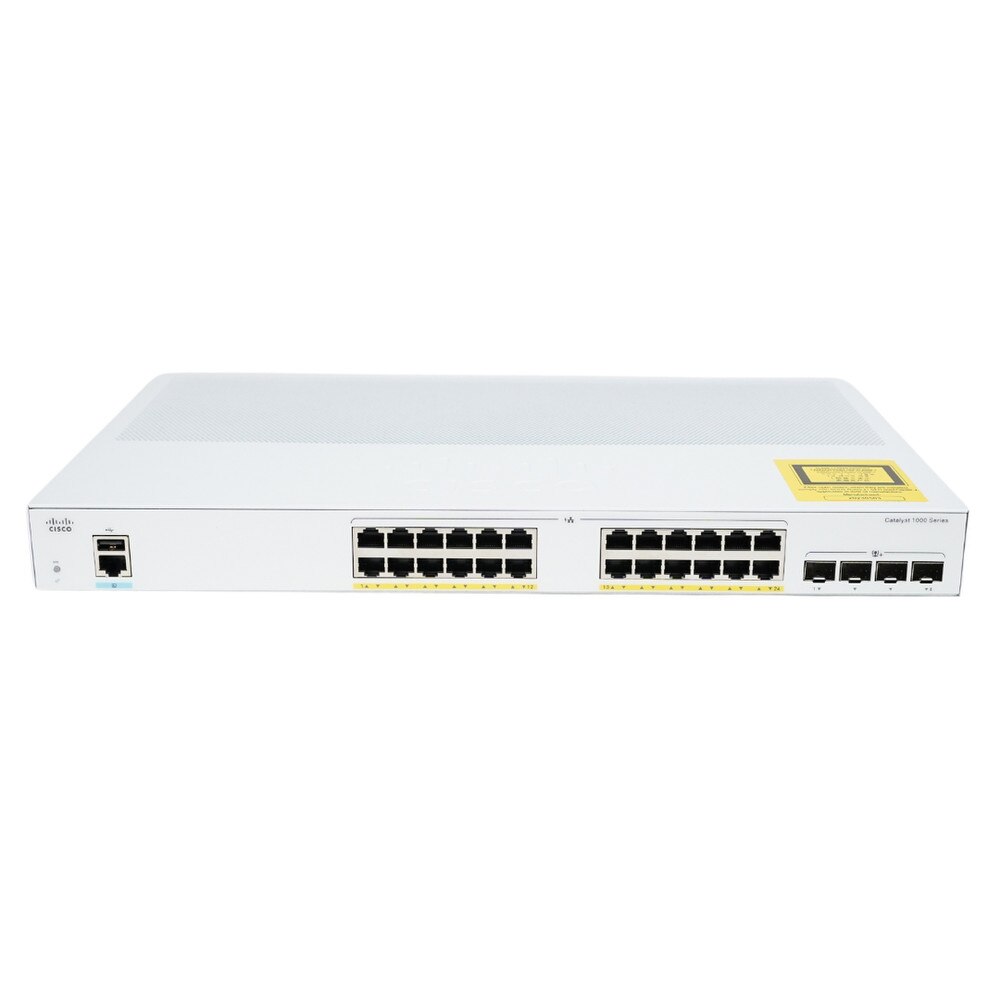

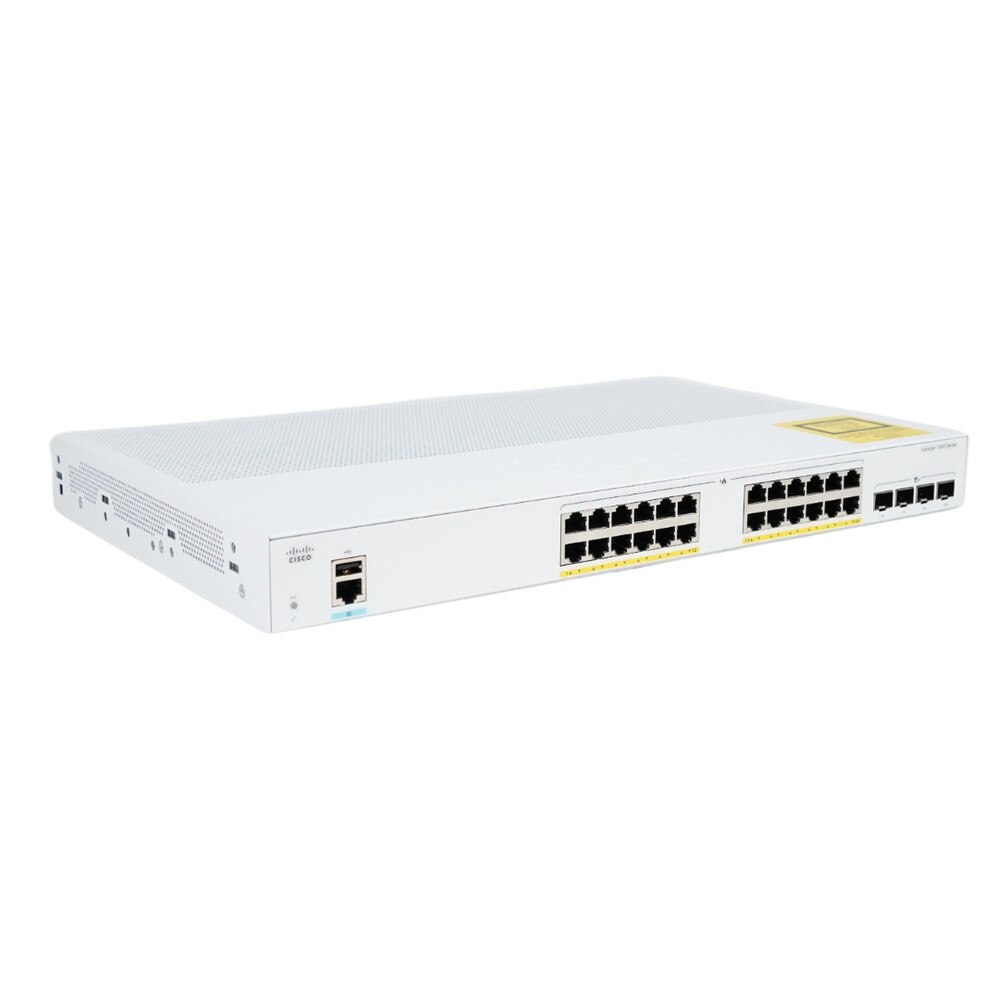

The Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch is a strong, enterprise-grade Layer 2 switch designed for small businesses, branch offices and essential IoT deployments. With 24 Gigabit Ethernet PoE+ ports and four 10G SFP+ uplinks, this managed switch offers high-speed connectivity, flexible power delivery and advanced network management in a compact, rack-mountable design. It is powered by Cisco IOS Software and provides management through both a command line and an intuitive web UI, facilitating the deployment, monitoring and securing of your network infrastructure. The C1000-24P-4X-L, which has a PoE+ budget of 195W, can directly power IP phones, cameras and wireless access points through the network cable, thereby reducing clutter and making installation easier. Security features like 802.1x authentication, Access Control Lists (ACLs) and BPDU Guard safeguard your network against threats. At the same time, smart power management and perpetual PoE guarantee that devices keep functioning smoothly—even when switches are reloaded. With its focus on reliability, operational efficiency and seamless integration into contemporary business settings, this switch represents a future-proof investment for expanding networks.


Key Features of Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch


• 24 x 10/100/1000 Ethernet PoE+ Ports supports high-speed data and power delivery for connected devices.

• 4 x 10G SFP+ Uplinks provides high-bandwidth fiber connectivity for uplinks or network expansion.

• 195W PoE+ Power Budget that powers IP phones, cameras, and access points with flexible, intelligent allocation.

• Fanless, Rack-Mountable Design with silent operation and easy installation in any environment.

• Advanced Security that includes 802.1x, ACLs, BPDU Guard, and Switched Port Analyzer (SPAN) for comprehensive protection.

• Easy Management that manages via CLI, web UI, or Cisco’s on-box management tools for streamlined operations.

• High Performance with 64 Gbps forwarding bandwidth, 128 Gbps switching bandwidth and 41.67 Mpps forwarding rate.

• Perpetual PoE that maintains power to devices even during switch reloads for maximum uptime.

• Robust Hardware with ARM v7 800 MHz CPU, 512 MB DRAM and 256 MB flash memory for reliable performance.

• Compact Dimensions with 17.5 x 11.76 x 1.73 inches for efficient rack integration.


Benefits of Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch


🗹 High port density and 10G uplinks enable seamless scaling and future growth.

🗹 PoE+ delivers both power and data over a single cable, eliminating the need for separate power supplies.

🗹 Advanced features protect sensitive data and prevent unauthorized access.

🗹 Perpetual PoE and fanless design ensure continuous operation and silent performance.

🗹 User-friendly interfaces and Cisco’s trusted software make setup and monitoring straightforward.

🗹 Ideal for powering and connecting a wide range of business-critical endpoints.

🗹 Engineered for long-term stability and low maintenance in demanding business environments.

Specifications

Specifications for Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch | New

ManufacturerCisco
Manufacturer Part NumberC1000-24P-4X-L
Product NameCisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
13 x 10/100/1000 (PoE+) + 11 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
195 W
Performance
Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status
Interfaces
13 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 11 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A
Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
MTBF
2,026,793 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Width
17.5 in
Depth
11.8 in
Height
1.7 in
Weight
8.11 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 90%
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95%

User Guides

Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch Data Sheet.pdf

Frequently Asked Questions

Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch
Frequently Asked Questions (FAQ's)



What are the key features of the Cisco Catalyst C1000-24P-4X-L Switch?
  • The Cisco Catalyst C1000-24P-4X-L offers 24 Gigabit Ethernet ports with PoE+, 4 10G SFP+ uplink ports, Layer 2 management capabilities, and enhanced security features. It’s designed for small to medium-sized networks.
    • Does the Cisco C1000-24P-4X-L support Power over Ethernet (PoE)?
  • Yes, it supports PoE+ with a total power budget of up to 370W, making it ideal for powering IP phones, wireless access points, and surveillance cameras.
    • What is the maximum switching capacity of the Cisco Catalyst C1000-24P-4X-L?
  • The switch offers a switching capacity of 128 Gbps, providing fast data transfer and minimizing network bottlenecks.
    • Is the Cisco C1000-24P-4X-L a Layer 2 or Layer 3 switch?
  • This model is a Layer 2 switch, designed for advanced Ethernet connectivity with basic Layer 3 static routing capabilities.
    • How can I manage the Cisco Catalyst C1000-24P-4X-L?
  • You can manage it using the Cisco DNA Center, Cisco Network Assistant, or a web-based graphical user interface (GUI). CLI access is also available for advanced configurations.
    • Does this switch support stacking?
  • No, the Cisco Catalyst C1000-24P-4X-L does not support stacking. However, it can be managed alongside other Cisco Catalyst switches using centralized management tools.
    • What uplink options are available on the C1000-24P-4X-L?
  • The switch includes 4 10G SFP+ uplink ports, providing high-speed connections to aggregation or core switches.
    • Is the Cisco Catalyst C1000-24P-4X-L energy efficient?
  • Yes, it supports Cisco’s Energy Efficient Ethernet (EEE) and various power management features to reduce energy consumption.
    • What type of security features are available on this switch?
  • It includes advanced security options like 802.1X authentication, port security, DHCP snooping, and dynamic ARP inspection to protect your network.
    • Can this switch be used in a voice or video network?
  • Absolutely. With PoE+ support, Quality of Service (QoS) features, and multicast management, it is well-suited for voice and video deployments.
    • What is the form factor of the Cisco C1000-24P-4X-L?

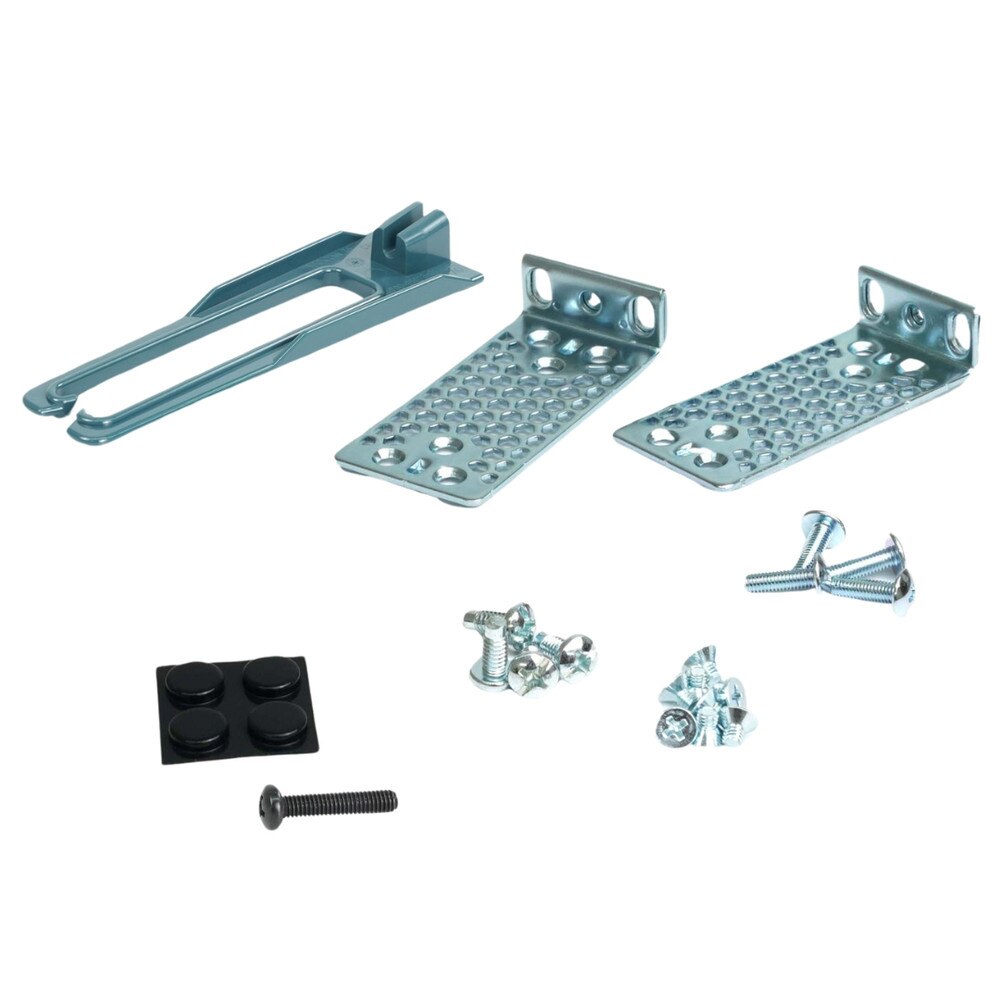

  • It is a rack-mountable 1U switch, designed for standard 19-inch racks. Rack mounting accessories are included.
    • Does this switch support VLANs?
  • Yes, it supports VLANs and offers VLAN trunking using IEEE 802.1Q to segment network traffic effectively.
    • Can I monitor the network using the Cisco Catalyst C1000-24P-4X-L?
  • Yes, the switch supports SNMP, Syslog, and NetFlow-Lite for comprehensive network monitoring and management.
    • What redundancy features does the Cisco C1000-24P-4X-L offer?
  • It supports Spanning Tree Protocol (STP), Rapid STP (RSTP), and Multiple STP (MSTP) to ensure network resiliency.
    • Does the switch provide IPv6 support?
  • Yes, it supports IPv6 features, making it future-proof for modern networking environments.
    • What kind of traffic management features are available?
  • The switch supports QoS features like traffic prioritization, bandwidth management, and congestion avoidance for smooth network performance.
    • Is it possible to upgrade the software on the Cisco Catalyst C1000-24P-4X-L?
  • Yes, software upgrades are available through Cisco’s official support channels, ensuring the latest security patches and features.
    • What is the maximum PoE power per port?
  • Each port supports up to 30W of PoE+ power, suitable for a variety of devices like access points, IP cameras, and VoIP phones.
    • Can I configure link aggregation on this switch?
  • Yes, it supports Link Aggregation Control Protocol (LACP) for combining multiple physical links into a single logical link to increase bandwidth.
    • What environmental factors should I consider when installing this switch?
  • The switch operates within a temperature range of 0°C to 45°C (32°F to 113°F) and should be installed in a well-ventilated, dust-free environment.
