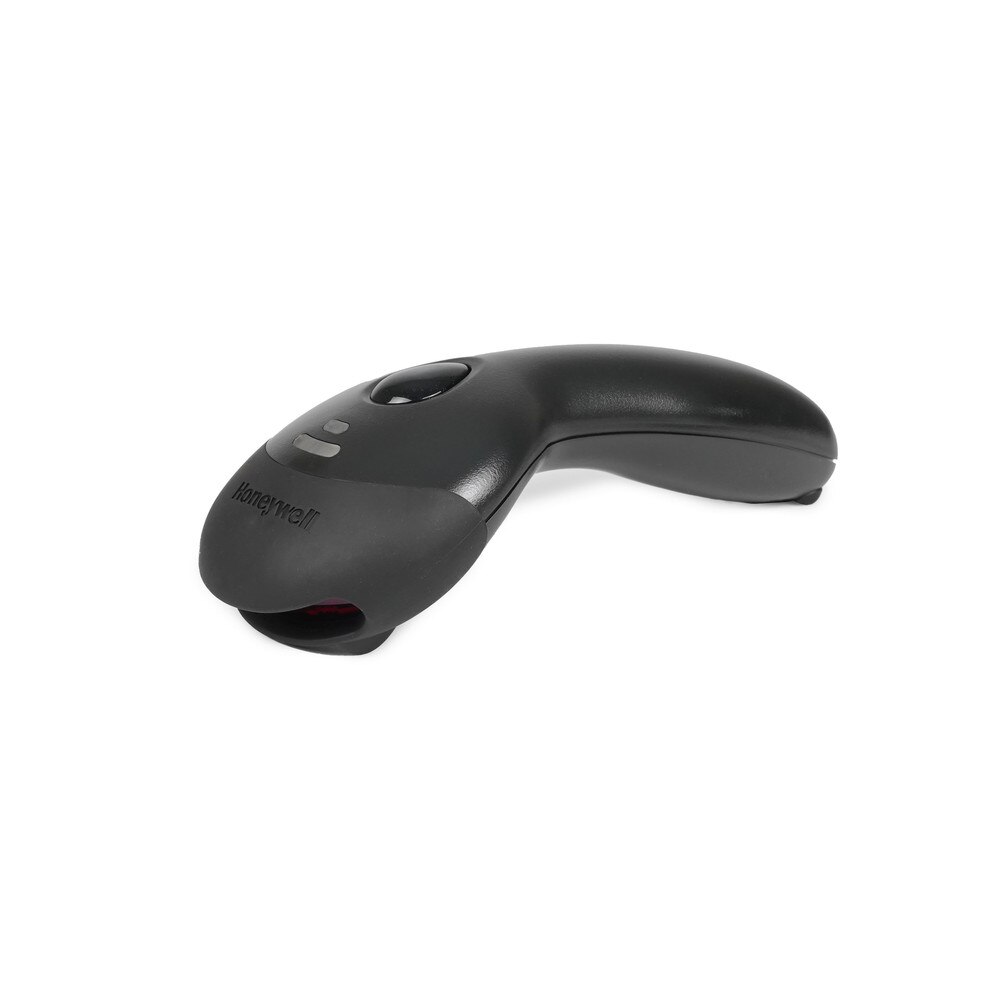

Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) | Recertified
SKU: MK9540-32A38
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) | Recertified
The Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) is a high-performance handheld barcode scanner built to meet the demands of retail, inventory management, and point-of-sale applications. This scanner, with its advanced scanning technology and user-friendly features, is a must-have for businesses looking to improve operational efficiency and accuracy. The Honeywell Voyager MS9540 includes Honeywell's exclusive CodeGate technology, which enables users to precisely target and scan barcodes. This feature is especially useful in busy settings where quick and accurate data capture is critical. The scanner supports both handheld and fixed presentation modes, making it suitable for a wide range of scanning applications. The Voyager MS9540 is a great investment for any business looking to improve its scanning capabilities. Its advanced features, high-speed performance, and ergonomic design make it an invaluable tool for improving operational efficiency.
Key Features of Honeywell Voyager MS9540 Barcode Scanner

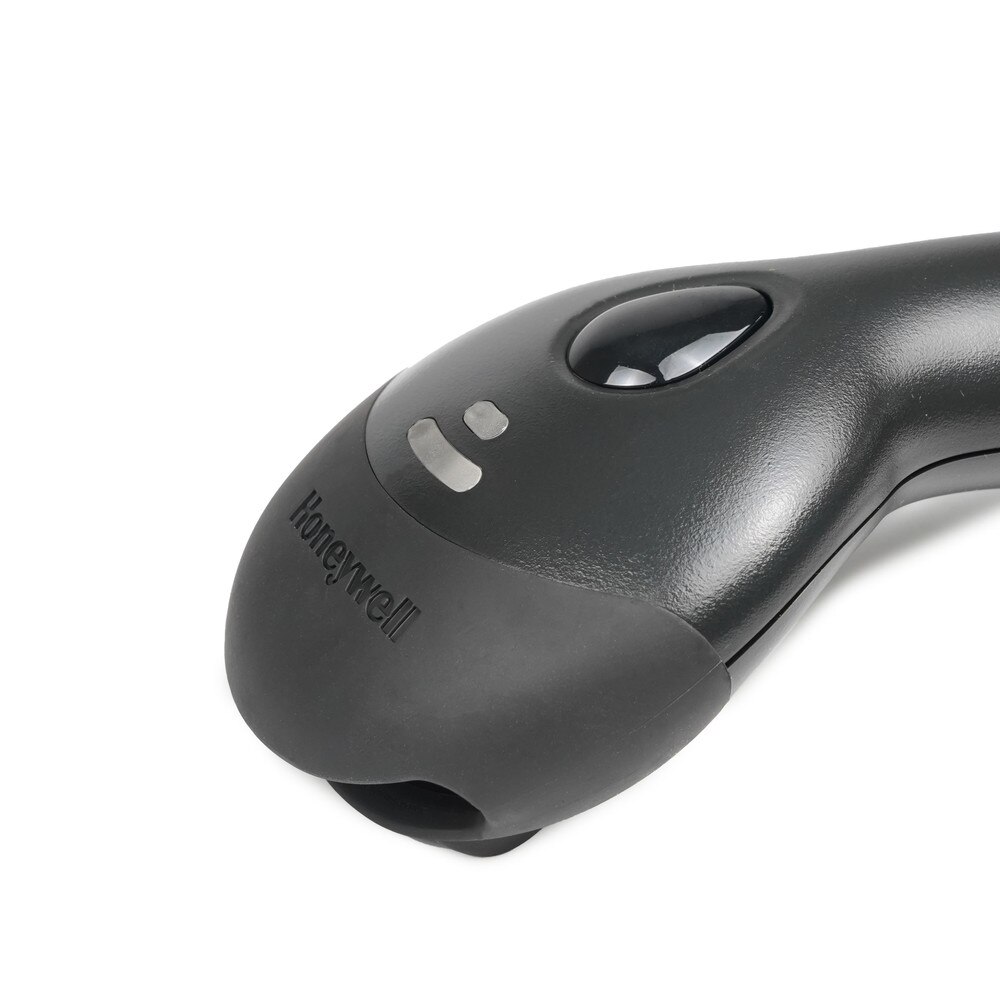

• CodeGate technology intuitive scanning system enables users to present a barcode to the scanner, align it with the high-visibility laser line, and press the CodeGate button to transmit data, ensuring accuracy and speed.
• With a scanning rate of up to 1,200 scans per second, the MS9540 significantly reduces checkout times and enhances customer satisfaction.

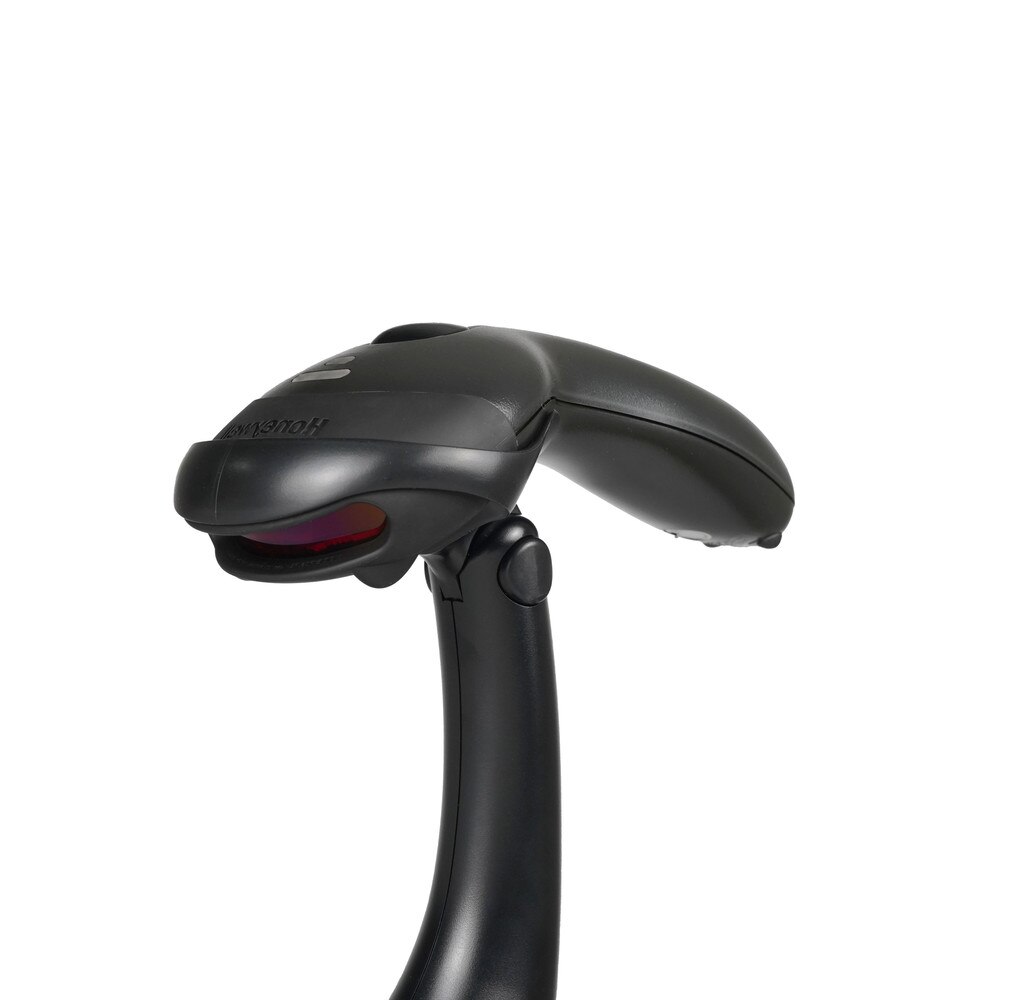

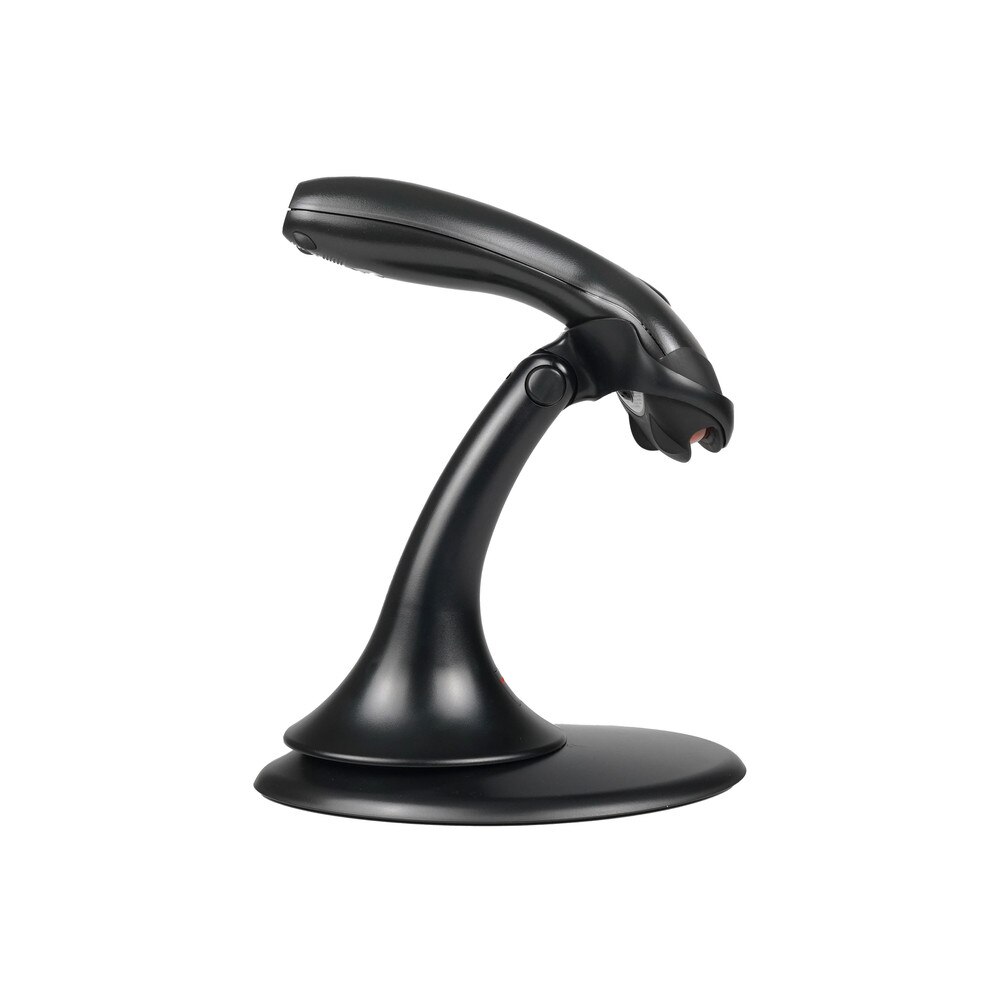

• The scanner can be used as a handheld device or mounted in a stand for fixed presentation scanning, providing flexibility in different operational settings.
• Lightweight and easy to handle, the Voyager MS9540 reduces user fatigue during extended use, making it ideal for high-volume environments.

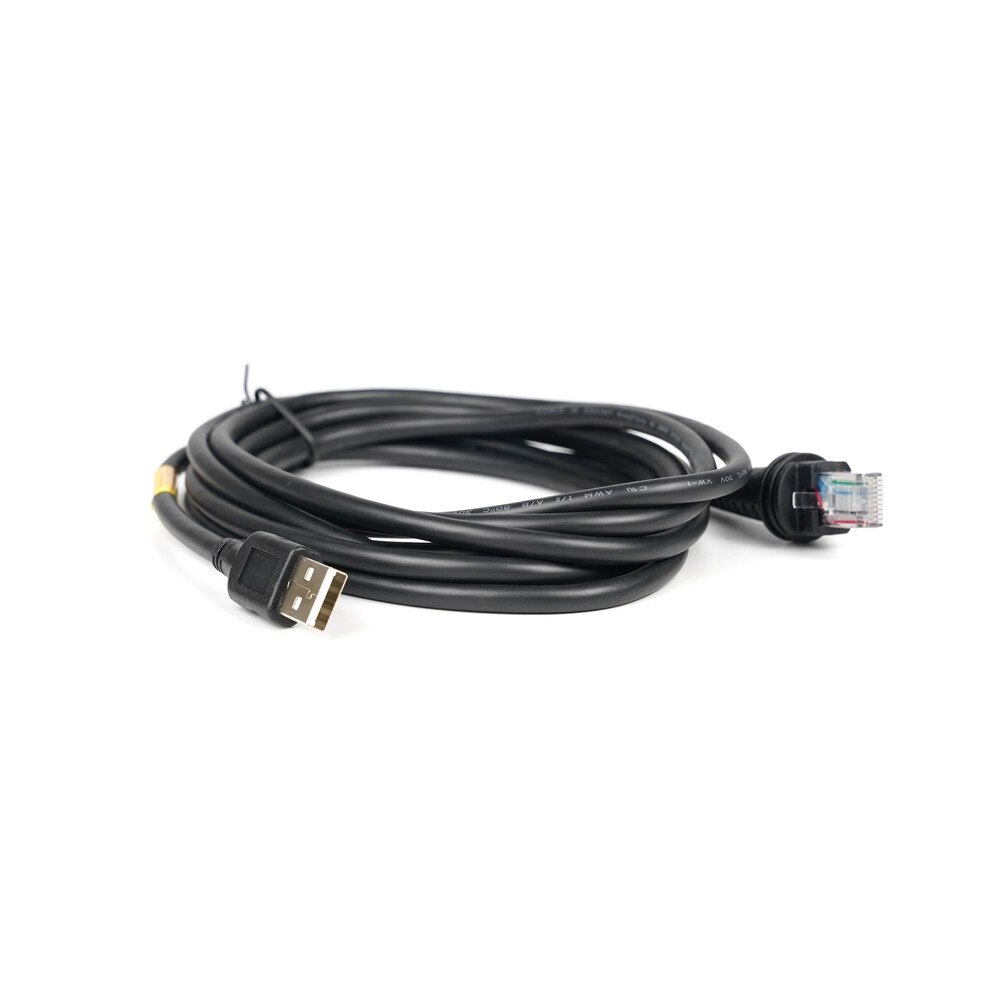

• The scanner connects effortlessly to computers or POS systems via USB, allowing for quick integration into existing setups.
• Built to withstand daily wear and tear, this barcode scanner is designed for longevity and reliability in demanding work environments.
Specifications
Specification for Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) | Recertified
| Manufacturer | Honeywell |
| Manufacturer Part Number | MK9540-32A38 |
| Product Name | Honeywell Voyager MS9540 Barcode Scanner |
| Product Type | Barcode Scanner |
Interface Type | USB |
Minimum Bar Width | 5 mil |
Scan Field Width | 0.51 in - 10 in |
Scan Element Type | Visible laser diode |
Light Source Wave Length | 650 nm |
Scan Mode | Single-pass |
Scan Speed | 72 line / sec |
Skew (Degrees) | 52 |
Pitch (Degrees) | 68 |
Print Contrast Signal (PCS) | 0.35 |
Decode Capability | GS1 DataBar |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Features | Triggered, CodeGate, coiled cable |
Interfaces | 1 x USB |
Compliant Standards | CISPR 24, EN55022, EN55024, CISPR 22, ICES-003 Class B, RoHS, FCC CFR21 Part 1040, FCC Part 15 A, IEC 60825-1, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition |
Width | 3.1 in |
Depth | 7.8 in |
Height | 2.2 in |
Weight | 5.26 oz |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 5 ft to concrete |
User Guides
Frequently Asked Questions
Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38)
Frequently Asked Questions (FAQ's)
What type of barcodes can the Honeywell Voyager MS9540 scan?It can scan one-dimensional barcodes.
What is CodeGate technology?CodeGate enables users to easily target a barcode and transmit data by pressing a button, resulting in accurate scans.
Is the MS9540 capable of hands-free scanning?Yes, it includes a stand for automatic hands-free scanning via auto-detection.
How does the scanner connect to a computer or POS system?It connects using USB, RS232, or Keyboard Wedge interfaces.
What is the scanning speed of the MS9540?It scans at the rate of 72 scans per second.
Can the MS9540 scan barcodes on mobile phone screens?No, it only scans printed 1D barcodes.
What is the effective scanning range of the MS9540?The MS9540 can scan barcodes ranging from 0 to 203mm (0 to 8 inches), depending on their size and quality.
Is the MS9540 compatible with all operating systems?Yes, it works with most operating systems, including Windows, macOS, and Linux.
Does the Honeywell Voyager MS9540 have any light indicators?Yes, it has LED indicators that display scan status and readiness.
What is the durability rating of the scanner?The MS9540 is designed to withstand drops from heights of up to 1.5 meters (5 feet).
Can the MS9540 be programmed to scan specific barcodes?Yes, it can be programmed to read specific barcode symbols using configuration codes.
Does the MS9540 require software installation?No, it is a plug-and-play device that requires no additional software for basic operation.
What is the operating temperature range of the MS9540?It operates at temperatures ranging from 0°C to 40°C (32°F to 104°F).
Does the MS9540 support continuous scanning?Yes, it supports continuous scanning when placed in its stand for hands-free use.
What type of light source does the MS9540 use?The scanner scans with a visible laser diode at 650nm wavelength.
How do you clean the MS9540 scanner?The scanner can be cleaned with a soft, lint-free cloth soaked in mild detergent and water.
Is the MS9540 powered via the USB connection?Yes, it can be powered via USB or with an external power supply when using RS232 or Keyboard Wedge connections.
Can the MS9540 decode damaged or poor-quality barcodes?Yes, advanced laser technology can help you read poor-quality and damaged barcodes.
How do you activate hands-free mode on the MS9540?When you place the scanner in the stand, it will automatically switch to hands-free scanning.
What is the difference between the MS9540 and the MS9520?The MS9540 has CodeGate technology for more precise targeting, whereas the MS9520 lacks this feature.
