  • SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361) | New

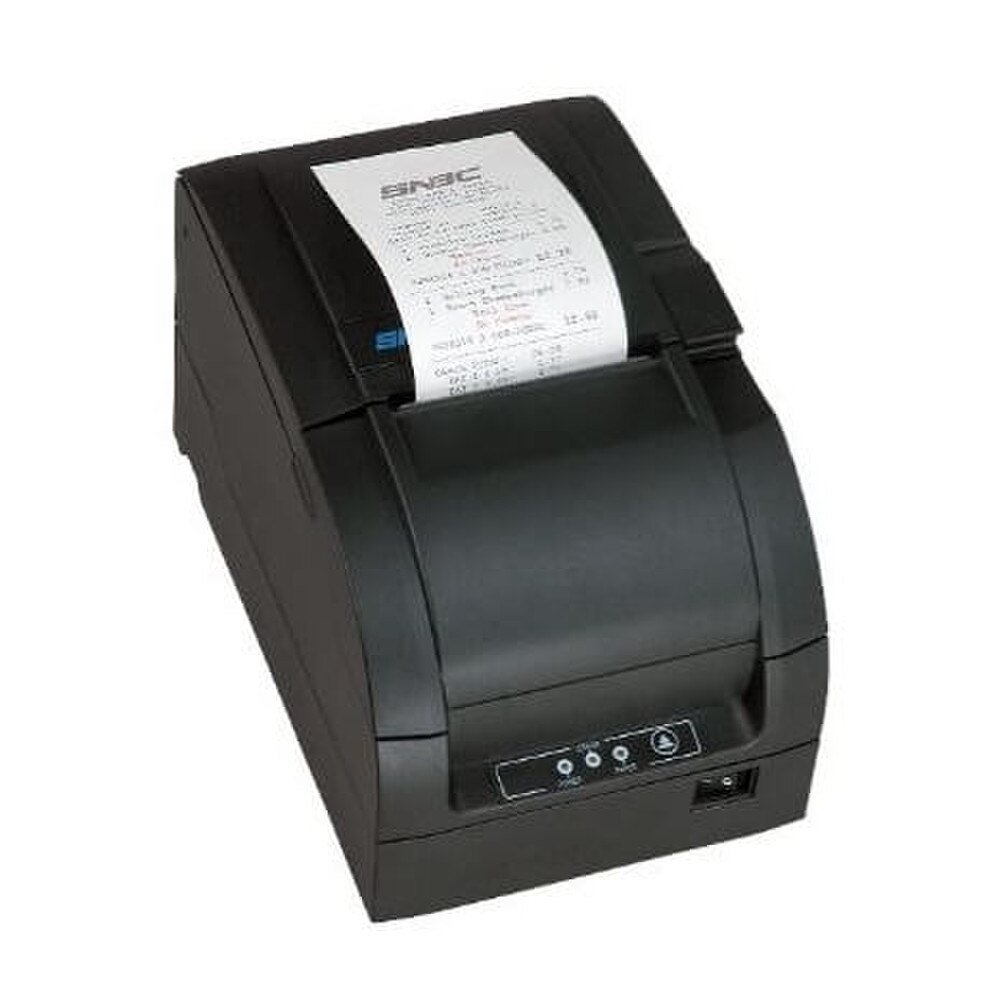

SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361) | New

SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361) | New

SKU: 132361-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$263.99 $263.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361) | New

The SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361) is a reliable and adaptable point-of-sale printing solution for modern retail, hospitality, and kitchen environments. This high-performance impact printer combines durability, speed, and multiple connectivity options to provide dependable and efficient printing of receipts, kitchen orders, and other transaction documents. The BTP-M300A has a rugged impact printing mechanism and is designed to withstand harsh environments where thermal printers may struggle. Its ability to print on multi-ply paper makes it ideal for tasks that necessitate duplicate or triplicate copies, such as kitchen orders or delivery receipts. The printer's impressive speed of up to 4.7 lines per second allows for quick transaction completions, reducing customer wait times and improving overall operational efficiency.

The SNBC BTP-M300A's diverse connectivity options are one of its most notable features. This printer seamlessly integrates with various POS systems and devices via USB, Serial, and Ethernet interfaces, providing setup flexibility and compatibility with existing infrastructure. With its triple interface capability, it's an excellent choice for businesses looking to future-proof their POS hardware. The BTP-M300A includes a dependable auto-cutter that delivers clean and precise cuts for professional-looking receipts. This feature, along with the simple paper loading system, reduces downtime during paper changes and allows employees to concentrate on customer service.

The BTP-M300A's design prioritizes durability. Its impact printing technology ensures consistent print quality, even in high-temperature kitchens or humid environments. The printer's strong construction and long-lasting components help to reduce maintenance costs and maximize your investment over time. The SNBC BTP-M300A can handle rolls with widths ranging from 58mm to 76mm. This adaptability enables businesses to accommodate various receipt sizes and formats, making it suitable for a wide range of applications across multiple industries.
The BTP-M300A's compact design allows it to fit comfortably in tight spaces, making it an ideal choice for businesses with limited counter space. Despite its small size, it delivers on performance and functionality.


Key Features of SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet)


• Impact printing technology

• Fast 4.7 lines per second / 19.6mm per second print speed

• Multiple interface options including USB, Serial, and Ethernet (depending on model)

• Supports multiple paper widths: 80mm, 76mm, 69.5mm, 57.5mm ± 0.5mm

• 83mm maximum paper roll diameter

• Supports 2-ply paper

• Auto-Cutter: Available on some models, rated for 1,800,000 cuts

• Paper Loading: Drop-and-print paper loading for easy use

• Printhead Life: 150,000,000 characters

• MTBF (Mean Time Between Failure): 180,000 hours

• MCBF (Mean Characters Before Failure): 18,000,000 lines

• • Eliminates need for external power brick

• Windows drivers available (32 and 64-bit, Windows 10 compatible)

• SDK available for iOS and Android operating systems

• Energy Star certified

• Ability to store and print logos

• Supports multiple character sets and international characters

• Drawer port supporting up to 2 cash drawers

• Compact Design

Specifications

Specifications for SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361) | New

ManufacturerSNBC
Manufacturer Part Number132361
Product NameSNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet)
Product TypeThermal Printer
Max Print Speed:4.7 Lines per Second / 19.6mm per Second
Printing Method:Impact
Characters Per Line - Font A:33 / 35
Font B:40 / 42
Characters Size - Font A:9 x 9
Font B:7 x 9
Paper Roll Type - Width:80 / 76 / 69.5 / 57.5mm ± 0.5mm
Maximum Diameter:83mm
Paper Thickness:0.06mm ~ 0.085mm
2-Ply Paper Thickness:0.05mm ~ 0.08mm Total <_ 0.14mm
Auto Paper Cutting Method:Auto-Cutter with Selectable Full or Partial Cut
Inking Supply:ERC-38 Ribbon Catridge (Black/Red)
Reliability - MTBF:180,000 Hours
MCBF:18,000,000 Lines
Printhead Life:150,000,000 Characters
Cutter Life:1,800,000 Cuts (BTP-M300A)
Character Set - Alphanumeric:95
International:37
Graphic:128 x 12 Page / Traditional/Simplified Chinese / Thai / Japanese
Interpreter:ESC/POS
Interface Choose Between USB+Serial, or
USB+Serial+Ethernet
Drivers - 32 bit:POSReady 2009 / 2000 Server / 2000 Prof. / XP Home
32 and 64 bit:: Win 8 / Win 7 / Server 2008 / Server 2003 / XP Prof. / Vista
Other:Linux / OPOS / BYJavaPOS Windows / BYJavaPOS Linux
Software Development Kit:iOS / Android
Drawer Port:Up to 2 Drawers (+24VDC) / Supports Drawer Compulsion
Data Buffer - Rec. Buffer RAM:8 KB RAM
RAM Bitmap:8 KB
Flash Bitmap:128 KB
Power Supply:24V DC ± 5% Internal Adapter Included
Current/Power Usage:1.5A / 36W
Operating Temperature:40° ~ 114°F (5° ~ 45°C)
Operating Humidity:20% ~ 90% RH (Non-Condensing)
Dimensions:6-1/4"W x 6"H x 9-1/2"D
Shipping Weight:9.0 lbs. (Each Unit) / 40 lbs. (Master Carton 4)
Safety and EMI:FCC / RoHS
Windows Drivers:32 and 64 bit Windows Drivers - Win 10 Compatible
Windows 8.1 Drivers:32 and 64 bit Windows 8.1 Driver
Printer Utility: Printer Utility

User Guides

Frequently Asked Questions

SNBC BTP-M300A Impact Receipt Printer with Cutter (USB/Serial/Ethernet) (132361)
Frequently Asked Questions (FAQ's)



What type of printing technology does the SNBC BTP-M300A use?
  • It utilizes impact printing technology.
  • What are the connectivity options available for this printer?
  • Interface types include USB, serial, and Ethernet.
  • Does the SNBC BTP-M300A have an automatic cutter?
  • Yes, it has a built-in automatic cutter.
  • What is the print speed of this printer?
  • It can print at 4.6 lines per second.
  • What types of environments is the SNBC BTP-M300A suitable for?
  • It's ideal for retail, hospitality, ticketing, and industrial settings.
  • What is the MTBF (Mean Time Between Failures) for the SNBC BTP-M300A?
  • The Mean Time Between Failures is 180,000 hours.
  • Can the printer handle multiple paper widths?
  • Yes, it usually supports standard receipt paper widths.
  • What are the dimensions of the SNBC BTP-M300A?
  • The dimensions are approximately 160 x 239 x 157 mm (W x D x H).
  • Is the SNBC BTP-M300A compatible with most POS systems?
  • Yes, it is compatible with a variety of POS systems.
  • How easy is it to replace the ribbon in this printer?
  • It's designed for simple ribbon replacement.
  • What type of ribbons does the SNBC BTP-M300A use?
  • It utilizes high-quality impact printer ribbons.
  • Does the printer support graphic printing?
  • Yes, it can print basic graphics and logos.
  • What is the noise level of the printer during operation?
  • As an impact printer, it makes moderate noise while in operation.
  • Is the printer energy-efficient?
  • Yes, it has energy-saving modes that reduce power consumption.
  • What is included in the box with the SNBC BTP-M300A?
  • The printer unit, power adapter, interface cables, a sample paper roll, and a user guide.
  • Can the SNBC BTP-M300A be wall-mounted?
  • Yes, it has wall mounting options.
  • What is the recommended operating temperature range for this printer?
  • The recommended operating temperature range is 5 to 45 degrees Celsius.
  • Does the printer have a cash drawer port?
  • Yes, it has a port to connect to a cash drawer.
  • Where can I find drivers and software for the SNBC BTP-M300A?
  • Drivers and software can be obtained from the official SNBC website or the distributor's support page.
  • What is the warranty period for the SNBC BTP-M300A?
  • It usually includes a one-year warranty.
