SNBC BTP-R180II Thermal Receipt Printer (132085) | New
SKU: 132085-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Save $36 instantly
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of SNBC BTP-R180II Thermal Receipt Printer (132085) | New

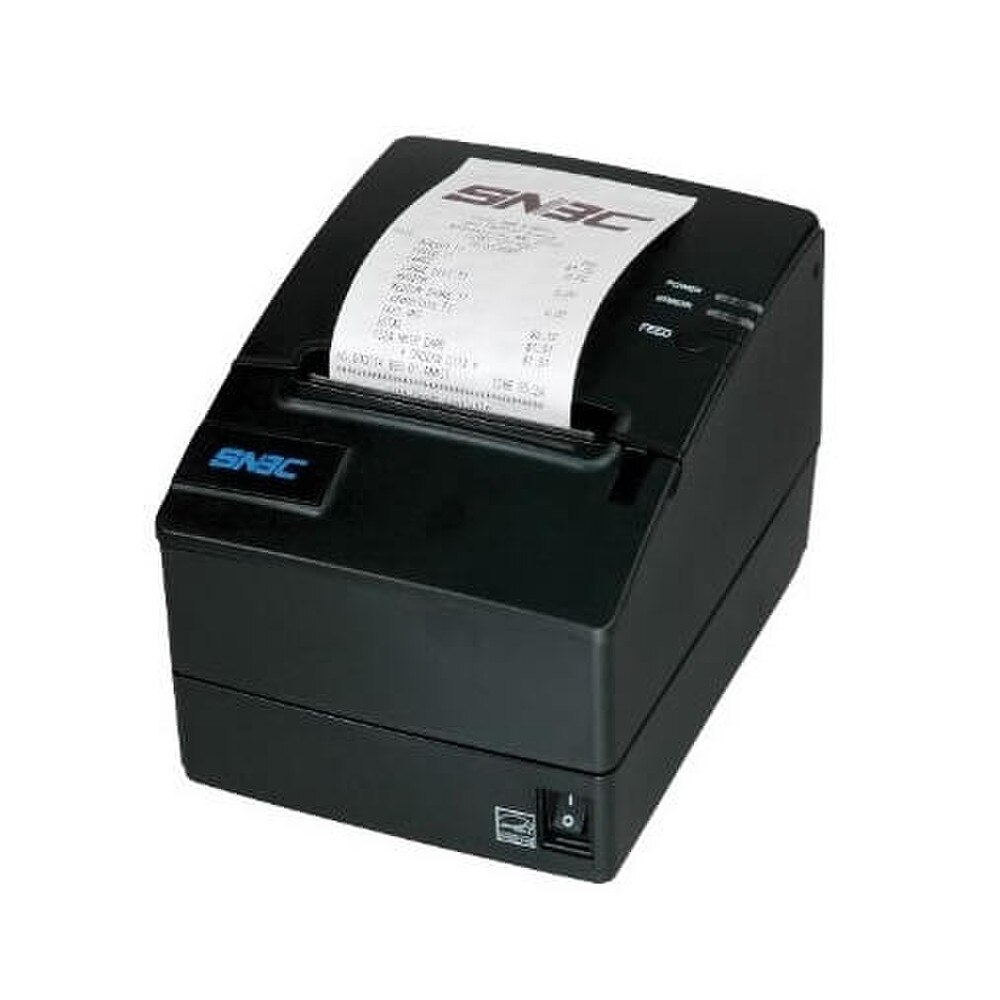

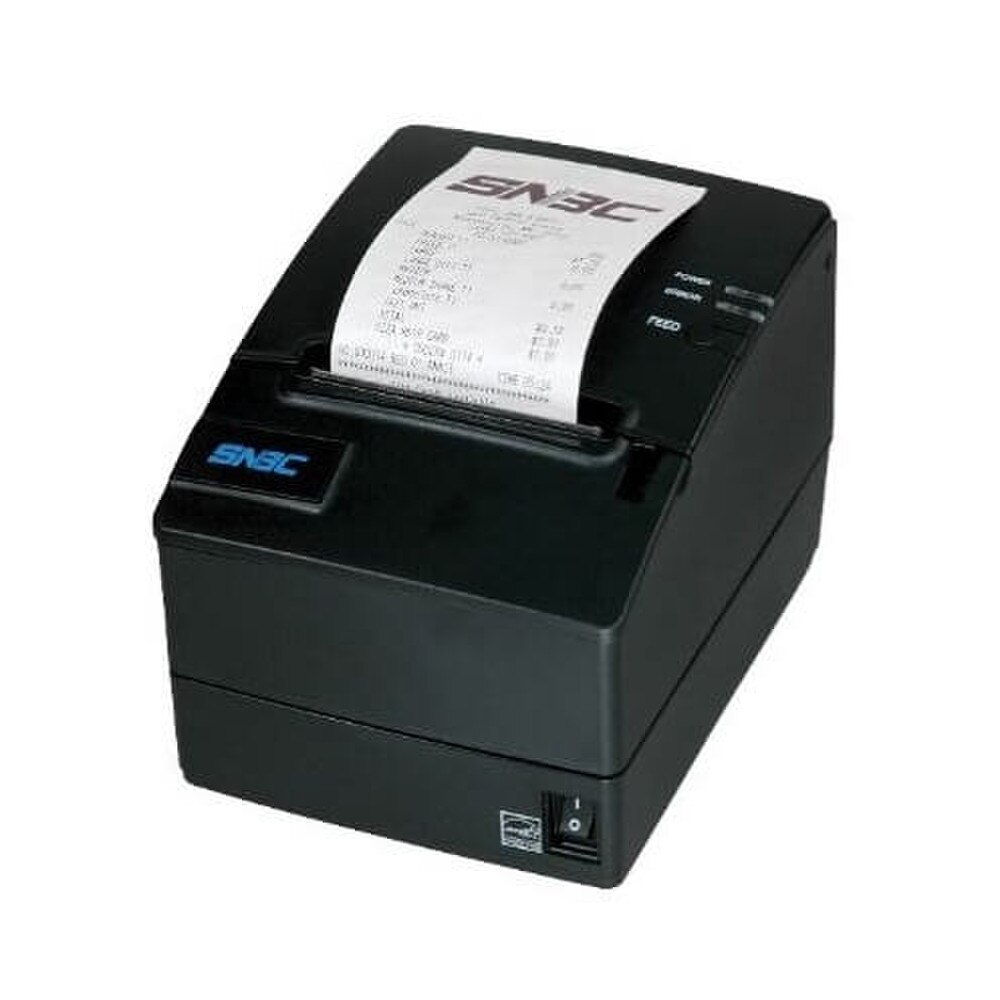

The SNBC BTP-R180II Thermal Receipt Printer (132085) is a high-speed direct thermal point-of-sale printer designed for use in retail, hospitality, restaurant and ATM settings where quick and dependable receipt printing is required. It provides organizations with a flexible and reliable printing solution for busy checkout counters and transaction-heavy operations, with print speeds up to 230 mm/s and compatibility for USB, Serial and Ethernet connectivity. With its easy drop-in paper loading, automated cutter support, and compatibility with widely used point-of-sale software, this SNBC thermal receipt printer is made for daily efficiency. It is a sensible option for companies looking for reliable receipts, less disruptions and simpler maintenance because of its small size, quiet operation and robust print mechanism.
Key Features of SNBC BTP-R180II Thermal Receipt Printer
• Direct thermal printing for crisp, reliable receipt output without ink or toner.
• Fast print speed up to 230 mm/s for efficient checkout and order processing.
• Triple-interface connectivity with USB, Serial and Ethernet support.
• 180 x 180 DPI resolution for clear, readable text and barcode printing.
• Supports 57.5 mm, 69.5 mm, 76 mm, 80 mm and 82.5 mm paper widths.
• Maximum paper roll diameter of 83 mm for fewer roll changes during peak hours.
• Auto-cutter with selectable full or partial cut for clean receipt separation.
• Cash drawer control for up to 2 drawers.
• Barcode support including 1D and 2D symbologies such as QR Code and PDF417.
• Compact, business-friendly design for POS counters and back-office use.
Benefits of SNBC BTP-R180II Thermal Receipt Printer
🗹 Speeds up customer transactions by printing receipts quickly and consistently during busy periods.
🗹 Reduces operating costs because direct thermal printing eliminates ribbon and ink expenses.
🗹 Simplifies daily use with drop-in paper loading and intuitive operation for staff.
🗹 Helps maintain smoother checkout flow with reliable auto-cutting and strong POS integration.
🗹 Supports more flexible deployments due to USB, Serial and Ethernet interface options.
🗹 Works well in retail, restaurant and service environments where receipt speed and reliability matter most.
🗹 Improves barcode and ticket printing accuracy for modern transaction workflows.
Specifications
Specifications for SNBC BTP-R180II Thermal Receipt Printer (132085) | New
| Manufacturer | SNBC |
| Manufacturer Part Number | 132085 |
| Product Name | SNBC BTP-R180II Thermal Receipt Printer |
| Product Type | Thermal Printer |
| Printing Method | Direct thermal |
| Print Speed | Up to 230 mm per second for mono 80 mm paper |
| Gray Scale Print Speed | Up to 150 mm per second |
| Two-Color Print Speed | Up to 120 mm per second |
| Print Resolution | 180 x 180 DPI |
| Print Width | Maximum 72 mm |
| Characters Per Line | Font A: 42 characters at 72 mm / 33 characters at 58 mm; Font B: 56 characters at 72 mm / 45 characters at 58 mm |
| Font Sizes | Font A: 12 x 24; Font B: 9 x 17 |
| Paper Types | Continuous paper, marked paper |
| Paper Widths | 57.5 mm, 69.5 mm, 76 mm, 80 mm, 82.5 mm ± 0.5 mm |
| Paper Thickness | 0.06 mm to 0.08 mm |
| Paper Roll Diameter | Maximum 83 mm |

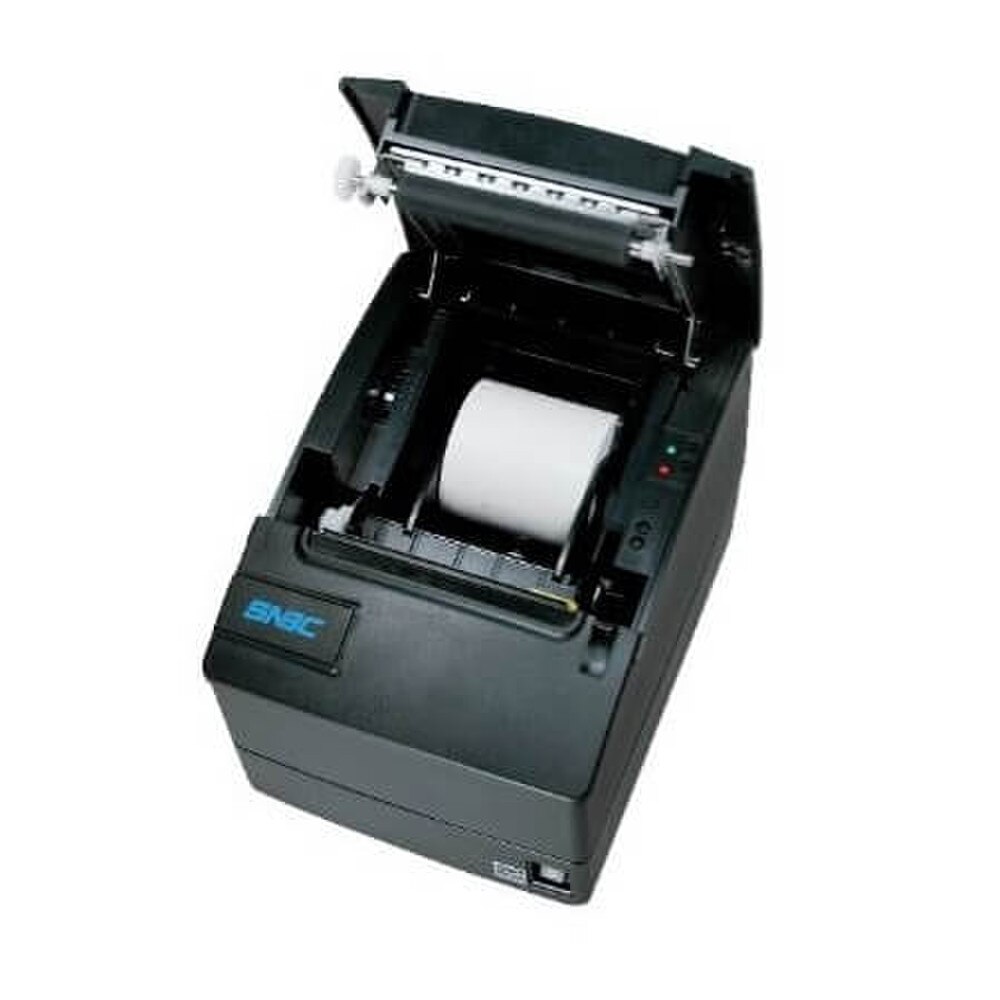

| Paper Loading | Simple drop-in paper loading |
| Auto Cutter | Standard auto paper cutter with selectable full or partial cut |
| Reliability - MTBF | 360,000 hours |
| Reliability - MCBF | 60,000,000 lines |
| Printhead Life | 150 km |
| Cutter Life | 1,500,000 cuts |
| Character Set | 95 alphanumeric, 13 international, 56 code pages |
| Barcode Support - 1D | UPC-A, UPC-E, EAN8, EAN13, Code39, Code93, Code128, Codabar, ITF |
| Barcode Support - 2D | PDF417, QR Code, MaxiCode, GS1 DataBar |
| Interpreter | ESC/POS compatible |
| Interface | Standard RS232 serial, USB, Ethernet |
| Cash Drawer Support | Up to 2 cash drawers with +24VDC drawer connector |
| Data Buffer | 64 KB receipt buffer, 128 KB RAM bitmap, 512 KB flash bitmap |
| Power Supply | AC 100 to 240 V, 50/60 Hz, adapter included |
| Power Consumption | 1.5 A / 36 W |
| Operating Temperature | 5 C to 45 C |
| Operating Humidity | 20% to 90% RH, non-condensing |
| Storage Temperature | -40 C to 60 C |
| Storage Humidity | 20% to 93% RH at 40 C |
| Dimensions | 195 mm x 145 mm x 141 mm |
| Weight | 1.45 kg |
| Certifications | CE, CB, UL, FCC |
User Guides
Frequently Asked Questions
SNBC BTP-R180II Thermal Receipt Printer
Frequently Asked Questions (FAQ's)
What printing technology does the SNBC BTP-R180II use?
The BTP-R180II uses direct thermal printing technology, eliminating the need for ink, toner, or ribbons.
What paper size does the printer support?
The printer is designed to use 80mm thermal receipt paper, which is widely used in retail and hospitality environments.
Is the printer suitable for point-of-sale systems?
Yes. The BTP-R180II is designed specifically for POS applications, including retail stores, restaurants, supermarkets and hospitality businesses.
Does the printer include an automatic cutter?
Yes. The printer features an automatic cutter that cleanly separates printed receipts.
Is paper replacement easy?
Yes. The drop-in paper loading design allows quick and simple paper roll replacement.
Does the printer require ink or toner?
No. As a direct thermal printer, it prints directly onto thermal paper without ink cartridges, toner, or ribbons.
Can the printer print logos and barcodes?
Yes. It supports high-quality printing of text, graphics, logos, QR codes and barcodes, depending on the POS software being used.
Is the printer compatible with standard POS software?
Yes. The BTP-R180II is compatible with many industry-standard POS applications and operating systems when configured with the appropriate drivers.
What interface options are available?
Interface options vary by model and may include USB, Serial, Ethernet, or Parallel connectivity.
Can the printer open a cash drawer?
Yes. The printer supports cash drawer connectivity through compatible POS configurations.
Is the printer suitable for restaurants?
Yes. It is commonly used in restaurants, cafés, quick-service establishments and food service businesses for printing receipts and order tickets.
Is the BTP-R180II designed for high-volume printing?
Yes. Its commercial-grade construction makes it suitable for continuous daily operation in busy business environments.
Does the printer operate quietly?
Yes. Direct thermal printing provides quiet operation, making it suitable for customer-facing environments.
Is the printer compact?
Yes. The compact design helps conserve valuable counter space while maintaining professional performance.
Can it print transaction receipts quickly?
Yes. Its high-speed printing capability helps improve checkout efficiency and customer service.
Is maintenance required?
Maintenance is minimal since there are no ink cartridges or ribbons to replace. Periodic cleaning of the print head is recommended for optimal performance.
Is the printer suitable for pharmacies and healthcare facilities?
Yes. It is well suited for pharmacies, healthcare providers, ticketing systems and other businesses requiring reliable receipt printing.
Can the printer be integrated into an existing POS system?
Yes. With the appropriate interface and drivers, it can be integrated into many existing POS environments.
Is the 132085 a genuine SNBC product?
Yes. The 132085 is an authentic SNBC BTP-R180II Thermal Receipt Printer designed for commercial receipt printing applications.
Why choose the SNBC BTP-R180II Thermal Receipt Printer (132085)?
The SNBC BTP-R180II combines high-speed direct thermal printing, support for 80mm receipt paper, an automatic cutter, easy drop-in paper loading, low-maintenance operation, flexible connectivity, cash drawer support and reliable commercial-grade performance, making it an excellent receipt printer for retail, hospitality, restaurants, healthcare and other point-of-sale environments.
