Overview

Overview of Zebra GX430T Direct Thermal Barcode Label Printer (GX43-102510-000, GX43-102520-000) | New

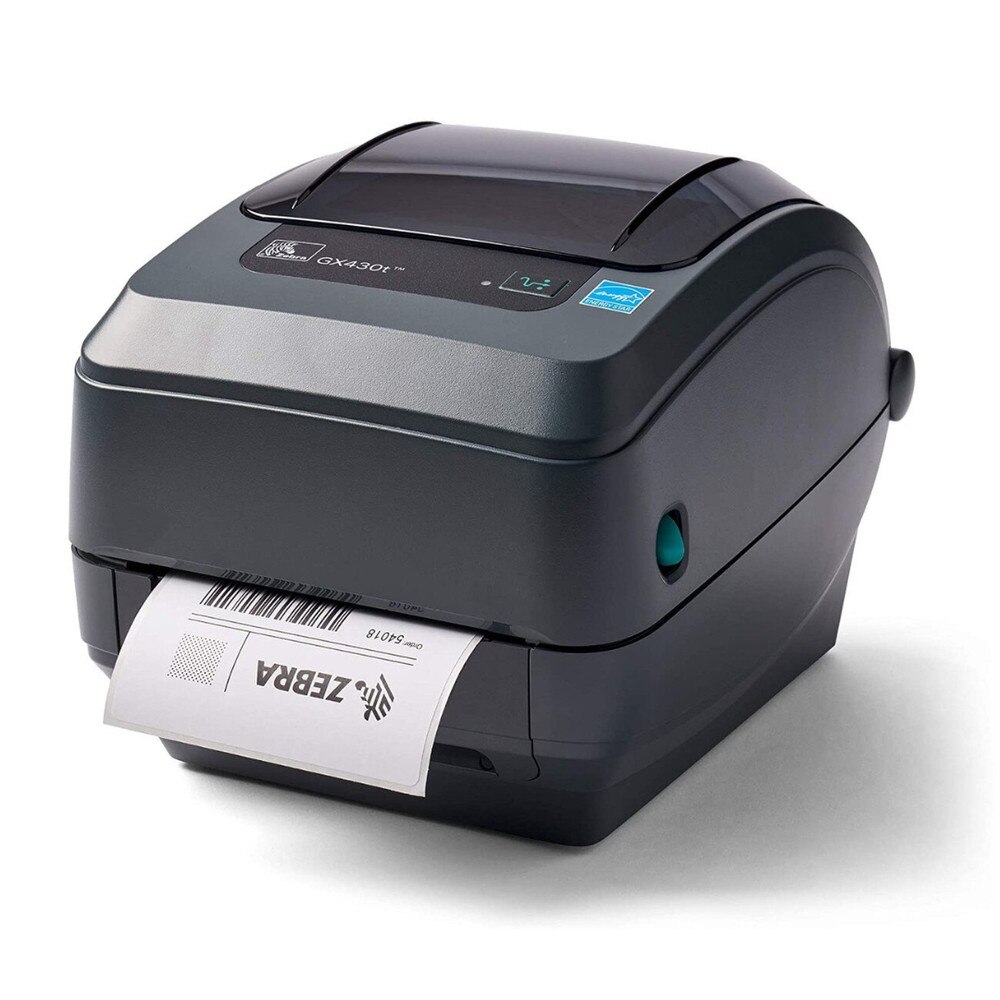

The Zebra GX430t 300dpi Thermal Transfer Label Printer (GX43-102510-000) is designed to provide outstanding performance and versatility for companies that require accuracy and efficiency. It is a small, high-resolution label printing solution. With its sophisticated thermal transfer design, the GX430t generates clear, sharp labels, barcodes and graphics at 300 dpi, which makes it perfect for uses where precision is crucial in manufacturing, logistics, healthcare and retail.

The GX430t's quick print speeds and several connectivity choices, such as parallel, serial and USB connectors, allow it to blend in perfectly with current processes. The printer's sturdy design and compact size enable it to withstand daily use and fit easily in cramped workspaces. Simple operation and versatility for a variety of labeling requirements are guaranteed by easy media loading, movable sensors and support for a large variety of label materials. Organizations looking for dependable, superior label printing can choose the GX430t for asset tags, shipping labels or compliance barcodes.


Key Features of Zebra GX430t 300dpi Thermal Transfer Label Printer


300dpi High-Resolution Printing delivers sharp, detailed labels and barcodes for enhanced readability and compliance.

Thermal Transfer Technology produces durable, long-lasting labels that resist smudging and fading, suitable for demanding environments.

Fast Print Speeds prints up to 4 inches per second, boosting productivity in high-volume operations.

Flexible Connectivity that is equipped with USB, serial and parallel interfaces for seamless integration with various systems.

Compact, Space-Saving Design that fits easily into tight workspaces without sacrificing performance or durability.

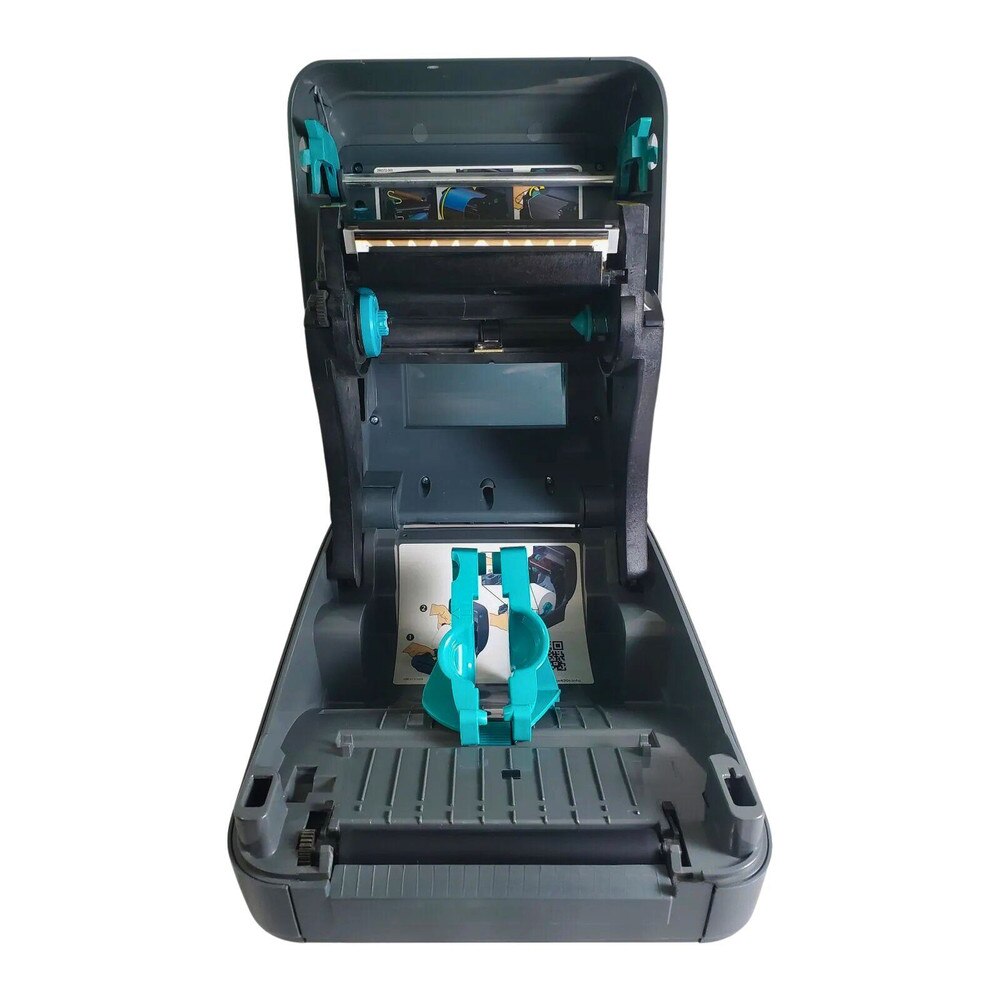

Easy Media Loading with OpenACCESS™ design streamlines ribbon and label changes, reducing downtime.

Versatile Media Support that handles a wide range of label sizes and types, including continuous, die-cut and tag stock.

Adjustable Sensors that ensures accurate label detection and alignment for consistent print quality.

Energy Efficient with low power consumption supports sustainable business practices.


Benefits of Zebra GX430t 300dpi Thermal Transfer Label Printer


🗹 High-speed, high-resolution printing streamlines labeling workflows and reduces errors.

🗹 300dpi output ensures every barcode, graphic, and text element is crisp and scannable, supporting compliance and traceability.

🗹 Tool-free media loading and user-friendly design minimize interruptions and training time.

🗹 Ideal for asset tracking, inventory management, shipping, healthcare labeling and more.

🗹 Rugged construction and proven Zebra reliability deliver consistent results in demanding environments.

🗹 Multiple connectivity options and broad media compatibility make it easy to deploy across various departments or locations.

🗹 Durable print mechanism and efficient ribbon usage lower total cost of ownership over the printer’s lifespan.

🗹 Backed by Zebra’s reputation for quality and innovation in thermal printing solutions.

Specifications

Specifications for Zebra GX430T Direct Thermal Barcode Label Printer (GX43-102510-000, GX43-102520-000) | New

Manufacturer Zebra
Manufacturer Part Number GX43-102510-000
Product Name Zebra GX430T Direct Thermal Barcode Label Printer
Product Type Label Printer
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Width 4.09
Application/Usage Desktop
Features Auto-calibration
Standard Memory 8 MB
Memory Technology SDRAM
Flash Memory 4 MB
Parallel Port Yes
Serial Port Yes
USB Yes
Display Screen Yes
Display Screen Type LCD
Media Sensor Transmissive Media Sensor, Reflective Media Sensor, Adjustable Media Sensor
Media Thickness 7.50 mil
Maximum Roll Diameter 5
Maximum Label Width 4.25
Maximum Label Length 39
Label Core Size 1.5
Ribbon Core Size 0.5
Language Emulation EPL, ZPL, ZPL II
Power Source AC Supply
Input Voltage 110 V AC/220 V AC
Height 7.5
Width 7.6
Depth 10
Weight 4.60 lb

User Guides

Frequently Asked Questions

Zebra GX430T Direct Thermal Barcode Label Printer (GX43-102510-000, GX43-102520-000)
Frequently Asked Questions (FAQ's)



How do you calibrate the GX430T for different label sizes?
  • Calibration is performed via the printer's menu or by using the Zebra Setup Utility, which allows you to configure label sizes and media settings.
  • What is the print resolution of the GX430T?
  • The GX430T has a print resolution of 300 dpi (dots per inch), which ensures crisp and clear label printing.
  • What is the maximum print width of the GX430T?
  • The GX430T has a maximum print width of four inches (102 mm).
  • Does the GX430T support thermal transfer printing?
  • Yes, the GX430T allows for both thermal transfer and direct thermal printing.
  • What types of media can the GX430T print on?
  • The GX430T can print on a wide range of media, including paper, synthetic labels, and tags.
  • What are the connectivity options available for the GX430T?
  • The GX430T has USB, parallel, and serial ports for versatile connectivity.
  • Can the GX430T handle large print volumes?
  • The GX430T is intended for medium-duty use, making it ideal for moderate print volumes.
  • What are the dimensions of the GX430T?
  • The dimensions are about 8.3 x 7.2 x 6.8 inches (211 x 183 x 173 mm).
  • What is the maximum print speed of the GX430T?
  • The GX430T can print at a maximum speed of 4 inches/second.
  • Is the GX430T easy to install and set up?
  • YYes, the GX430T has an intuitive user interface and simple media loading, making installation and setup easier.
  • Can the GX430T print barcode labels?
  • Yes, the GX430T is intended to produce high-quality barcode labels with precision.
  • Does the GX430T come with any software?
  • The GX430T comes with Zebra's Print DNA software suite, which improves performance and management capabilities.
  • What is the typical maintenance required for the GX430T?
  • Cleaning the print head and rollers on a regular basis helps to ensure optimal print quality and avoid problems.
  • Can the GX430T handle different label sizes?
  • Yes, the GX430T can accommodate a wide variety of label sizes and types.
  • Can the GX430T be used for printing receipts?
  • The GX430T is primarily designed for barcode labels and, as a result, may not be suitable for printing receipts.
  • Does the GX430T support barcode printing?
  • Yes, the GX430T recognizes a variety of barcode formats, including 1D and 2D barcodes.
  • How do you load media into the GX430T?
  • The drop-in design makes it simple to load media and replace labels and ribbons.
  • Is the GX430T compatible with Mac and Windows operating systems?
  • Yes, the GX430T works with both Windows and MacOS.
  • Can the GX430T be used in a network environment?
  • Yes, the GX430T can be integrated into network environments using its USB, parallel, or serial ports; however, network-specific models may include additional networking options.
  • What types of labels can the GX430T print?
  • The GX430T can print a wide range of labels, such as shipping labels, product labels, asset tags, and more.
