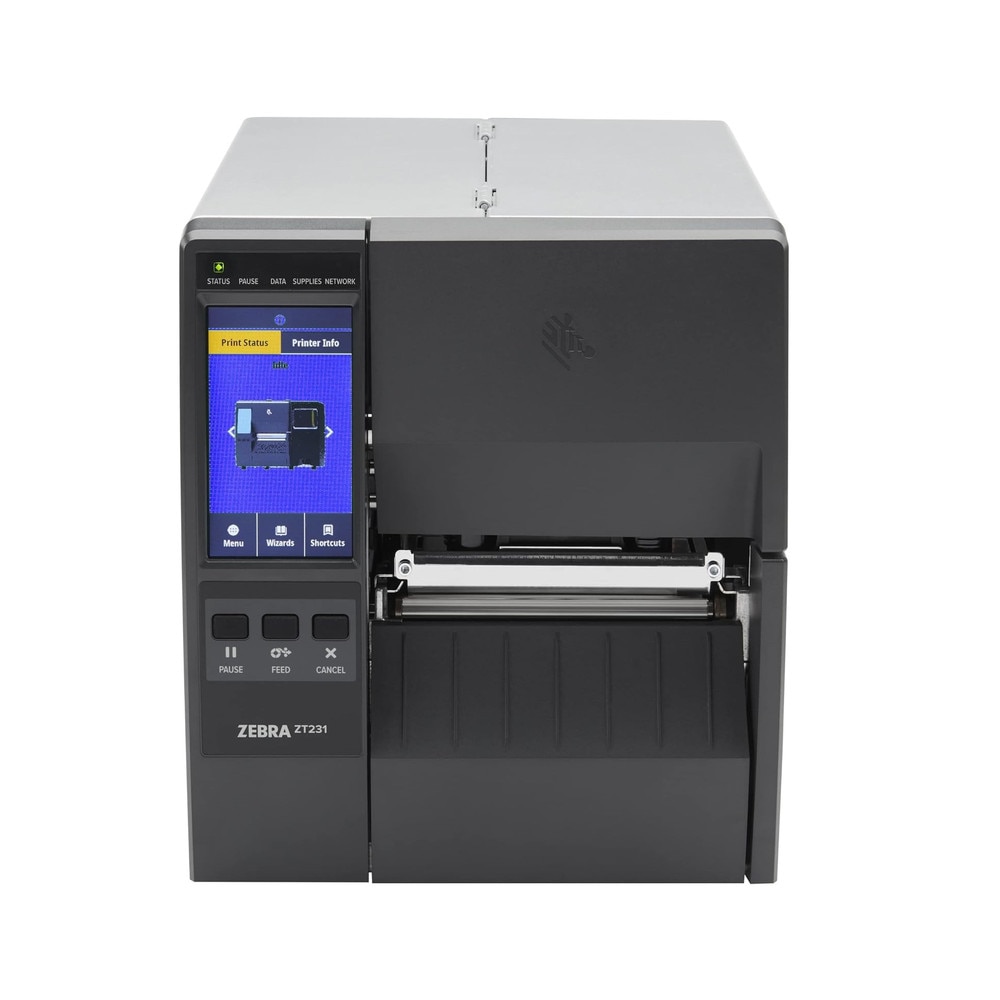

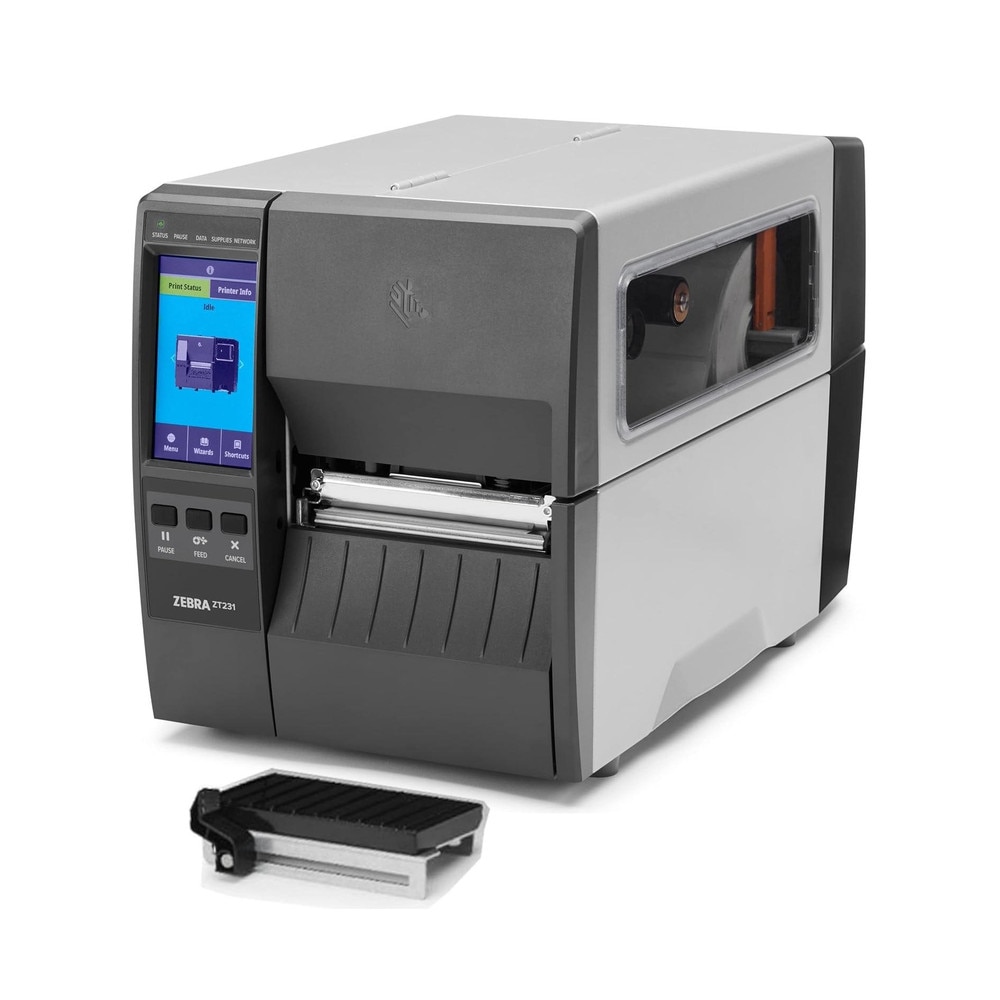

Zebra ZT231 TT 203dpi Ethernet Printer (ZT23142-T0E000FZ, ZT23142-T01000FZ) | New

Zebra ZT231 TT 203dpi Ethernet Printer (ZT23142-T0E000FZ, ZT23142-T01000FZ) | New

SKU: ZT23142-T0E000FZ-N
(0)No Reviews yet

🗹 Thermal transfer
🗹 50 % faster than the ZT230
🗹 LCD
🗹 Field and remote management
🗹 Access to video tutorials and assistants as well as settings
🗹 Use with fingertips and gloves
🗹 Backwards compatible
🗹 Pair with and print from a mobile device with a tap thanks to Print Touch Chip (NFC)
🗹 Optional RFID
🗹 Protection against cyberattacks with PrintSecure

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$599.99 $599.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Zebra ZT231 TT 203dpi Ethernet Printer (ZT23142-T0E000FZ, ZT23142-T01000FZ) | New

The Zebra ZT231 203dpi Thermal Transfer Industrial Label Printer with USB (ZT23142-T0E000FZ) is designed for harsh industrial settings where accuracy, efficiency and longevity are critical. This sturdy printer, which was created to optimize processes in manufacturing, warehousing, transportation and healthcare, produces excellent labels at remarkable speeds, guaranteeing that your workflow doesn't pause. The ZT231 is ideal for compliance labeling, asset monitoring, shipping and inventory management since it can print clear, sharp barcodes and text with a resolution of 203 dpi.

The ZT231's big color touchscreen and user-friendly interface make setup and operation simple. Long-lasting, smudge-resistant labels are guaranteed by the thermal transfer technique and its USB connectivity allows for smooth integration with almost any system. The ZT231 is a small, sturdy device that can survive hard industrial conditions and fits easily into small areas thanks to its metal frame and bi-fold door. This printer is a future-ready investment for expanding enterprises due to its tool-less printhead and platen roller replacement, remote management capabilities and firmware updates made possible by Zebra's Link-OS® platform.


Key Features of Zebra ZT231 203dpi Thermal Transfer Industrial Label Printer with USB


203dpi Thermal Transfer Printing produces sharp, durable labels for barcodes, text and graphics.

Industrial-Grade Durability with metal construction and compact bi-fold door design withstand harsh environments.

High-Speed Performance that prints up to 12 inches per second, boosting productivity in busy operations.

Large Color Touchscreen with intuitive interface for easy setup, configuration and status monitoring.

USB Connectivity with plug-and-play integration with PCs, workstations and industrial systems.

Tool-less Maintenance with quick, hassle-free printhead and platen roller replacement reduces downtime.

Flexible Media Handling that supports a wide range of label sizes and types for diverse applications.

Link-OS® Enabled with remote printer management, security and firmware updates for simplified IT oversight.

Energy-Efficient Operation that is designed for low power consumption in continuous-use environments.


Benefits of Zebra ZT231 203dpi Thermal Transfer Industrial Label Printer with USB


🗹 Fast print speeds and easy operation keep your labeling processes efficient and error-free.

🗹 Tool-less maintenance and robust construction ensure maximum uptime in demanding settings.

🗹 High-resolution printing delivers barcodes and text that meet industry standards for traceability and accuracy.

🗹 Perfect for shipping, inventory, asset tracking, product labeling and more across multiple industries.

🗹 Link-OS® platform enables remote management and updates, supporting business growth and changing needs.

🗹 Large touchscreen and intuitive controls simplify training and daily operation for all users.

🗹 Durable design and energy efficiency lower total cost of ownership over the printer’s lifespan.

🗹 Backed by Zebra’s reputation for reliability and innovation in industrial printing solutions.

Specifications

Specifications for Zebra ZT231 TT 203dpi Ethernet Printer (ZT23142-T0E000FZ, ZT23142-T01000FZ) | New

Manufacturer Zebra
Manufacturer Part Number ZT23142-T0E000FZ, ZT23142-T01000FZ
Product Name Zebra ZT231 TT 203dpi Ethernet Printer
Product Type Label Printer
Printer Specifications
Resolution 203 dpi/8 dots per mm
Memory 128 MB SDRAM memory / 128 MB on-board linear Flash memory
Maximum Print Width 4.09″/104 mm
Maximum Print Speed 6″/152 mm per second
Media Sensors Transmissive and reflective sensors
Print Length 203 dpi: 157″/3988 mm
Media Characteristics
Maximum Media Width 0.75″/19.4 mm to 4.50″/114 mm
Maximum Media Roll Size 8.0″/203 mm O.D. on a 3.0″/76 mm I.D. core & 6.0″/152 mm O.D. on a 1.0″/25 mm I.D. core
Thickness 0.003″/0.076 mm to 0.010″/0.25 mm
Media Types Continuous, die-cut, notch, black mark
Ribbon Characteristics
Standard Length ZT220: 984’/300 m & ZT230: 1,476’/450 m
Width 1.57″/40 mm to 4.33″/110 mm
Core 1.0″/25.4 mm
Operating Characteristics
Operating Temperature 40ºF to 105ºF/5ºC to 40ºC
Operating Humidity 20% to 85% non-condensing
Storage/Transportation Temperature -40ºF to 140ºF/-40ºC to 60ºC
Storage Humidity 5% to 85% non-condensing
Electrical Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz
Physical Characteristics
Length Closed 17″/432 mm
Width Closed Closed: 9.5″/242 mm
Height Closed 10.9″/277 mm
Weight Closed 20 lbs./9.1 kg

User Guides

Frequently Asked Questions

Zebra ZT231 TT 203dpi Ethernet Printer (ZT23142-T0E000FZ, ZT23142-T01000FZ)
Frequently Asked Questions (FAQ's)



How do I install the Zebra ZT231 printer driver?
  • Download the driver from Zebra’s website, then follow the instructions to install it. Do not connect the printer to the computer until the driver is installed.
  • How do I connect the Zebra ZT231 to my network?
  • You can connect via USB, Ethernet, or wireless network. Detailed steps are available in the user guide.
  • What media types can the ZT231 print on?
  • The ZT231 supports various media types including labels, tag stock, and receipt paper.
  • How do I load media into the ZT231 printer?
  • Open the media cover, insert the media roll, and adjust the media guides to secure it. Instructions can be found in the user manual.
  • How do I calibrate the media and ribbon sensors?
  • Calibration can be done automatically or manually through the printer’s menu or the Zebra Setup Utilities software.
  • What are the print speed and resolution of the ZT231?
  • It offers print speeds up to 12 inches per second (ips) at 203 dpi and up to 10 ips at 300 dpi.
  • How do I perform a test print on the ZT231?
  • Use the Print Wizard in the setup software or access the test print option through the printer’s menu.
  • How do I adjust the printhead pressure?
  • Printhead pressure adjustments can be made through the printer settings to ensure optimal print quality.
  • What should I do if the printer shows a ‘ribbon out’ error?
  • Check the ribbon supply and ensure it is correctly installed. If the issue persists, recalibrate the ribbon sensor.
  • Can the ZT231 print in peel-off mode?
  • Yes, the printer supports peel-off mode with or without liner take-up. This can be configured in the settings.
  • How do I clean the ZT231 printer?
  • Regularly clean the printhead, platen roller, media sensors, and the printer’s exterior using recommended cleaning agents and methods.
  • How do I resolve print quality issues?
  • Ensure the media and ribbon are correctly loaded, adjust print darkness settings, and clean the printhead. Refer to the troubleshooting section for more details.
  • How do I update the firmware on my ZT231?
  • Firmware updates can be downloaded from Zebra’s website and installed using the Zebra Setup Utilities software.
  • What interfaces are available on the ZT231?
  • The ZT231 includes USB, RS-232, Ethernet, and optional wireless and Bluetooth interfaces.
  • How do I use the USB host feature?
  • The USB host port allows you to connect a USB flash drive or keyboard for direct data input and printing.
  • What should I do if labels are skipping or misaligned?
  • Perform sensor calibration and ensure the media is properly loaded and matched in the printer settings.
  • How do I configure the printer settings?
  • Printer settings can be adjusted via the control panel, Zebra Setup Utilities, or the printer’s web interface.
  • How do I perform diagnostics and troubleshooting?
  • Use the diagnostic tools available in the printer’s menu or Zebra Setup Utilities to troubleshoot issues like print quality, ribbon, and communication problems.
  • What is the recommended maintenance schedule?
  • Regular maintenance includes cleaning the printhead, platen roller, and sensors after every roll of media. Detailed procedures are available in the user manual.
  • How do I order replacement parts for the ZT231?
  • Replacement parts can be ordered through Zebra’s website or authorized resellers. Ensure you have the correct part numbers before ordering.
