Zebra ZD220T Direct Thermal Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ) | New

Zebra ZD220T Direct Thermal Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ) | New

SKU: ZD22042-T0EG00EZ-N
(0)No Reviews yet

🗹 Thermal Transfer or Direct Thermal
🗹 ZPL and EPL programming languages
🗹 Single LED status indicator
🗹 Single button for feed/pause
🗹 USB connectivity
🗹 OpenACCESS™ for easy media loading
🗹 Dual-wall frame construction
🗹 ENERGY STAR qualified
🗹 ZebraDesigner Essentials

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$218.99 $218.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Zebra ZD220T Direct Thermal Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ) | New

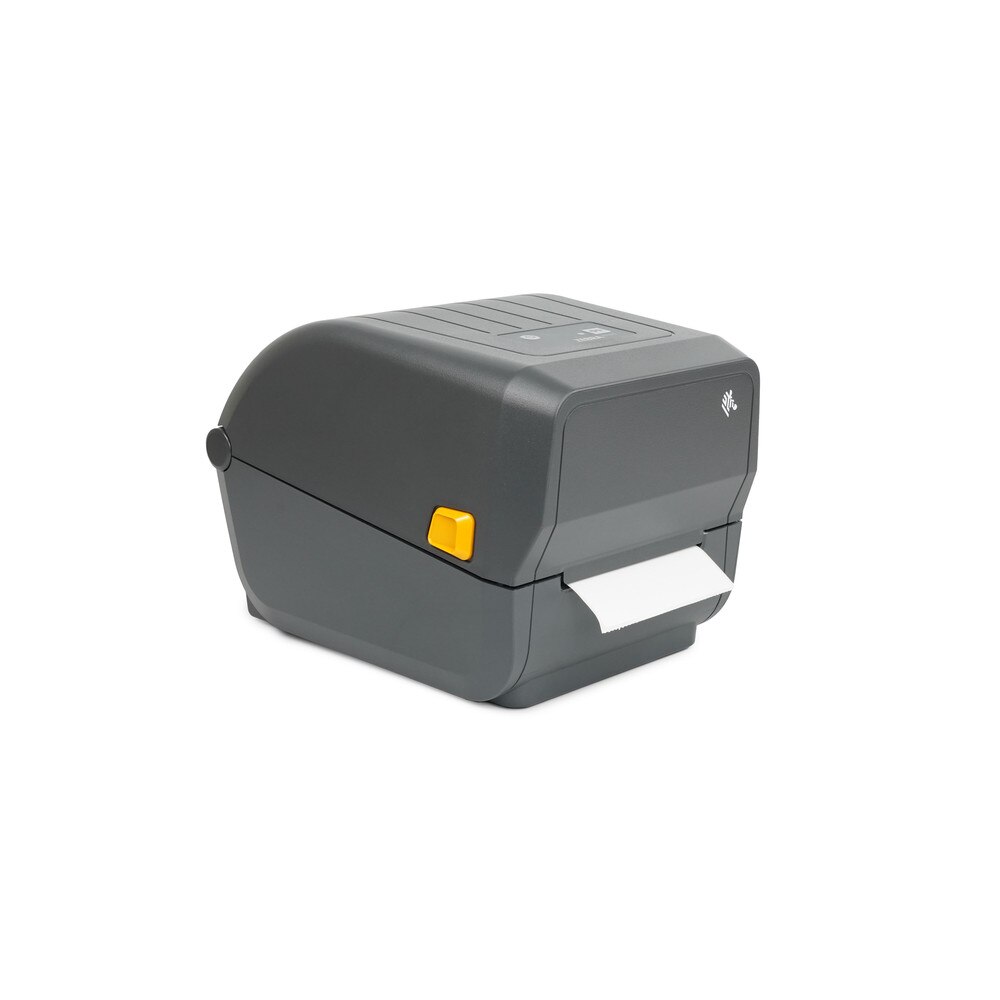

The Zebra ZD220T Direct Thermal Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ) is a reliable and efficient desktop printing option for small to medium enterprises. This 4-inch printer combines Zebra's well-known quality with key functionality, resulting in consistent performance at an economical price. The ZD220T has a dual-wall design for increased durability and is ENERGY STAR certified, ensuring long-term value and lower operational expenses. This printer's user-friendly interface and simple setup make it excellent for a wide range of applications in retail, healthcare, and light industrial settings.


Key Features of Zebra ZD220T Direct Thermal Barcode Label Printer


• Thermal Transfer Printing produces high-quality, long-lasting labels and tags.

• 203 dpi Resolution delivers crisp, clear text and barcodes for easy scanning.

• Print Speed of 4 inches per second ensures efficient label production to keep workflows moving.

• USB Connectivity provides universal interoperability for easy integration.

• Compact Design fits easily into space-constrained areas with dimensions of 10.5" x 7.75" x 7.5".

• 128 MB Flash and 128 MB SDRAM stores more fonts and graphics for versatile label designs.

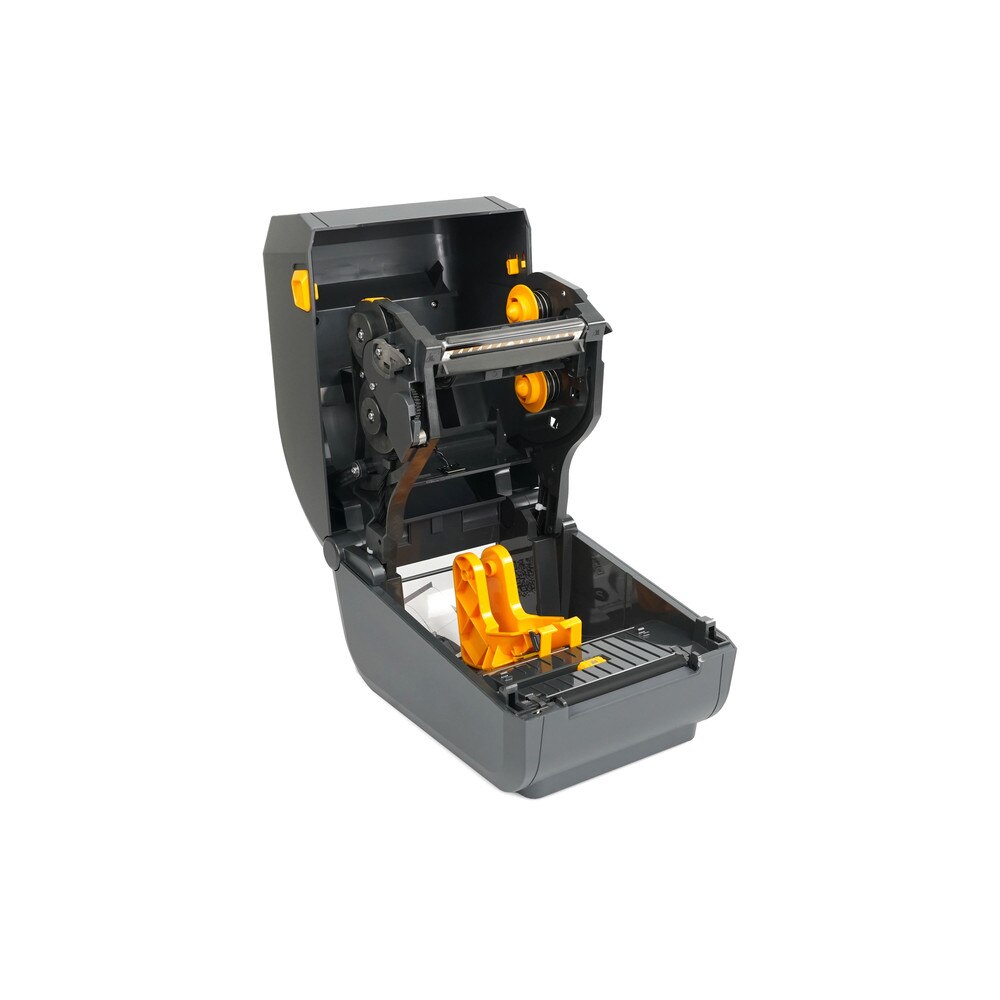

• OpenACCESS Clamshell Design allows for quick and easy media loading.

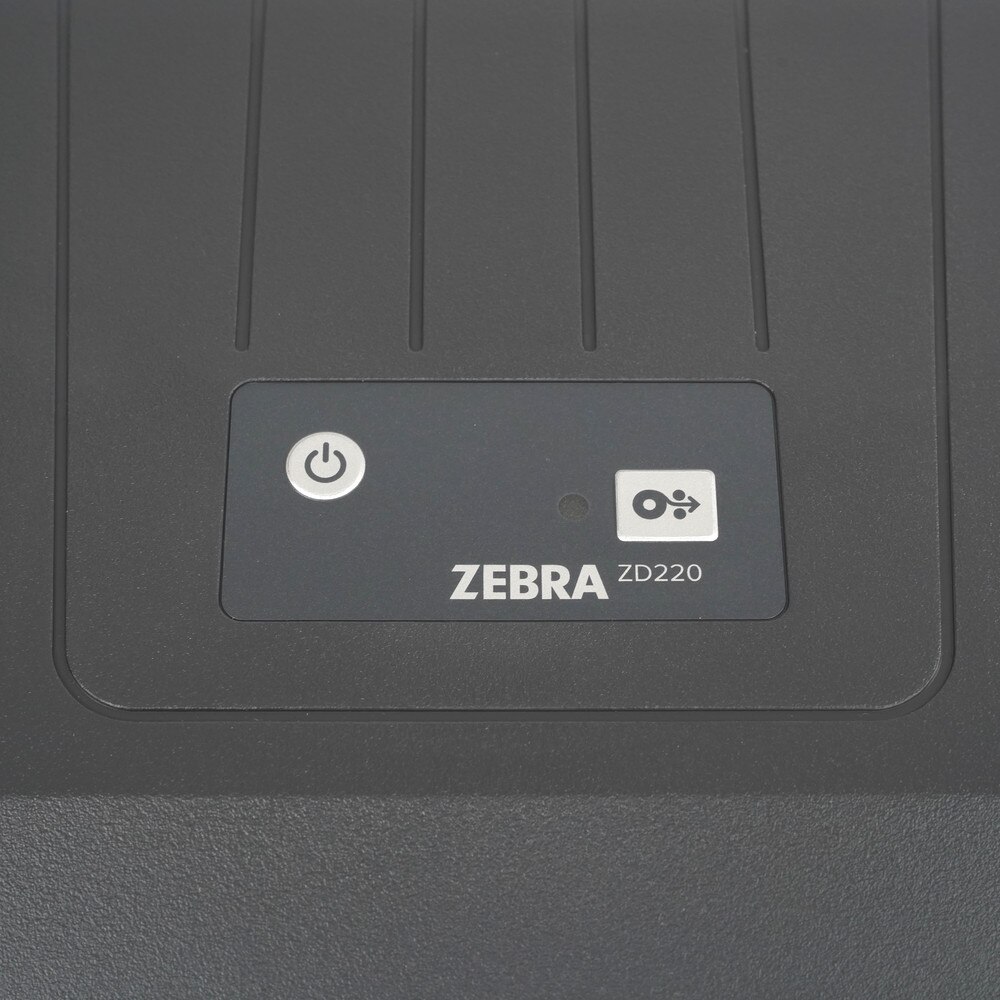

• Single LED Indicator and Button simplifies operation and printer status monitoring.

• ZPL and EPL Programming Languages ensures compatibility with various software solutions.

• 4.09-inch Maximum Print Width accommodates a wide range of label sizes.

• Movable Black Mark Sensor supports various media types for flexible label production.

• ENERGY STAR Qualified reduces operational expenses through energy efficiency.

• Dual-Wall Construction provides added durability for long-lasting performance.

• ZebraDesigner Essentials includes free, easy-to-use label design software.

• Two-Year Standard Warranty offers peace of mind and reliable support from Zebra.

Specifications

Specifications for Zebra ZD220T Direct Thermal Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ) | New

ManufacturerZebra
Manufacturer Part NumberZD22042-T0EG00EZ
Product NameZebra ZD220T Direct Thermal Barcode Label Printer
Product TypePrinter
DimensionThermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H
Direct Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H
Weight2.5 lbs./1.1 kg
Resolution*203 dpi/8 dots per mm
Memory256 MB Flash; 128 MB SDRAM
Maximum Print Width4.09 in./104 mm
Maximum Print Speed4 in./102 mm per second
Media Sensors• Movable black mark sensor, limited range from center to left side
• Fixed ott-center gap sensor
FirmwareZPL II; EPL 2; XML
Maximum Label Length39.0 in./991 mm
Media Width1.00 in. / 25.4 mm to 4.4 in. / 112 mm
Media Roll Size5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Thickness0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-ott mode only)
Media TypesRoll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter1.34 in./ 34 mm (74 m)
Maximum Ribbon Length244 ft. (74 m)
Ribbon Ratio1:1 media to ribbon (74 m)
Ribbon Width1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm
Ribbon Core I.D.74 Meter ribbon 0.5 in./ 12.7 mm

User Guides

Zebra ZD220T Direct Thermal Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ) Data Sheet

Frequently Asked Questions

Zebra ZD220T Barcode Label Printer (ZD22042-T01G00EZ, ZD22042-T0EG00EZ)
Frequently Asked Questions (FAQ's)

What is the print speed of the Zebra ZD220T?
  • The Zebra ZD220T has a print speed of up to 4 inches per second (ips).
    • What type of labels can the ZD220T print on?
  • The ZD220T can print on a variety of label types, including direct thermal and thermal transfer labels.
    • Does the ZD220T support wireless connectivity?
  • No, the ZD220T does not support wireless connectivity; it only has USB connectivity.
    • What is the maximum print width of the ZD220T?
  • The maximum print width is 4.09 inches (104 mm).
    • What is the resolution of the ZD220T printer?
  • The ZD220T has a print resolution of 203 dpi (8 dots per mm).
    • What kind of ribbon does the ZD220T use for thermal transfer printing?
  • The ZD220T uses standard 1-inch core ribbons with a maximum length of 300 meters.
    • How do I load labels into the Zebra ZD220T?
  • Labels can be loaded by opening the printer, inserting the label roll into the media compartment, and threading the labels under the media guides.
    • Can the ZD220T print barcodes and QR codes?
  • Yes, the ZD220T can print both barcodes and QR codes.
    • What are the compatible operating systems for the ZD220T?
  • The ZD220T is compatible with Windows, Mac OS, and Linux operating systems.
    • How do I install the ZD220T printer driver?
  • The driver can be installed by downloading it from the Zebra website and following the installation instructions.
    • Does the ZD220T come with software for label design?
  • Yes, the ZD220T comes with ZebraDesigner Essentials software for basic label design.
    • What is the maximum label roll diameter that the ZD220T can hold?
  • The ZD220T can hold label rolls with a maximum diameter of 5 inches (127 mm).
    • How do I perform a factory reset on the ZD220T?
  • A factory reset can be performed by pressing and holding the feed button while powering on the printer until the status indicator flashes.
    • Is the ZD220T compatible with Zebra's Print DNA tools?
  • Yes, the ZD220T is compatible with Zebra's Print DNA suite of applications and tools.
    • How can I clean the printhead on the ZD220T?
  • The printhead can be cleaned using a cleaning pen or a lint-free cloth dipped in isopropyl alcohol.
    • What are the power requirements for the ZD220T?
  • The ZD220T requires an AC power supply with a voltage range of 100-240V.
    • Can the ZD220T be used in a network environment?
  • The ZD220T can be used in a network environment with a compatible external print server, though it does not have built-in network connectivity.
    • How do I calibrate the ZD220T printer?
  • Calibration can be performed by holding the feed button until the status light flashes, releasing it, and allowing the printer to feed and calibrate automatically.
    • Can the ZD220T print in different languages?
  • Yes, the ZD220T supports multiple languages through Zebra's firmware settings.
