Overview of Zebra DS3678 Standard Range Barcode Scanner (DS3678-SR3U42A0SFW) | Like New
The Zebra DS3678 Standard Range Barcode Scanner (DS3678-SR3U42A0SFW) is an ultra-rugged cordless scanning device built for harsh industrial environments that require dependable 1D and 2D barcode capture. This innovative wireless scanner has outstanding scanning performance and unrivaled endurance, making it suitable for warehouse, manufacturing, and distribution center applications. The DS3678-SR has lightning-fast capture technology that reads barcodes from near contact to 5 feet away, and its ultra-rugged build can resist the roughest industrial situations.
Key Features of Zebra DS3678 Standard Range Barcode Scanner
• Advanced imager for lightning-fast 1D and 2D barcode capture up to 5 ft/1.5m range3
• IP67-rated sealing for dust-proof and waterproof protection5
• Bluetooth 4.0 (Low Energy) with Wi-Fi Friendly Mode24
• PowerPrecision+ battery delivering 56% more scans per charge24
• Ultra-rugged design surviving 8 ft/2.4m drops to concrete5
• Multi-code feature capturing up to 20 barcodes simultaneously16
• Advanced battery management with charge gauge indicators24

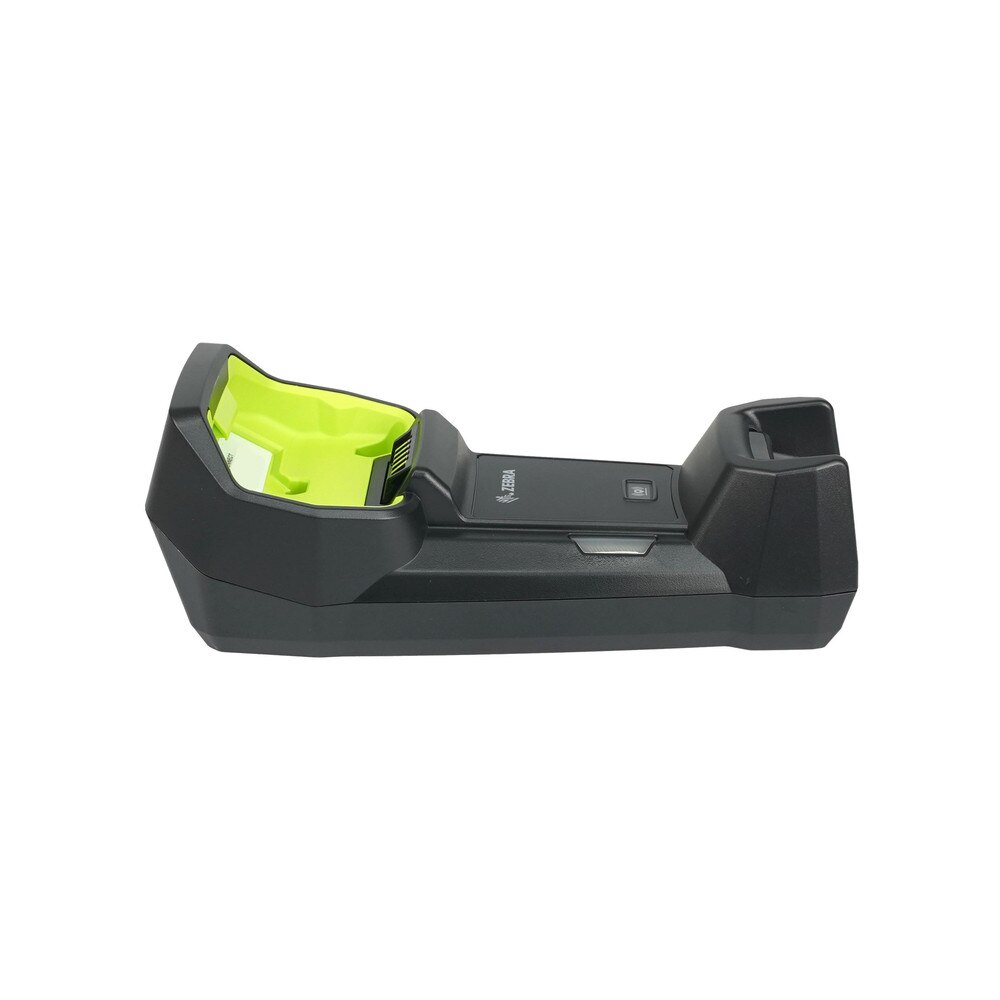

• Industrial-grade charging cradle with IP65 sealing3
• Operates in extreme temperatures from freezer to heat24
• Comprehensive decode capabilities for all common 1D/2D symbologies22
• Smart battery technology with health monitoring24
• Built-in vibration motor for noisy environment feedback
• 250,000 insertion rating for charging contacts24
• Automatic scanning sensor for hands-free operation
• Compatible with major inventory management systems
Specifications
Specifications for Zebra DS3678 Standard Range Barcode Scanner (DS3678-SR3U42A0SFW) | Like New
| Manufacturer | Zebra |
| Manufacturer Part Number | DS3678-SR3U42A0SFW |
| Product Name | Zebra DS3678 Standard Range Barcode Scanner |
| Product Type | Barcode Scanner |
Color | Industrial green |
Interface Type | Bluetooth 4.0 |
Minimum Bar Width | 5 mil |
Sensor Resolution | 1280 x 960 |
Skew (Degrees) | 60 |
Pitch (Degrees) | 60 |
Print Contrast Signal (PCS) | 0.15 |
Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, UPC/EAN supplementals |
TTL Decoding | Decoded |
Connectivity Technology | Wireless |
OK Notification | Beeper, LED indicator, vibration |
Features | Rugged, standard range scanning |
Wireless Connectivity | Bluetooth 4.0 LE |
Interfaces | 1 x USB |
Included Accessories | Cradle |
Cables Included | 1 x USB cable - external |
Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |

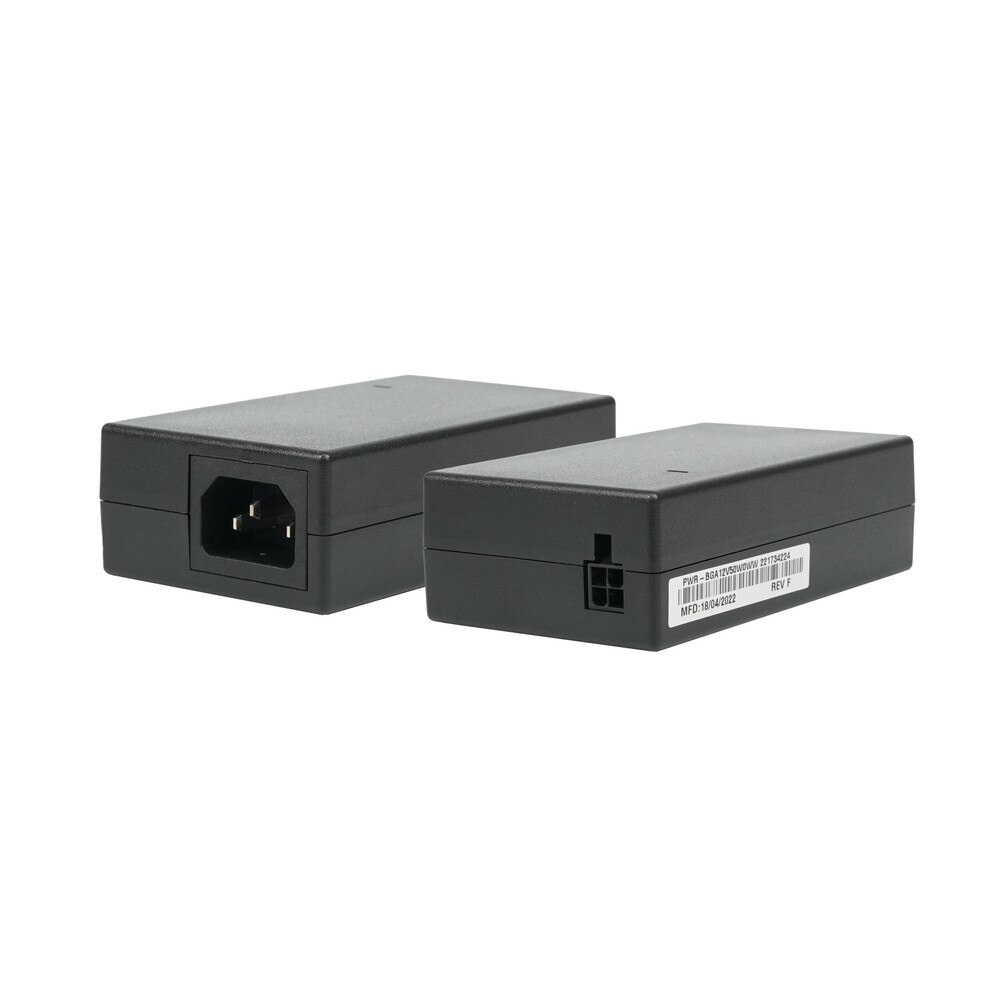

Power Device | Power adapter |
Battery | 1 x lithium ion |
Width | 3 in |
Depth | 5.6 in |
Height | 7.3 in |
Weight | 14.5 oz |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | -4 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 8 ft to concrete |
User Guides
Frequently Asked Questions
Zebra DS3678 Standard Range Barcode Scanner (DS3678-SR3U42A0SFW)
Frequently Asked Questions (FAQ's)
What is the Zebra DS3678-SR Barcode Scanner Kit? The Zebra DS3678-SR is a rugged, cordless barcode scanner for industrial use that can scan 1D and 2D barcodes.
What does the DS3678-SR Kit include? The kit usually includes the DS3678-SR scanner, a charging cradle, a power supply, a USB cable, and a user manual.
What types of barcodes can the DS3678-SR scan? The DS3678-SR is capable of scanning both 1D and 2D barcodes, including traditional paper labels and screen-displayed barcodes.
What is the scanning range of the DS3678-SR? The DS3678-SR has a scanning range of 3 inches to more than 70 feet, depending on the type and size of the barcode.
Is the DS3678-SR durable? Yes, it is designed for harsh environments, with an IP65/IP67 rating and the ability to withstand multiple drops from 8 feet onto concrete.
Is the DS3678-SR scanner wireless? Yes, the DS3678-SR is a cordless scanner that communicates via Bluetooth.
What is the battery life of the DS3678-SR? The battery can perform up to 70,000 scans per charge and last more than 24 hours when used continuously.
How does the DS3678-SR connect to a computer or device? The scanner connects to a host device wirelessly via Bluetooth or by docking in the USB-connected cradle.
Can the DS3678-SR scan barcodes in low light or total darkness? Yes, the DS3678-SR can scan barcodes under a variety of lighting conditions, including low light and complete darkness.
Does the DS3678-SR have omnidirectional scanning? Yes, the DS3678-SR supports omnidirectional scanning, which means barcodes can be read from any angle.
Can the DS3678-SR read damaged or poorly printed barcodes? Yes, it employs advanced scanning technology to read barcodes that are damaged, dirty, or improperly printed.
Is there any special software required to use the DS3678-SR? Basic operation does not require any special software; it is a plug-and-play device. Optional software is available for advanced configuration.
What environments is the DS3678-SR suitable for? The DS3678-SR is intended for industrial applications such as warehouses, manufacturing plants, and distribution centers.
Does the DS3678-SR support multiple Bluetooth connections? Yes, it is capable of connecting to up to seven Bluetooth-enabled devices at once.
How do I clean and maintain the DS3678-SR? If necessary, wipe down the scanner with a soft, lint-free cloth and a mild detergent. Avoid using harsh chemicals.
What is the typical charging time for the DS3678-SR battery? The battery usually fully charges in about 4 hours.
Can the DS3678-SR operate in extreme temperatures? Yes, it can operate at temperatures ranging from -22°F to 122°F (-30°C to 50°C).
What is the warranty period for the DS3678-SR? The DS3678-SR typically comes with a three-year manufacturer warranty.
How do I troubleshoot connection issues with the DS3678-SR? Troubleshooting tips include ensuring that the scanner and host device are within range, looking for interference, checking that the battery is charged, and consulting the user manual.
What is the IP rating of the DS3678-SR? The DS3678-SR has an IP65/IP67 rating, indicating that it is dust and water resistant.
