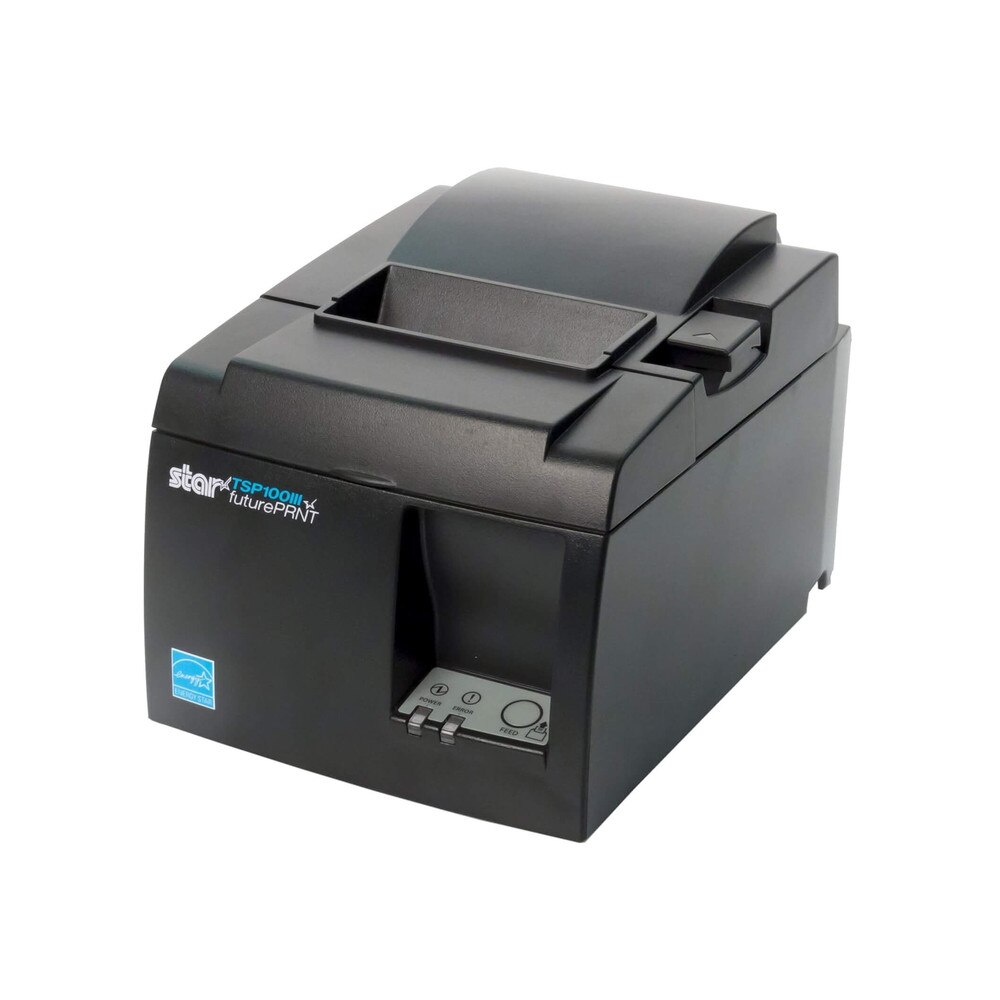

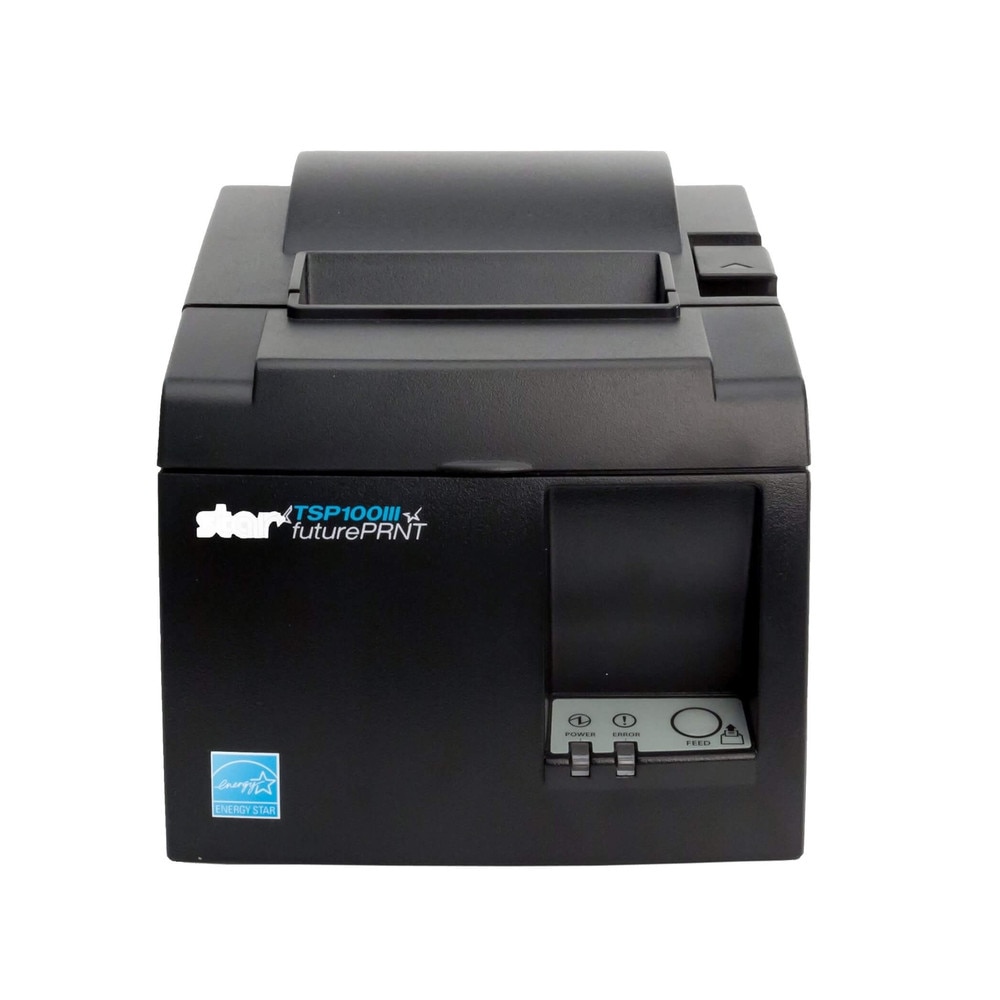

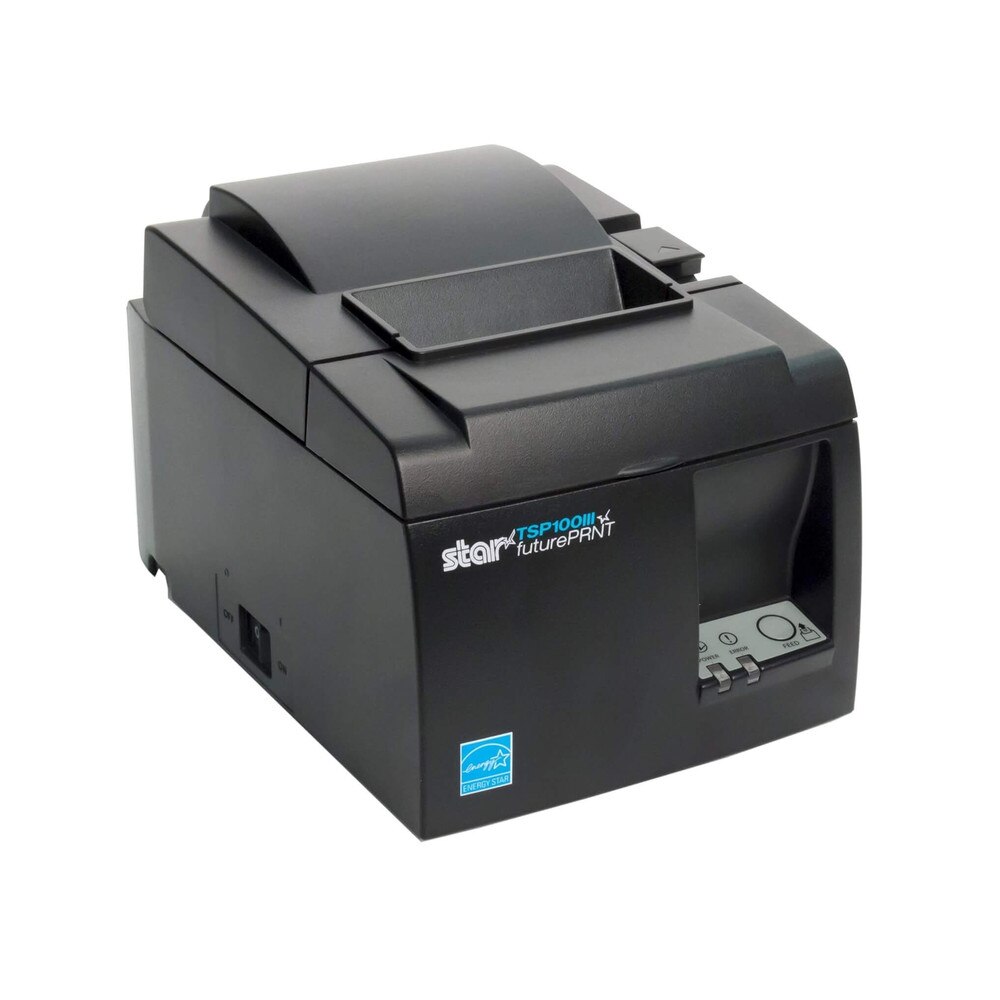

Star Micronics TSP143IIIU GRY US Thermal Receipt Printer (39472310) | New
SKU: 39472310-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Star Micronics TSP143IIIU GRY US Thermal Receipt Printer (39472310) | New
The Star Micronics TSP143IIIU GRY US Thermal Receipt Printer is a high-performance monochrome desktop printer intended to improve point-of-sale (POS) operations. This feature-rich printer prints receipts quickly, consistently, and efficiently, making it an excellent choice for a variety of retail, hospitality, and service-oriented businesses. With a print speed of up to 28 receipts per minute, the TSP143IIIU provides fast and responsive service, reducing customer wait times. The printer's "drop-in and print" paper loading mechanism improves efficiency by allowing for simple and hassle-free paper replenishment.
The TSP143IIIU includes a built-in power supply, eliminating the need for bulky external power adapters, simplifying installation and reducing clutter. Its compact, space-saving design and gray color scheme make it a perfect fit for any modern POS environment. A variety of connectivity options, including USB and Ethernet, enable simple integration with a wide range of POS systems and software. The printer's compatibility with various emulation modes, such as Star Mode and ESC/POS, ensures a smooth integration into existing workflows. The Star Micronics TSP143IIIU GRY US Thermal Receipt Printer (39472310) provides dependable performance and peace of mind, making it an excellent choice for businesses that require a high-quality, efficient, and user-friendly POS printing solution.
Key Features of Star Micronics TSP143IIIU GRY US Thermal Receipt Printer
• Rapid print speed of up to 28 receipts per minute (RPM).
• "Drop-in and print" paper loading mechanism makes paper replenishment simple and hassle-free.
• The built-in power supply eliminates the need for a bulky external power adapter.
• Compact and space-saving design with a gray color scheme
• USB and Ethernet are among the versatile connectivity options.
• Compatible with various emulation modes, including Star Mode and ESC/POS.
• Ideal for a variety of retail, hospitality, and service-oriented businesses.
• Monochrome thermal printing technology allows for efficient and cost-effective receipt printing.
• Compact and desktop-friendly design for easy integration into POS environments.
Specifications
Specifications for Star Micronics TSP143IIIU GRY US Thermal Receipt Printer (39472310) | New
| Manufacturer | Star Micronics |
| Manufacturer Part Number | 39472310 |
| Product Name | Star Micronics TSP143IIIU GRY US Thermal Receipt Printer |
| Product Type | Thermal Printer |
| Printer Method | Direct Line Thermal |
| Print Speed | 43 RPM (Receipts Per Minute) |
| Printer Case Color | Ultra White or Gray |
| Models Available | Auto-Cutter with Emergency tear bar on the front guide |
| Print Resolution | 203 dpi (8 dots per mm) |
| Font Size | 12 X 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality – 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Top Margin | 11 mm default |
| Paper Specifications | Width: 80mm standard, 58mm with paper guide Thickness: 0.053 ~ 0.085 mm Roll Diameter: Up to 83 mm Easy – Load: “Drop-In & Print” Paper Out Sensor: Standard Paper Low Sensor: N/A Maximum Print Width: 80mm paper = 72mm, 58mm paper = 50.8mm |
| Auto Cutter | Guillotine (Partial Cut Only) |
| Cover Open Sensor | Yes |
| Logo Store Capacity | Unlimited |
| Multiple Copy Support | Supported through FuturePRNT Software |
| Journal Capability | Supported through FuturePRNT Software |
| Label Support | N/A |
| Power Supply | Internal with power cable supplied |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Class, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android |
| Digitally Signed (WHQL) | Yes |
| Swappable Interfaces | N/A |
| Connectivity | USB |
| Emulation Modes | Star Mode SDKs (Raster only) |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 compulsion input |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby |
| Operating Conditions | Temperature: 5oC to 45oC Humidity: 10% – 90% RH (without condensation) |
| Storage Conditions | Temperature: -20oC to 60oC Humidity: 10% – 90% RH |
| Dimensions | 142 X 132 X 204 (w x h x d)mm |
| Weight | 1.72kg |
| Safety Standards | UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
| Reliability MCBF | 60 Million Lines Printhead: 100km Auto Cutter: 2 Million Cuts |
| Included Accessories | Wall Mount Bracket, 58mm Paper Guide, 3ft Interface Cable, 6ft Power Cable, Power Switch Cover, Easy Setup Guide, Installation CD with Drivers and FuturePRNT Receipt Design Software Auto Reverse Text Output Software (Power Cable not included with PUSB versions) |
| Warranty | 2 Year Limited Manufacturer Warranty (US & Canada) |
| Options | Splash Proof Cover (SPC-T100) Vertical Stand (VS-T650) Kitchen Buzzer (BU01-24-A) Swap-A-Star Extended Warranty Program (US) Extend-A-Star Extend Warranty Program (US and Canada) |
User Guides
Frequently Asked Questions
Star Micronics TSP143IIIU GRY US Thermal Receipt Printer (39472310)
Frequently Asked Questions (FAQ's)
What type of printing technology does the TSP143IIIU use? It utilizes direct thermal printing technology.
What is the maximum print speed of the TSP143IIIU? The printer has a maximum print speed of 43 receipts per minute.
Does the TSP143IIIU require ink or toner? No, ink or toner are not required because it is a thermal printer.
Can the TSP143IIIU print in color? No, it only prints black and white.
What is the maximum print resolution of the TSP143IIIU? The printer's maximum resolution is 203 dpi (dots per inch).
What types of paper can the TSP143IIIU print on? It is intended to print on thermal paper rolls that are 80mm wide.
Does the TSP143IIIU support USB connectivity? Yes, it has a USB interface for direct connection to a computer.
Is the TSP143IIIU compatible with mobile devices? This model is primarily USB compatible and is not intended for direct mobile connectivity.
What operating systems are compatible with the TSP143IIIU? It works with Windows, MacOS, and Linux.
Can the TSP143IIIU be networked wirelessly? The TSP143IIIU model is not wireless; instead, it connects via USB.
Is the TSP143IIIU Energy Star certified? Yes, it has Energy Star certification for energy efficiency.
Does the printer come with software? Yes, it includes Star's software tools for designing and printing receipts.
What warranty comes with the TSP143IIIU? It usually comes with a limited manufacturer warranty. Specific terms should be verified at the time of purchase.
Does the TSP143IIIU support barcode printing? Yes, it can print barcodes in different formats.
What are the dimensions of the TSP143IIIU? The printer measures about 142 x 132 x 204 mm.
How heavy is the TSP143IIIU printer? It weighs approximately 1.68 kilograms.
Can the TSP143IIIU handle high-volume printing tasks? Yes, it is intended for use in retail and hospitality settings where large-scale printing is common.
How do I load paper into the TSP143IIIU? It includes a "drop-in and print" paper loading system for quick paper changes.
Can the TSP143IIIU cut receipts automatically? Yes, it includes an auto-cutter function for separating each receipt.
Where can I download drivers for the TSP143IIIU? Drivers and software are available for download from the Star Micronics website under the product support section.
