Overview of Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) | New
The Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) scans all typical 1D barcodes quickly.The Voyager series, which combines form and function, has become the industry standard for value and performance. These stylish scanners have patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar: (previously known as RSS codes). The Honeywell Voyager MS9540 Barcode Scanner also contains unique CodeGate: technology, which enables you to simply target the required barcode and finish data transmission with a single button press.Honeywell provides a presenting scanning stand with automatic in-stand detection technology.
Key Features of Honeywell Voyager MS9540 Barcode Scanner
Automatic Trigger

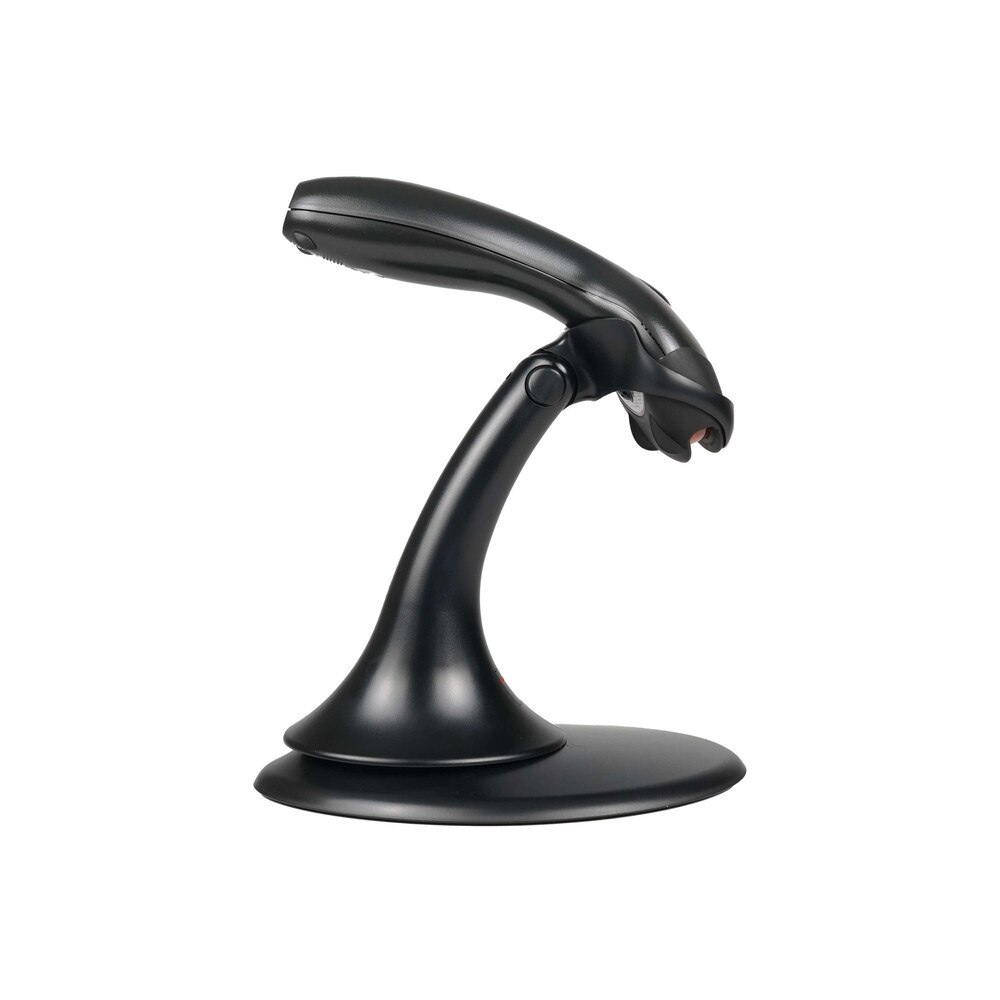

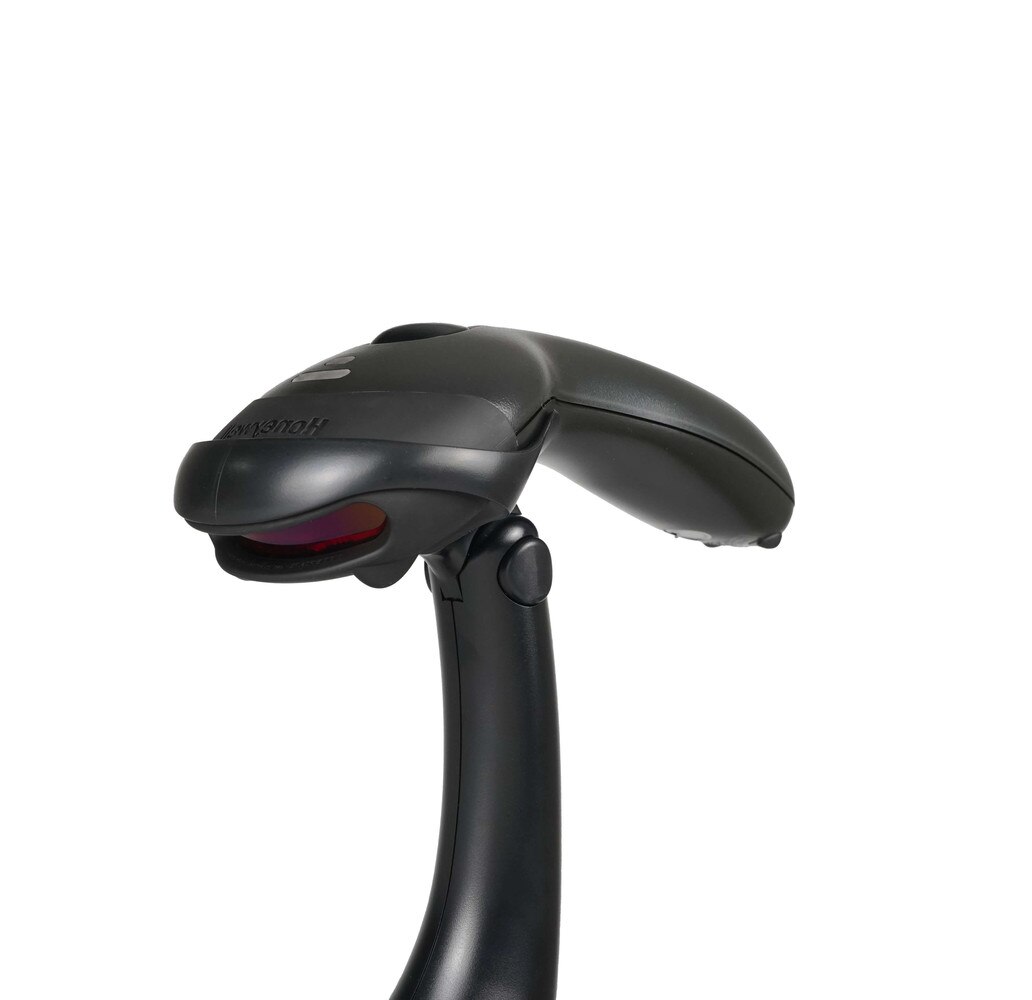

When put in the stand, use the scanner as a handheld device or as a fixed presentation scanner.
650-nanometer Laser
The high-visibility laser allows the user to place a laser line on a specific bar code.
CodeGate Technology (VoyagerCG 9540 only)
Select the necessary code and finish data transmission with a single button press—ideal for menu scanning applications.
Flash ROM
POS system with free firmware updates through MetroSet®2 software and standard PC.
Parsing (Data Editing)
Format bar code data to match the needs of the host system.
Specifications
Specification for Honeywell Voyager MS9540 Barcode Scanner (MK9540-32A38) | New
Manufacturer | Honeywell |
Manufacturer Part Number | MK9540-32A38 |
Product Name | Honeywell Voyager MS9540 Barcode Scanner |
Product Type | Barcode Scanner |
Interface Type | USB |
Minimum Bar Width | 5 mil |
Scan Field Width | 0.51 in - 10 in |
Scan Element Type | Visible laser diode |
Light Source Wave Length | 650 nm |
Scan Mode | Single-pass |
Scan Speed | 72 line / sec |
Skew (Degrees) | 52 |
Pitch (Degrees) | 68 |
Print Contrast Signal (PCS) | 0.35 |
Decode Capability | GS1 DataBar |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Features | Triggered, CodeGate, coiled cable |
Interfaces | 1 x USB |
Compliant Standards | CISPR 24, EN55022, EN55024, CISPR 22, ICES-003 Class B, RoHS, FCC CFR21 Part 1040, FCC Part 15 A, IEC 60825-1, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition |
Width | 3.1 in |
Depth | 7.8 in |
Height | 2.2 in |
Weight | 5.26 oz |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 5 ft to concrete |
