Overview of Cisco Catalyst C9200-NM-4X 4-Port Network Module Expansion | New

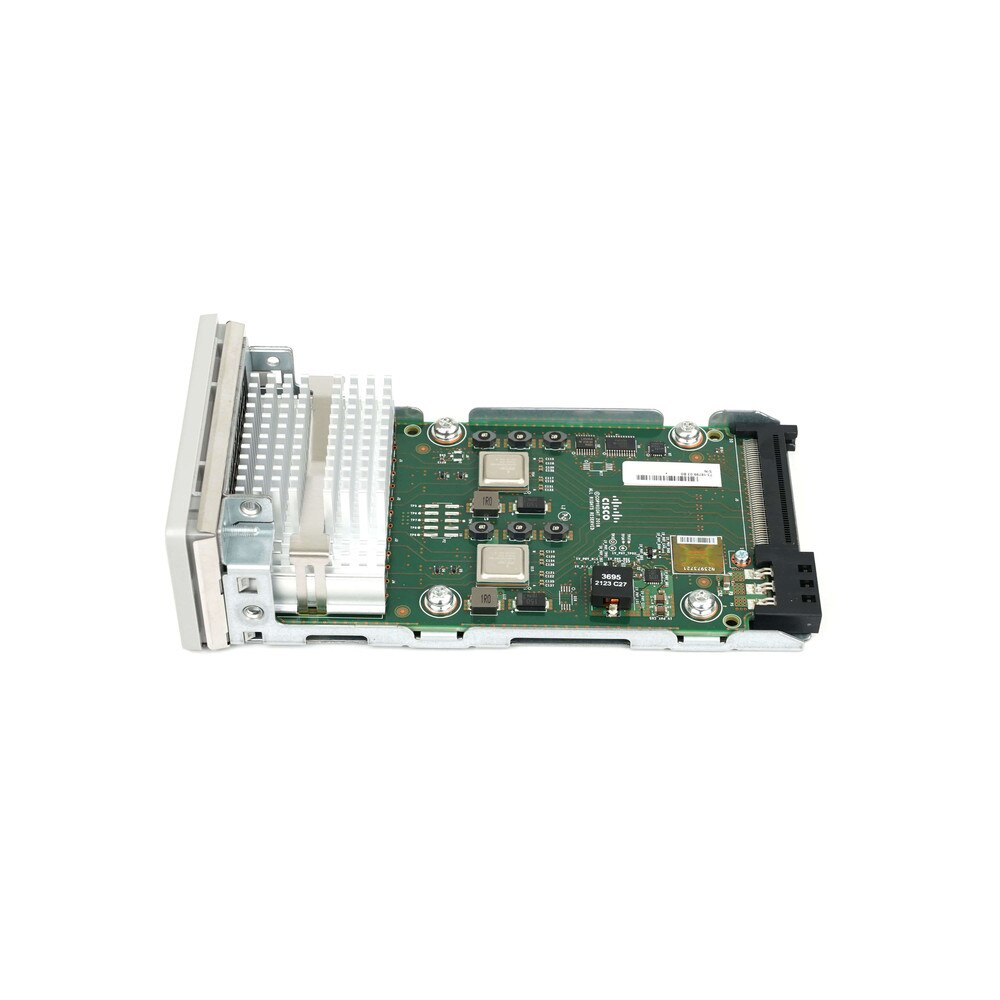

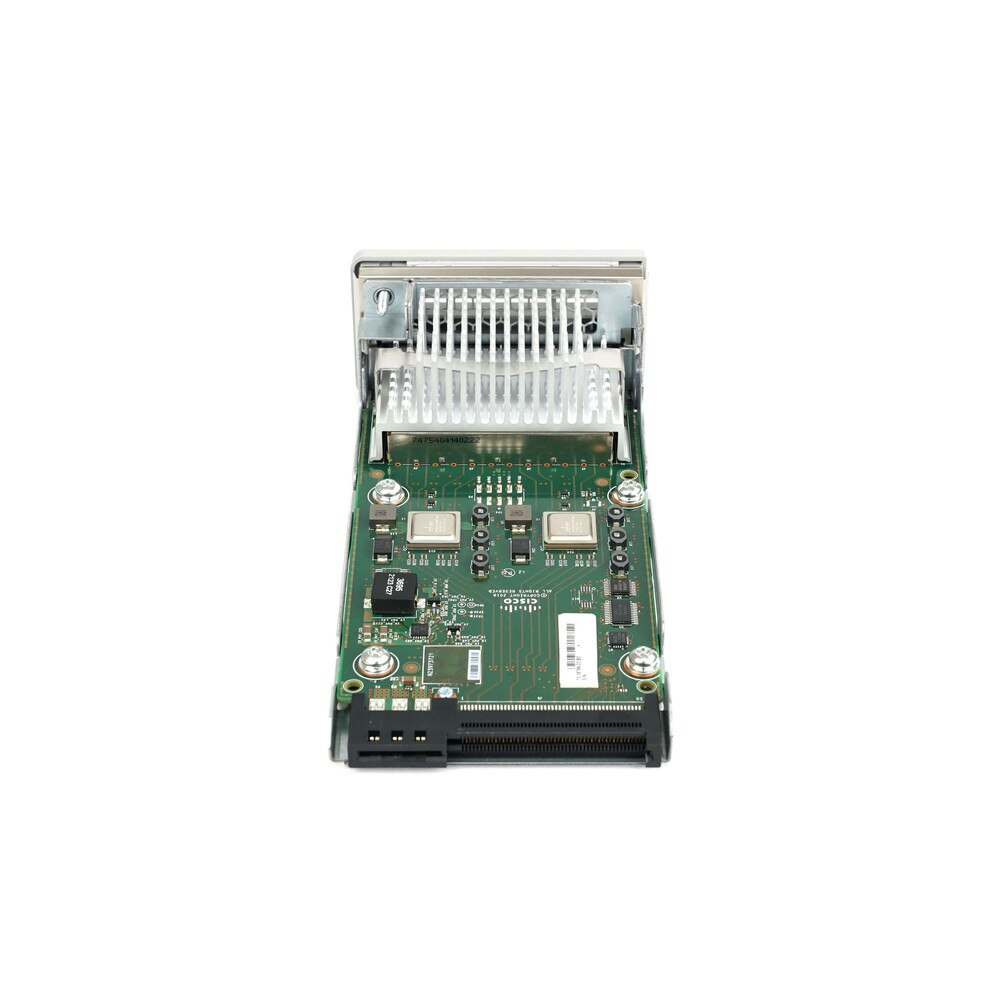

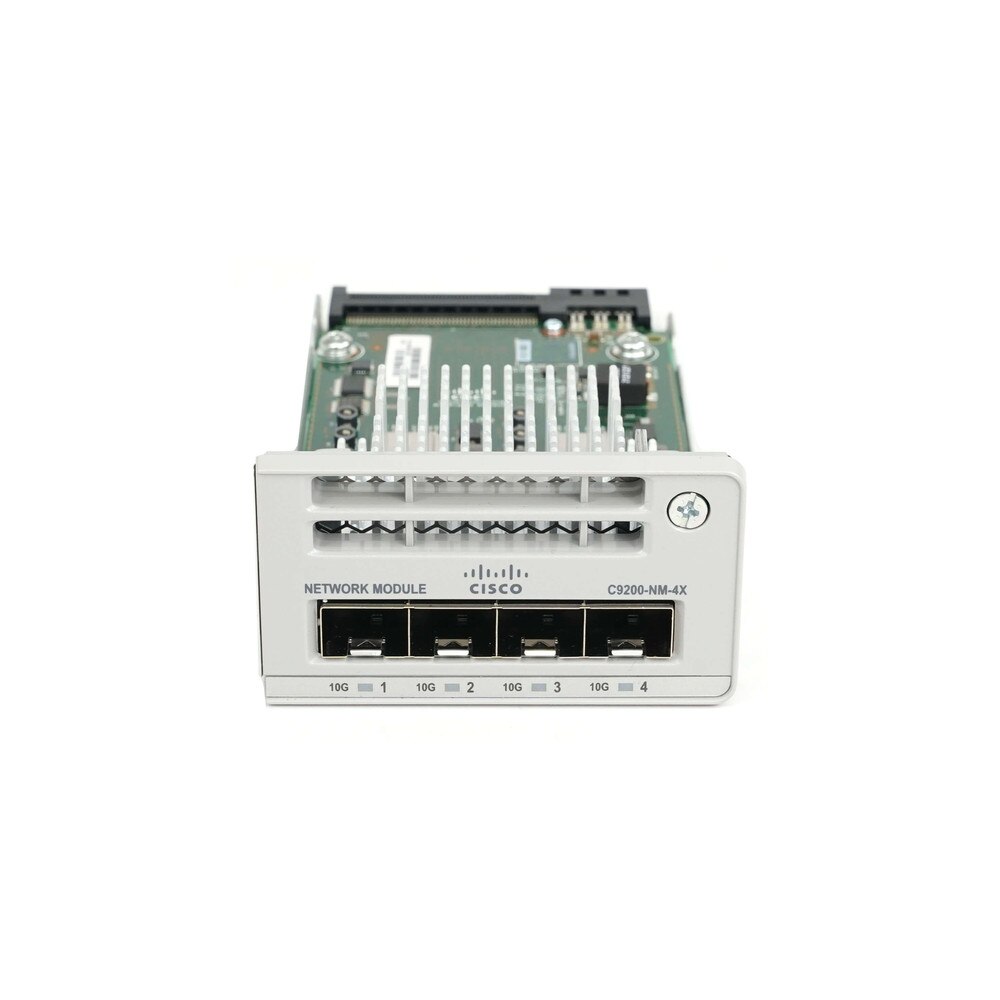

The Cisco Catalyst C9200-NM-4X 4-Port Network Module Expansion is a high-performance network module that extends the functionality of Cisco Catalyst 9200 Series switches. This adaptable network module adds high-speed connectivity choices to Catalyst 9200 switches, allowing enterprises to grow their network infrastructure more efficiently. With four 10G SFP+ ports, the C9200-NM-4X provides more capacity and flexibility for uplinks and server connections. This module is suitable for enterprises wishing to increase network capacity, speed up data transfers, and future-proof their switching infrastructure.
Key Features of Cisco Catalyst C9200-NM-4X 4-Port Network Module Expansion
• Four 10G SFP+ ports for high-speed connectivity
• Hot-swappable design for easy installation and minimal downtime
• Compatible with all Cisco Catalyst 9200 Series switches
• Supports various transceiver options for flexible deployment
• Enables network expansion without replacing the entire switch
• Increases overall switch port density and bandwidth
• Supports advanced features like MACsec encryption for enhanced security
• Facilitates high-speed uplinks to the network core or data center
• Enables direct 10G connections to servers or high-performance workstations
• Supports Cisco's Software-Defined Access (SD-Access) architecture
• Integrates seamlessly with Cisco DNA Center for simplified management
• Enhances network scalability and performance
• Backed by Cisco's limited lifetime warranty
• Supports Cisco StackWise technology for improved resiliency
• Energy-efficient design to minimize power consumption
Specifications
Specifications for Cisco Catalyst C9200-NM-4X 4-Port Network Module Expansion | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9200-NM-4X |
| Product Name | Cisco Catalyst C9200-NM-4X 4-Port Network Module Expansion |
| Product Type | Network Module |
Form Factor | Plug-in module |
Ports | 10 Gigabit SFP+ x 4 |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Interfaces | 4 x 10Gb Ethernet - SFP+ |
Designed For | P/N: C9200-24P-10A, C9200-24P-10E, C9200-24P-1A, C9200-24P-1E, C9200-24P-A, C9200-24P-A++, C9200-24PB-10A, C9200-24PB-1A, C9200-24PB-A, C9200-24PB-A++, C9200-24PB-EDU, C9200-24P-E, C9200-24P-E++, C9200-24P-EDU, C9200-24PXG-10A, C9200-24PXG-10E, C9200-24PXG-1A, C9200-24PXG-1E, C9200-24PXG-A, C9200-24PXG-A++, C9200-24PXG-E, C9200-24PXG-E++, C9200-24PXG-EDU, C9200-24T-10A, C9200-24T-10E, C9200-24T-1A, C9200-24T-1E, C9200-24T-A, C9200-24T-A++, C9200-24T-E, C9200-24T-E++, C9200-24T-EDU, C9200-48P-10A, C9200-48P-10E, C9200-48P-1A, C9200-48P-1E, C9200-48P-A, C9200-48P-A++, C9200-48PB-10A, C9200-48PB-1A, C9200-48PB-A, C9200-48PB-A++, C9200-48PB-EDU, C9200-48P-CX-A, C9200-48P-CX-E, C9200-48P-E, C9200-48P-E++, C9200-48P-E-AM, C9200-48P-EDU, C9200-48PL-1A, C9200-48PL-A, C9200-48PL-A++, C9200-48PL-E, C9200-48PL-E++, C9200-48P-RA, C9200-48PXG-1A, C9200-48PXG-1E, C9200-48PXG-A, C9200-48PXG-A++, C9200-48PXG-E, C9200-48PXG-E++, C9200-48PXG-EDU, C9200-48T-1A, C9200-48T-1E, C9200-48T-A, C9200-48T-A++, C9200-48T-E, C9200-48T-E++, C9200-48T-EDU |
User Guides
Frequently Asked Questions
Cisco Catalyst C9200-NM-4X 4-Port Network Module Expansion
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C9200-NM-4X network module? The C9200-NM-4X is a 4-port 10 Gigabit Ethernet (10G) network module designed for the Cisco Catalyst 9200 series switches, enabling high-speed connectivity and efficient data transfer.
How many ports does the C9200-NM-4X module have? The module provides 4 x 10 Gigabit Ethernet (SFP+) ports.
What type of ports are included on the C9200-NM-4X? It features SFP+ (Small Form-factor Pluggable) ports that support 10G fiber-optic connectivity.
Is the C9200-NM-4X compatible with all Cisco Catalyst 9200 switches? Yes, it is compatible with all Catalyst 9200 series switches that support network modules, such as the C9200-24P, C9200-48P, and C9200-48U models.
What types of cables can be used with the 10G SFP+ ports? The SFP+ ports support both fiber-optic cables (single-mode and multimode) and Direct-Attached Copper (DAC) cables for shorter distances.
Does the C9200-NM-4X support Power over Ethernet (PoE)? No, the C9200-NM-4X does not support Power over Ethernet. It is purely a data transmission module for high-speed connections.
What is the maximum speed of each port on the C9200-NM-4X? Each port on the C9200-NM-4X supports speeds of up to 10 Gbps.
Can the 10G ports on the C9200-NM-4X be used for both uplinks and downlinks? Yes, the 10G ports can be used for both uplinks to core switches and downlinks to end devices or other switches.
Is the C9200-NM-4X backward compatible with lower-speed SFP modules? Yes, the C9200-NM-4X is compatible with 1G and 10G SFP modules, but the module will run at the lower speed if a 1G SFP module is used.
Can the C9200-NM-4X be used for stacking multiple Cisco 9200 switches? No, the C9200-NM-4X is not designed for switch stacking. For stacking, the Cisco Catalyst 9200 series requires the dedicated stacking modules.
What is the power consumption of the C9200-NM-4X module? The power consumption of the C9200-NM-4X is approximately 30W, but it can vary depending on the specific use case and connected devices.
Does the Cisco Catalyst C9200-NM-4X support 40G or 100G connections? No, the C9200-NM-4X supports 10G connectivity. If you require 40G or 100G, you will need to consider other modules such as the Cisco Catalyst C9300-NM-2Q or similar products.
What is the maximum distance supported by the fiber-optic cables? The distance supported by the fiber-optic cables depends on the type of fiber (single-mode or multimode) and the SFP+ modules used.
Is the C9200-NM-4X module hot-swappable? Yes, the C9200-NM-4X module is hot-swappable, meaning it can be installed or removed without powering down the switch.
What is the form factor of the C9200-NM-4X network module? The C9200-NM-4X is a network module that fits into the dedicated network module slot of the Cisco Catalyst 9200 series switches.
What type of SFP+ transceivers are supported by the C9200-NM-4X? The C9200-NM-4X supports a variety of Cisco SFP+ transceivers, including 10G SFP+ SR (short range), LR (long range), and DAC cables.
Does the C9200-NM-4X support link aggregation (LAG)? Yes, the module supports link aggregation (LAG) for combining multiple ports to increase bandwidth and provide redundancy
Can I use the C9200-NM-4X in a non-Catalyst 9200 switch? No, the C9200-NM-4X is designed specifically for the Cisco Catalyst 9200 series switches and may not be compatible with other models.
What is the maximum throughput for the C9200-NM-4X module? The maximum throughput of the C9200-NM-4X is 40 Gbps (4 x 10 Gbps ports).
How can I monitor the status of the C9200-NM-4X network module? You can monitor the status using Cisco's management tools such as Cisco DNA Center, the Catalyst 9200 series web interface, or through the command-line interface (CLI) using commands like show module and show interfaces.
