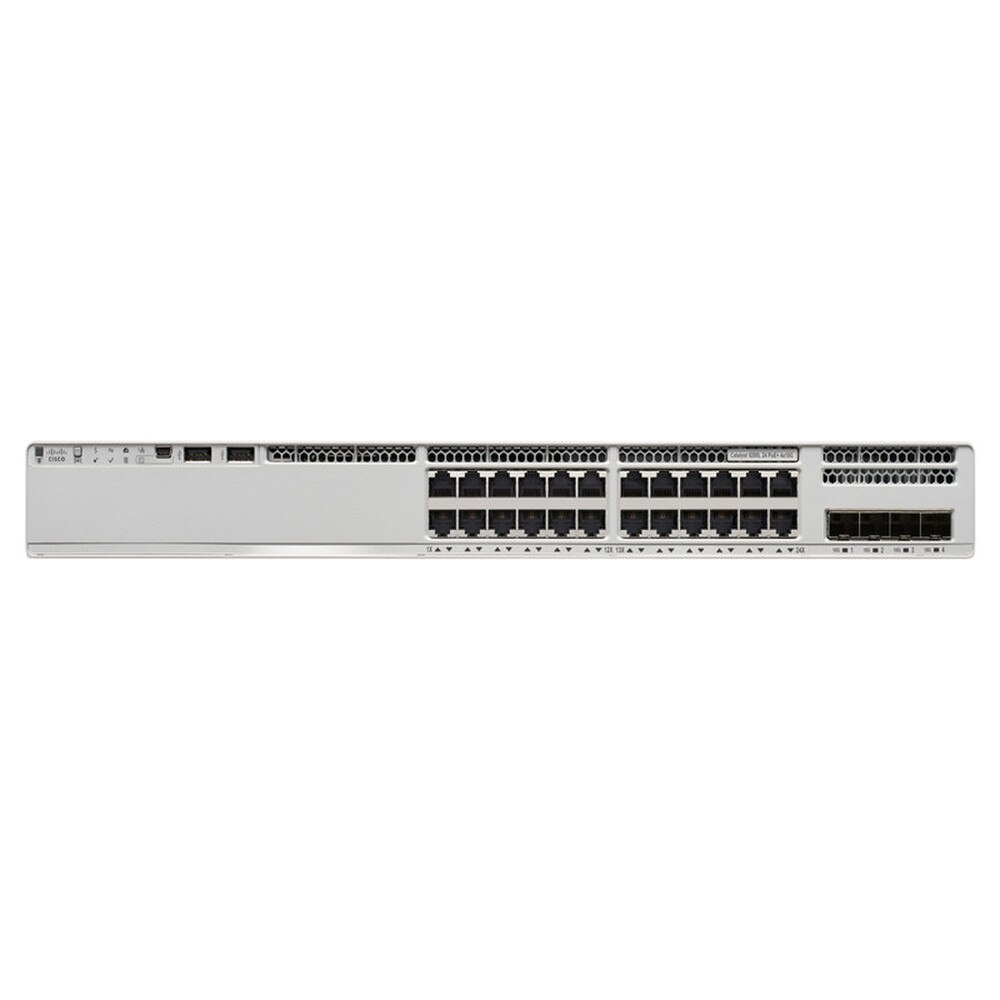

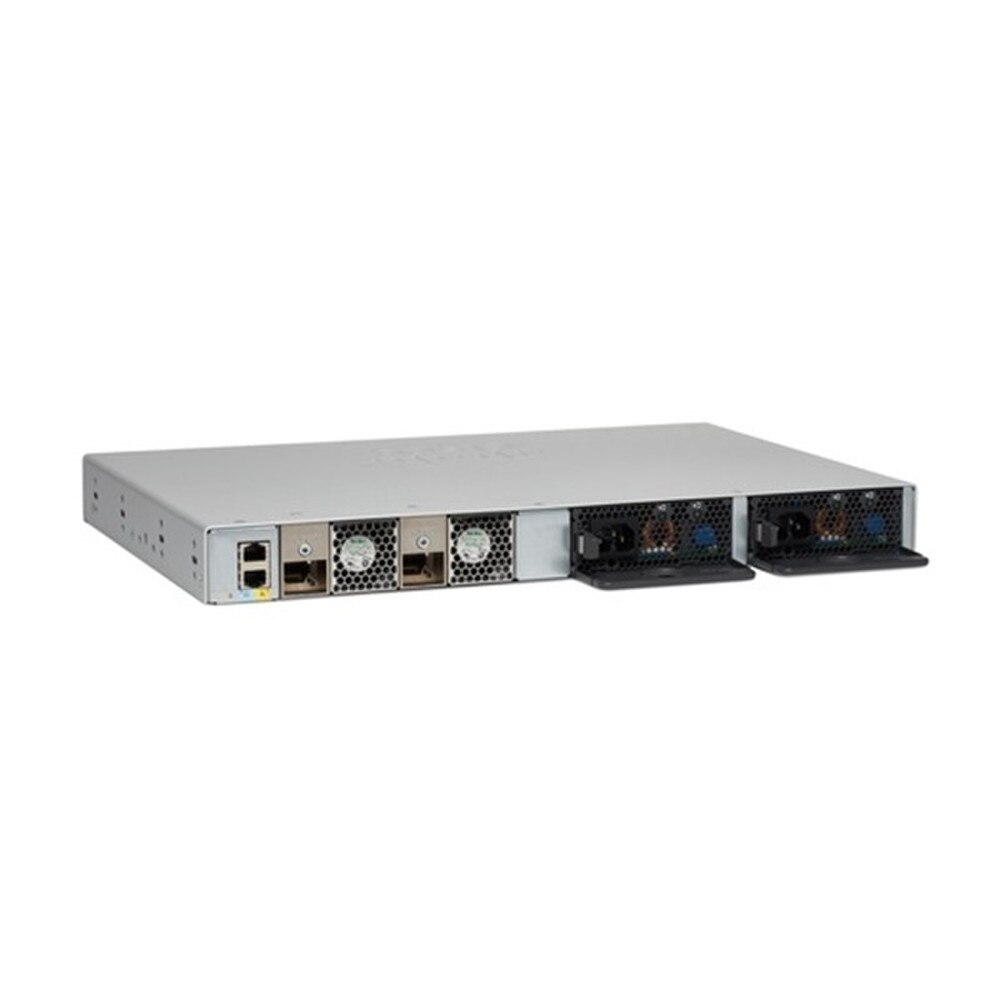

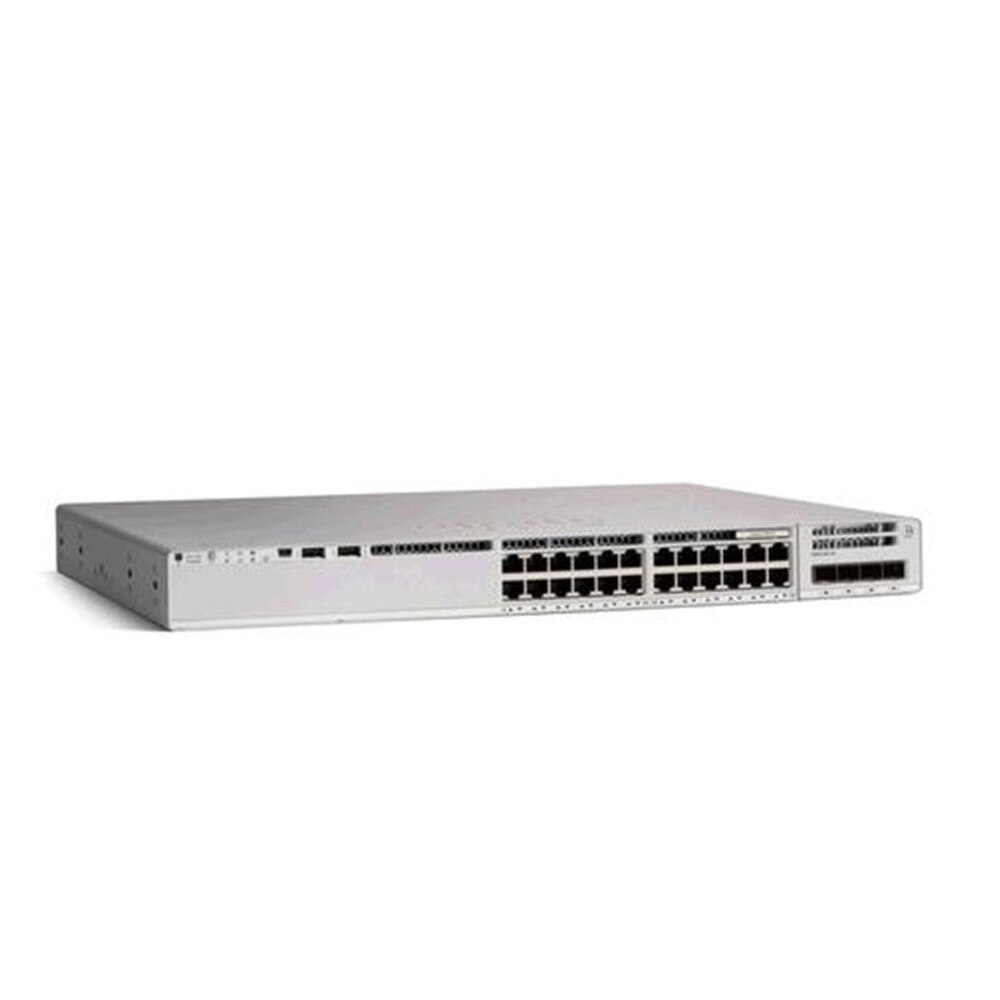

Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch | New

Overview of Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch | New

The Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch is an enterprise-class, high-performance Layer 2/3 managed switch made to provide scalable, secure, and reliable connection for contemporary business networks. This switch provides flexible, fast connections for PCs, servers, and uplinks to aggregation or core switches. It has four fixed 1G SFP uplink ports and 24 non-PoE Gigabit Ethernet ports. Even in situations with high traffic, the C9200L-24T-4G-E guarantees seamless, non-blocking data transfers due to its strong 56 Gbps switching capacity and 83.33 Mpps forwarding rate. StackWise-160 stacking technology, which allows up to eight switches to be handled as a single unit with 80 Gbps stack bandwidth, is supported by the C9200L-24T-4G-E, which was designed for simplicity and dependability. Network integrity and data privacy are safeguarded by advanced security features like MACsec encryption, access control lists (ACLs), and encrypted traffic analytics. The switch supports automation and intent-based networking for more efficient IT operations and can be operated by Cisco IOS XE, Cisco DNA Center, web UI, or SNMP. It is perfect for branch offices, campus access, and expanding enterprise networks because of its small 1U rack-mountable architecture, fixed redundant fans, and energy-efficient operation.

Key Features of Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch

• 24 x 10/100/1000 Ethernet Ports with high-density Gigabit connectivity for desktops, servers and IoT devices.

• 4 x 1G SFP Uplink Ports with flexible fiber uplinks for reliable, high-speed aggregation and core connections.

• 56 Gbps Switching Capacity that ensures non-blocking performance and efficient data flow.

• Up to 83.33 Mpps Forwarding Rate that handles high volumes of network traffic with ease.

• StackWise-160 Stacking Support that stack up to 8 switches with 80 Gbps bandwidth for scalability and redundancy.

• Layer 2/3 Switching that supports VLANs, static routing, RIP, OSPF and EIGRP for advanced segmentation and routing.

• Advanced Security that includes MACsec encryption, Encrypted Traffic Analytics, ACLs and segmentation for comprehensive protection.

• Cisco DNA Center Compatibility that enables automation, policy enforcement and network assurance.

• Energy Efficient Ethernet (EEE) that reduces power consumption and operational costs.

• Fixed Redundant Fans & Power Supply that enhances reliability and minimizes downtime.

• Compact 1U Rack-Mountable Design that fits easily into standard network racks for streamlined deployment.

Benefits of Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch

🗹 High switching capacity and forwarding rate ensure seamless data transfers and optimal network efficiency, even during peak usage.

🗹 24 Gigabit ports and four SFP uplinks support a wide range of devices and future network growth.

🗹 StackWise-160 and Cisco DNA Center integration streamline administration, automation, and troubleshooting.

🗹 Advanced encryption, analytics, and access controls safeguard sensitive data and protect against evolving threats.

🗹 Redundant fans and power supply, plus stacking support, ensure business continuity and minimize downtime.

🗹 Energy-efficient design and investment protection features lower total cost of ownership.

🗹 Supports Cisco’s latest innovations for automated, policy-driven network operations.

Specification for Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch | New

Cisco Catalyst C9200L-24T-4G-E 24-Port Data Network Essentials Switch
