Overview

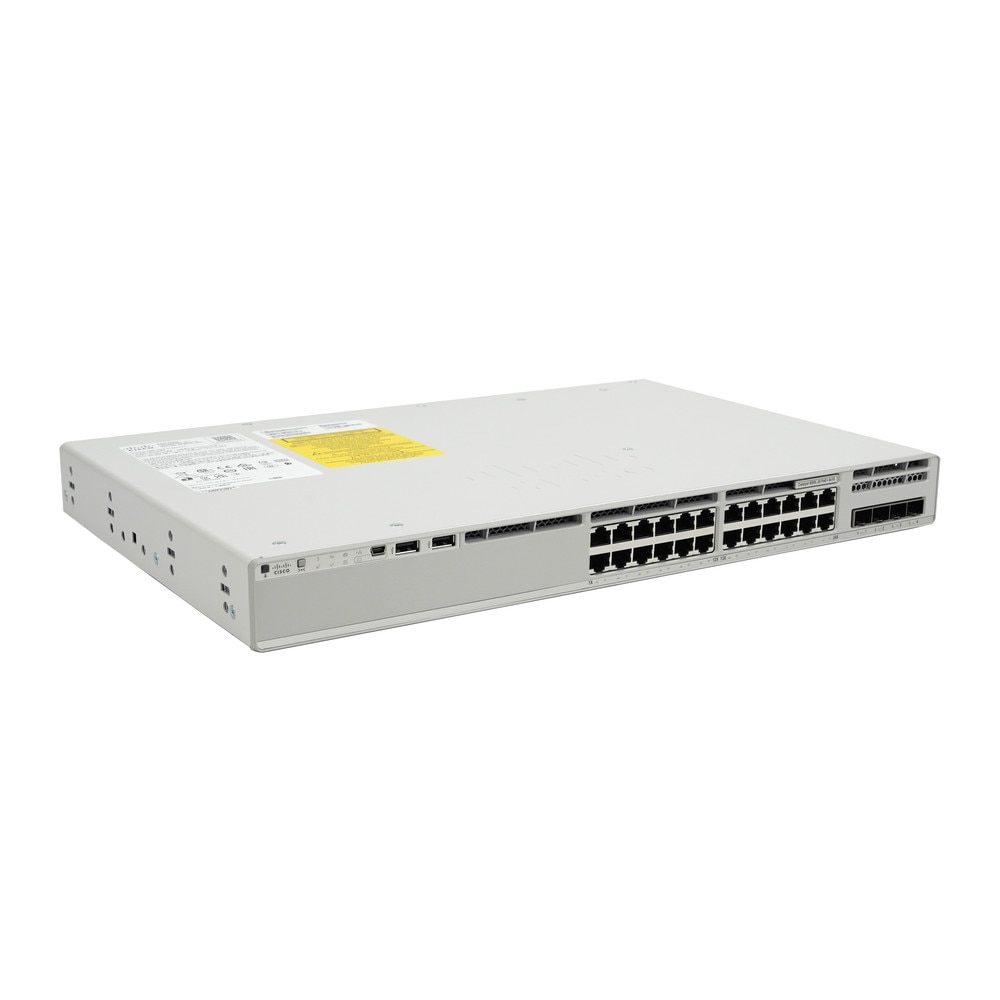

Overview of Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage | New
The Cisco Catalyst C9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage provides dependable business performance, strong security, and easy management in a small, powerful access switch. This variant, which is intended for expanding companies and dispersed campuses, offers four fixed 1G SFP uplinks and 24 complete Power over Ethernet Plus (PoE+) gigabit ports for seamless high-speed device, wireless and backbone access. Cisco's cutting-edge IOS XE with Network Advantage, which powers the C9200L-24P-4G-A, allows for sophisticated Layer 2/3 functionality, automation, segmentation and secure access for contemporary hybrid networks. Field-replaceable redundant power and cooling provide all-day dependability, while fanless choices and robust stacking support further increase flexibility in edge deployments that are sensitive to noise and space. With zero-touch provisioning, dependable hardware and software security, and centralized cloud-ready administration, the C9200L-24P-4G-A, a key feature of intent-based Cisco networks, enables IT teams to quickly deploy, protect and scale enterprise-class access. It is the tried-and-true option for securing cutting-edge spaces in workplaces, medical facilities, retail establishments and educational institutions.
Key Features of Cisco Catalyst C9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage
• 24 x 10/100/1000 PoE+ Ethernet Ports deliver up to 30W per port, powering phones, access points, cameras and IoT without additional adapters.
• 4 x 1G SFP Uplink Ports support high-speed fiber or copper connections to aggregation or core switches for campus or multisite scaling.
• Network Advantage Software unlocks advanced Layer 3 (OSPF, EIGRP, static, VRF), policy-based automation, segmentation and encrypted traffic analytics.
• StackWise-80/160 Technology that stack up to 8 switches as one logical unit for up to 160 Gbps bandwidth, redundancy and simplified management.

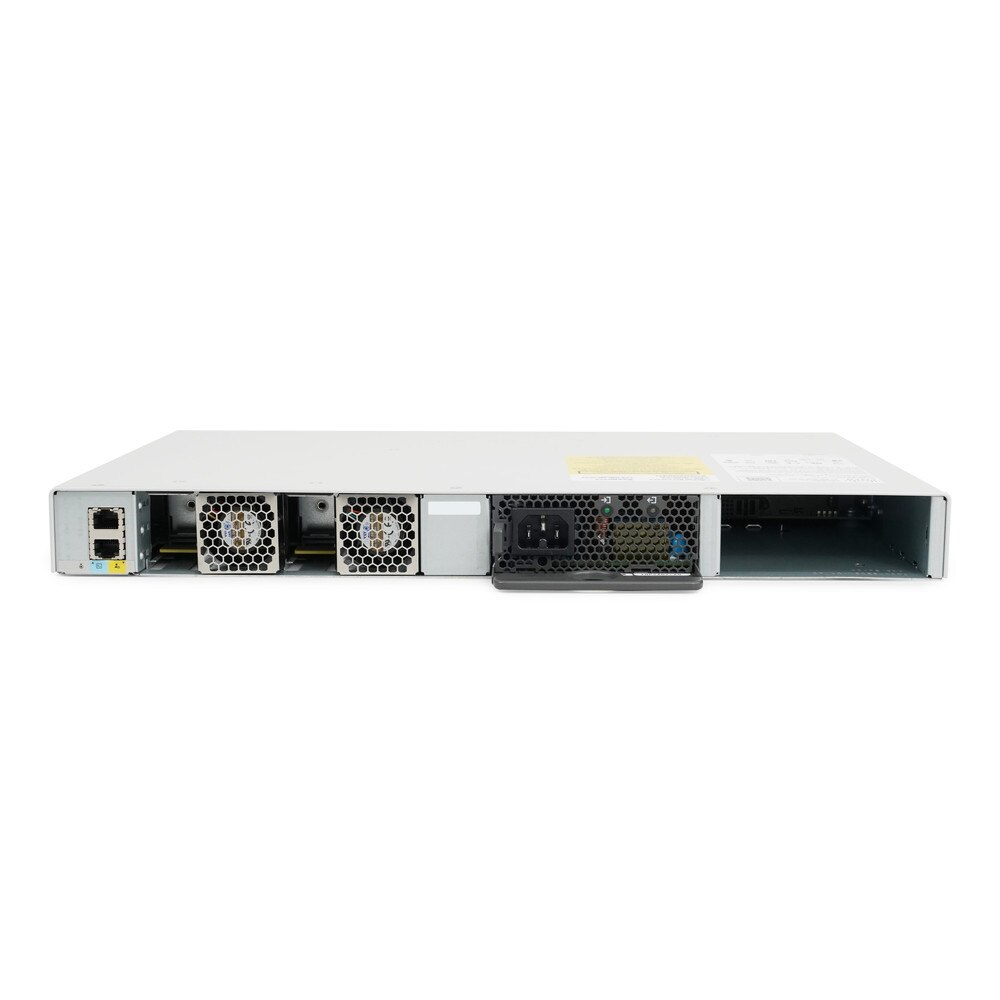

• Redundant, Field-Replaceable Power and Cooling ensures mission-critical uptime; easy on-site serviceability.
• Integrated Security Features with encrypted Traffic Analytics, 128-bit/256-bit MACsec, dynamic segmentation, TrustSec and device authentication protect every port and device.
• Cisco DNA Center & Zero-Touch Provisioning with cloud and on-prem management, analytics and automation streamline initial deployment, changes, and troubleshooting.
• Energy Efficient Design with ENERGY STAR certified, with Energy Efficient Ethernet (EEE) and Cisco EnergyWise technology for operational savings.
• Compact, Fanless Option with quiet operation for space-constrained and noise-sensitive environments like retail or healthcare.
Benefits of Cisco Catalyst C9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage
🗹 Power and securely connect phones, cameras and more at the edge with PoE+ on every port and stackable expansion to scale as you grow.
🗹 Centralized control, automation and segmentation reduce IT burden while enforcing enterprise security and compliance everywhere.
🗹 Dual redundant power, stacking and field-replaceable fans keep critical networks always up, minimizing downtime and costly disruptions.
🗹 Zero-touch provisioning and modular uplinks simplify initial install, moves/adds/changes and cloud migration, protecting your investment.
🗹 Integrated security protects sensitive data; efficient operation and PoE+ minimize energy and cabling costs over the lifecycle.
🗹 The compact, low-noise chassis fits neatly into open offices, classrooms or branch sites, delivering powerful access everywhere.
Specifications
Specifications for Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage | New
Manufacturer | Cisco |
Manufacturer Part Number | C9200L-24P-4G-A |
Product Name | Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage |
Product Type | Networking Switch |

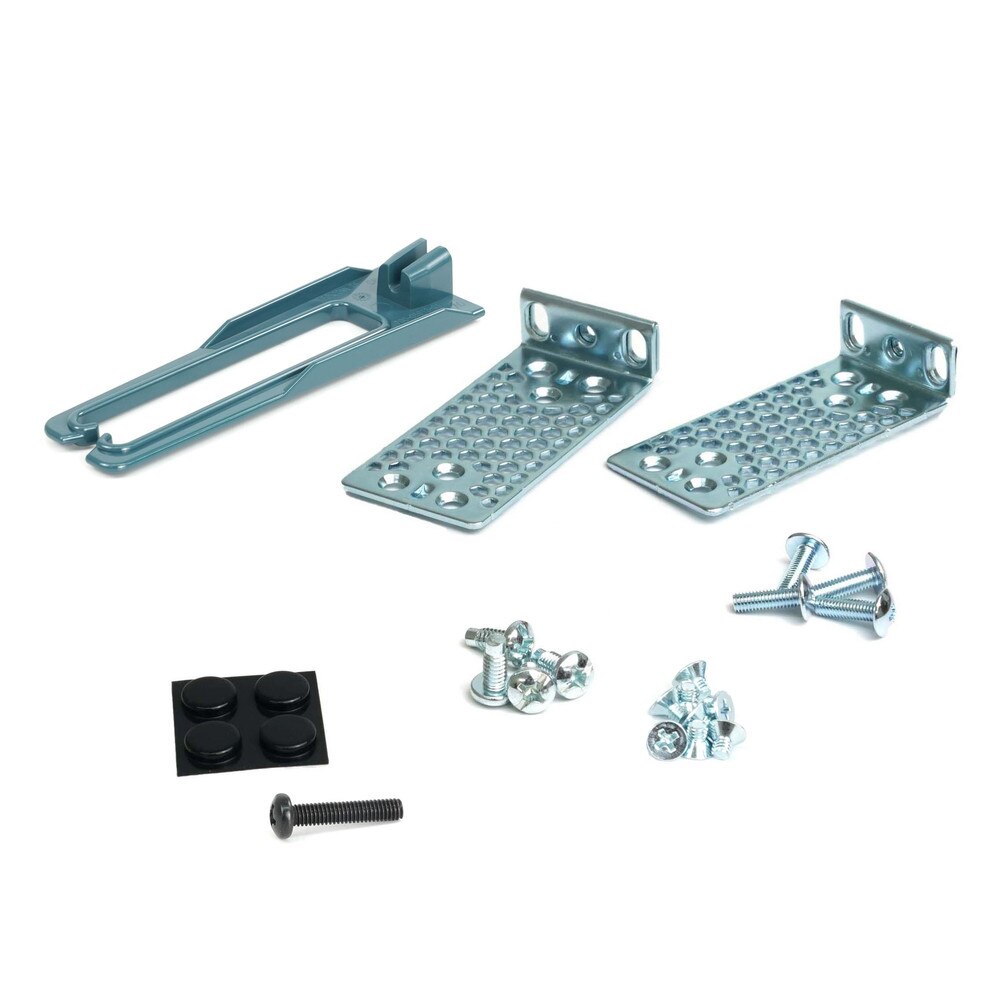

Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |

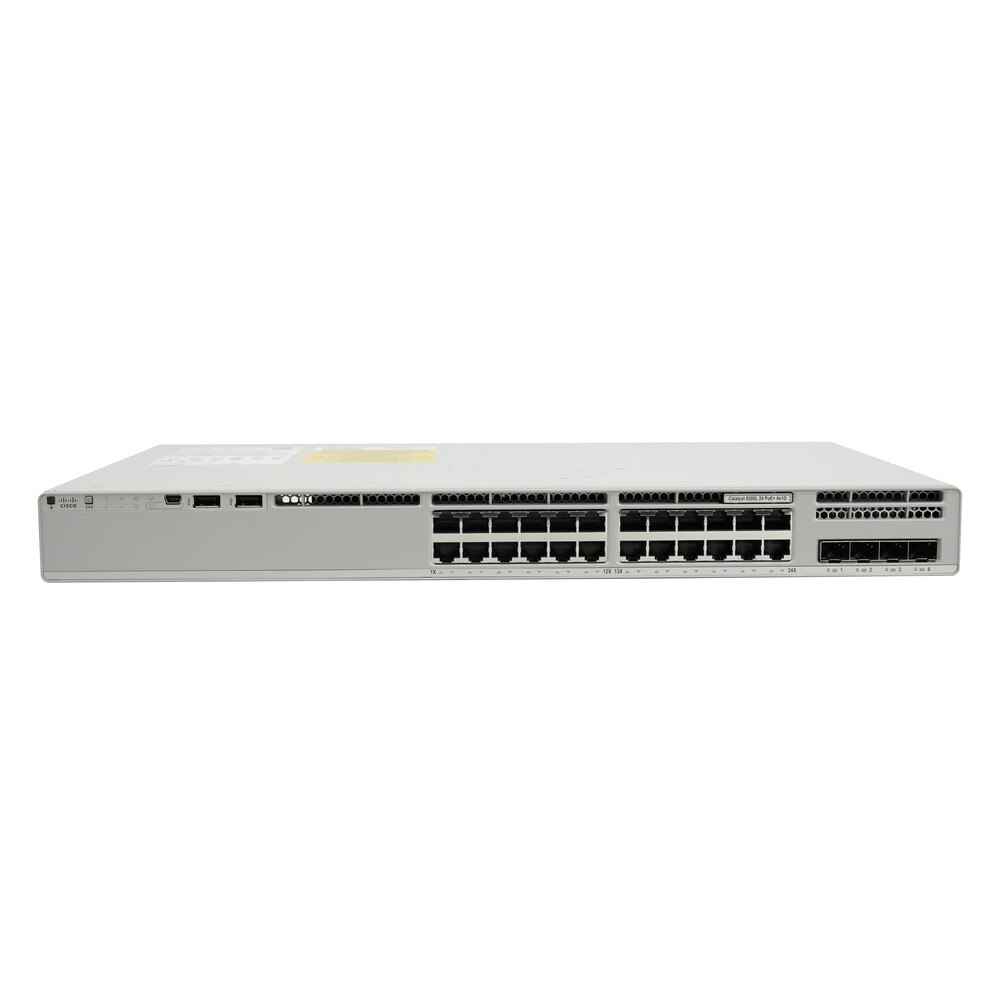

Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps |
Capacity | Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
RAM | 2 GB |
Flash Memory | 4 GB |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 |
Power Device | Internal power supply - hot-plug |
Max Supported Qty | 2 |
Power Redundancy | Optional |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
MTBF | 392,210 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Width | 17.5 in |
Depth | 1.7 in |
Height | 11.3 in |
Weight | 9.59 lbs |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Humidity Range Operating | 5 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
