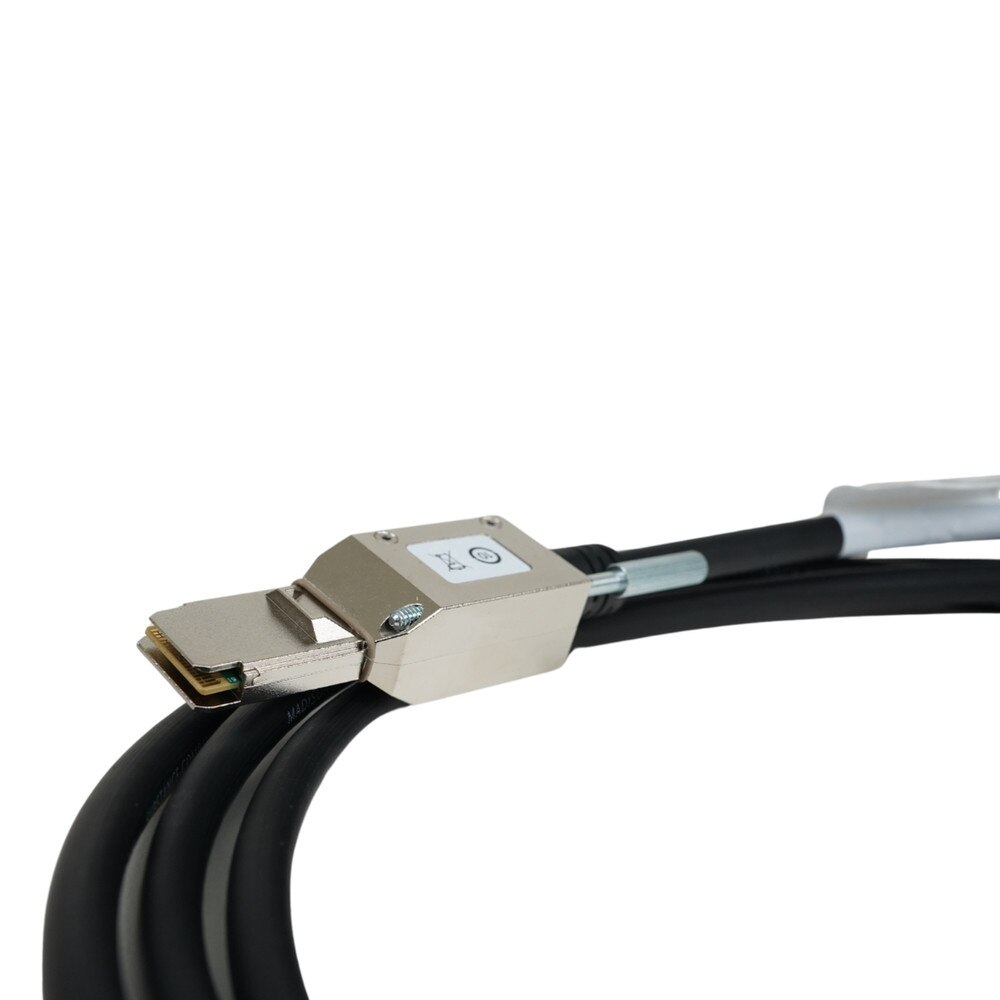

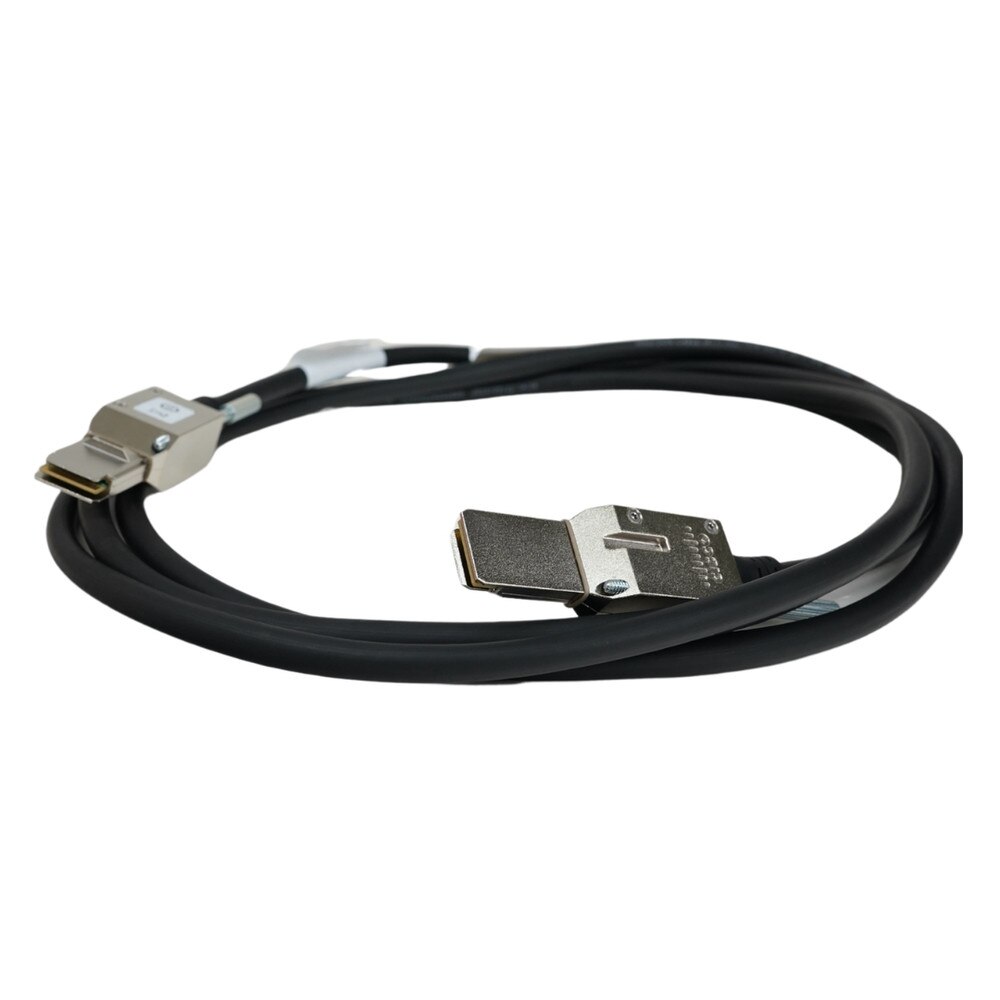

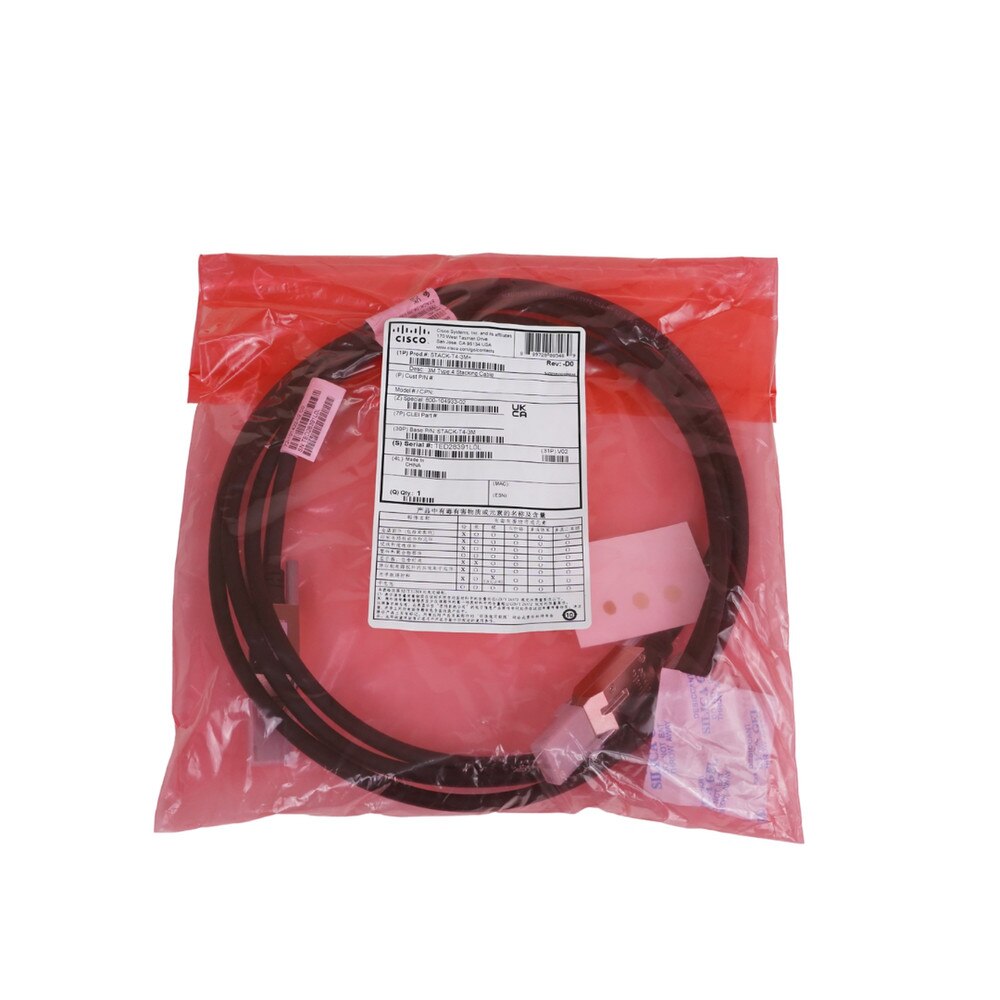

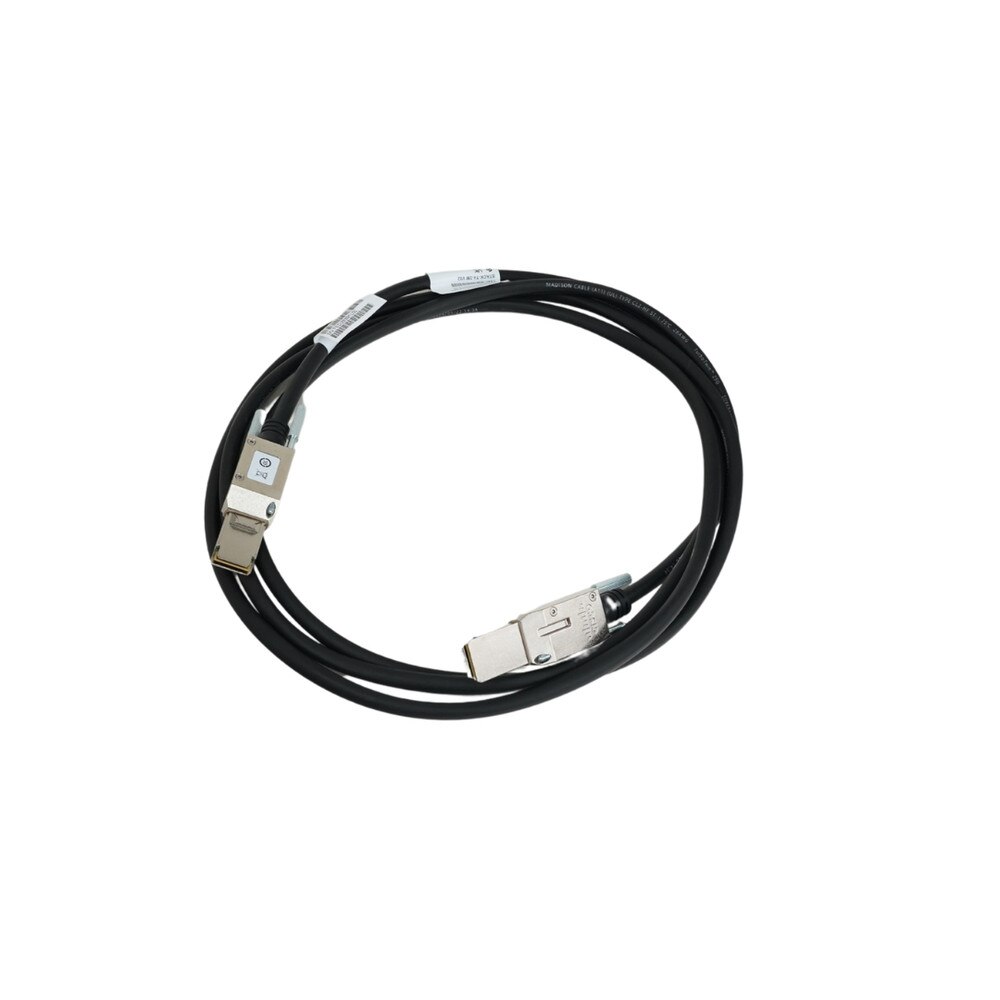

Cisco C9200 3M Type 4 Stacking Cable (STACK-T4-3M) | New

Cisco C9200 3M Type 4 Stacking Cable (STACK-T4-3M) | New

SKU: STACK-T4-3M-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$119.99 $119.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco C9200 3M Type 4 Stacking Cable (STACK-T4-3M) | New

The Cisco C9200 3M Type 4 Stacking Cable (STACK-T4-3M) is a high-performance networking accessory intended for use with Cisco Catalyst 9200 Series switches. This 3-meter stacking connection allows for smooth integration of numerous Catalyst 9200 switches, resulting in a unified, high-bandwidth switching system. The Type 4 cable has advanced stacking capabilities, which improves network resilience, simplifies management, and increases scalability. Its durable design offers dependable connectivity in demanding enterprise situations.


Key Features of Cisco C9200 3M Type 4 Stacking Cable


• Compatible with Cisco Catalyst 9200 Series switches

• 3-meter length for flexible deployment options

• Type 4 stacking technology for high-speed data transfer

• Supports up to 480 Gbps of stack bandwidth

• Enables creation of resilient switch stacks

• Facilitates single IP management for multiple switches

• Supports stack interconnect redundancy

• Hot-swappable for easy installation and maintenance

• Durable construction for long-term reliability

• Optimized for high-performance enterprise networks

• Supports Cisco StackWise-480 technology

• Allows for simplified network expansion

• Enhances overall network availability

• Reduces complexity in switch management

• Backed by Cisco's limited lifetime warranty

Specifications

Specifications for Cisco C9200 3M Type 4 Stacking Cable (STACK-T4-3M) | New

Manufacturer Cisco
Manufacturer Part Number STACK-T4-3M
Product Name Cisco C9200 3M Type 4 Stacking Cable
Product Type Stacking Cable
Cable Type Stacking
Length 3 meters (9.84 feet)
Connector Type Type 4 Stacking
Connector Gender Male to Male
Compatibility Cisco Catalyst 9200 Series Switches
Color Black
Data Transfer Rate High-speed data transfer capability
Durability Designed for long-lasting performance
Installation Easy to install and use

Frequently Asked Questions

Cisco C9200 3M Type 4 Stacking Cable (STACK-T4-3M)

Frequently Asked Questions (FAQ's)



Can I use third-party stacking cables with Cisco Catalyst 9200 switches?
  • While some third-party cables may work, it is best to use Cisco-approved cables for maximum compatibility and performance.
    • What is the length of the Cisco STACK-T4-3M cable?
  • The cable is 3 meters long (about 10 feet).
    • Is the Cisco C9200 3M Type 4 Stacking Cable compatible with all Catalyst 9200 switches?
  • Yes, it is specifically designed to work with Cisco Catalyst 9200 Series switches.
    • Can this stacking cable be used with Cisco Catalyst 9300 or other switch series?
  • No, the Cisco C9200 Type 4 stacking cable is only for the Cisco Catalyst 9200 Series.
    • How many switches can be stacked using the Cisco C9200 stacking cable?
  • A single stack can contain up to eight Cisco Catalyst 9200 switches.
    • Does this cable support high-speed data transfer between switches?
  • Yes, it allows for high-speed data transfer and synchronization between switches within the stack.
    • Is the Cisco STACK-T4-3M cable hot-swappable?
  • Yes, stacking cables in the Cisco Catalyst 9200 Series are hot-swappable, which means they can be connected and disconnected without turning off the switches.
    • Can I use multiple stacking cables to increase the distance between switches?
  • You cannot daisy chain stacking cables. Each cable is designed for a specific length (3 meters in this case).
    • What is the difference between Type 4 stacking and earlier stacking technologies?
  • Type 4 stacking improves bandwidth, scalability, and stack performance when compared to previous generations.
    • Can the stacking cable be used outdoors?
  • No, the stacking cable is not intended for outdoor use. It should be used indoors in a controlled environment.
    • Does this stacking cable come with the switch, or is it sold separately?
  • The Cisco C9200 3M Type 4 Stacking Cable is sold independently of the switch.
    • What other lengths are available for Cisco C9200 Type 4 stacking cables?
  • Cisco also provides stacking cables in other lengths, including 50 cm (STACK-T4-50CM) and 1 meter (STACK-T4-1M).
    • What type of connectors does the Cisco STACK-T4-3M cable use?
  • It employs a proprietary connector developed specifically for Cisco Catalyst 9200 Series switches.
    • What happens if the stacking cable is disconnected during operation?
  • Disconnecting the stacking cable will disrupt communication between switches in the stack, potentially resulting in downtime or failure.
    • Does this cable support full-duplex communication between switches?
  • Yes, it supports full-duplex communication, which ensures smooth and efficient data transfer throughout the stack.
    • How should the Cisco STACK-T4-3M cable be stored when not in use?
  • Keep the cable in a cool, dry place, coiled loosely to avoid damage or kinks.
    • Is it possible to mix different lengths of stacking cables in a single stack?
  • Yes, you can use stacking cables of varying lengths (50 cm, 1m, or 3m) within the same stack as long as they are all Type 4 cables that are compatible with Cisco Catalyst 9200 switch.
    • Can this cable be used in a rack-mounted switch configuration?
  • Yes, the 3-meter length allows for stacking switches in various rack-mounted configurations.
    • How do I ensure the cable is securely connected?
  • The stacking cable should click securely into place at both ends. When connecting, make sure both switches are turned off or use hot-swapping procedures.
    • How can I troubleshoot if the stack is not functioning properly after connecting the cable?
  • Check that the cable is securely connected, that the switches are compatible, that the configuration settings are correct, and consult the Cisco Catalyst 9200 Series documentation for additional troubleshooting steps.
