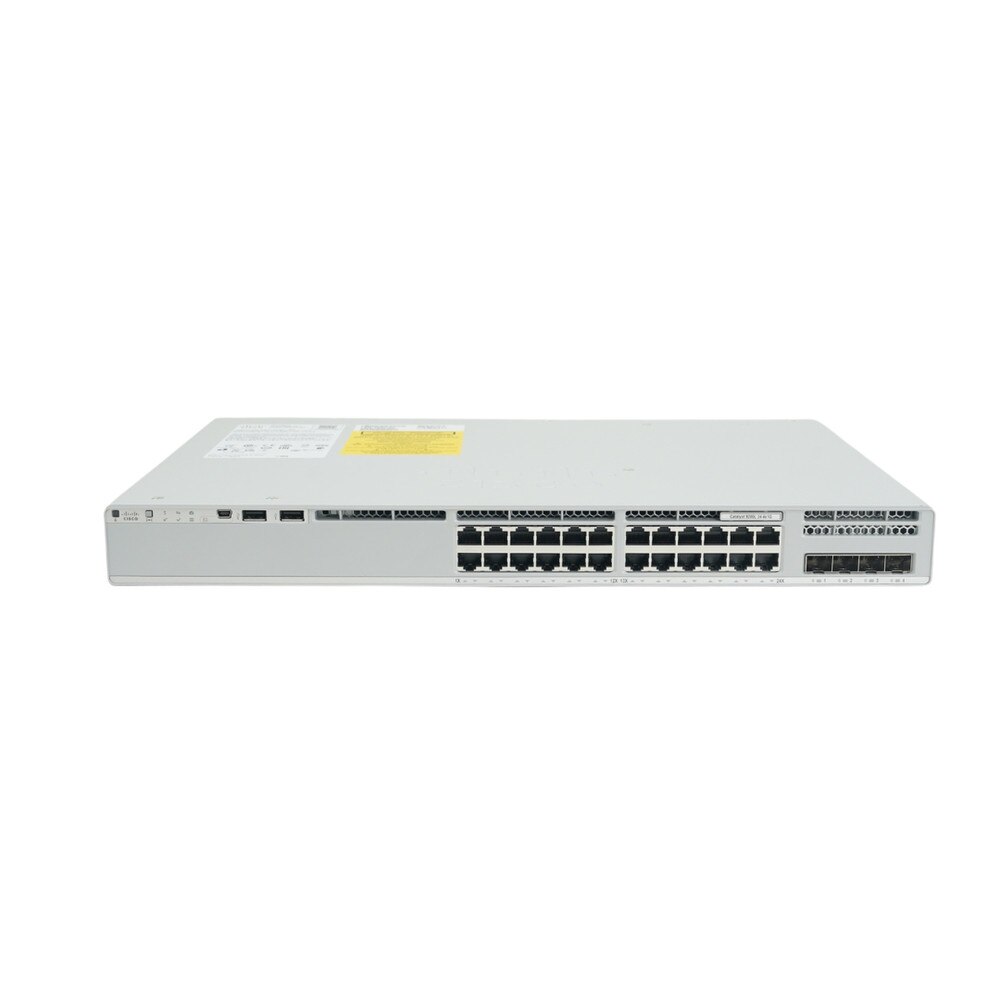

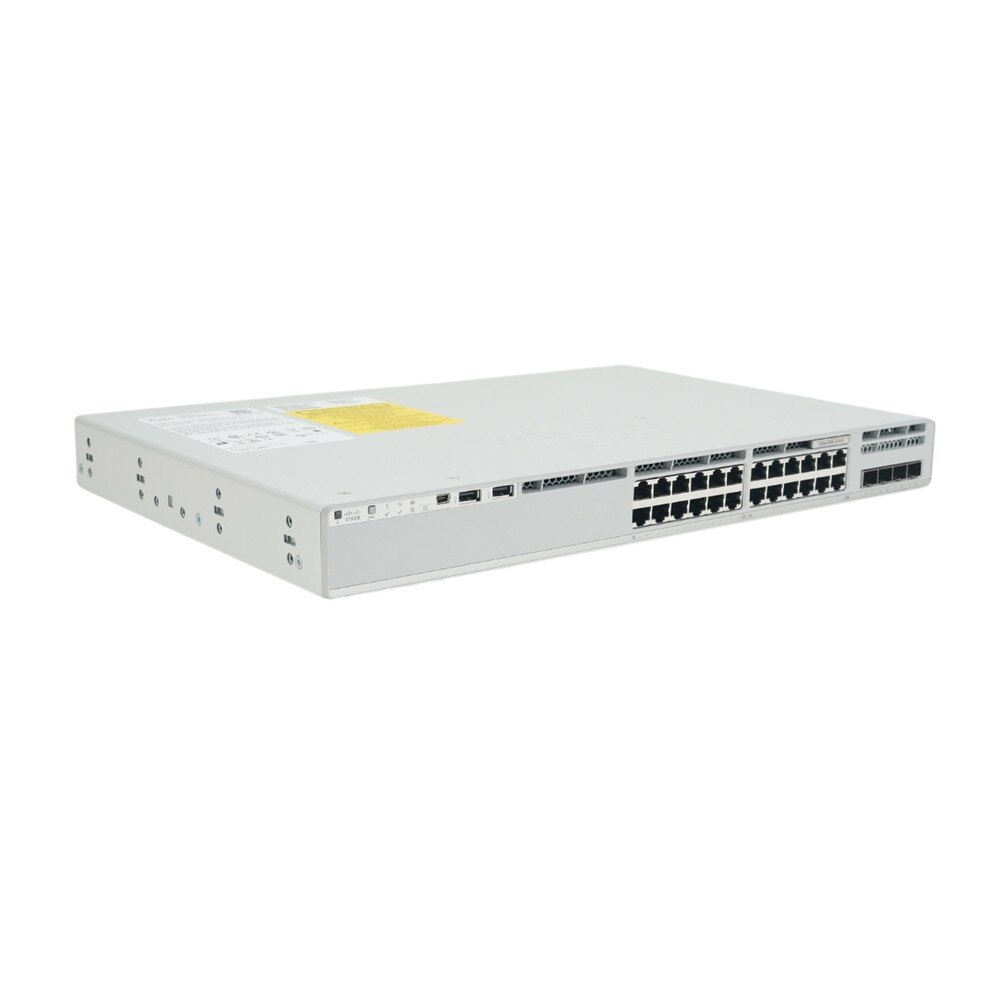

Cisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage | New

Cisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage | New

SKU: C9200L-24T-4G-A-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$1,299.99 $1,299.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage | New

The Cisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage is a high-performance, enterprise-grade networking solution designed for small to medium-sized businesses, branch offices and campus networks. Built on Cisco’s Catalyst 9200 Series architecture, this switch delivers advanced Layer 3 capabilities, robust security and seamless scalability. Featuring 24 Gigabit Ethernet ports and flexible uplinks, it guarantees dependable connectivity and simplifies network management via automation and intelligence. With its 24 Gigabit Ethernet data ports for high-speed connections and four fixed 1G SFP uplink ports, the Cisco Catalyst 9200L-24T-4G-A offers flexible network expansion. This switch, powered by Cisco IOS XE software with Network Advantage licensing, offers support for advanced Layer 3 routing protocols, MACsec encryption to ensure secure data transmission and automation tools that facilitate streamlined operations. With its compact design, it is well suited for environments with limited space, all while performing in an energy-efficient manner. Equipped with StackWise-160 technology, it offers scalability and resilience to accommodate the increasing demands of business.


Key Features of Cisco Catalyst 9200L-24T-4G-A 24-Port Data Switch with Network Advantage


• 24 Gigabit Ethernet Data Ports with high-speed connectivity for various devices like computers and access points.

• Four Fixed 1G SFP Uplink Ports with flexible uplink options to support seamless network scalability.

• Cisco IOS XE Software with advanced Layer 3 routing capabilities with Network Advantage licensing.

• Enhanced Security Features includes MACsec encryption and TrustSec to safeguard data transmission.

• StackWise-160 Technology supports up to 160 Gbps stacking bandwidth for scalable network growth.

• Complies with Energy Efficient Ethernet (EEE) standards to reduce operational costs.

• Automation Tools simplifies network management through Cisco DNA Center integration.

• Compact Design fits into standard racks with a height of just 1RU for space-constrained environments.

• Resiliency Features includes redundant power supply options for uninterrupted operation.

• High Performance offers a switching capacity of up to 56 Gbps with a forwarding rate of 83.33 Mpps.


Benefits of Cisco Catalyst 9200L-24T-4G-A 24-Port Data Switch with Network Advantage


🗹 Provides fast and stable connections across multiple devices in your network.

🗹 Protects sensitive data with MACsec encryption and TrustSec protocols to prevent unauthorized access.

🗹 StackWise-160 technology allows effortless expansion as your network grows.

🗹 Cisco IOS XE software offers intuitive tools for configuration and monitoring.

🗹 Advanced Layer 3 features ensure compatibility with evolving networking requirements.

🗹 Combines robust features with energy-efficient operation to reduce operational expenses.

🗹 Ideal for branch offices, campus networks or enterprise edge deployments.

🗹 Compact design ensures quiet performance in office or classroom environments.

🗹 Redundant power supply options ensure uninterrupted operation during hardware failures.

🗹 Backed by Cisco’s reputation for reliability and innovation in networking solutions.

Specifications

Specifications for Cisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage | New

ManufacturerCisco
Manufacturer Part NumberC9200L-24T-4G-A
Product NameCisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance
Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Capacity
Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size
16000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM
2 GB
Flash Memory
4 GB
Interfaces
24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Power Device
Internal power supply - hot-plug
Max Supported Qty
2
Power Redundancy
Optional
Voltage Required
AC 100-240 V (50 - 60 Hz)
MTBF
531,030 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Width
17.5 in
Depth
1.7 in
Height
11.3 in
Weight
9.59 lbs
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 90% (non-condensing)

User Guides

Cisco Catalyst 9200 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst 9200L-24T-4G-A 24-Port Data 4x1G Uplink Switch with Network Advantage
Frequently Asked Questions (FAQ's)



What is the Cisco Catalyst 9200L-24T-4G-A?
  • The Cisco Catalyst 9200L-24T-4G-A is a 24-port Gigabit Ethernet switch for enterprise networks that runs the Network Advantage software package.
    • What software package does the C9200L-24T-4G-A run?
  • It is used to run the Network Advantage software package.
    • How many uplink ports does the C9200L-24T-4G-A have?
  • The switch has four 1GB SFP uplink ports.
    • What is the total switching capacity of the C9200L-24T-4G-A?
  • The overall switching capacity is 56 Gbps.
    • Does the C9200L-24T-4G-A support stacking?
  • Yes, it supports StackWise-80 technology, which offers up to 80 Gbps of stacking bandwidth.
    • What Layer 3 features are supported by the C9200L-24T-4G-A?
  • It supports advanced Layer 3 routing protocols such as OSPF, EIGRP, IS-IS and BGP.
    • Can the C9200L-24T-4G-A be managed through Cisco DNA Center?
  • Yes, it supports management via Cisco DNA Center, which provides centralized control and automation.
    • What security features does the C9200L-24T-4G-A offer?
  • It incorporates TrustSec, MACsec encryption and advanced access control lists (ACLs).
    • Can the C9200L-24T-4G-A be used in a redundant power configuration?
  • Yes, it does support an external redundant power supply (RPS) for increased reliability.
    • What quality of service (QoS) capabilities does the C9200L-24T-4G-A have?
  • It includes comprehensive QoS features that prioritize network traffic and ensure peak performance for critical applications.
    • How many switches can be stacked together with the C9200L-24T-4G-A?
  • StackWise-80 technology allows you to stack up to eight switches together.
    • What is the warranty period for the C9200L-24T-4G-A?
  • It typically has a limited lifetime warranty.
    • Does the C9200L-24T-4G-A support IPv6?
  • Yes, it fully supports IPv6, ensuring future-proof networking.
    • Can the C9200L-24T-4G-A be rack-mounted?

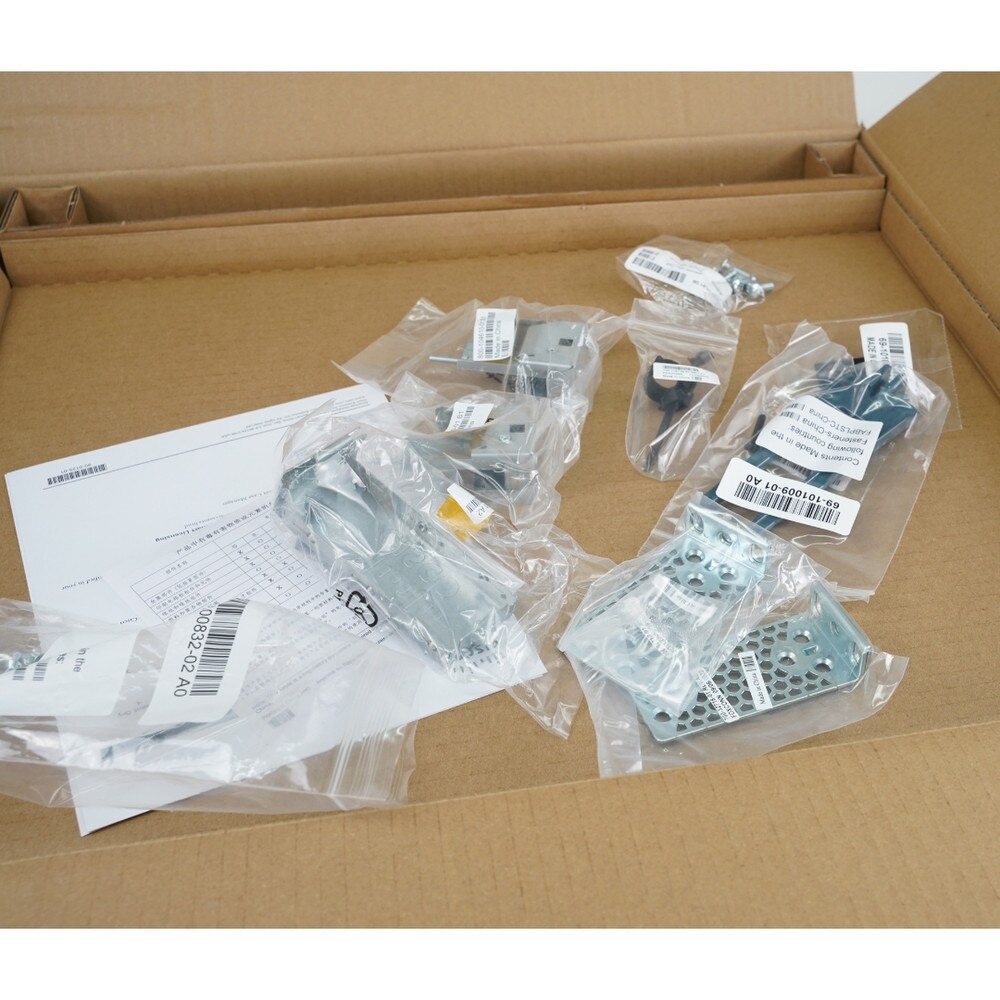

  • Yes, it is designed for rack mounting and includes all necessary hardware.
    • Does the C9200L-24T-4G-A support multicast routing?
  • Yes, it supports multicast routing features like PIM (Protocol Independent Multicasting).
    • What are the dimensions of the C9200L-24T-4G-A?
  • The switch dimensions are 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.7 cm).
    • How is firmware updated on the C9200L-24T-4G-A?
  • Firmware updates can be managed and deployed using either the Cisco DNA Center or the Cisco IOS command line interface.
    • What type of power supply does the C9200L-24T-4G-A use?

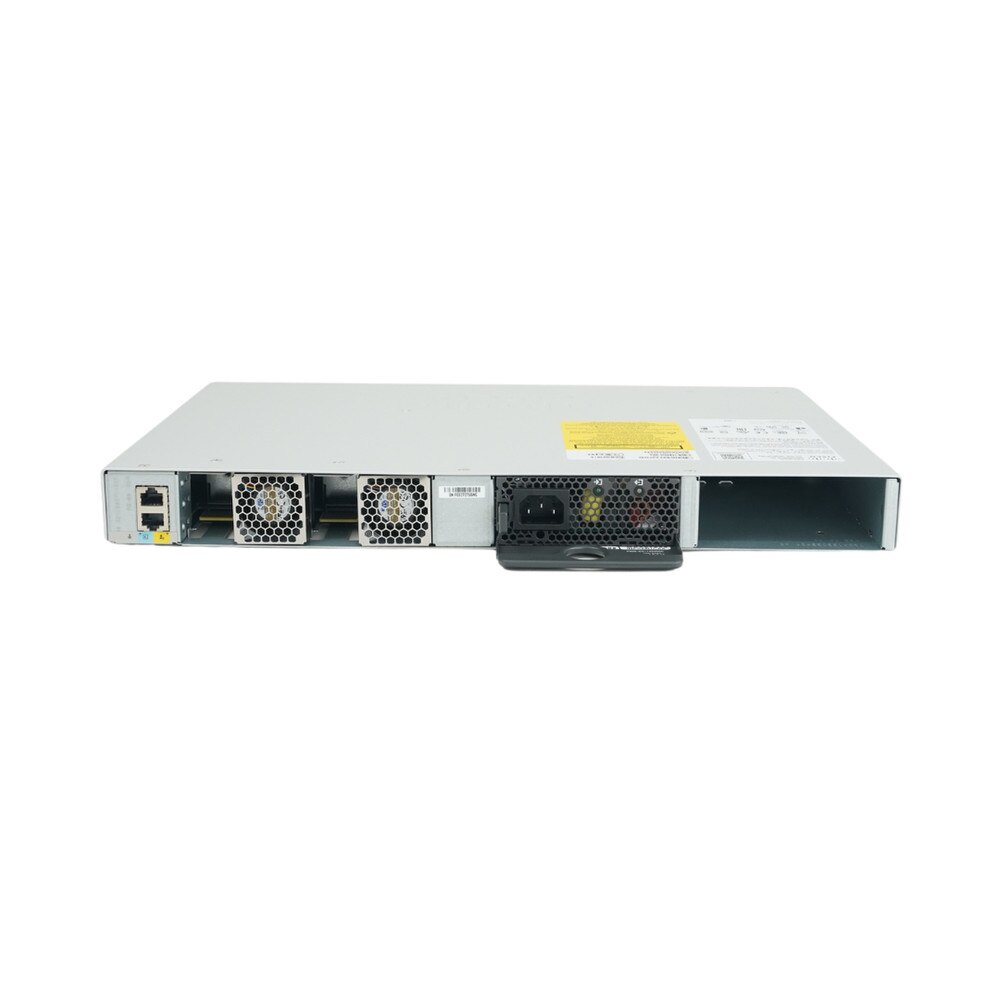

  • It has an internal AC power supply and supports an optional redundant power supply (RPS).
    • Is the C9200L-24T-4G-A suitable for high-density environments?
  • While it is not intended for high-density environments, it can withstand moderate traffic loads common in enterprise access layer deployments.
    • What are the main use cases for the C9200L-24T-4G-A?
  • The primary use cases are enterprise access layer deployments, small to medium-sized business networks, and environments that require robust Layer 3 routing and advanced security features.
