Overview of Cisco Catalyst 9300-24P-A 24-Port PoE+ Switch with Network Advantage | New

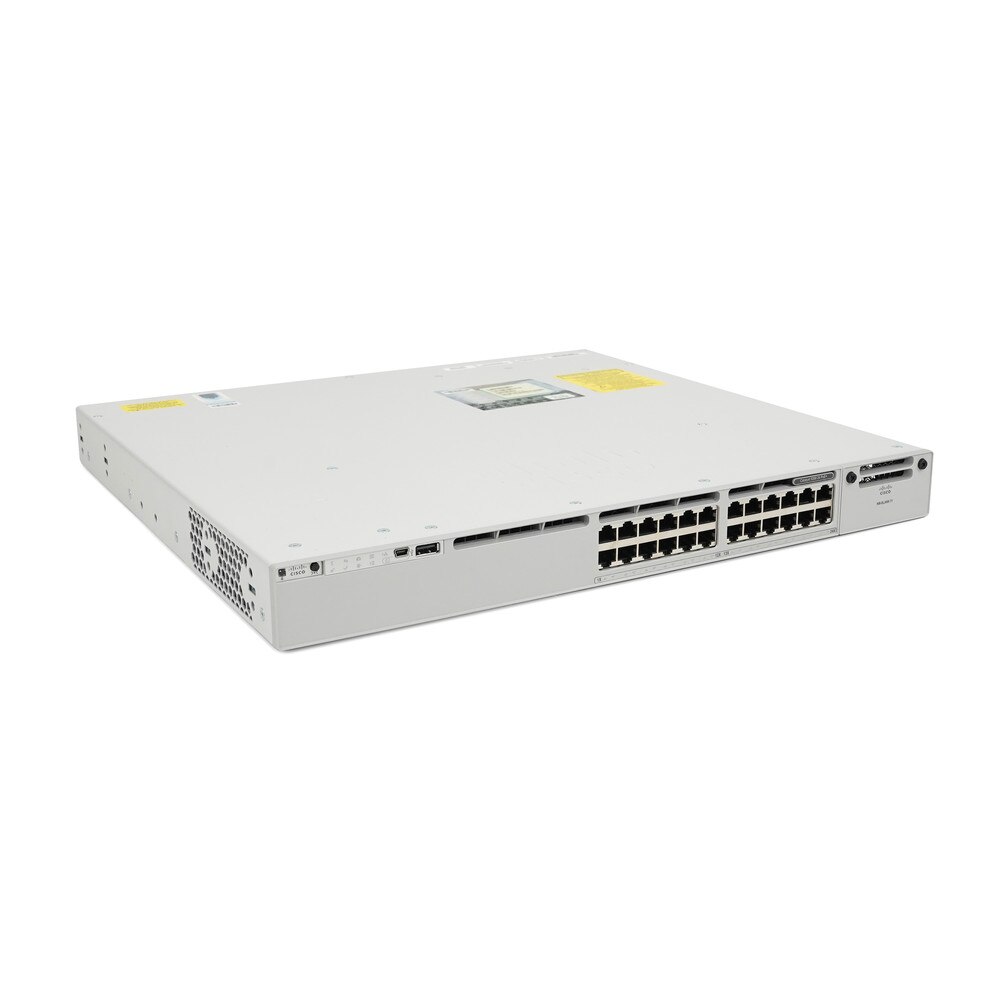

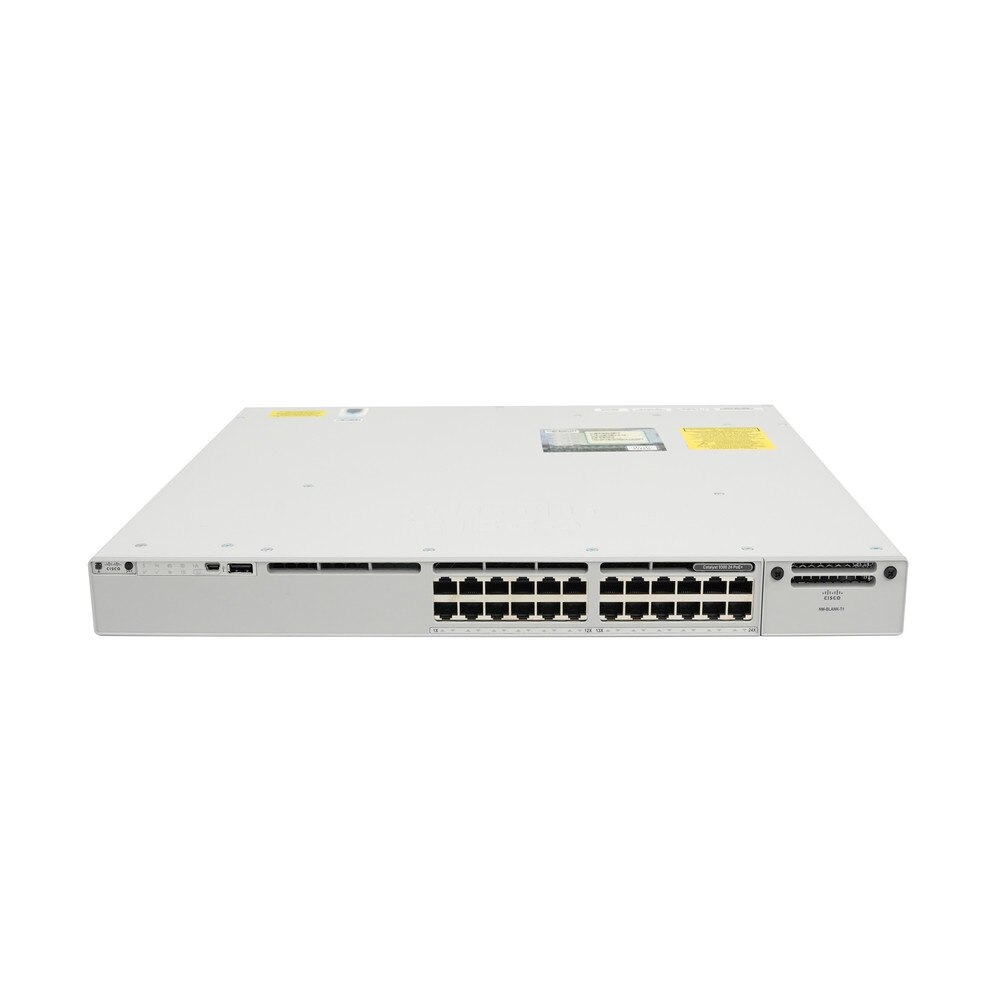

The Cisco Catalyst 9300-24P-A 24-Port PoE+ Switch with Network Advantage is a next-generation, enterprise-class networking solution designed to deliver advanced connectivity, security and scalability for modern IT environments. As part of the Cisco Catalyst 9300 Series, this switch is optimized for high-performance networks, supporting advanced Layer 3 capabilities, automation and secure integration with IoT devices. It is perfect for supplying power to connected devices like IP phones, wireless access points and security cameras, due to its Power over Ethernet Plus (PoE+) functionality. The 24 Gigabit Ethernet PoE+ ports of the Cisco Catalyst 9300-24P-A, which have a combined power budget of 437W, facilitate effective power distribution to devices linked to them. It offers modular uplink options that support 1G, 10G or 40G uplinks to guarantee seamless scalability. This switch, using Cisco IOS XE software with Network Advantage licensing, offers advanced routing protocols, MACsec encryption for secure data transmission and automation tools for efficient network management. The switch guarantees resilience and scalability with an energy-efficient performance, due to to StackWise-480 technology, which provides stacking bandwidth of as much as 480 Gbps.
Key Features of Cisco Catalyst 9300-24P-A 24-Port PoE+ Switch with Network Advantage
• 24 Gigabit Ethernet PoE+ Ports provides high-speed connectivity with up to 30W per port for powering connected devices.
• Modular Uplink Options supports flexible uplink configurations including 1G, 10G or 40G modules.
• Power over Ethernet Plus (PoE+) offers a total power budget of 437W to support IP phones, cameras and more.
• Cisco IOS XE Software delivers advanced Layer 3 routing capabilities with Network Advantage licensing.
• Enhanced Security Features includes MACsec encryption and TrustSec to safeguard data transmissions.
• StackWise-480 Technology provides up to 480 Gbps stacking bandwidth for scalable network growth.
• Automation Tools simplifies network management through Cisco DNA Center integration.
• Complies with Energy Efficient Ethernet (EEE) standards to reduce operational costs.
• High Performance offers a switching capacity of up to 128 Gbps and a forwarding rate of 95.2 Mpps.
• Resiliency Features includes redundant power supply options for uninterrupted operation.
Benefits of Cisco Catalyst 9300-24P-A 24-Port PoE+ Switch with Network Advantage
🗹 Ensures fast and stable connections across multiple devices in your network.
🗹 PoE+ capability eliminates the need for separate power supplies for connected devices.
🗹 Protects sensitive data with MACsec encryption and TrustSec protocols to prevent unauthorized access.
🗹 StackWise-480 technology allows effortless expansion as your network grows.
🗹 Cisco IOS XE software offers intuitive tools for configuration and monitoring.
🗹 Advanced Layer 3 features ensure compatibility with evolving networking requirements.
🗹 Combines robust features with energy-efficient operation to reduce operational expenses.
🗹 Ideal for enterprise networks, campus environments or branch offices.
🗹 Redundant power supply options ensure uninterrupted operation during hardware failures.
🗹 Backed by Cisco’s reputation for reliability and innovation in networking solutions.
Specifications
Specification for Cisco Catalyst 9300-24P-A 24-Port PoE+ Switch with Network Advantage | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9300-24P-A |
| Product Name | Cisco Catalyst 9300-24P-A 24-Port PoE+ Switch with Network Advantage |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 445 W |
Performance | Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps |
Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Encryption Algorithm | 128-bit AES |
Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
RAM | 8 GB |
Flash Memory | 16 GB |
Status Indicators | Status |
Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0 |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |

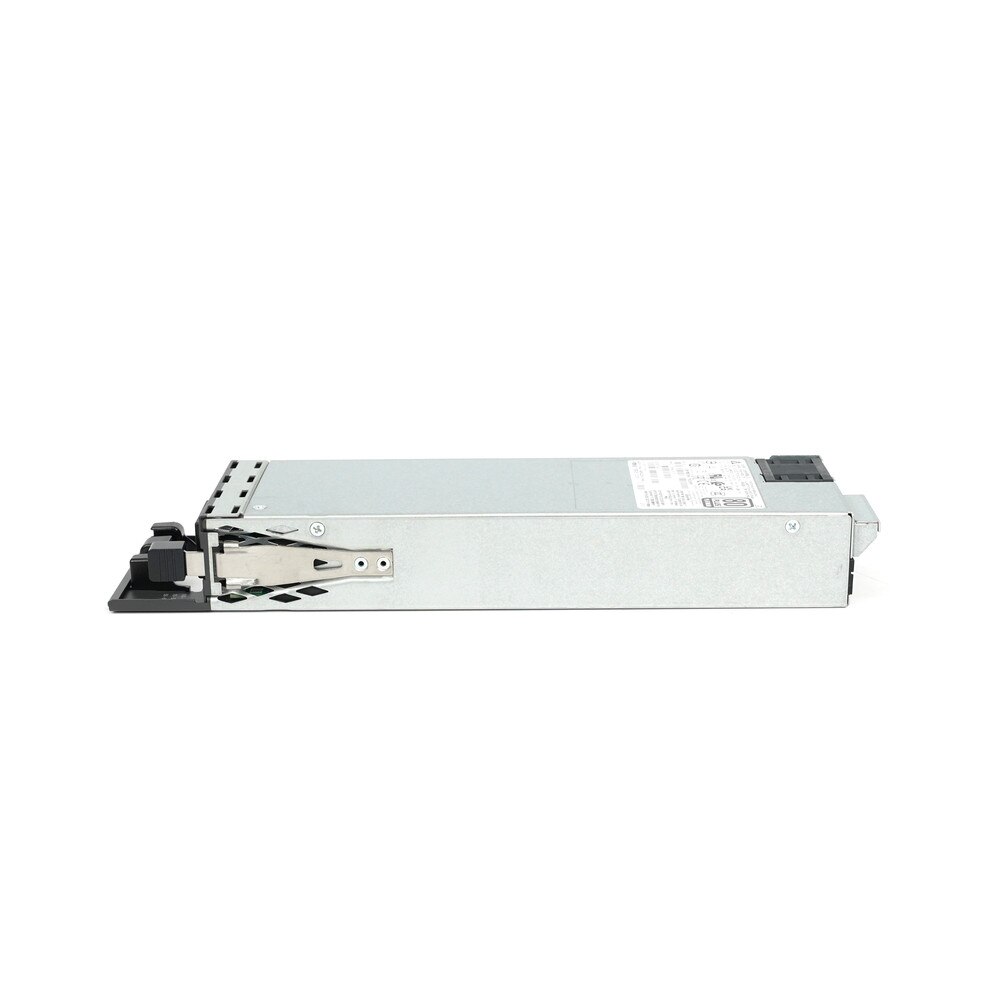

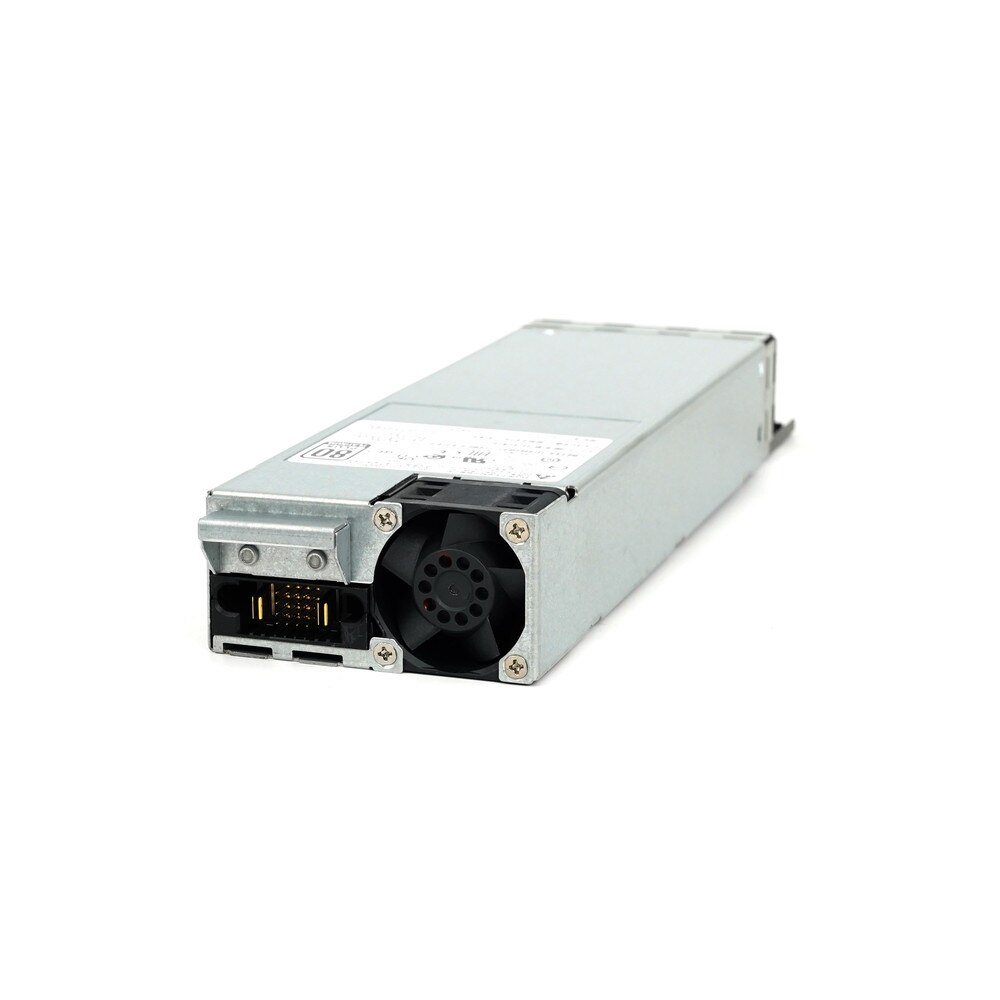

Power Device | Internal power supply - hot-plug |
Installed Qty | 1 |
Max Supported Qty | 2 |
Power Redundancy | Optional |

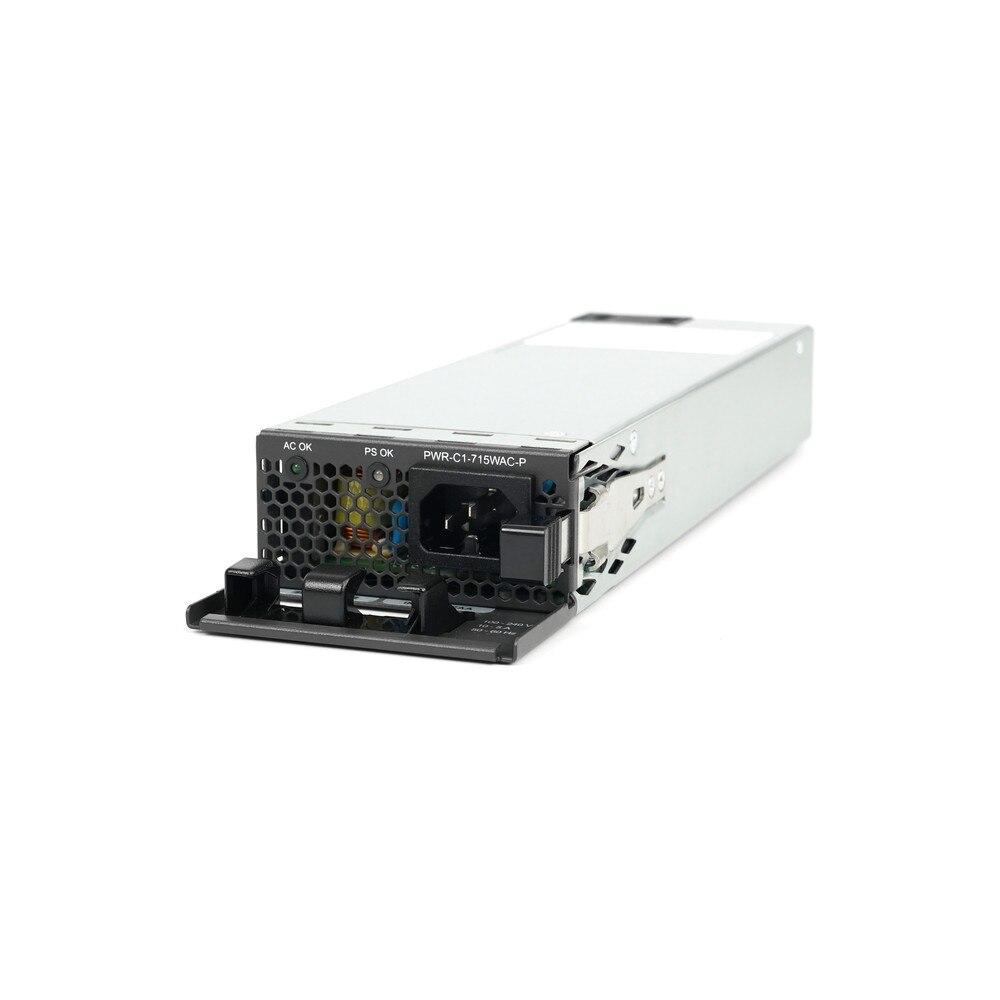

Power Provided | 715 Watt |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
MTBF | 299,000 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
OS Required | Cisco IOS Universal |
Width | 17.5 in |
Depth | 17.5 in |
Height | 1.7 in |
Weight | 16.31 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
