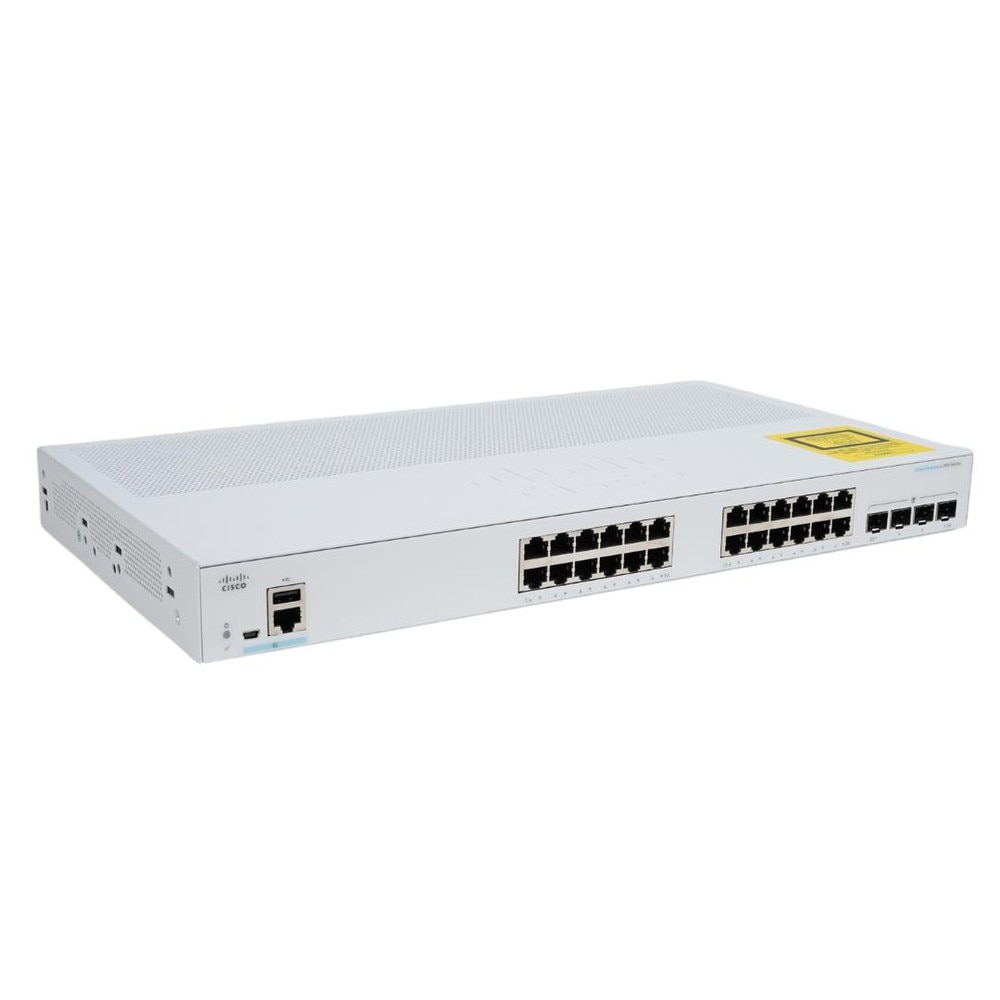

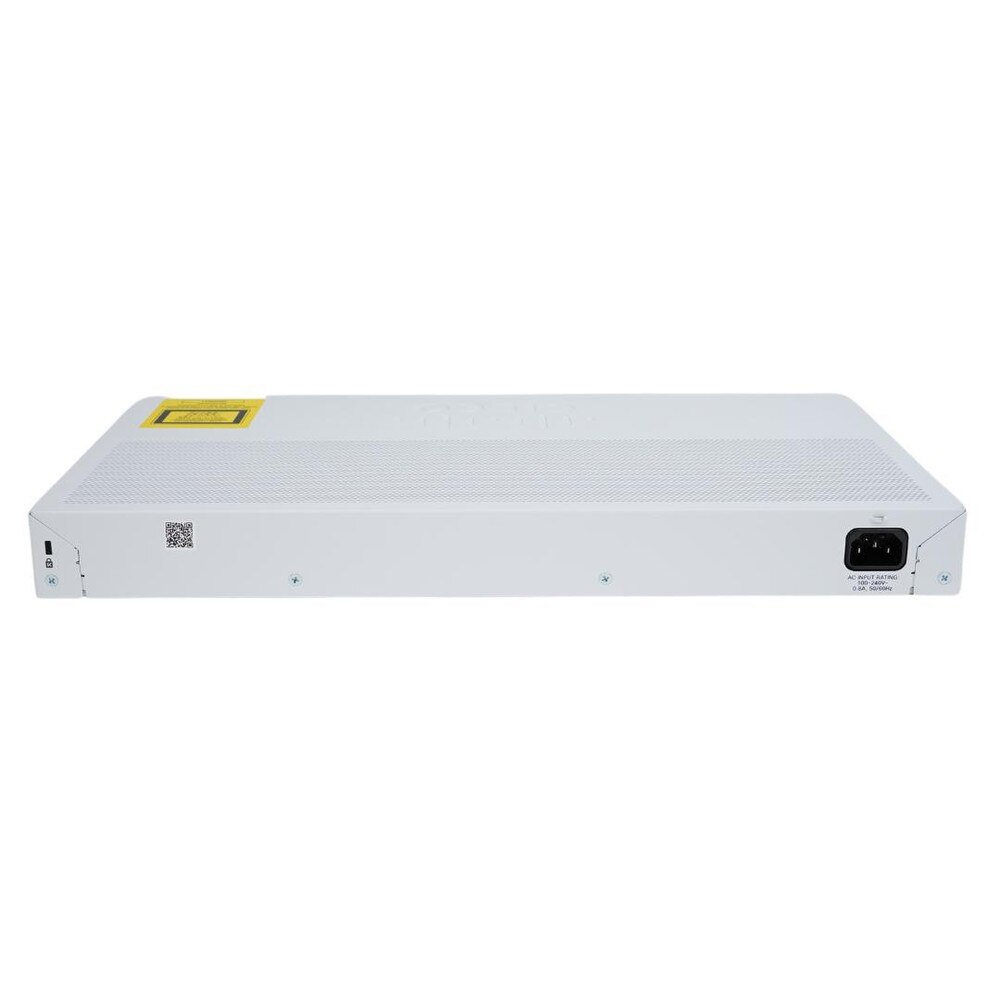

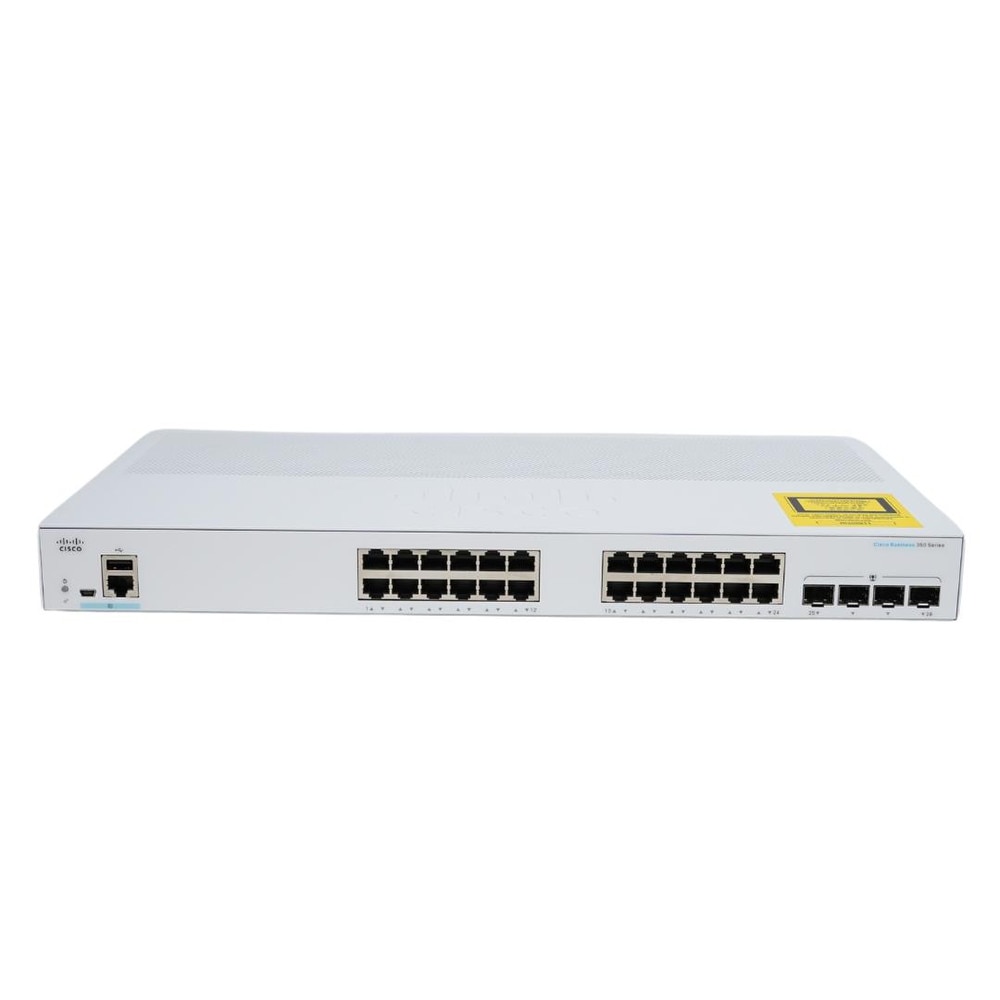

Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP (NA) | Refresh

Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP (NA) | Refresh

SKU: CBS350-24T-4G-NA-RF
(0)No Reviews yet

🗹 24 x Gigabit Ethernet Ports
🗹 4 x 1GbE SFP Ports
🗹 56 Gbs Switching Capacity
🗹 41.66 Mpps Forwarding Rate
🗹 800 MHz ARM Processor
🗹 512MB RAM
🗹 Rack-Mountable Design
🗹 Comprehensive Layer 2 & 3 Features
🗹 Silent, Fanless Design
🗹 Works with Cisco Business Dashboard

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$199.99 $199.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP (NA) | Refresh

The Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP is a high-performance managed network switch built for small and medium-sized enterprises that require advanced networking capabilities. This versatile switch has 24 Gigabit Ethernet connections and four additional SFP connectors for a variety of uplink choices. The CBS350-24T-4G delivers enterprise-class functionality in a small package, thanks to its strong Layer 2 and Layer 3 capabilities. Its advanced security features, simple administrative interface, and energy-efficient architecture make it an excellent choice for enterprises seeking to improve network infrastructure and performance.


Key Features of Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP


• 24 Gigabit Ethernet ports for high-speed connectivity

• 4 Gigabit SFP ports for fiber uplink options

• 56 Gbps switching capacity for efficient data transfer

• 41.66 Mpps forwarding rate for high-performance packet processing

• Advanced Layer 2 and Layer 3 features including static routing

• Intuitive web-based interface for easy configuration and management

• Comprehensive security features including ACLs and 802.1X authentication

• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

• Quality of Service (QoS) for traffic prioritization

• VLAN support for network segmentation (up to 4,094 VLANs)

• IPv6 support for future-proof networking

• Fanless design for silent operation in office environments

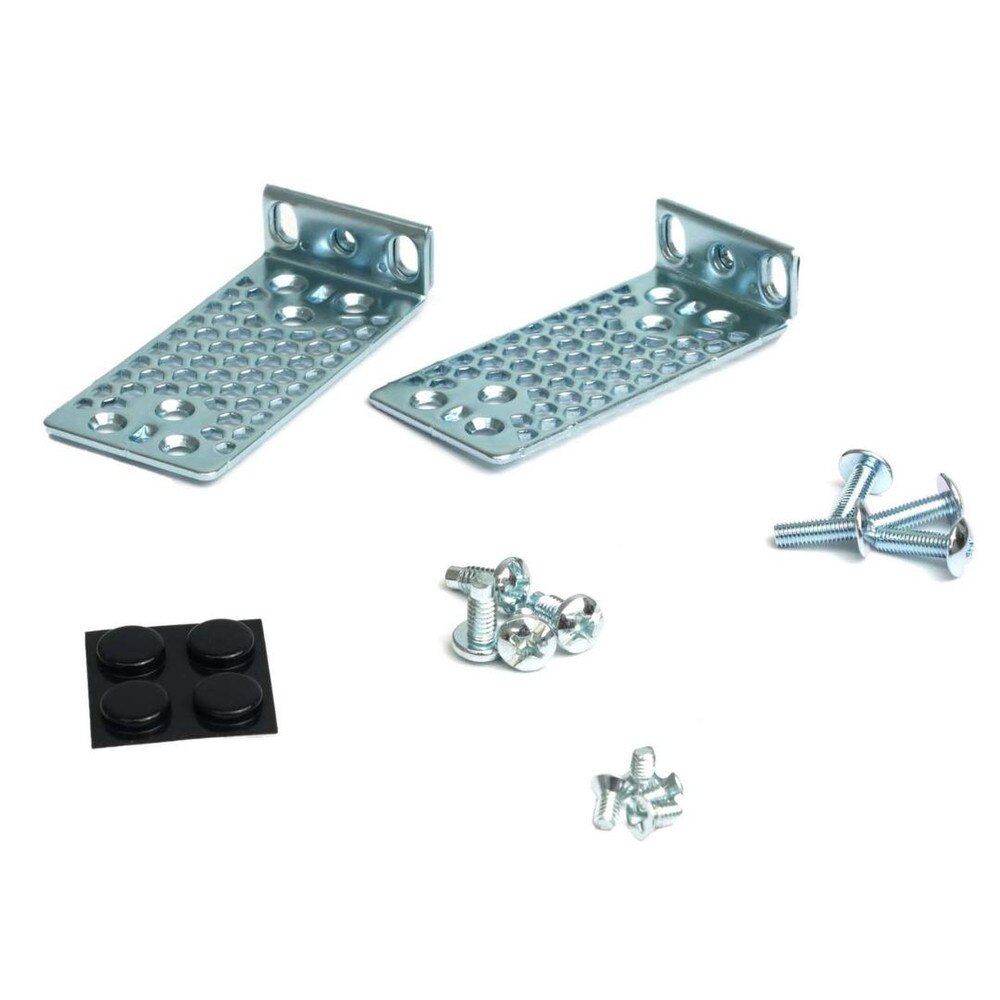

• Rack-mountable with included mounting kit

• Limited lifetime warranty with next-business-day replacement

• Cisco Business Dashboard for centralized network management

Specifications

Specification for Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS350-24T-4G-NA-RF
Product Name Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x SFP
Performance
Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps
Capacity
Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Routing Protocol
IGMP, policy-based routing (PBR), CIDR
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity
Interfaces
24 x 10/100/1000 Base-T RJ-45 ¦ 4 x SFP ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Rack Mounting Kit
Included
MTBF
2,026,793 hours
Compliant Standards
UL 60950, CSA C22.2, FCC CFR47, USGv6
Width
17.5 in
Depth
9.4 in
Height
1.7 in
Weight
5.8 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS350-24T-4G 24-Port Gigabit Managed Network Switch with SFP (NA)
Frequently Asked Questions (FAQ's)



What is the Cisco CBS350-24T-4G switch?
  • The Cisco CBS350-24T-4G is a 24-port Gigabit Ethernet managed network switch with four SFP uplink ports, ideal for small to medium-sized organizations that require advanced networking capabilities.
  • Does the CBS350-24T-4G support Power over Ethernet (PoE)?
  • This model does not support PoE. Consider additional Cisco Business 350 Series models that support PoE.
  • What should I do if the CBS350-24T-4G does not boot with an inserted SFP module?
  • If the switch fails to boot when an SFP module is installed, consider removing the module and rebooting it. Check that the SFP module is compliant and works properly.
  • Is the CBS350-24T-4G suitable for small businesses?
  • Yes, it is intended for small and medium-sized enterprises that require advanced networking capabilities and scalability.
  • How do I manage the CBS350-24T-4G switch?
  • Management is made easier by using the intuitive web-based interface or the Cisco Business Dashboard to configure and monitor the network.
  • What security features does the CBS350-24T-4G offer?
  • It offers strong security features including as access control lists (ACLs), port security, and advanced encryption techniques to protect your network.
  • Can the CBS350-24T-4G handle Layer 3 routing?
  • Yes, it has advanced Layer 3 features like static routing, which enables effective traffic management across VLANs.
  • What is the switching capacity of the CBS350-24T-4G?
  • The switch's switching capacity is 56 Gbps, ensuring high-performance connectivity for your network.
  • Does the CBS350-24T-4G support IPv6?
  • Yes, it supports both IPv4 and IPv6, ensuring compatibility with existing and future network protocols.
  • Does the CBS350-24T-4G support stacking?
  • No, stacking is only available on CBS350 models equipped with 10G uplinks, such as the CBS350-24T-4X.
  • Is the CBS350-24T-4G stackable?
  • Yes, it enables full stacking, which allows you to configure, administer, and troubleshoot numerous switches as a single unit with a common data and control plane.
  • What should I do if the CBS350-24T-4G does not boot with an inserted SFP module?
  • If the switch fails to boot when an SFP module is installed, consider removing the module and rebooting it. Check that the SFP module is compliant and works properly.
  • Does the CBS350-24T-4G have fanless operation?
  • Yes, most models, including the CBS350-24T-4G, have a fanless design, which reduces power consumption and provides quieter operation.
  • What is the power consumption of the CBS350-24T-4G?
  • The switch is built with energy-saving features, including as support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which optimizes power consumption based on traffic.
  • Can I use the CBS350-24T-4G in a network with existing Cisco devices?
  • Yes, it is designed to interact seamlessly with other Cisco devices, ensuring compatibility and ease of management throughout your network architecture.
  • What type of SFP modules are compatible with the CBS350-24T-4G?
  • The switch accepts conventional Gigabit Ethernet SFP modules, giving for a variety of connectivity options to meet your network needs.
  • How do I update the firmware on the CBS350-24T-4G?
  • Firmware upgrades can be performed via the web-based management interface or the Cisco Business Dashboard, ensuring that your switch has the most recent functionality and security advancements.
  • Does the CBS350-24T-4G support Quality of Service (QoS)?
  • Yes, it supports QoS capabilities, which enable you to prioritize crucial network traffic and assure peak performance for critical applications.
  • What is the Mean Time Between Failures (MTBF) for the CBS350-24T-4G?
  • The switch's MTBF is around 2,026,793 hours, showing outstanding reliability for continuous operation.
  • How do I configure VLANs on the CBS350-24T-4G?
  • VLANs can be configured via the switch's web-based management interface, providing for better network segmentation and traffic control.
