Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).
Clean Serial: YES
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

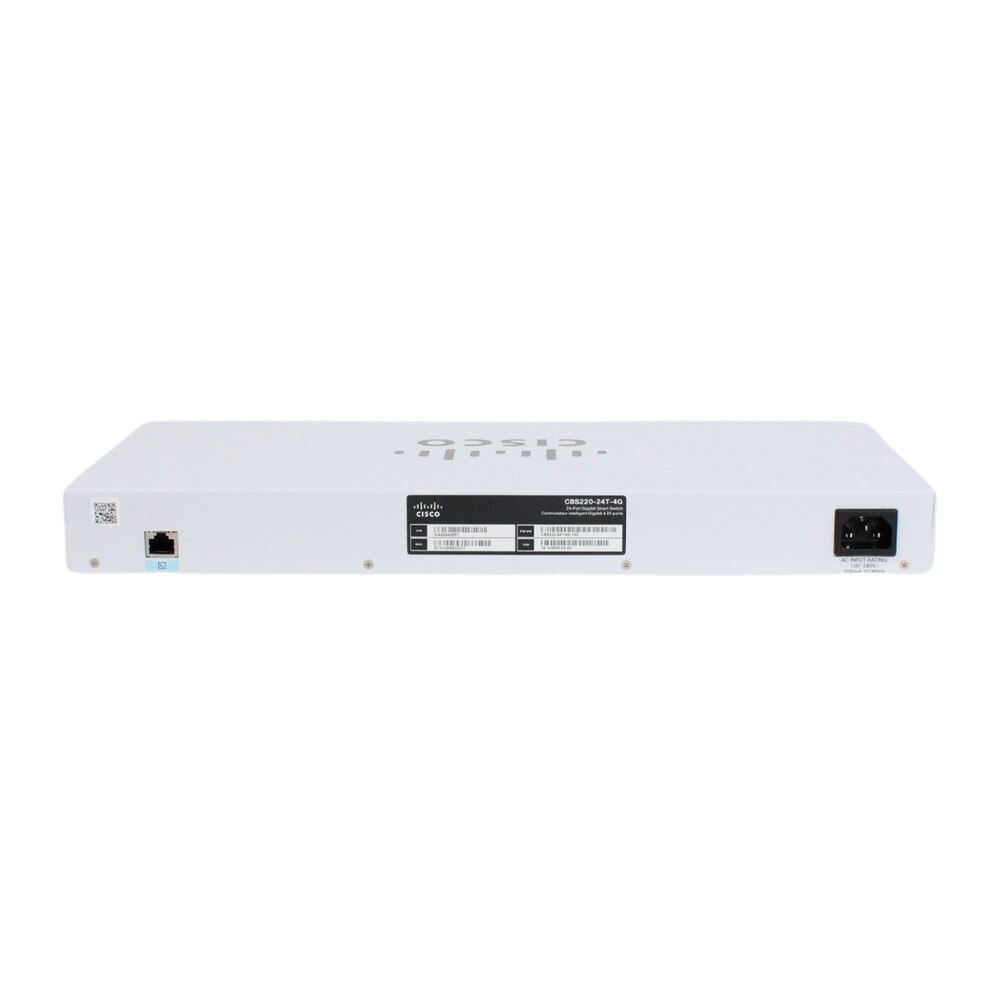

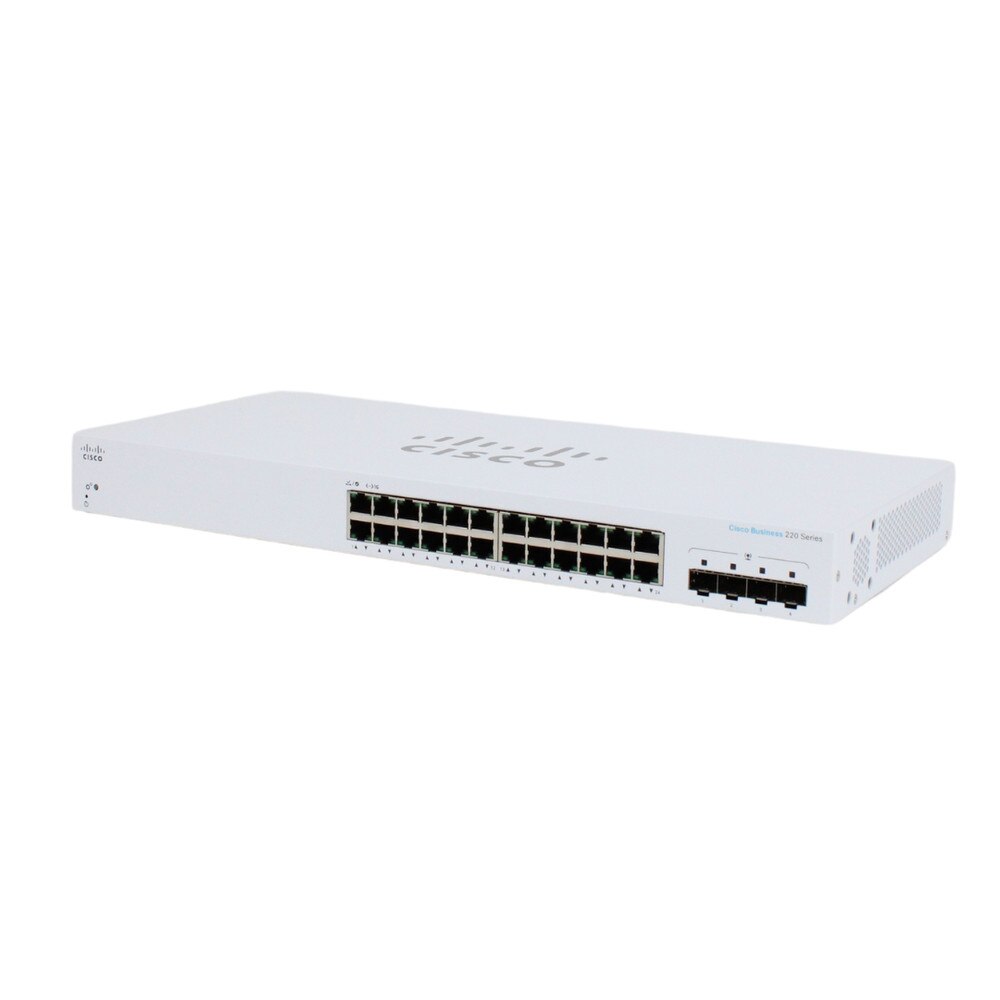

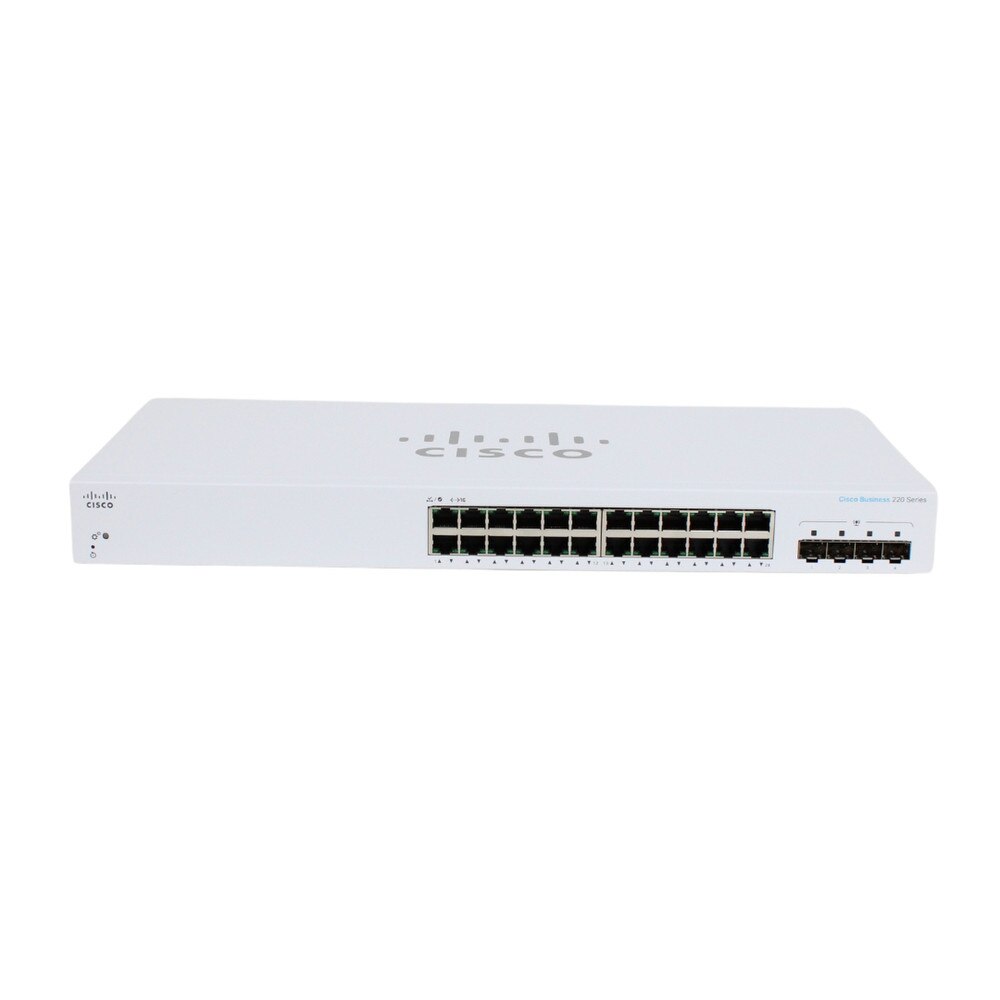

The Cisco CBS220-24T-4G 24-Port Gigabit Managed Network Switch (CBS220-24T-4G-NA) is a powerful 24-port Gigabit managed network switch aimed at small and medium businesses. It provides dependable, secure, and simple-to-use networking with advanced features at a reasonable price. This 24-port Gigabit switch features 24 10/100/1000 Ethernet ports for fast connectivity. It also includes four Gigabit SFP ports for fiber uplink connections, allowing for network expansion and increased bandwidth for resource-intensive applications such as video streaming and large file transfers.
The CBS220-24T-4G is designed for easy management via the intuitive Cisco Business Dashboard and mobile app. You can easily configure, monitor, and troubleshoot your network using a centralized interface, saving time and resources. The dashboard automates deployment and lifecycle management, making traditional networking challenges easier to manage.The Cisco CBS220-24T-4G is an excellent choice for small businesses, branch offices, and workgroups that need a dependable, secure, and affordable network solution with advanced management capabilities for converged data, voice, and video applications.
• 24 10/100/1000 Gigabit Ethernet ports for high-speed connectivity
• 4 Gigabit SFP ports for fiber uplink connections and network expandability
• Intuitive Cisco Business Dashboard and mobile app for easy setup, management, and troubleshooting
• Advanced security features like ACLs and guest VLANs to protect your network
• Quality of Service (QoS) for prioritizing voice and video traffic
• VLAN support for network segmentation and traffic isolation
• Energy-efficient design with eco-friendly features
• Compact design suitable for small and medium businesses
• Limited Lifetime Warranty and Cisco technical support
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS220-24T-4G-NA-RF |
| Product Name | Cisco CBS220-24T-4G 24-Port Gigabit Managed Network Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
Performance | Forwarding performance (64-byte packet size): 41.66 Mpps ¦ Switching capacity: 56 Gbps |
Capacity | MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1 |
MAC Address Table Size | 8192 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, fanless, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
RAM | 256 MB |
Flash Memory | 64 MB |
Status Indicators | System, link/activity/speed |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 18 Watt |

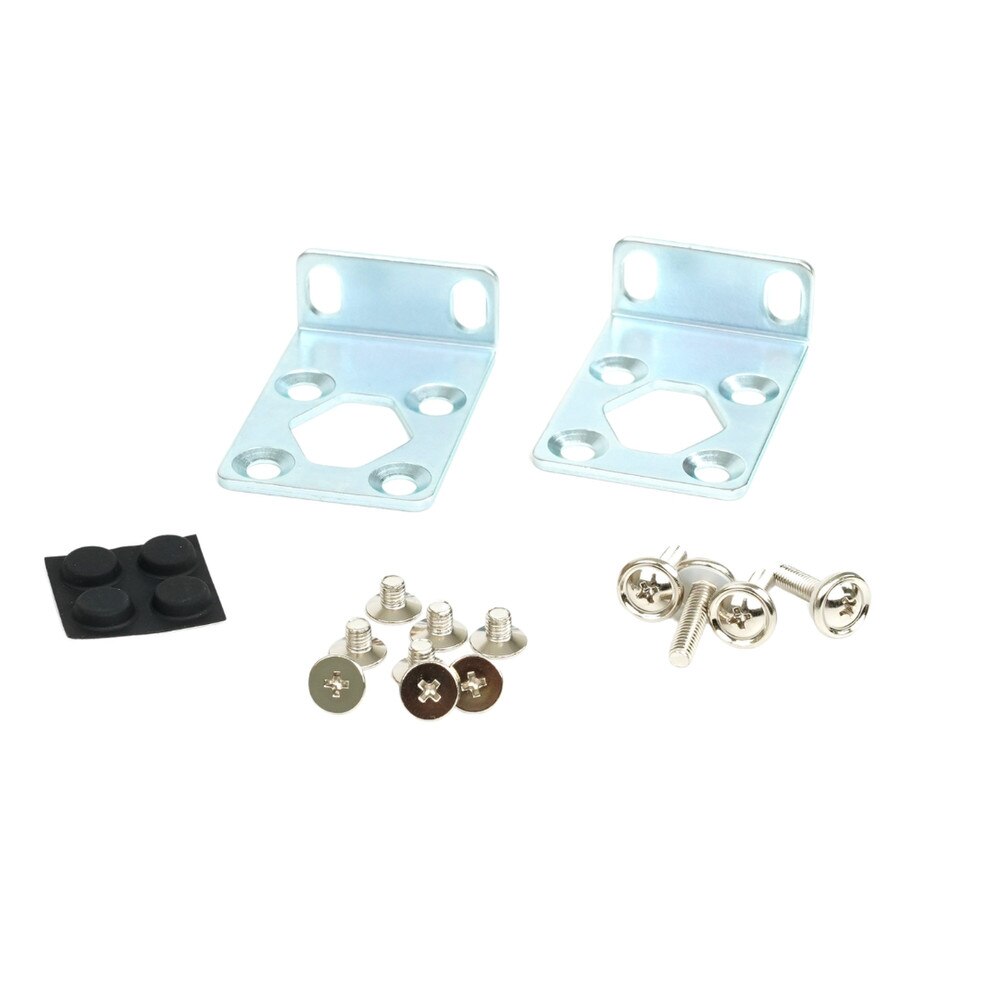

Rack Mounting Kit | Included |
MTBF | 1,049,371 hours |
Compliant Standards | C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Localization | Colombia, Canada, Chile, Mexico, Latin America, North America |
Width | 17.3 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 6.06 lbs |
Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
