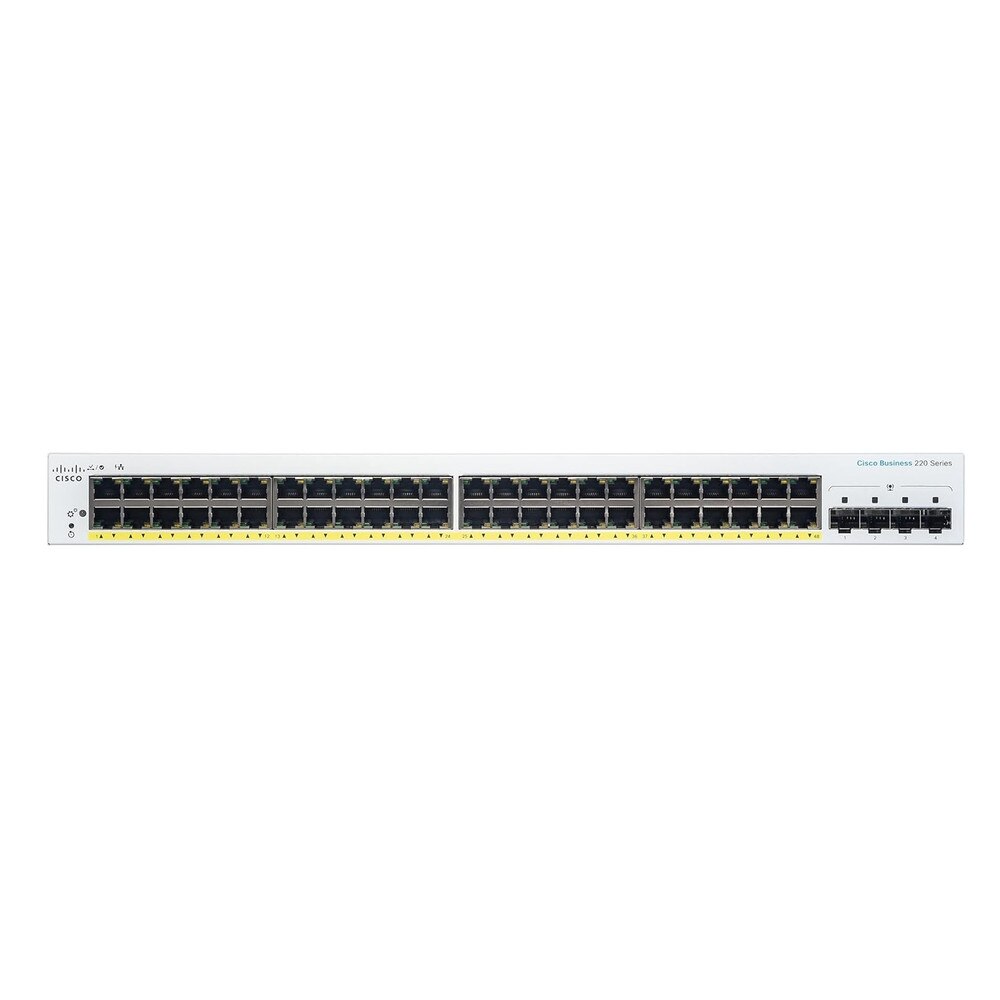

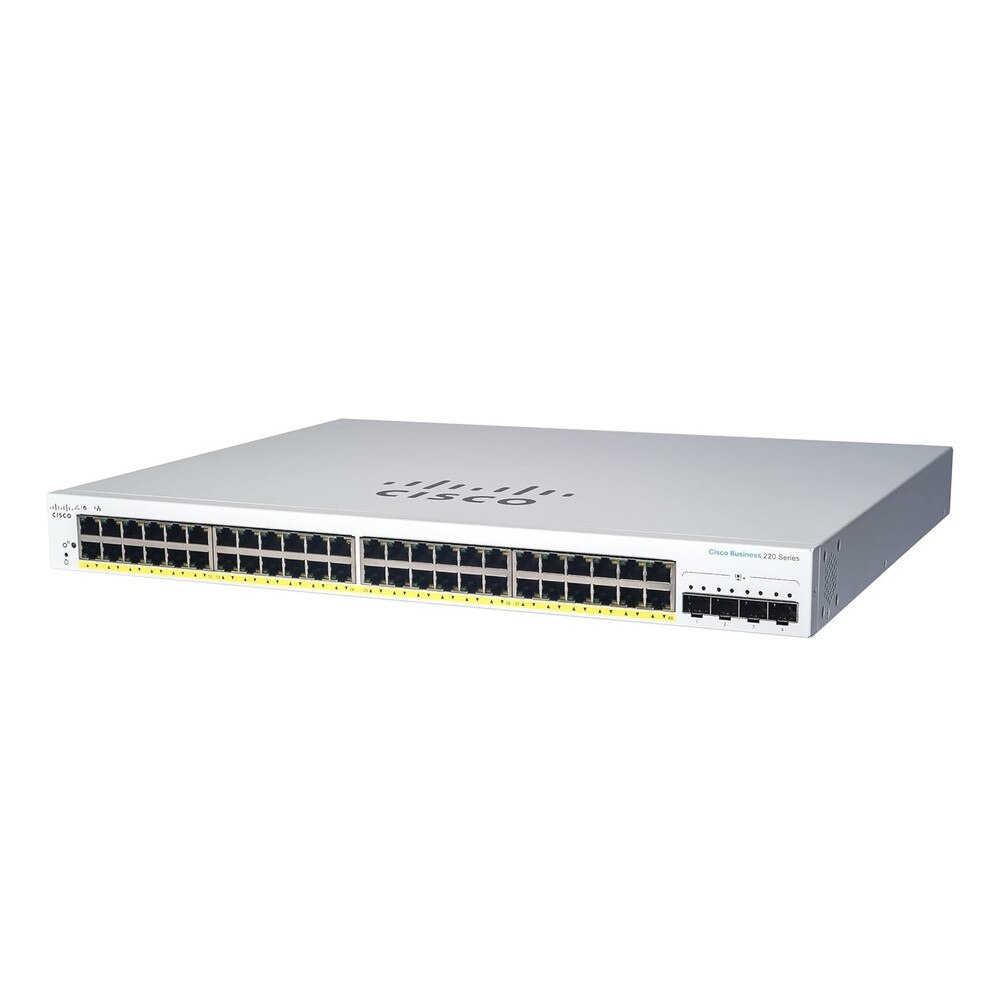

Overview of Cisco CBS220-48P-4G-NA-RF 48-Port 4 Gigabit PoE+ Managed Network Switch with SFP | Refresh
The Cisco CBS220-48P-4G 48-Port 4 Gigabit PoE+ Managed Network Switch with SFP is a commercial switch with smart management designed for expanding networks that require dependable power, quick connectivity and easy control. It supports IP phones, wireless access points, security cameras and other powered devices in branch and office settings by combining 48 Gigabit PoE+ ports with 4 Gigabit SFP uplinks. Strong switching capacity, PoE+ power delivery and crucial Layer 2 management capabilities that enhance network organization and traffic flow are all provided by the CBS220-48P-4G, which is built for business-class performance. It is a sensible option for businesses that wish to have more control than an unmanaged switch without having to deal with the intricacy of an enterprise stack.
Key Features of Cisco CBS220-48P-4G 48-Port 4 Gigabit PoE+ Managed Network Switch
• 48 x 10/100/1000 PoE+ RJ45 ports for powering and connecting endpoints over one cable.
• 4 x Gigabit SFP uplink ports for fiber-based uplinks and backbone connectivity.
• 382W total PoE budget to support multiple powered devices across the access layer.
• 104 Gbps switching capacity for efficient data handling across busy networks.
• Layer 2 management features including VLANs, QoS, ACLs and port trunking.
• Web-based management and Cisco Business Dashboard support for easier setup and monitoring.
• Rack-mountable design for clean installation in network closets and server racks.
• IPv6 support for modern network environments.
Benefits of Cisco CBS220-48P-4G 48-Port 4 Gigabit PoE+ Managed Network Switch
🗹 Reduce cable clutter and simplify deployment by delivering both data and power through PoE+ ports.
🗹 Expand your network with confidence using SFP uplinks that connect to fiber infrastructure or upstream switches.
🗹 Support voice, video, and data traffic more effectively with QoS and Layer 2 traffic controls.
🗹 Improve endpoint flexibility by powering cameras, phones and access points directly from the switch.
🗹 Gain better visibility and easier administration through Cisco Business management tools and web GUI access.
🗹 Build a scalable access layer that fits small business and branch office networking needs.
Specifications
Specifications for Cisco CBS220-48P-4G-NA-RF 48-Port 4 Gigabit PoE+ Managed Network Switch with SFP | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS220-48P-4G-NA-RF |
| Product Name | Cisco CBS220-48P-4G-NA-RF 48-Port 4 Gigabit PoE+ Managed Network Switch with SFP |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 382 W |
Performance | Forwarding performance (64-byte packet size): 74.38 Mpps ¦ Switching capacity: 104 Gbps |
Capacity | MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 12 |
MAC Address Table Size | 8192 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1 fan, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
RAM | 256 MB |
Flash Memory | 64 MB |
Status Indicators | System, link/activity/speed |
Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP uplink |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 478.2 Watt |
Rack Mounting Kit | Included |
MTBF | 452,351 hours |
Compliant Standards | C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 17.3 in |
Depth | 10.1 in |
Height | 1.7 in |
Weight | 11.66 lbs |
Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco CBS220-48P-4G 48-Port 4 Gigabit PoE+ Managed Network Switch with SFP
Frequently Asked Questions (FAQ's)
How many Ethernet ports does the Cisco CBS220-48P-4G provide?
The switch features 48 Gigabit Ethernet ports with PoE+ support.
Does the switch support Power over Ethernet?
Yes. All 48 Ethernet ports support PoE+ for powering compatible devices.
What types of devices can be powered by PoE+?
The switch can power IP phones, wireless access points, IP cameras, access control systems and other PoE-enabled devices.
How many uplink ports are included?
The switch includes 4 dedicated Gigabit SFP uplink ports.
Is the CBS220-48P-4G a managed switch?
Yes. It is a smart-managed switch with advanced Layer 2 networking capabilities.
Does the switch support VLANs?
Yes. VLAN support enables network segmentation for improved security and traffic management.
Can the switch prioritize voice and video traffic?
Yes. Quality of Service (QoS) helps optimize voice, video and critical business applications.
Is the switch suitable for VoIP deployments?
Yes. PoE+ support and QoS capabilities make it ideal for IP telephony environments.
Can it support wireless access points?
Yes. The switch is commonly used to power and connect business-class wireless access points.
Does the switch support IPv6?
Yes. It supports both IPv4 and IPv6 networking environments.
Can administrators manage the switch through a web interface?
Yes. The switch includes an intuitive browser-based management platform.
Does the switch support link aggregation?
Yes. Link aggregation can improve bandwidth and provide network redundancy.
Is the switch suitable for surveillance systems?
Yes. PoE+ ports can power IP cameras while providing reliable network connectivity.
What are the benefits of the SFP ports?
The SFP ports provide flexible fiber connectivity for uplinks, aggregation and longer-distance network connections.
Can the switch be used in educational environments?
Yes. Schools and universities often deploy managed PoE switches to support wireless and classroom technologies.
Is it suitable for healthcare facilities?
Yes. Healthcare organizations benefit from its secure, reliable and scalable networking capabilities.
Does the switch include security features?
Yes. ACLs, VLANs, and additional security controls help protect network resources.
Can the switch support cloud-based business applications?
Yes. Gigabit performance and intelligent traffic management help support cloud services and collaboration platforms.
Is rack mounting supported?
Yes. The switch is designed for installation in standard network racks.
Why choose the Cisco CBS220-48P-4G 48-Port 4 Gigabit PoE+ Managed Network Switch with SFP?
The Cisco CBS220-48P-4G combines 48 PoE+ Gigabit ports, 4 SFP uplinks, advanced Layer 2 management, enhanced security, QoS optimization and Cisco reliability, making it an ideal solution for organizations seeking secure, scalable and cost-effective business networking.
