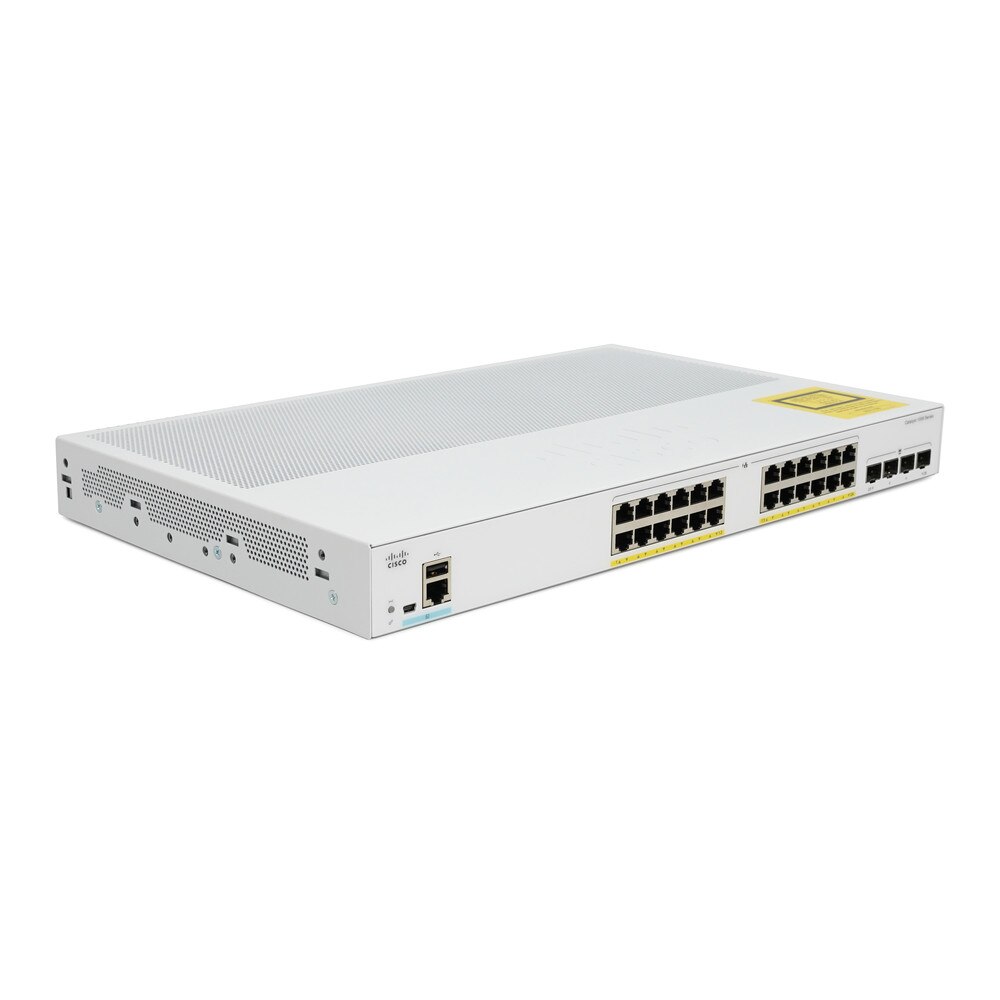

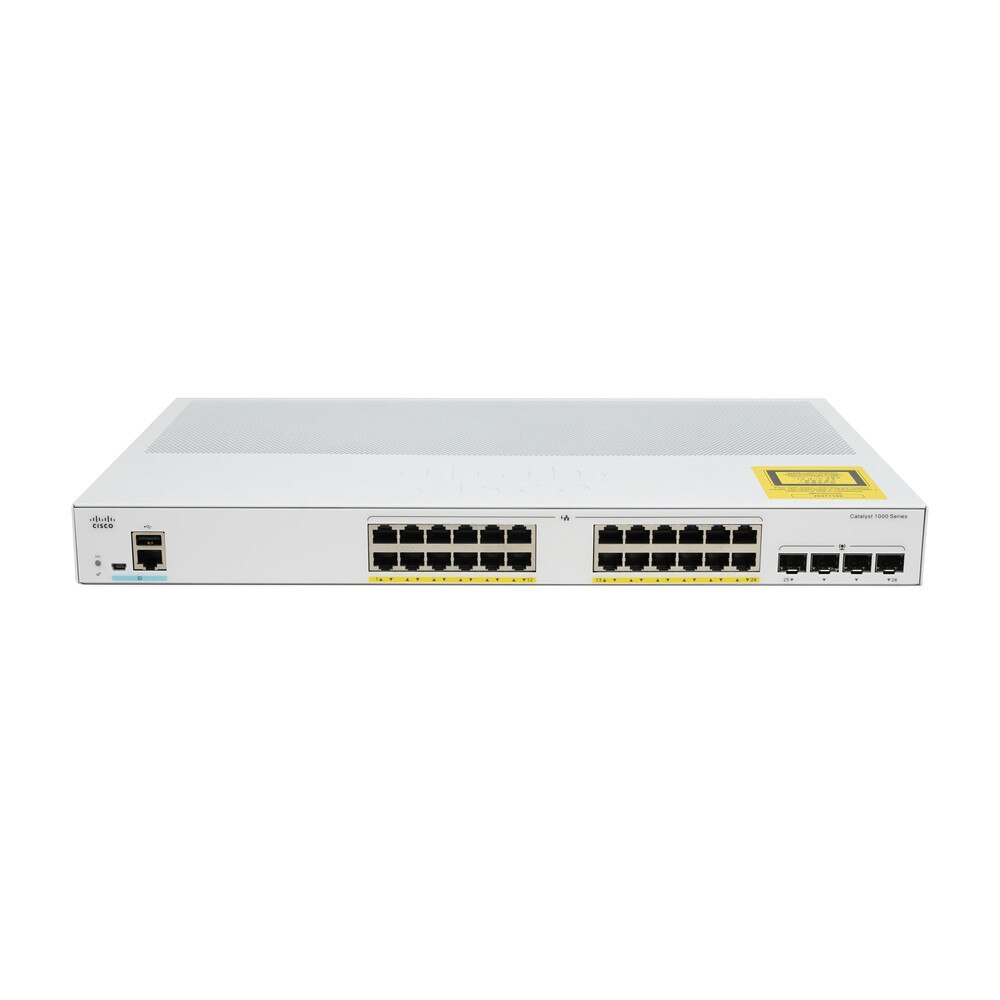

Overview of Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch | Refresh
The Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch is a compact, enterprise-class Layer 2 switch that is ideal for branch offices and small organizations that require dependable power, secure connection and easy maintenance. With its 24 Gigabit PoE+ ports, 4 SFP uplinks and 195W PoE budget, it is an excellent choice for IP phones, access points and security equipment. In addition to supporting web-based management and CLI access, the C1000-24P-4G-L is designed for silent operation and simple deployment. It also has strong switching performance and security features that assist keep network traffic safe and organized. Its fanless design, rack-mountable form size and Catalyst 1000 architecture make it particularly attractive for scattered locations, offices and retail establishments seeking solid Cisco networking without complexity.
Key Features of Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch
• 24 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports for powering network devices and delivering data on the same cable.
• 4 x 1G SFP uplink ports for flexible fiber or high-speed network expansion.
• 195W total PoE+ power budget to support IP phones, cameras and wireless access points.
• 56 Gbps switching bandwidth and 41.67 Mpps forwarding rate for responsive network performance.
• Fanless design for quiet, office-friendly operation.
• Managed switch features with CLI, web UI, SNMP and Bluetooth console support.
• 512 MB DRAM and 256 MB flash memory for efficient system operation.
• Compact rack-mountable chassis with dimensions around 17.5 x 11.76 x 1.73 inches.
Benefits of Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch
🗹 Power and connect more devices from one switch, reducing the need for separate injectors and simplifying cabling.
🗹 Improve network flexibility with SFP uplinks that make it easier to extend connectivity between closets, floors or buildings.
🗹 Keep workspaces quieter with a fanless switch that is well suited for offices and customer-facing environments.
🗹 Streamline IT management through Cisco’s web UI and CLI tools that make setup, monitoring and troubleshooting easier.
🗹 Support critical business devices like phones, cameras and access points with reliable PoE+ power delivery.
🗹 Reduce bottlenecks with strong switching capacity and fast forwarding performance for everyday business traffic.
🗹 Build a scalable network foundation with Cisco Catalyst 1000 reliability for branches, offices and growing SMB environments.
Specifications
Specifications of Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-24P-4G-L-RF |
| Product Name | Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 195 W |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
MTBF | 2,026,793 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 17.5 in |
Depth | 11.8 in |
Height | 1.7 in |
Weight | 7.78 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
User Guides
Frequently Asked Questions
Cisco Catalyst C1000-24P-4G-L 24-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C1000-24P-4G-L used for?
It is a managed switch designed to connect devices, provide PoE+ power and support secure business networking.
How many ports does it have?
It includes 24 Gigabit PoE+ Ethernet ports and 4 Gigabit uplink ports.
Does it support PoE+?
Yes, it supports PoE+ for powering compatible devices through Ethernet cables.
What devices can it power?
It can power IP phones, wireless access points, IP cameras and other PoE-enabled devices.
Is this switch managed or unmanaged?
It is a fully managed switch with advanced Layer 2 networking capabilities.
Does it support VLANs?
Yes, VLAN support allows network segmentation for enhanced security and performance.
Is it suitable for small businesses?
Yes, it is ideal for small businesses, branch offices and enterprise edge deployments.
Can it be rack-mounted?
Yes, it supports rack mounting for structured network installations.
Does it support QoS?
Yes, Quality of Service prioritizes voice, video and critical network traffic.
What are the uplink ports used for?
The 4 Gigabit uplink ports provide backbone connectivity and network expansion.
Is it secure?
Yes, it includes enterprise-grade security features such as ACLs and port security.
Can it handle multiple devices?
Yes, it is designed to efficiently support numerous connected devices simultaneously.
Does it require a license?
No, standard functionality typically does not require additional licensing.
Can I monitor network traffic?
Yes, management tools allow monitoring and configuration of network traffic.
Is firmware upgradable?
Yes, firmware updates are supported to improve functionality and security.
Does it support IPv6?
Yes, it supports IPv6 for compatibility with modern network infrastructures.
Is it energy efficient?
Yes, it is designed to reduce power consumption while maintaining strong performance.
Is it suitable for VoIP deployments?
Yes, PoE+ and QoS make it ideal for VoIP and unified communication systems.
Can it support wireless access points?
Yes, it can power and connect enterprise wireless access points efficiently.
Is it future-proof?
Yes, with scalable networking capabilities and Cisco reliability, it supports long-term business growth.
