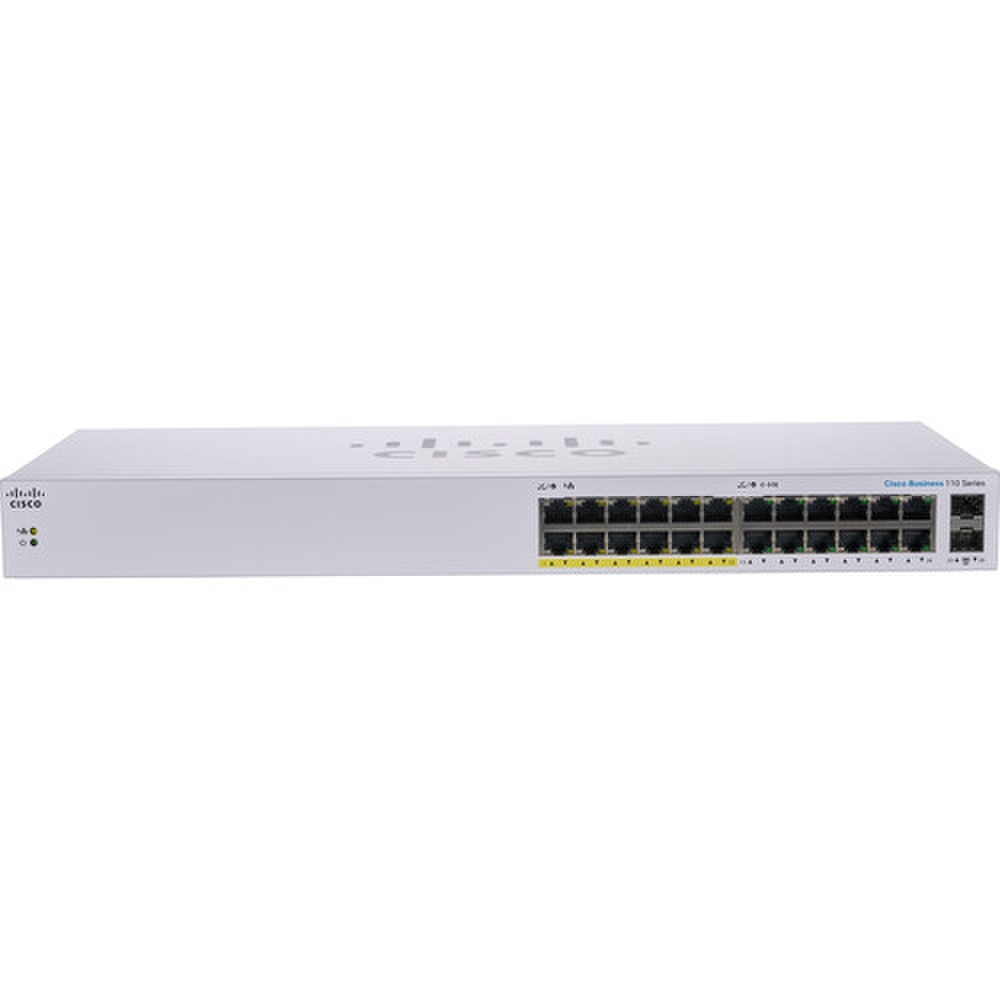

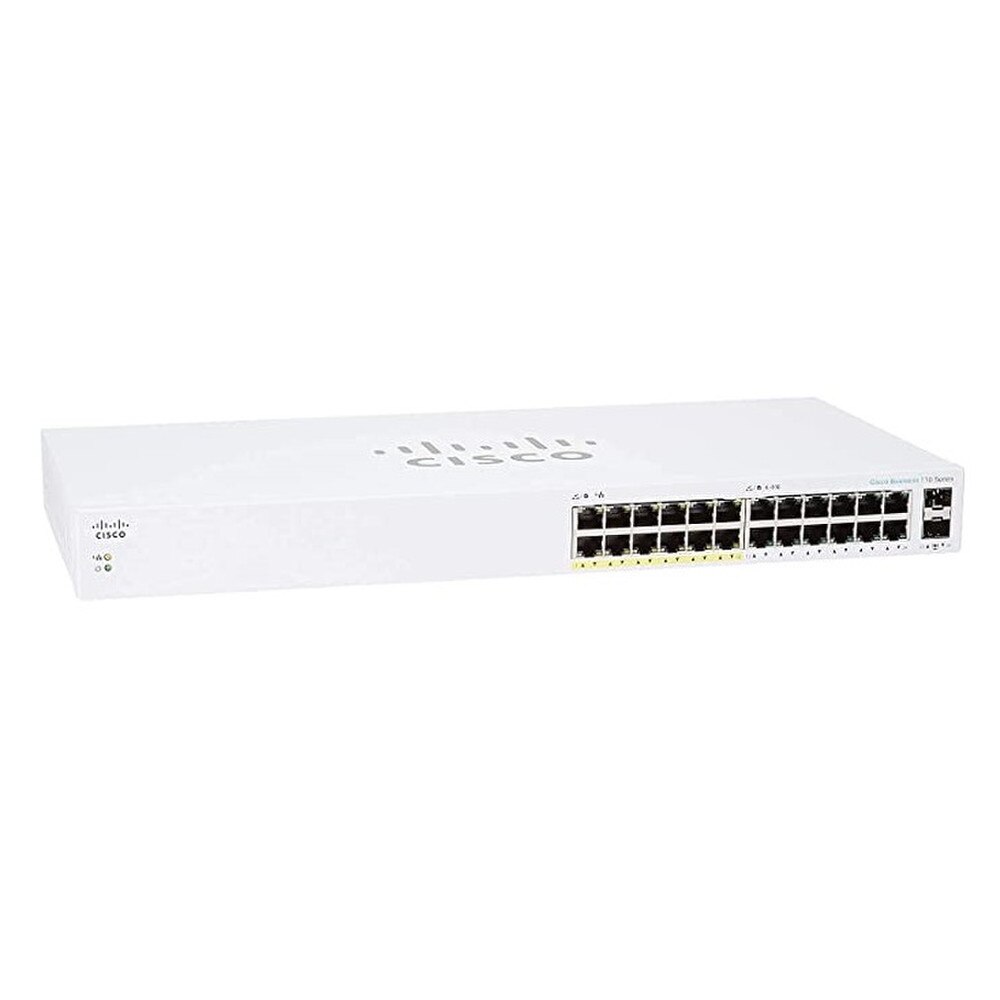

The Cisco CBS110-24PP 24-Port Unmanaged Switch (CBS110-24PP-NA-RF) is a strong and versatile 24-port unmanaged switch designed for small businesses and home offices that require a dependable, high-performance networking solution. This plug-and-play device provides seamless connectivity without the hassle of configuration, making it an excellent choice for those looking to expand their network quickly and efficiently. The CBS110-24PP excels at creating and expanding networks with minimal effort. Its comprehensive PoE capabilities enable you to power a wide range of compatible devices directly via Ethernet cables, reducing clutter and simplifying installations in a variety of environments.
This switch's compact and durable metal housing allows it to be placed on a desk or wall, adapting to different office layouts. The fanless design ensures quiet operation, making it ideal for open office settings or areas where noise reduction is critical. The switch supports jumbo frames of up to 9K bytes, allowing for efficient handling of large data transfers. This feature is especially useful for high-bandwidth applications like video streaming, large file transfers, and data backups.
Cisco's CBS110-24PP combines simplicity, performance, and dependability, making it an ideal choice for small businesses and home offices looking to improve their network infrastructure without requiring complex management. Its plug-and-play capability enables rapid deployment, while its robust features ensure a stable and efficient network environment.
• 24 Gigabit Ethernet ports for high-speed connections
• Power over Ethernet (PoE) support on all ports
• Generous PoE budget for powering devices like IP phones, cameras, and access points
• Plug-and-play functionality with no configuration required
• Fanless design for quiet operation in noise-sensitive environments
• Energy-efficient operation, likely with IEEE 802.3az support
• Quality of Service (QoS) for basic traffic prioritization
• Auto-MDI/MDIX for simplified cabling
• Compact design suitable for desktop or wall-mounting
• Durable metal housing for longevity and reliability
• Support for jumbo frames to handle large data transfers efficiently
• Loop detection to prevent network disruptions
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS110-24PP-NA-RF |
| Product Name | Cisco CBS110-24PP 24-Port Unmanaged Switch |
| Product Type | Networking Switch |
Enclosure Type | Desktop, rack-mountable, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 12 x 10/100/1000 (PoE) + 12 x 10/100/1000 + 2 x combo Gigabit SFP |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 100 W |
Performance | Forwarding performance (64-byte packet size): 35.7 Mpps ¦ Switching capacity: 48 Gbps |
Capacity | Buffer capacity (MB): 2 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9216 bytes |
Features | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az |
Processor | X ARM: 400 MHz |
RAM | 64 MB |
Flash Memory | 8 MB |
Status Indicators | Power, PoE, link/activity |
Interfaces | 12 x 10/100/1000 Base-T RJ-45 PoE ¦ 12 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 135.67 Watt |
Included Accessories | Mounting kit |
MTBF | 340,703 hours |
Compliant Standards | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 17.3 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 6.57 lbs |
Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
