Overview of Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

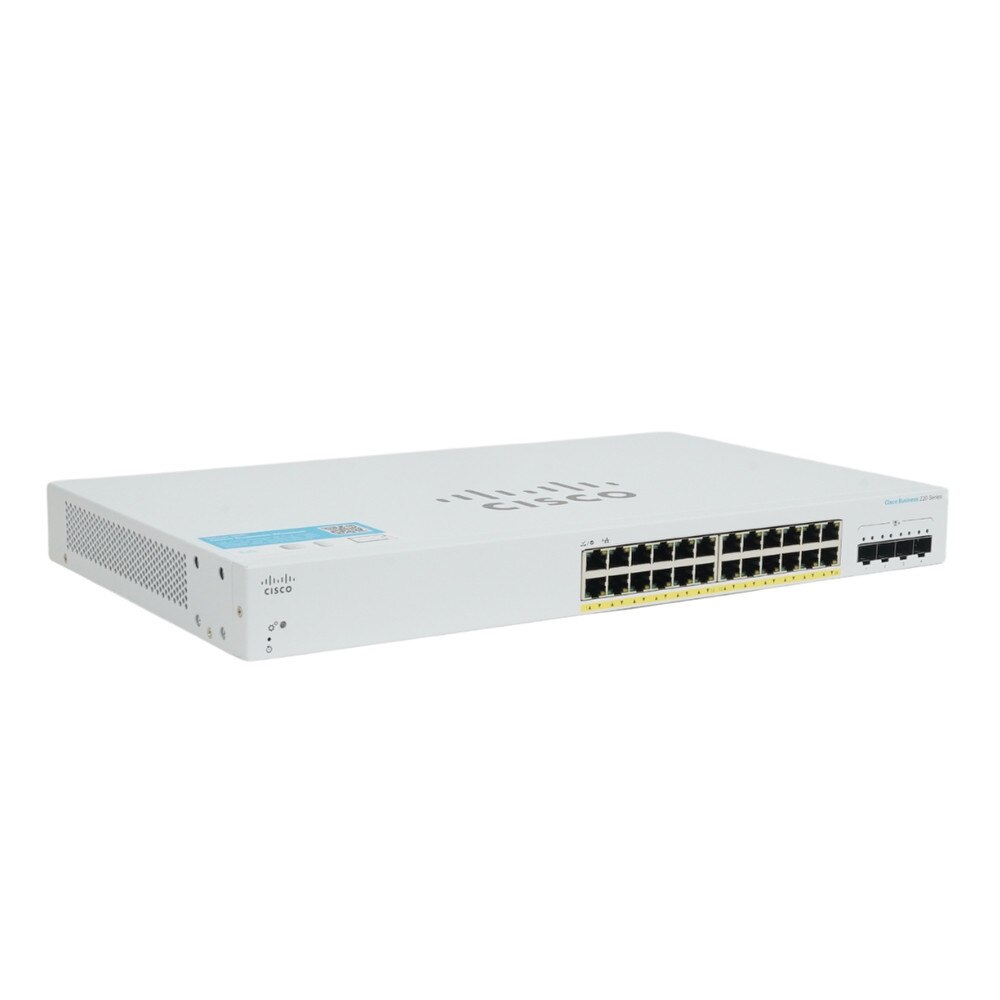

The Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ is a powerful smart-managed switch designed for expanding commercial networks that require quick uplinks, dependable PoE and easy control. It can power IP phones, wireless access points, security cameras and other essential devices from a single platform due to its 24 Gigabit PoE+ ports, 4 x 10GbE SFP+ uplinks and 195W PoE budget. This Cisco Business 220 Series switch is a great option for offices, branches, retail and other SMB applications that require enterprise-grade performance without needless complexity because it offers Layer 2 management, robust security capabilities and rack-mountable flexibility.
Key Features of Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
• 24 x Gigabit Ethernet PoE+ ports for powering and connecting network devices over one cable.
• 4 x 10GbE SFP+ uplink ports for high-speed backhaul and core network connections.
• 195W PoE budget to support phones, cameras, and wireless access points.
• 128 Gbps switching capacity and 95.23 Mpps forwarding rate for responsive performance.
• Layer 2 smart-managed switching with VLANs, link aggregation, IGMP snooping and QoS.
• Strong security capabilities including 802.1X, RADIUS, TACACS+, ACLs and DoS protection.
• Jumbo frame support up to 9216 bytes for larger data transfers.
• Rack-mountable 1U design with internal power supply for clean deployment.
Benefits of Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
🗹 Simplify network expansion by powering devices directly from the switch instead of adding separate adapters and injectors.
🗹 Eliminate uplink bottlenecks with 10GbE SFP+ ports that keep traffic moving between access and core layers.
🗹 Improve voice and video quality with QoS and smart traffic handling for busy business networks.
🗹 Strengthen security at the edge with authentication, access control and attack-prevention features.
🗹 Support high-density deployments with enough PoE power for multiple business devices on one switch.
🗹 Reduce management complexity with a smart-managed Cisco Business platform that is easier to deploy and maintain.
Specifications
Specifications for Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS220-24P-4X-NA-RF |
| Product Name | Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
Performance | Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps |
Capacity | MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 12 |
MAC Address Table Size | 8192 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1 fan, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
RAM | 256 MB |
Flash Memory | 64 MB |
Status Indicators | System, link/activity/speed |

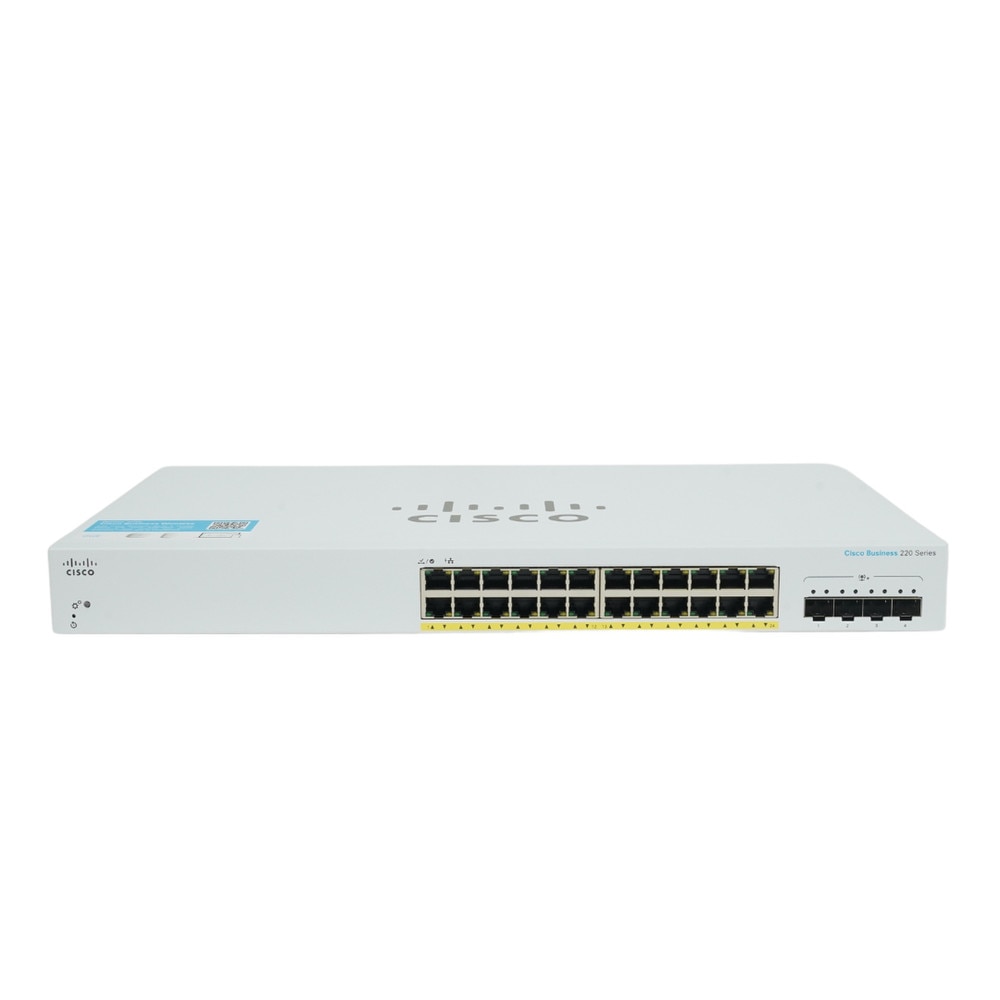

Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink |
Power Device | Internal power supply |

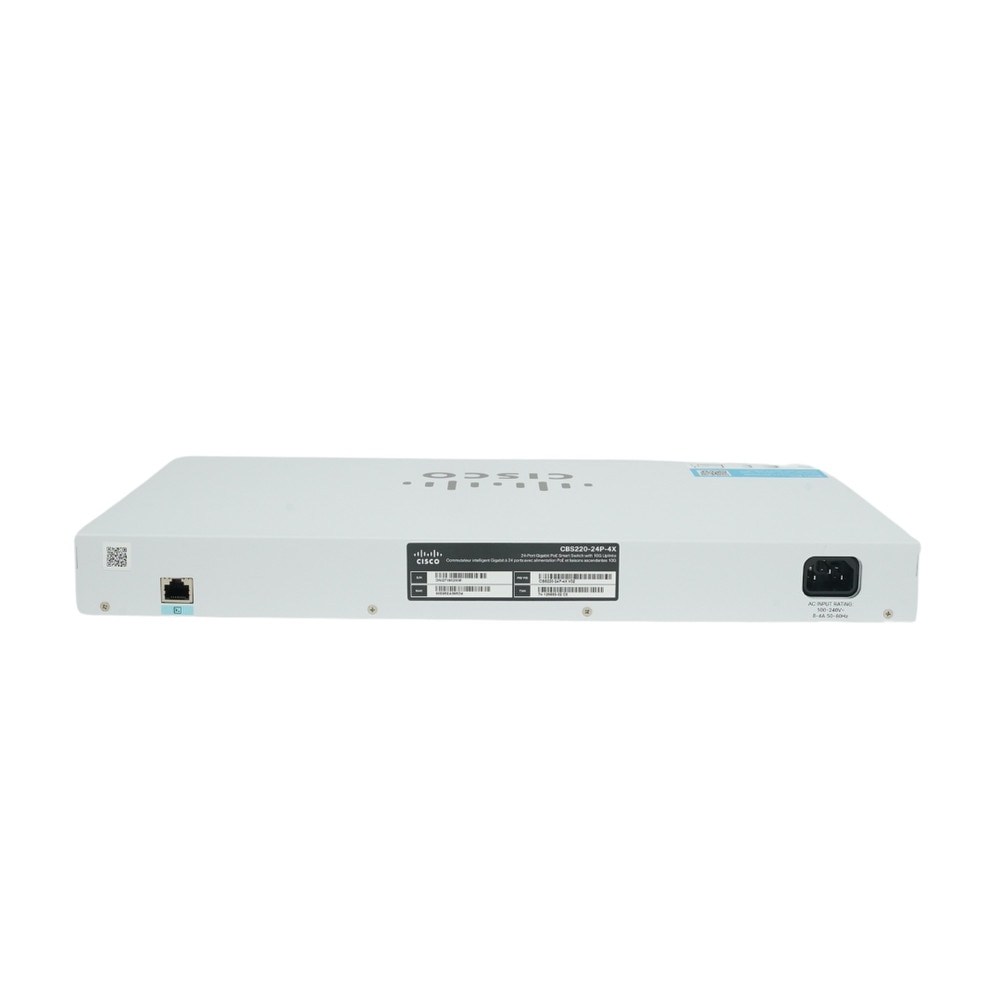

Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 23.6 Watt |

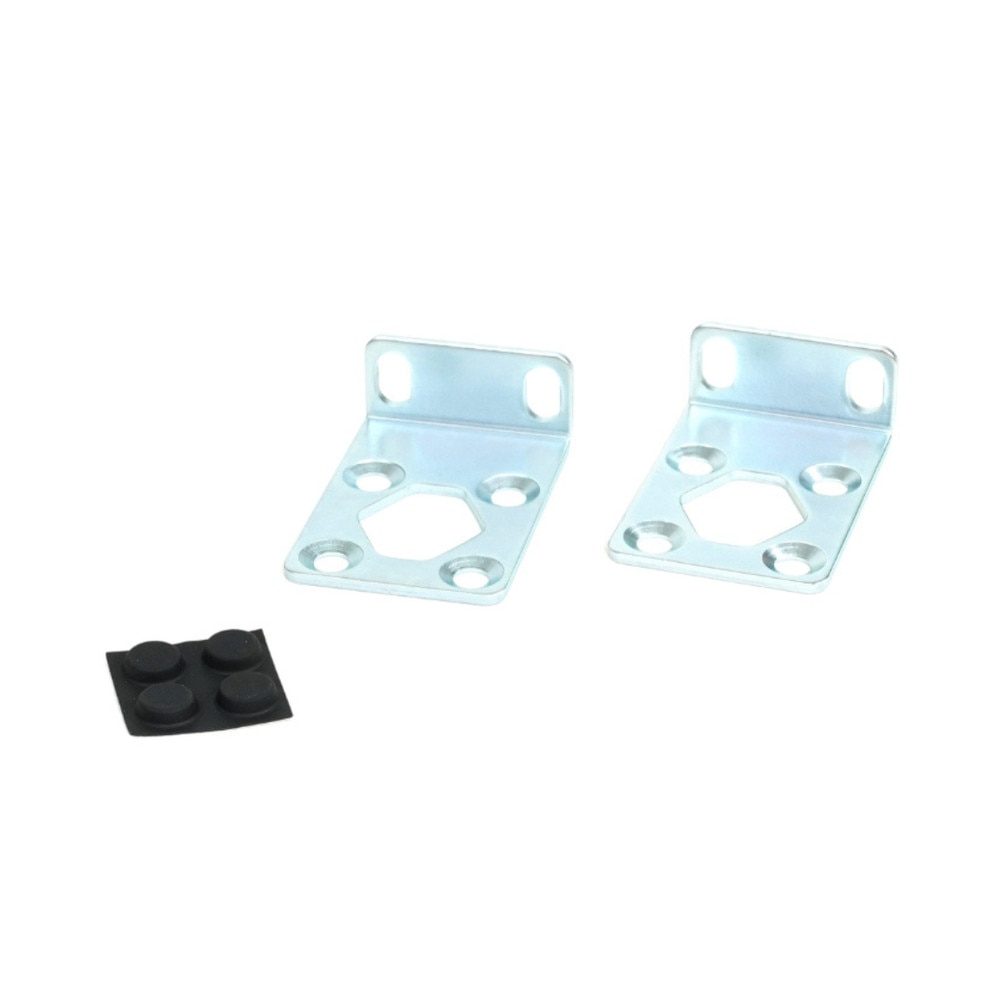

Rack Mounting Kit | Included |
MTBF | 1,372,359 hours |
Compliant Standards | C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 17.3 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 5.93 lbs |
Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+
Frequently Asked Questions (FAQ's)
What is the Cisco CBS220-24P-4X designed for?
It is designed to provide secure, managed Gigabit networking with PoE+ support for small and medium-sized businesses.
How many Ethernet ports does the switch provide?
The switch includes 24 Gigabit Ethernet ports with PoE+ capability.
Does the switch support Power over Ethernet?
Yes. It supports PoE+ for powering compatible devices through Ethernet cables.
What devices can be powered by the PoE+ ports?
The switch can power IP phones, wireless access points, IP cameras, access control systems and other IEEE 802.3af/at compliant devices.
How many uplink ports are available?
The CBS220-24P-4X includes four dedicated 10 Gigabit SFP+ uplink ports.
Is this a managed switch?
Yes. It is a smart-managed switch with advanced Layer 2 networking capabilities.
Does the switch support VLANs?
Yes. VLAN support allows administrators to segment network traffic for improved performance and security.
Can it prioritize voice and video traffic?
Yes. Quality of Service (QoS) enables traffic prioritization for latency-sensitive applications such as VoIP and video conferencing.
Does the switch support IPv6?
Yes. It supports both IPv4 and IPv6 networking environments.
Can administrators manage the switch through a web browser?
Yes. The switch includes an intuitive web-based management interface.
Does it support link aggregation?
Yes. Link Aggregation increases available bandwidth and provides redundancy for network connections.
Is the switch suitable for VoIP deployments?
Yes. PoE+ and QoS features make it an excellent choice for IP telephony environments.
Can it support wireless access points?
Yes. The PoE+ ports can power and connect compatible business-class wireless access points.
Is it suitable for IP surveillance systems?
Yes. It is commonly deployed to support PoE-powered security cameras and surveillance networks.
Can the switch be used in retail or hospitality environments?
Yes. Its compact management features and PoE capabilities make it ideal for retail stores, restaurants, hotels and hospitality businesses.
Does the switch include advanced security features?
Yes. It includes ACLs, VLANs, and other Layer 2 security capabilities to help protect network resources.
Can it support cloud-based business applications?
Yes. Gigabit connectivity and high-speed 10G uplinks provide reliable access to cloud services and collaboration platforms.
Is the switch rack mountable?
Yes. It includes mounting hardware for installation in standard network racks.
Is the CBS220-24P-4X a genuine Cisco Business Series switch?
Yes. It is an original Cisco Business 220 Series managed network switch.
Why choose the Cisco CBS220-24P-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+?
The Cisco CBS220-24P-4X combines 24 Gigabit PoE+ ports, four 10G SFP+ uplinks, advanced Layer 2 management, enterprise-grade security, QoS optimization and Cisco reliability, making it an ideal networking solution for businesses seeking secure, scalable and high-performance connectivity.
