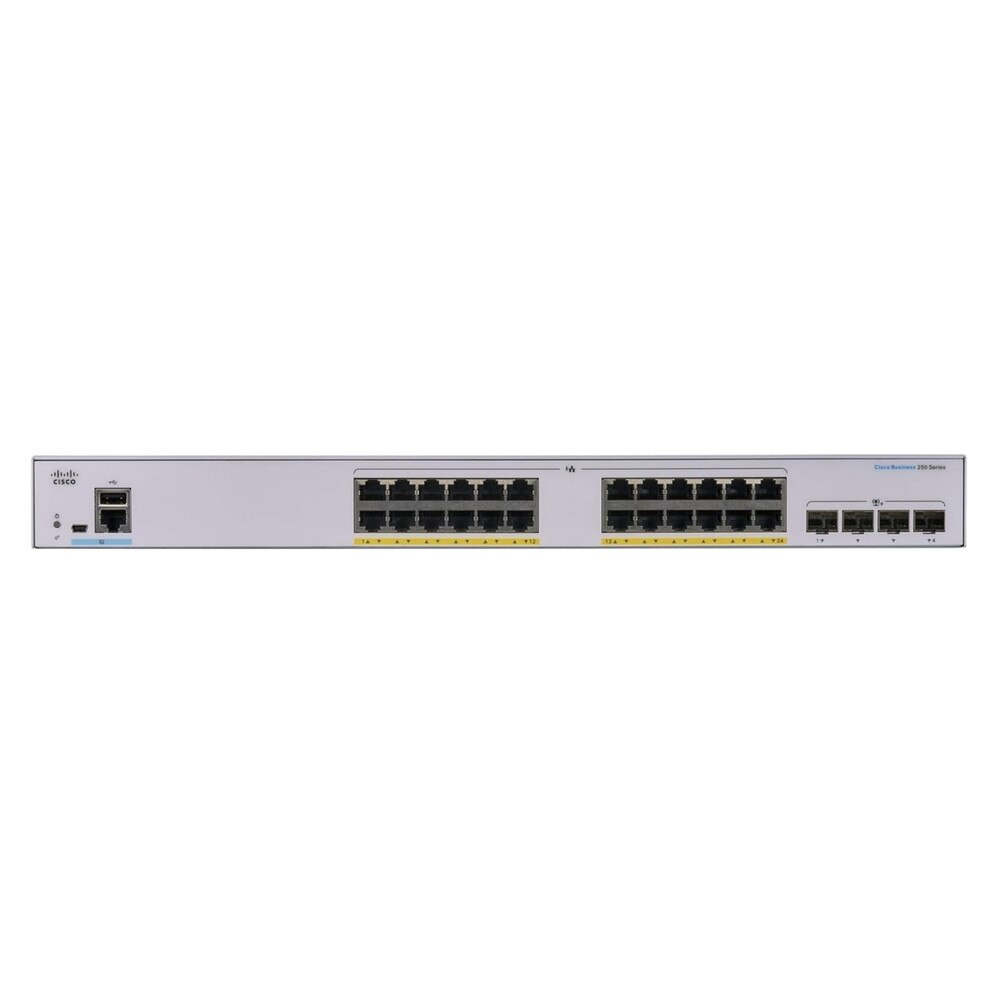

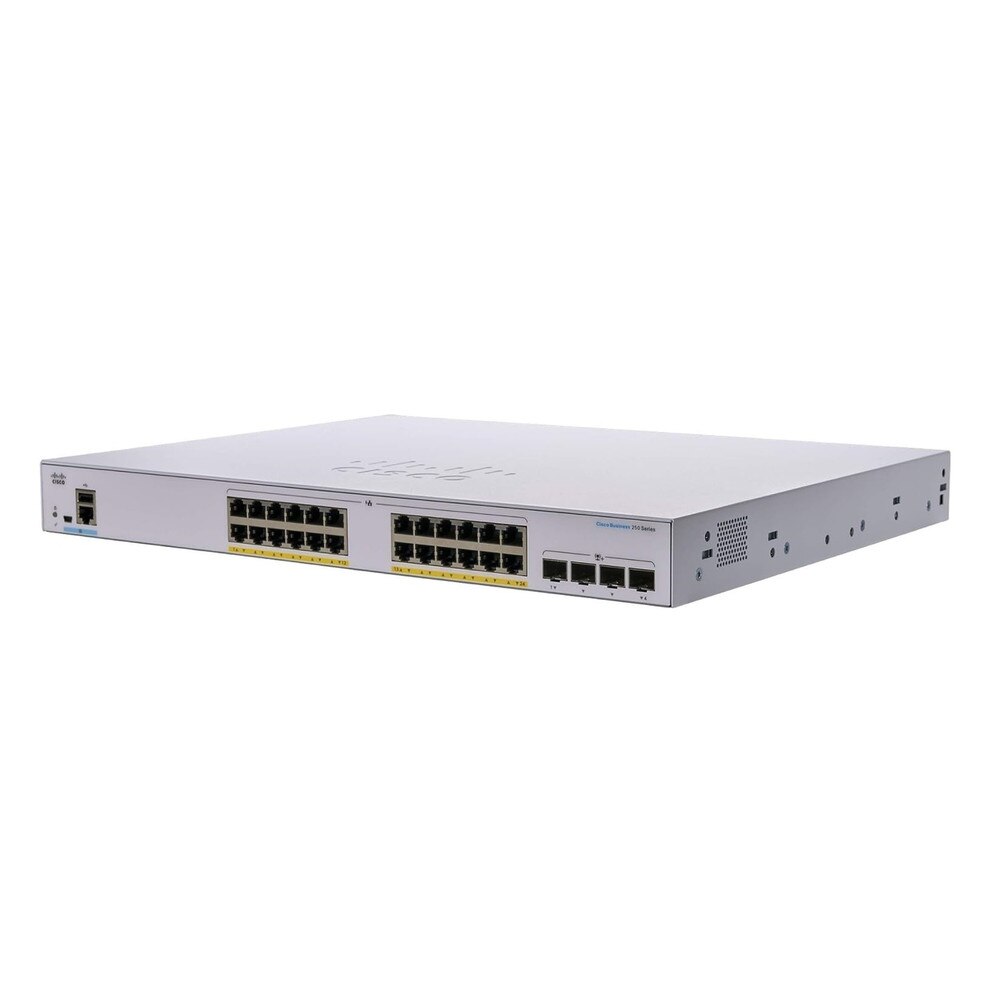

The Cisco CBS250-24FP-4X 24-Port Gigabit PoE+ Managed Switch with SFP+ (NA) is a high-performance managed switch built for small and medium-sized enterprises that require dependable, secure, and scalable network solutions. This versatile switch combines advanced features, Power over Ethernet capabilities, and a variety of connectivity options to enable modern business applications and future network expansion. The CBS250-24FP-4X has 24 Gigabit Ethernet ports that enable PoE+ and a huge 370W power budget, allowing you to power devices like IP phones, wireless access points, and security cameras directly via network cables. It also includes four 10 Gigabit SFP+ uplink ports for ultra-fast connectivity to network backbones or servers. This switch has a switching capacity of 128 Gbps and a forwarding rate of 95.23 Mpps, ensuring seamless and efficient data transport for your business-critical applications.
• 24 Gigabit Ethernet ports with PoE+ support (370W budget)
• Four 10 Gigabit SFP+ uplink ports for high-speed connectivity
• 128 Gbps switching capacity and 95.23 Mpps forwarding rate
• Layer 2 and basic Layer 3 switching capabilities
• Advanced security features including 802.1X and ACLs
• Easy management via web interface, CLI, or Cisco Business Dashboard
• Energy-efficient design with ENERGY STAR certification
• Support for up to 8,192 MAC addresses
• IPv4 and IPv6 compatible for future-proof networking
• Fanless design for quiet operation in office environments
🗹 Enhance network performance with Gigabit speeds and PoE+ support
🗹 Simplify deployment of IP phones, cameras, and wireless access points
🗹 Improve network reliability with advanced QoS and security features
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with 10G SFP+ uplink options
🗹 Simplify management and troubleshooting with intuitive interfaces
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with IPv6 support and software updates
🗹 Optimize application performance with advanced traffic management
🗹 Leverage Cisco's renowned quality and support for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS250-24FP-4X-NA-RF |
| Product Name | Cisco CBS250-24FP-4X 24-Port Gigabit PoE+ Managed Switch with SFP+ |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps |
Capacity | RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 255 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 1.5 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 2KB |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2) |
Features | Flow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, QoS, DHCP server, PVST+, reset button, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, MIB, NDP, GARP, GVRP, 802.1x authentication, Duplicated Address Detection, ToS, DSCP support, SmartPort technology, dual image support, VLAN mirroring, DNS client, 1 fan, SCT, LLDP-MED, HOL blocking, SSD, ISATAP tunnel support, UDP, STP loop guard, DoS protection, WRR, loopback detection, Unknown Storm Control, LAG, VSDP, RPVST+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, PoE, link/activity/speed |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 451.8 Watt |
Rack Mounting Kit | Included |
MTBF | 698,220 hours |
Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 17.5 in |
Depth | 13.6 in |
Height | 1.7 in |
Weight | 10.14 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
