Cisco CBS220-24T-4X 24-Port Gigabit Managed Network Switch (NA) | Refresh

Overview for Cisco CBS220-24T-4X-NA-RF 24-Port Gigabit Managed Network Switch | Refresh

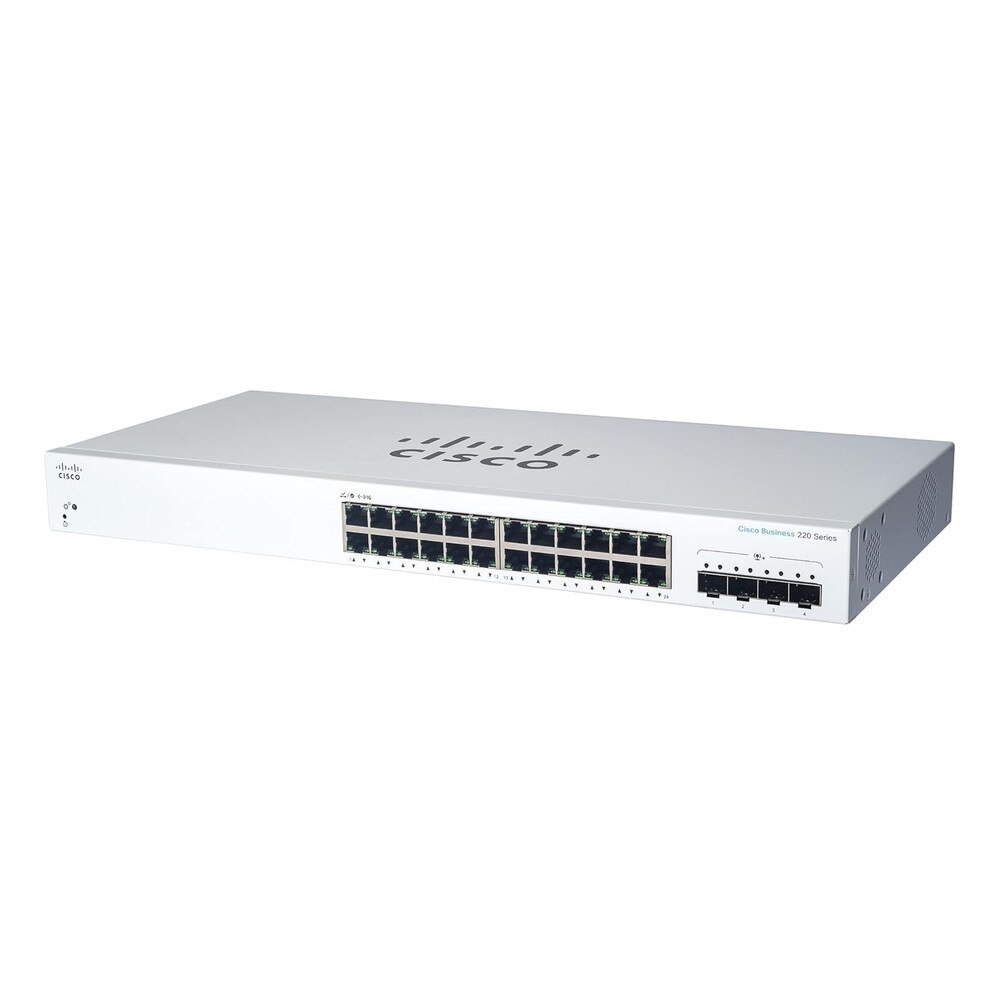

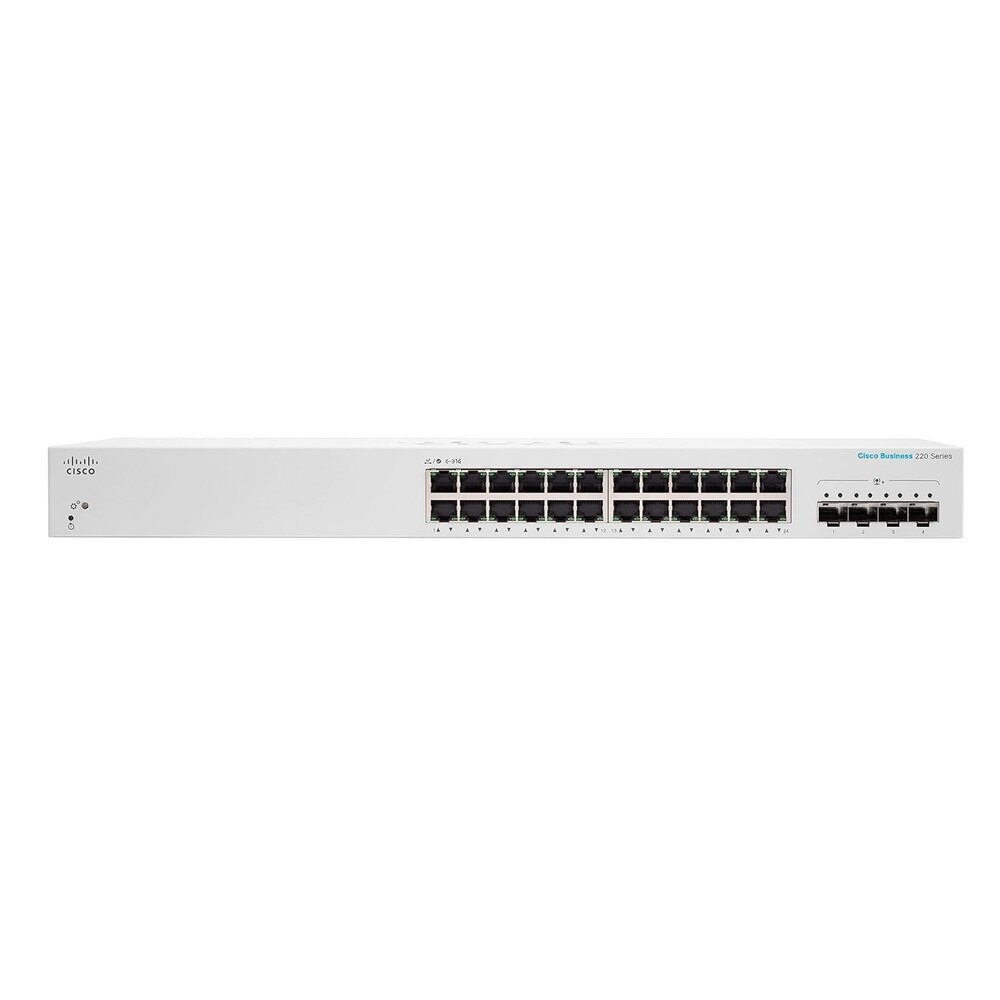

The Cisco CBS220-24T-4X-NA-RF 24-Port Gigabit Managed Network Switch features 24 Gigabit Ethernet ports that connect compatible devices such as computers, network storage enclosures, and more. There are also four 10GbE SFP+ ports available for high-speed fiber connections. Its extensive Layer 2 features include link aggregation to create up to eight groups, each comprised of up to eight ports, for multi-Gig connections to compatible devices. Its 128 Gb/s switching capacity and 95.23 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS220-24T-4X and its connected devices. The single-fan design helps to maintain optimal temperatures as the switch operates quietly in the background.

Key Features of Cisco CBS220-24T-4X-NA-RF 24-Port Gigabit Managed Network Switch

● Easy configuration and deployment. Cisco Business 220 Series switches are designed to be easy to deploy and use by small businesses and the partners that manage them. Other ease-of-use features include the following:

◦ Cisco Business Dashboard is intended for the administration of Cisco Business switches, routers, and wireless access points. You may easily alter the UI and widgets on the Dashboard to manage your network more effectively. Cisco Business 220 Series switches link directly to Cisco Business Dashboard, removing the requirement for on-site installation of separate hardware or a virtual machine. Visit https://www.cisco.com/go/cbd for additional details.

◦ The Cisco Network Plug and Play solution offers a simple, secure, consistent, and integrated offering to make new device rollouts and network updates easier. With a zero-touch deployment experience, the solution delivers a uniform way to provisioning Cisco routers, switches, and wireless devices.

◦ The switch can be configured, managed, and troubleshooted in minutes thanks to the easy and straightforward web-based interfaces. setup wizards make the most frequent setup tasks easier to complete and give a tool for anyone to set up and administer a network.

● Reliability and performance. Cisco Business 220 Series switches have been tested to provide the excellent availability and performance that users have come to expect from Cisco switches. The switches shorten file transfer times, keep critical business programs running, and enable your employees reply to customers and each other more rapidly. With expanded QoS features, the Cisco company 220 Series also provides the ability to manage and prioritize high-bandwidth traffic, allowing you to effortlessly combine all company communications and networking demands on a single integrated infrastructure.

● Power over Ethernet (PoE). PoE+ simplifies the deployment of wireless access points, IP telephony, and video surveillance by allowing power and data to run over a single network connection. Cisco Business 220 Series switches feature PoE+, which provides up to 30 watts of power per port. PoE+ enables deployments of 802.11ac wireless access points, Pan Tilt Zoom (PTZ) IP cameras, and videophones, providing greater flexibility and investment protection.

● Network safety. The Cisco Business 220 Series switches add new degrees of protection to smart switches and provide more ways to protect your network.

◦ Support for network security applications such as IEEE 802.1X and port security can tightly control access to certain areas of your network.
◦ Extensive Access Control Lists (ACLs) can protect sensitive network areas from unwanted users and help prevent network attacks.
◦ Broadcast/multicast/unknown unicast storm control and Bridge Protocol Data Unit (BPDU) guard can safeguard the network from incorrect setups or malicious intent.
◦ In the event of a network assault, preventing denial-of-service (DOS) attacks helps to boost uptime.

● Energy efficiency at its best. All Cisco Business 220 Series switches enable Energy Efficient Ethernet (IEEE 802.3az) and Energy Detect, as well as fanless designs on some models. These ideas can help you save money on operations while also lowering your environmental impact.

● Protection for your investment and peace of mind. Cisco Business 220 Series switches provide the dependability, investment protection, and peace of mind that you expect from a Cisco switch. A complimentary one-year subscription to our Small Business Support Center provides continuing assistance. Your business will run smoothly thanks to the 3-year limited hardware warranty with return to manufacturer replacement.

Specifications for Cisco CBS220-24T-4X-NA-RF 24-Port Gigabit Managed Network Switch | Refresh

Cisco CBS220-24T-4X-NA-RF 24-Port Gigabit Managed Network Switch Data Sheet

Cisco CBS220-24T-4X 24-Port Gigabit Managed Network Switch (NA)

Frequently Asked Questions (FAQ's)
