Ubiquiti UniFi Access Point U6+ (U6-PLUS) | New

Ubiquiti UniFi Access Point U6+ (U6-PLUS) | New

SKU: U6-PLUS-N
1Review
  • 🗹 Ubiquiti UniFi Access Point U6+ (U6-PLUS)
  • 🗹 Wall & Ceiling Mounting Kit
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$139.99 $139.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

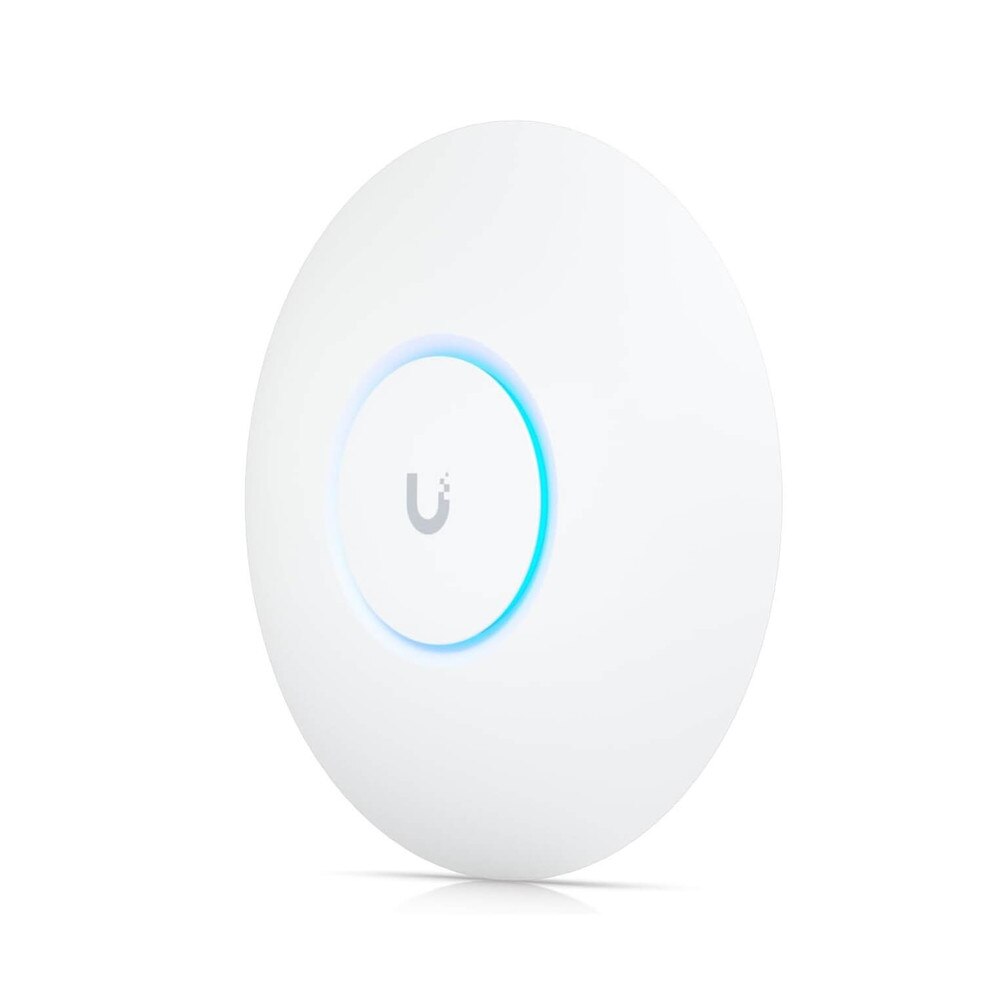

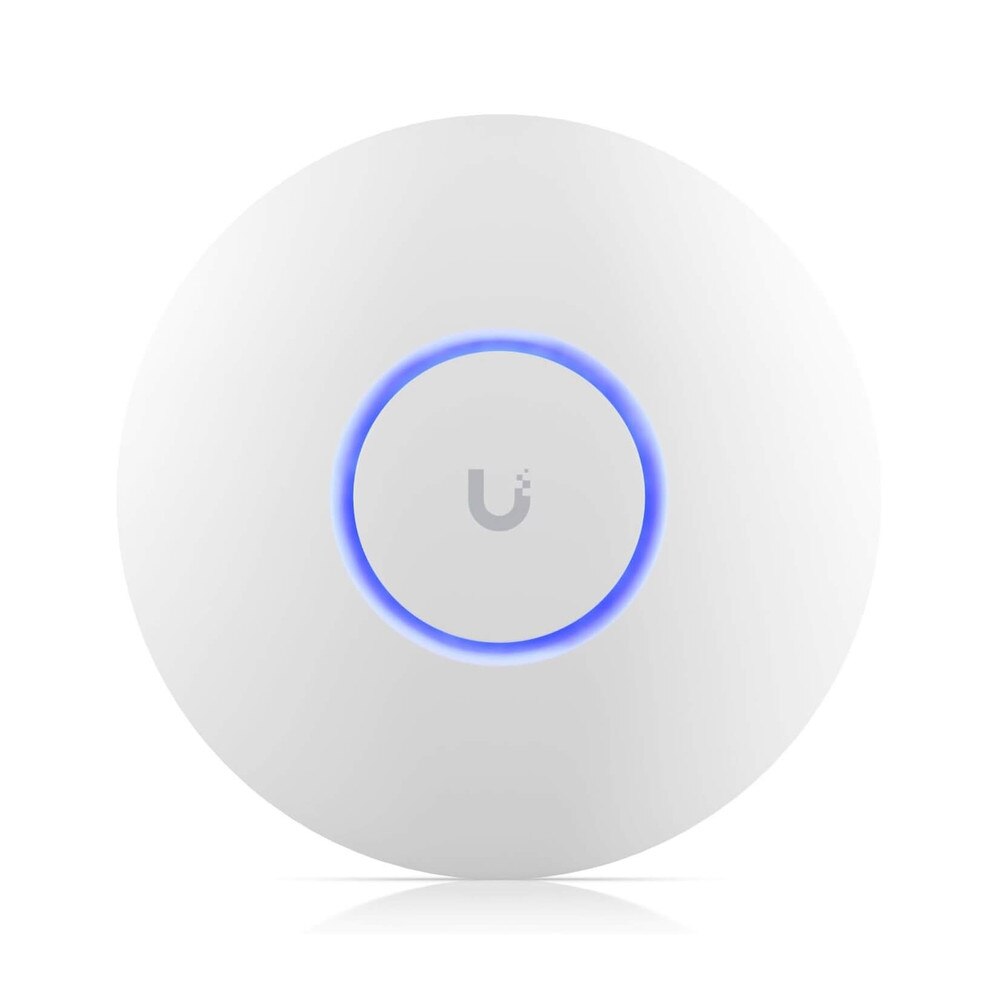

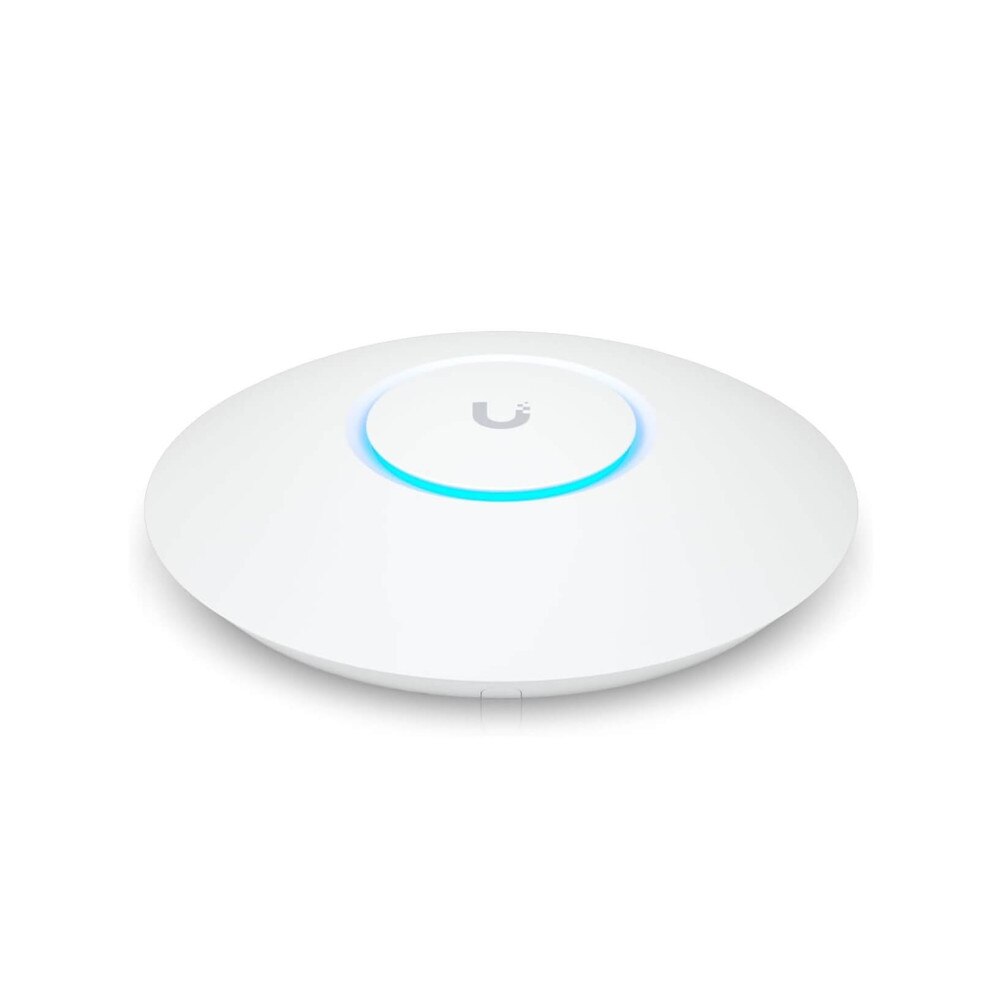

Overview of Ubiquiti UniFi Access Point U6+ (U6-PLUS) | New

The Ubiquiti UniFi Access Point U6+ (U6-PLUS) is a high-performance Wi-Fi 6 access point built for small and medium-sized businesses that require dependable and fast wireless connectivity. This small yet strong access point combines advanced Wi-Fi 6 technology with expanded coverage capabilities, making it ideal for modern office spaces, retail locations, and professional settings. The U6+ has improved performance and dual-band compatibility, allowing for up to 300 devices to connect simultaneously across a 140 m² (1,500 ft²) coverage area.


Key Features of Ubiquiti UniFi Access Point U6+


• Supports dual-band WiFi 6 with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, offering a maximum throughput of up to 2.4 Gbps on the 5 GHz band and 573.5 Mbps on the 2.4 GHz band.

• Simplifies installation by supporting PoE, allowing both power and data to be transmitted over a single Ethernet cable.

• Maximum aggregate throughput of 3.0 Gbps (573.5 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz)

• Supports up to 300+ concurrent client connections

• Provides coverage for areas up to 140 m² (1,500 ft²) and supports over 300 simultaneous client connections, making it ideal for environments with high device density.

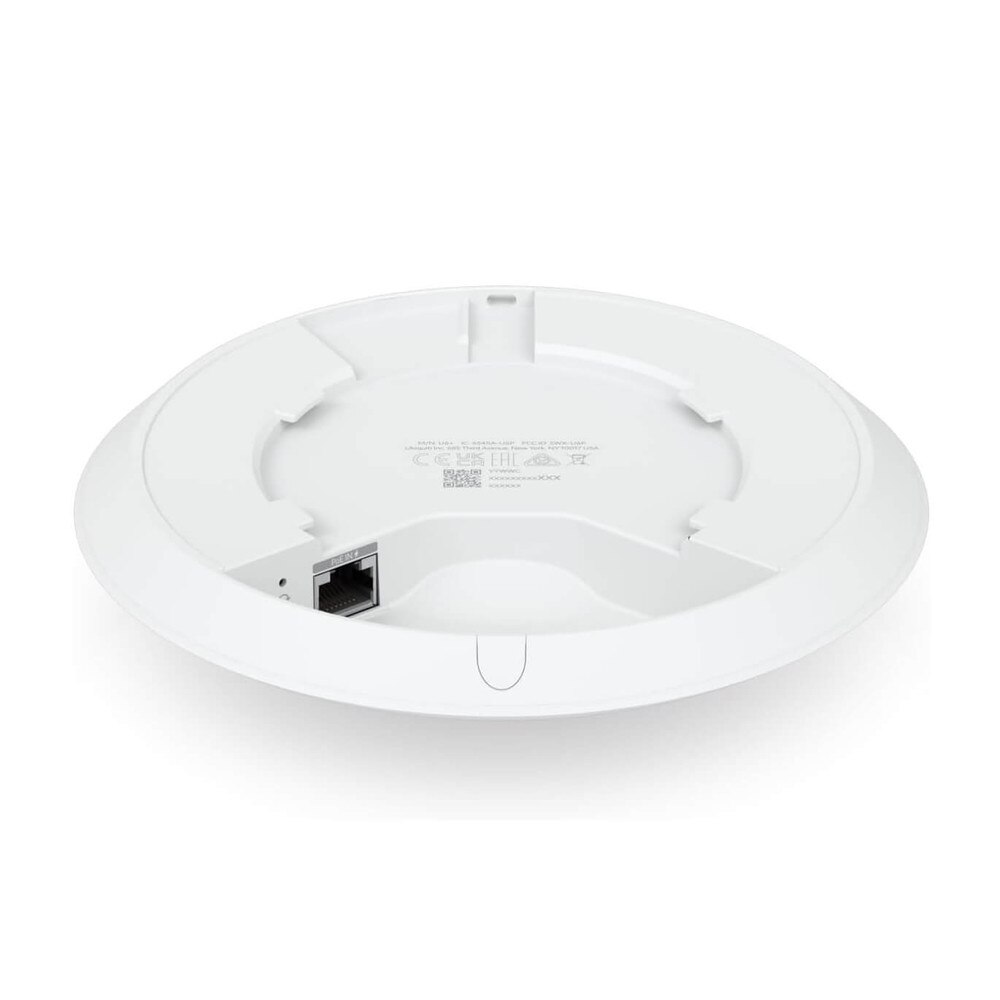

• Single Gigabit Ethernet port with PoE support

• Advanced security features including WPA3 encryption

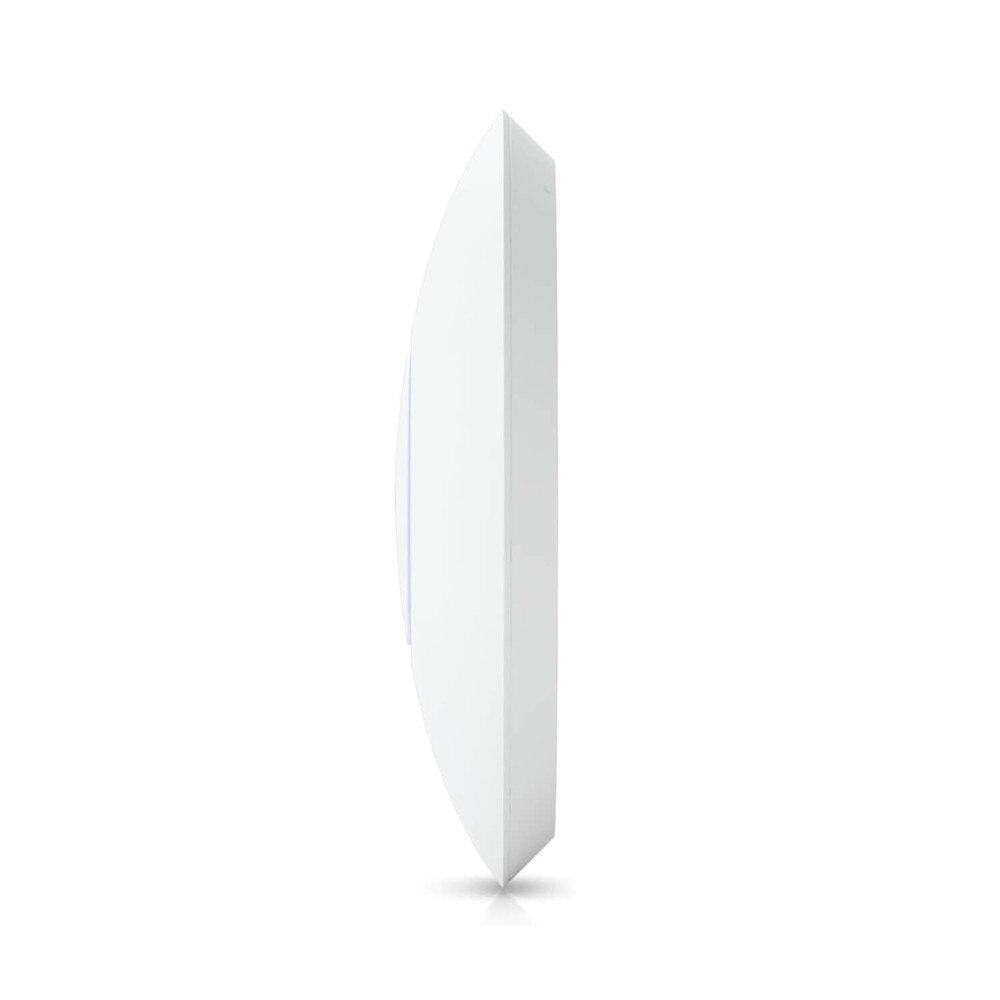

• Features a sleek design with dimensions of Ø160 x 33 mm (Ø6.3 x 1.3"), enabling discreet placement on ceilings or walls.

• Includes capabilities such as wireless meshing, band steering, fast roaming, and guest network isolation to optimize network performance and security.

• Energy-efficient design with 9W maximum power consumption

• Operating temperature range of -30°C to 60°C

• Durable construction with polycarbonate and aluminum materials

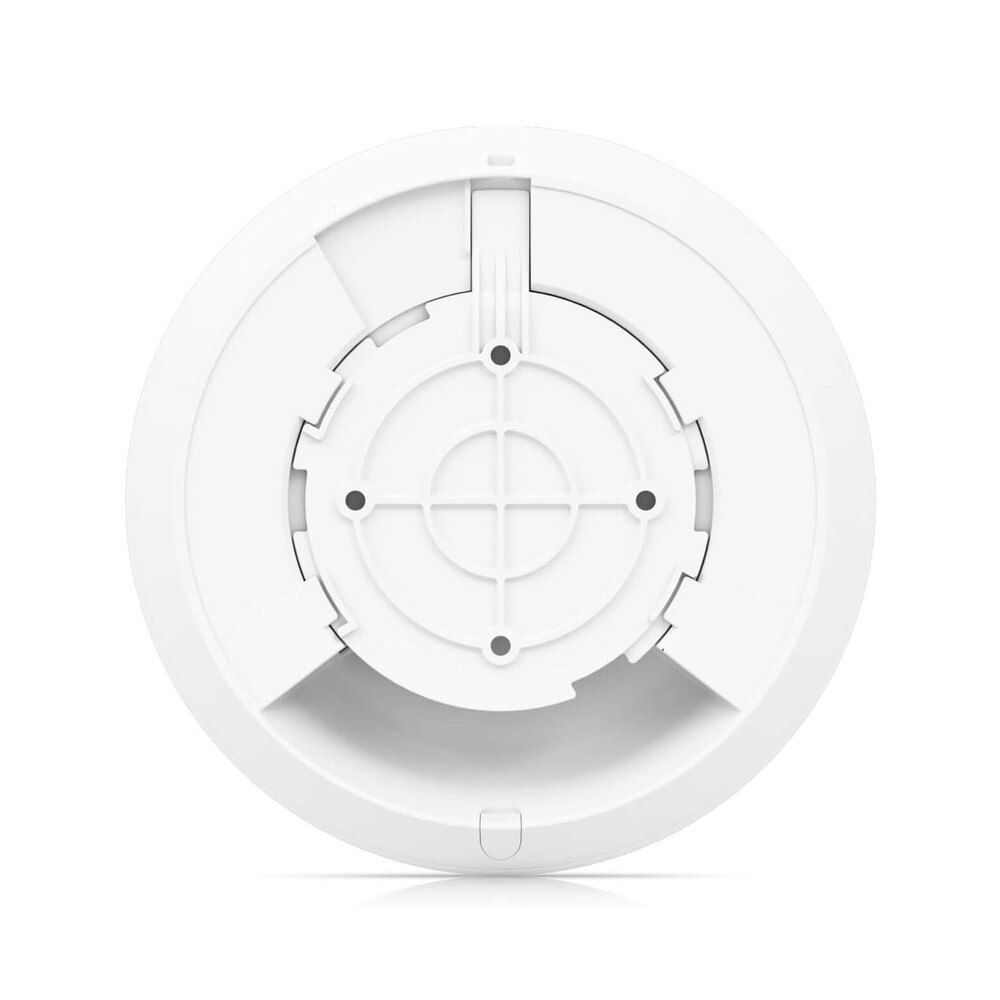

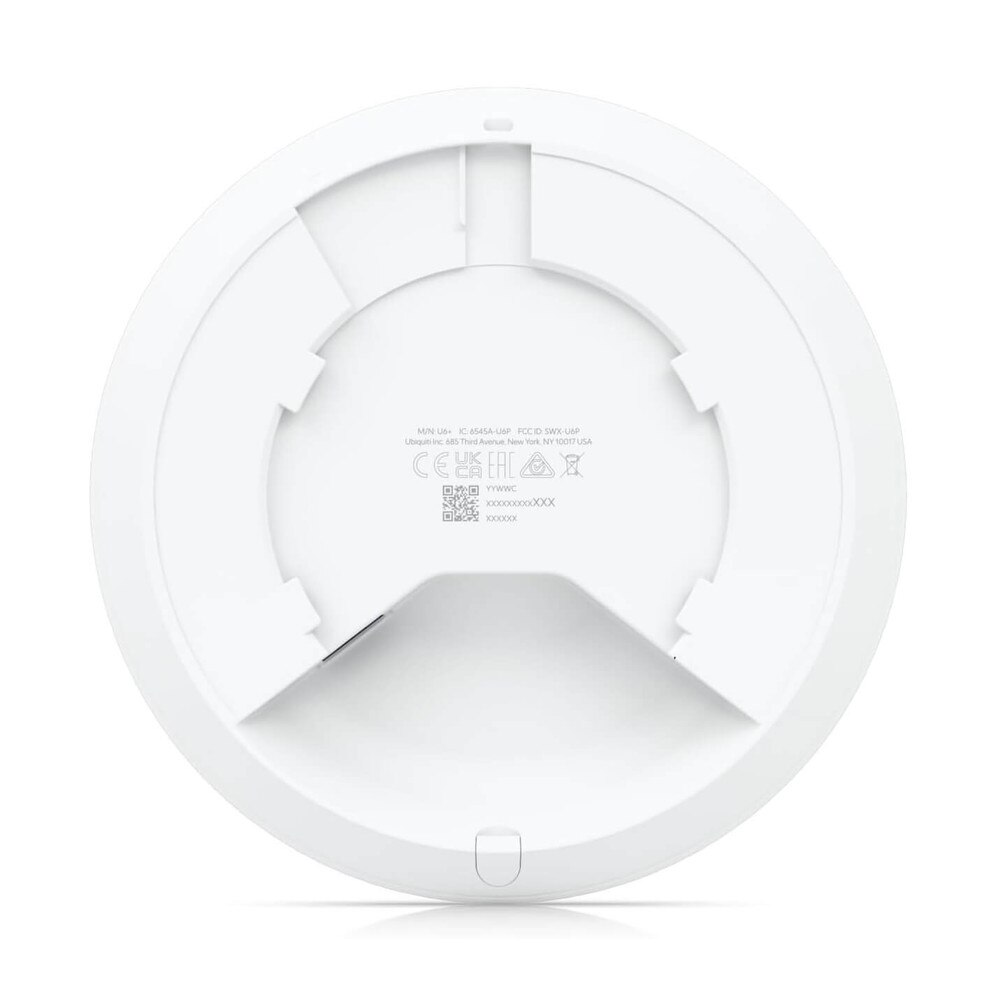

• Integrated mounting system for wall or ceiling installation

• Compatible with UniFi Network Application version 7.3.76 or later

• VLAN support and advanced QoS capabilities

• Guest traffic isolation for enhanced network security

• Zero-touch provisioning for easy deployment

Specifications

Specifications for Ubiquiti UniFi Access Point U6+ (U6-PLUS) | New

Manufacturer Ubiquiti
Manufacturer Part Number U6-PLUS
Product Name Ubiquiti UniFi Access Point U6+
Product Type Access Point
Width
6.3 in
Depth
6.3 in
Height
1.3 in
Weight
11.92 oz
Form Factor
Wall / ceiling mountable
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (2.4 GHz): 573.5 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps
Capacity
Spatial streams: 4 ¦ Concurrent clients: 300+ ¦ BSSIDs per radio: 8
Status Indicators
Status
Features
2x2 MU-MIMO technology, rate limit, Guest Isolation, zero-wait DFS
Encryption Algorithm
WPA-PSK, WPA-Enterprise, WPA, WPA2, WPA3
Compliant Standards
IEEE 802.1Q
Antenna
Internal
Interfaces
1 x 1000Base-T (PoE) - RJ-45
Included Accessories
Mounting kit
Compliant Standards
FCC, IC
Power Over Ethernet (PoE) Supported
PoE
Min Operating Temperature
-22 °F
Max Operating Temperature
140 °F
Humidity Range Operating
5 - 95% (non-condensing)

User Guides

Ubiquiti UniFi Access Point U6+ (U6-PLUS) Data Sheet

Frequently Asked Questions

Ubiquiti UniFi Access Point U6+ (U6-PLUS)
Frequently Asked Questions (FAQ's)



What is the Ubiquiti UniFi Access Point U6+?
  • The U6+ is a high-performance Wi-Fi 6 access point designed for reliable wireless communication in a variety of settings.
    • What are the key features of the UniFi U6+?
  • Dual-band Wi-Fi 6 technology, 2x2 MIMO, MU-MIMO, and OFDMA compatibility, PoE capability, and smooth connection with the UniFi Network Controller.
    • How does the U6+ differ from previous UniFi access points?
  • It improves performance with Wi-Fi 6 technology, resulting in quicker speeds, higher efficiency, and better support for more devices than previous generations.
    • Is the UniFi U6+ suitable for home use?
  • Yes, its compact size and great performance make it suitable for both home and business use.
    • What is the coverage area of the U6+?
  • Connectivity varies depending on the surroundings, but it is intended to provide robust and dependable Wi-Fi connectivity in normal home and office environments.
    • Does the U6+ support PoE?
  • Yes, it supports Power over Ethernet (PoE) for easy and versatile installation.
    • How do I set up the UniFi U6+?
  • The UniFi Network Controller manages the setup process and provides a user-friendly interface for configuration and monitoring.
    • What is the maximum wireless speed of the U6+?
  • It supports high-speed dual-band Wi-Fi, with maximum speeds determined by the frequency band and network conditions.
    • Is the UniFi U6+ backward compatible with older Wi-Fi standards?
  • Yes, it is backward compatible with prior Wi-Fi standards, which ensures compatibility with older devices.
    • How many devices can the U6+ handle simultaneously?
  • It manages numerous devices efficiently using MU-MIMO and OFDMA technologies, however the precise number varies depending on usage and network conditions.
    • Does the U6+ support mesh networking?
  • Yes, it can be part of a UniFi mesh network, which extends coverage across greater areas.
    • What security features are included with the UniFi U6+?
  • It supports WPA3 encryption and provides advanced network administration capabilities via the UniFi Network Controller.
    • Can the U6+ be used outdoors?
  • No, the U6+ is intended for indoor use. Consider Ubiquiti's outdoor access point models.
    • Is there a mobile app for managing the U6+?
  • Yes, the UniFi Network app is available for mobile devices, enabling management while on the road.
    • Does the U6+ require a subscription for the UniFi Network Controller?
  • No, the UniFi Network Controller software is free for usage with UniFi devices.
    • What are the power requirements for the UniFi U6+?
  • It requires PoE power that complies with 802.3af specifications.
    • Is the U6+ compatible with third-party network controllers?
  • It is intended to function easily with Ubiquiti's UniFi Network Controller; compatibility with third-party controllers is not guaranteed.
    • Can the U6+ handle multiple VLANs?
  • Yes, it supports numerous VLANs for network segmentation.
    • Does the U6+ have LED indicators?
  • Yes, it includes LED indicators for status monitoring.
    • Can the U6+ be mounted on a ceiling or wall?
  • Yes, it includes mounting hardware for both ceiling and wall applications.
