Overview

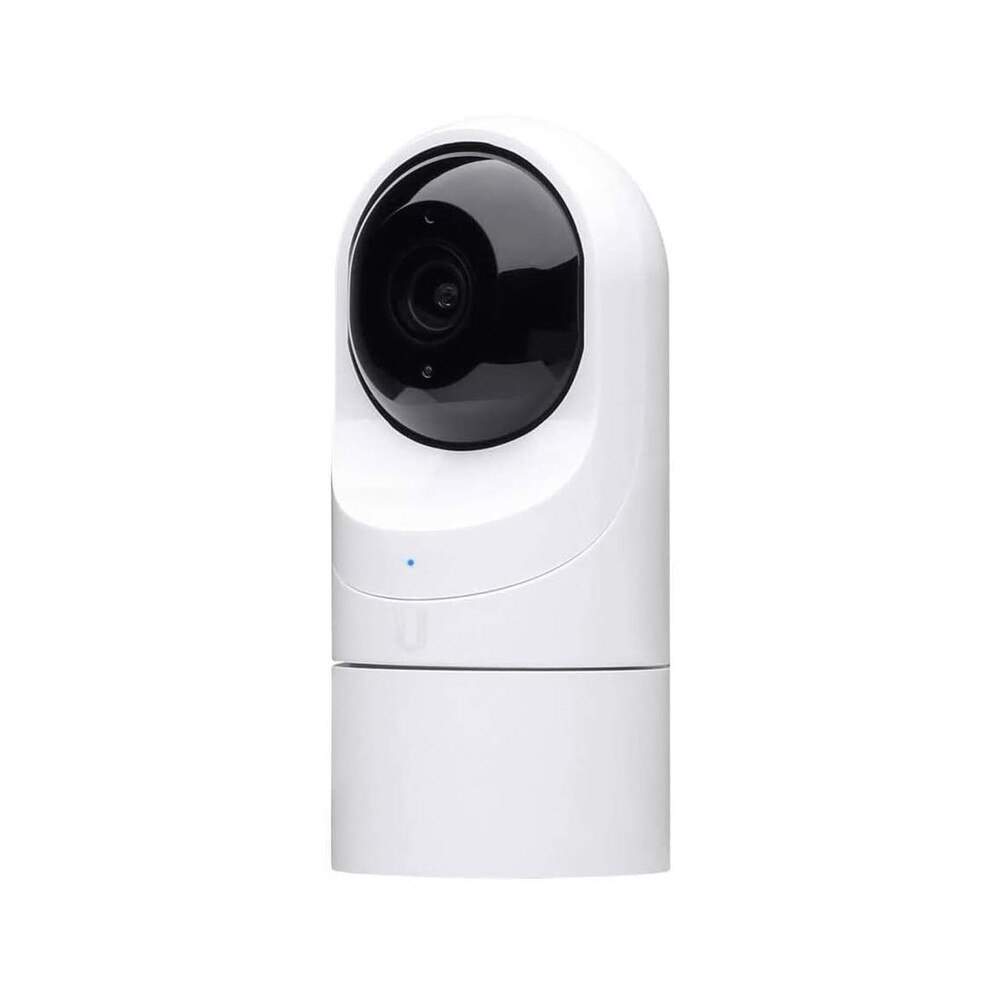

Overview of Ubiquiti UniFi Camera G3 Flex (UVC-G3-FLEX) | New
The Ubiquiti UniFi Video Camera G3 (UVC-G3-FLEX) is the next generation of cameras designed for use with the UniFi Video surveillance management system. These cameras have a 1080p Full HD resolution for day or night use and are linked with the UniFi Video software for powerful and flexible integrated IP video management. The cameras are simple to use and control thanks to the UniFi Video® software, which comes pre-installed on the optional UniFi Application Server and UniFi NVR equipment or can be downloaded for free.
The Ubiquiti UniFi Video Cameras G3 has a wide-angle lens and 1080p video capabilities for increased surveillance coverage. Desktop, wall, and pole mounting options are available for both inside and outdoor setups. The infrared LEDs and automated IR cut filter provide excellent day and night surveillance. The G3 Flex also has an adjustable lens and swivel base for vertical and horizontal viewing angle adjustments.
Key Features of Ubiquiti UniFi Camera G3 Flex (UVC-G3-FLEX)
10/100M Ethernet port
Mechanical IR cut filter for day and night functionality
H.264 video compression
Adjustable lens and swivel base for vertical and horizontal viewing angle adjustments
LDC (lens distortion correction)
Can be mounted on a table, wall, or pole
Image settings include brightness, contrast, sharpness, saturation, noise reduction, and 60/50 Hz
LED status indicators
Factory reset button
Optional skin covers available separately
Supports UniFi Video 3.9.2 or newer
Ubiquiti UniFi Camera G3 Flex (UVC-G3-FLEX) System Requirements
64-bit Microsoft Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 system with a 1.86 GHz or higher Intel or comparable processor with a minimum of 4GB RAM
Specifications
Specifications for Ubiquiti UniFi Camera G3 Flex (UVC-G3-FLEX) | New
Manufacturer | Ubiquiti |
Manufacturer Part Number | UVC-G3-FLEX |
Product Name | Ubiquinti UniFi Video Cameras G3 |
Product Type | Camera |
Packaged Quantity | (specifications are for single item) |
Device Type | Network surveillance camera |
Audio Support | Yes: built-in microphone |
Camera Mount Type | Surface mount, wall mount, pole mount |
Connectivity Technology | Wired |
Width | 1.9 in |
Depth | 1.9 in |
Height | 4.2 in |
Weight | 6 oz |
Type | Color - Day&Night - fixed - outdoor, indoor - weatherproof |
Digital Video Format | H.264 |
Max Digital Video Resolution | 1920 x 1080 |
Video Modes | 1080p |
Infrared LEDs | Yes |
Digital Video Capture Resolution | 1920 x 1080 |
Frame Rate (max) | 25 frames per second |
Features | Sharpness control, saturation control, brightness control, Power over Ethernet, contrast control, noise reduction |
Type | 2 MP 1/2.7" |
Type | Fixed focal |
Focal Length | 4 mm |
Lens Iris | F/1.2 |
Horizontal Field of View (degree) | 80 - 87.4 |
Vertical Field of View (degree) | 46 - 47 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Ports | LAN/power |
Power Requirements | PoE |
Power Device | 4 Watt |
Min Operating Temperature | -4 °F |
Max Operating Temperature | 122 °F |
Relative Humidity (operating) | 20 - 90% (non-condensing) |
