Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) | New

Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) | New

SKU: UAP-NANOHD-US-N
(0)No Reviews yet

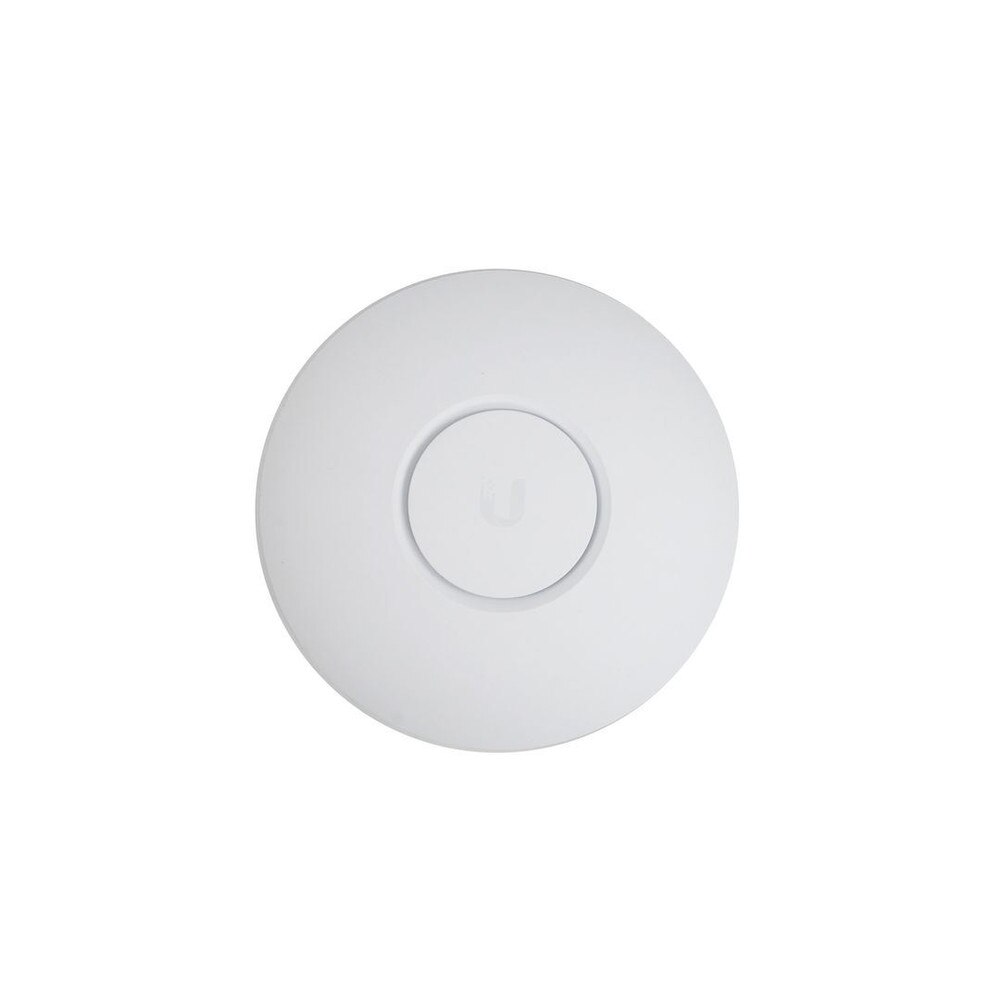

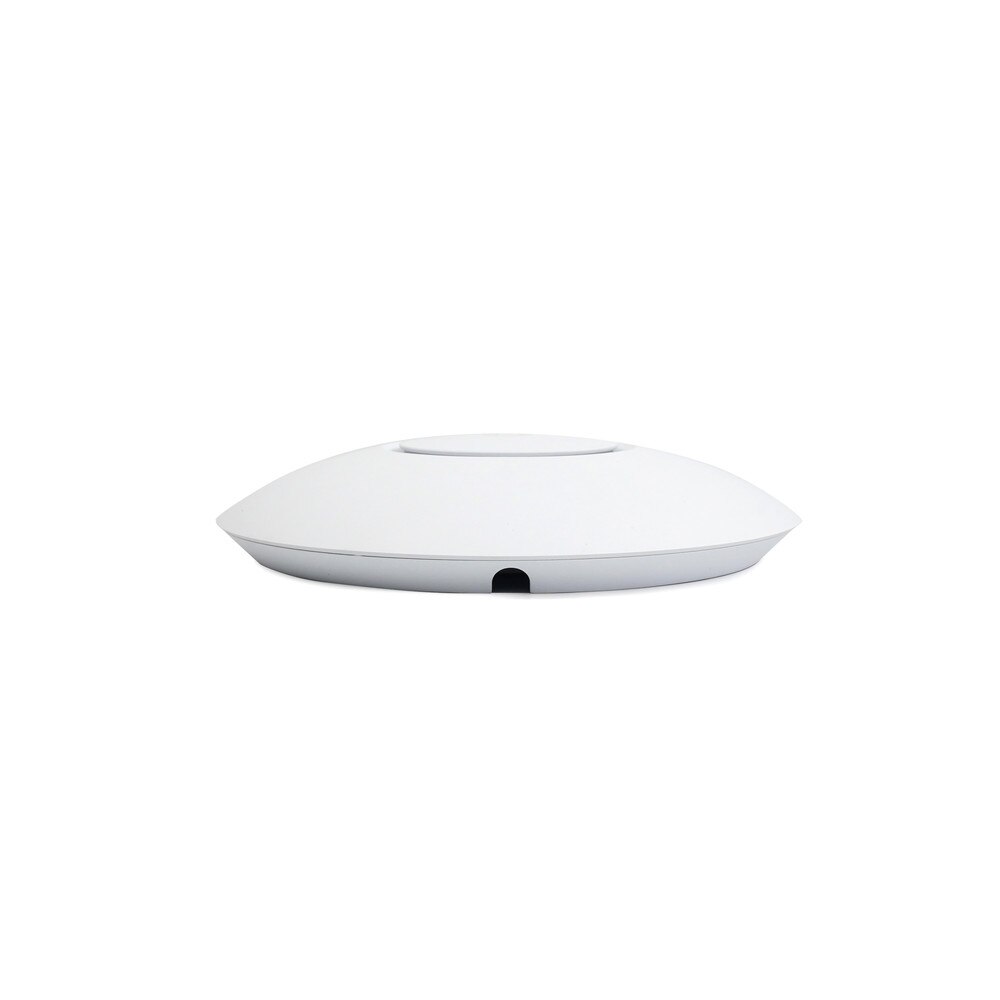

  • 🗹 Ubiquiti Networks UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point
  • 🗹 Mounting Bracket

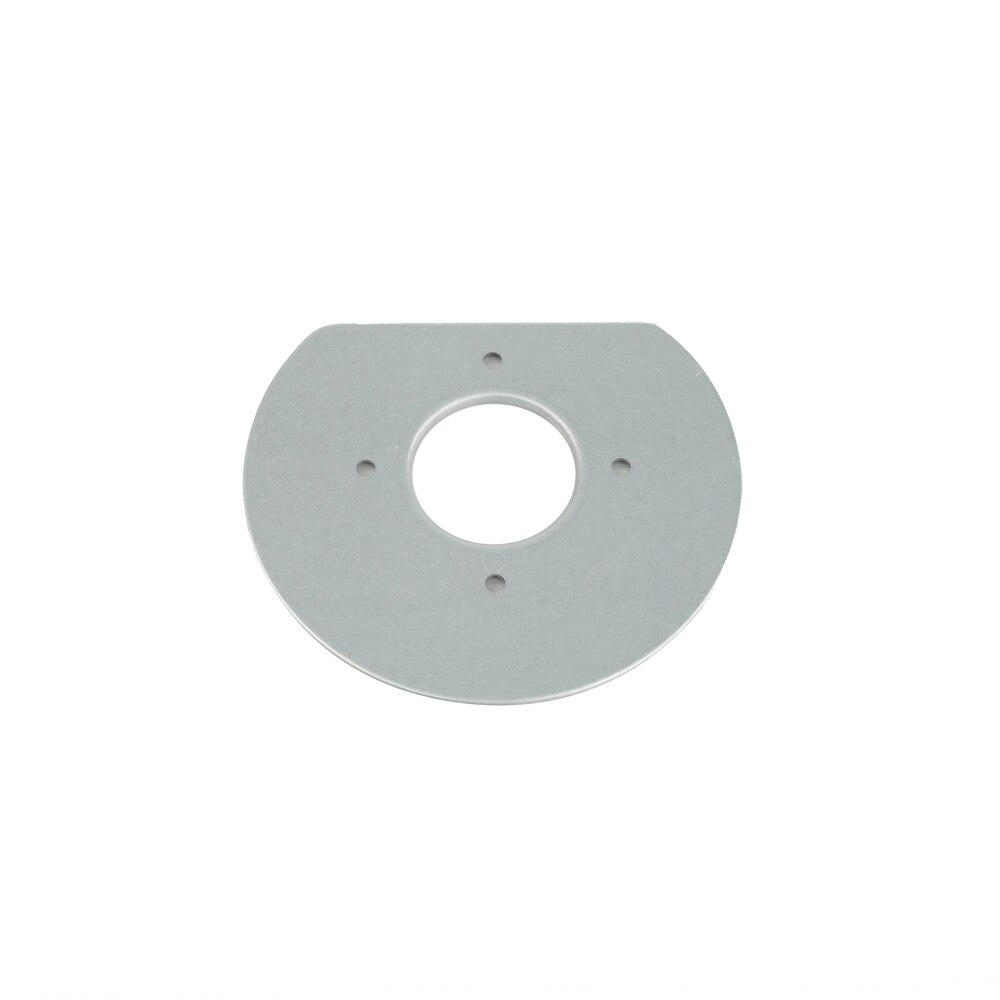

  • 🗹 Ceiling Backing Plate
  • 🗹 4 x Screws
  • 🗹 4 x Flat Head Screws
  • 🗹 4 x Keps Nuts
  • 🗹 4 x Screw Anchors
  • 🗹 Gigabit PoE Adapter

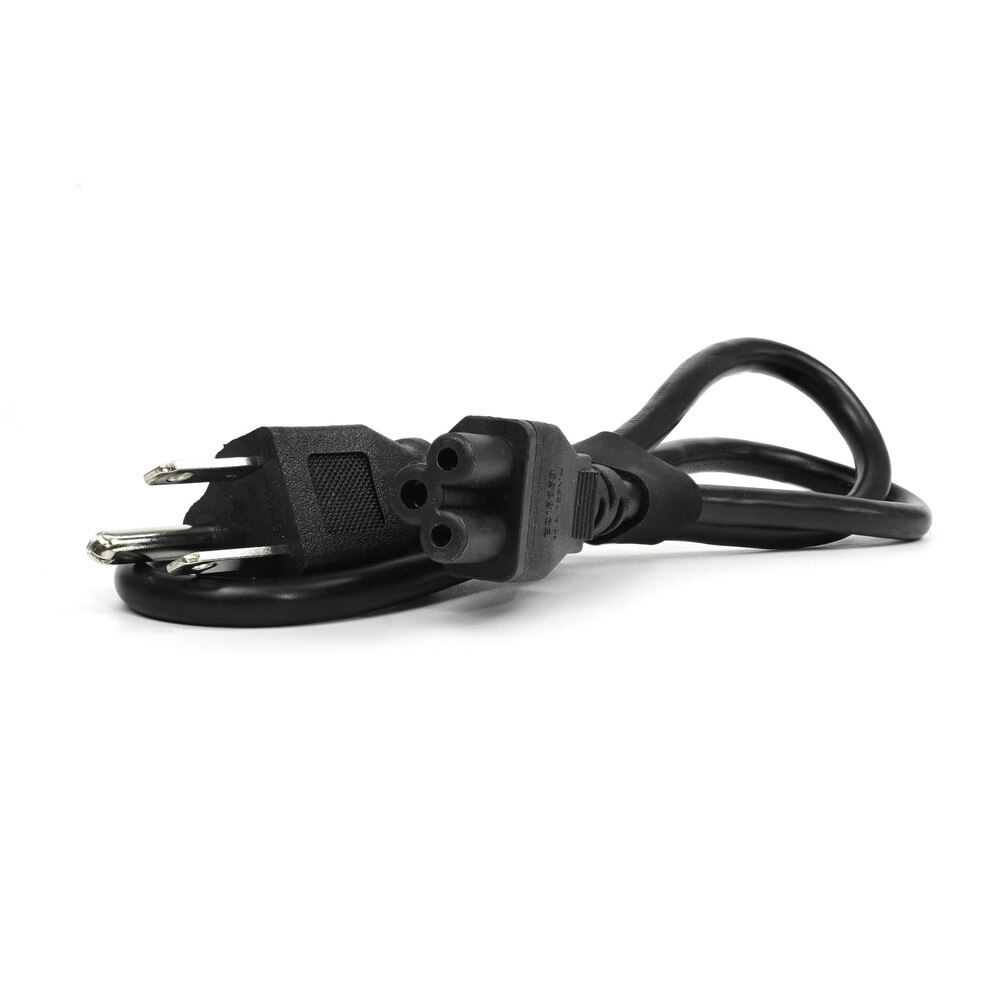

  • 🗹 Power Cord
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$99.99 $99.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) | New


The Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) is a high-performance, compact Wi-Fi access point intended for demanding enterprise settings. This 802.11ac Wave 2 device is fast and reliable, making it excellent for high-density deployments in workplaces, companies, and public spaces. To achieve remarkable wireless performance, the UniFi nanoHD combines powerful 4x4 MU-MIMO technology with dual-band capabilities. With an aggregate throughput of more than 2 Gbps and capability for 200+ concurrent users, this access point offers continuous communication even in congested networks. Its sleek, low-profile design enables discreet installation in a variety of indoor locations.


Key Features of Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point


• Advanced 802.11ac Wave 2 Technology delivers superior Wi-Fi speed and efficiency.

• 5 GHz band (4x4 MU-MIMO) offers 1.733 Gbps, while 2.4 GHz band (2x2 MIMO) supports up to 300 Mbps.

• Supports over 200 concurrent clients without compromising performance.

• Compact Design ,easures just 160 x 160 x 32.65 mm, ideal for discreet deployment.

• Includes wall and ceiling mounting kits for flexible installation.

• Supports 802.3af PoE for easy single-cable installation.

• Enterprise-Grade Security features WPA3, TKIP, and AES encryption protocols.

• Cloud Management easy deployment and control through the UniFi Network Controller.

• Beamforming Technology enhances signal strength and coverage for connected devices.

• Multiple SSID Support allows creation of up to 8 separate wireless networks per radio.

• QoS Capabilities ensures optimal performance for voice, video, and other critical applications.

• Customizable captive portal for guest network access.

• Designed for reliable operation in various indoor environments.

• Low power consumption of only 10.5W maximum.

• Regular firmware updates ensure ongoing performance and security enhancements.

Specifications

Specifications for Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) | New

Manufacturer Ubiquiti
Manufacturer Part Number UAP-NANOHD-US
Product Name Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point
Product Type Access Point
Ruggedized Design
Indoor
Width
6.3 in
Depth
6.3 in
Height
1.3 in
Weight
10.58 oz
Localization
United States
Form Factor
External
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz, 5 GHz
Capacity
Concurrent devices: 200+ ¦ BSSIDs per radio: 8
Features
VLAN support, DFS support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, ceiling mountable, 4T4R MIMO technology, MU-MIMO technology
Encryption Algorithm
AES, TKIP, WPA, WPA2, WPA-PSK, WEP
Compliant Standards
IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Interfaces
1 x 1000Base-T (PoE) - RJ-45
Compliant Standards
IC, FCC
Power Over Ethernet (PoE) Supported
PoE
Voltage Required
DC 44 - 57 V
Power Consumption Operational
10.5 Watt
Min Operating Temperature
14 °F
Max Operating Temperature
158 °F
Humidity Range Operating
5 - 95% (non-condensing)


User Guides

Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) Data Sheet

Frequently Asked Questions

Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-US) | New

Frequently Asked Questions (FAQ's)



What is the maximum wireless speed of the Ubiquiti UniFi nanoHD?
  • The nanoHD can handle up to 1733 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
    • Does the UniFi nanoHD support MU-MIMO?
  • Yes, the nanoHD can use 4x4 MU-MIMO technology.
    • Can the UniFi nanoHD be powered via PoE?
  • Yes, it does support 802.3af Power over Ethernet (PoE).
    • What is the coverage area of the UniFi nanoHD?
  • The coverage area varies according to the environment, but it typically extends up to 122 meters (400 feet).
    • How many simultaneous users can the UniFi nanoHD handle?
  • Depending on usage, the nanoHD can support more than 200 concurrent clients.
    • Is the UniFi nanoHD suitable for high-density environments?
  • Yes, it's intended for high-density settings like offices, conference rooms, and public areas.
    • Does the UniFi nanoHD support both 2.4 GHz and 5 GHz bands?
  • Yes, it is a dual-band access point that operates at both 2.4 and 5 GHz frequencies.
    • Can the UniFi nanoHD be managed via the UniFi Controller?
  • Yes, it is managed using the UniFi Controller software, which offers detailed network monitoring and configuration options.
    • Can the UniFi nanoHD be part of a mesh network?
  • Yes, the nanoHD can be used as part of a UniFi mesh network to provide additional wireless coverage.
    • What is the difference between the nanoHD and other UniFi access points?
  • The nanoHD has a smaller form factor and 4x4 MU-MIMO on the 5 GHz band, making it suitable for high-density deployments.
    • Is the UniFi nanoHD backward compatible with older Wi-Fi standards?
  • Yes, it is backward compatible with the 802.11a/b/g/n standard.
    • How do I install the UniFi nanoHD?
  • The nanoHD can be mounted on a ceiling or wall with the included mounting hardware and is powered by PoE.
    • Does the UniFi nanoHD support guest networks?
  • Yes, you can easily configure guest networks with the UniFi Controller.
    • What is the operating temperature range for the UniFi nanoHD?
  • The operating temperature ranges from -10°C to 70°C (14°F to 158°F).
    • Can the UniFi nanoHD be used outdoors?
  • No, the nanoHD is intended for indoor use only.
    • Does the UniFi nanoHD have beamforming technology?
  • Yes, it supports beamforming to increase signal strength and coverage.
    • How do I update the firmware on the UniFi nanoHD?
  • Firmware updates can be performed via the UniFi Controller interface.
    • What security features does the UniFi nanoHD offer?
  • It includes WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), and guest isolation among its security features.
    • Is the UniFi nanoHD compatible with third-party PoE injectors?
  • Yes, as long as the injector complies with 802.3af PoE standards.
    • What is included in the box with the UniFi nanoHD?
  • The package includes the nanoHD access point, a mounting bracket, mounting screws, and a Quick Start Guide.
