Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) | New

Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) | New

SKU: USW-LITE-16-POE-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$207.99 $207.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) | New


The Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) is a reliable and efficient managed switch suitable for small to medium-sized networks, security camera installations, VoIP phone installations, and access point installations. Its fanless design, wall mountability, and comprehensive feature set make it an excellent choice for various networking applications.

Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) Features:

  • 16 Ports: The switch has 16 Gigabit Ethernet ports, with 8 ports supporting PoE+ (Power over Ethernet) and 8 non-PoE ports.
  • PoE+ Support: The 8 PoE+ ports provide up to 45W of total power consumption, with a maximum of 30W per port, making it suitable for powering devices like security cameras, VoIP phones, and access points.
  • Fanless Cooling: The switch has a fanless design, ensuring silent operation and reducing the risk of overheating.

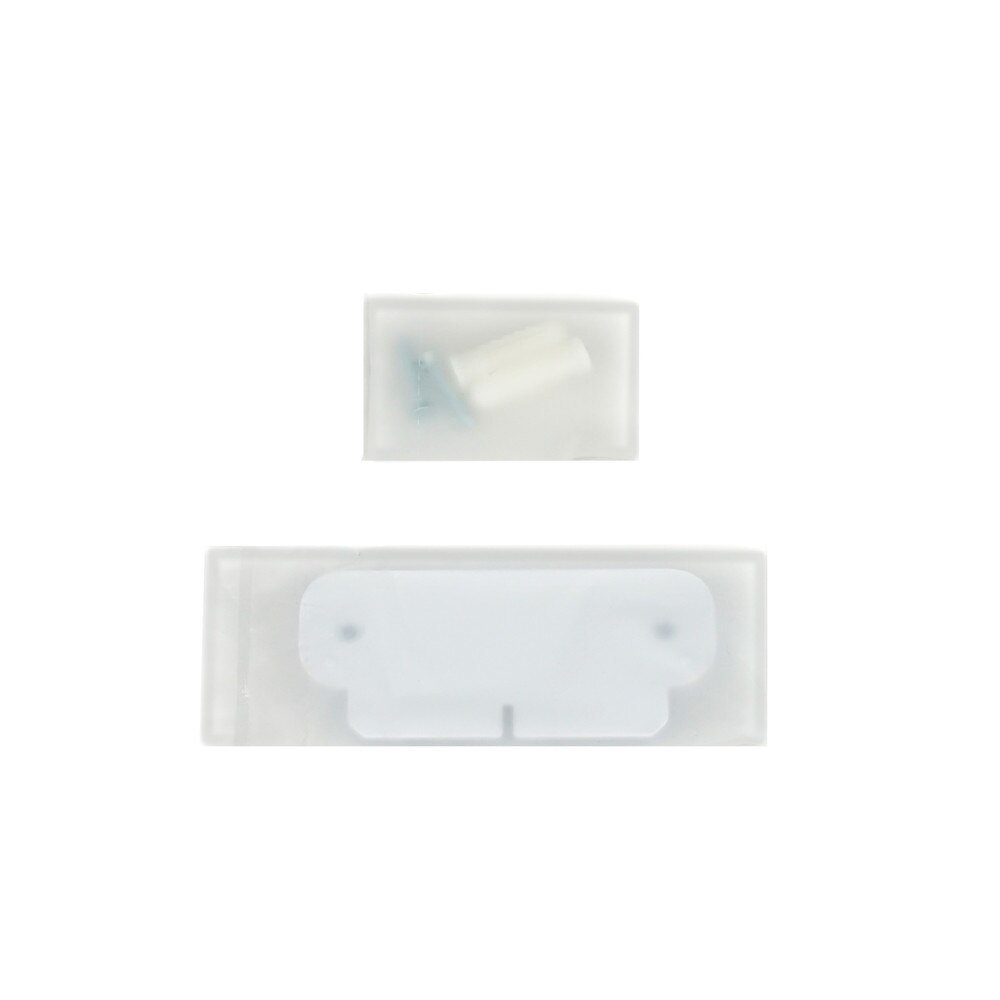

  • Wall Mountable: The switch comes with a wall mounting kit, allowing for easy installation in a variety of environments.
  • Managed by UniFi Controller: The switch is managed by the UniFi Network Controller, which provides a comprehensive suite of features for configuring, controlling, and monitoring network performance.
  • Layer 2 Switching Protocols: The switch supports various Layer 2 switching protocols, including IGMP snooping, STP/RSTP, port isolation, storm control, voice VLAN, port mirroring, and LACP port aggregation.
  • Certifications: The switch is certified for use in various regions, including CE, FCC, and IC.

Best Use of Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE):

  • Home Office or Small Business Networks: The switch is suitable for small to medium-sized networks, providing reliable and efficient networking and power delivery.
  • Security Camera Installations: The PoE+ ports make it an ideal choice for powering security cameras, which often require a reliable and high-power connection.
  • VoIP Phone Installations: The switch can support VoIP phones, ensuring reliable and high-quality voice communications.
  • Access Point Installations: The switch can power access points, providing a reliable and efficient connection for wireless networks.
The Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) is a fully managed Layer 2 switch designed for efficient networking and power delivery.

Specifications

Specifications for Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE) | New


Brand Ubiquiti
Layer Services Supported Layer 2 Support
Supported IEEE Standards 802.3af, 802.3at
Switching Bandwidth 16 Gb/s
Power Draw 15.00 W (Max)
DC Input Power 50 to 57 VDC
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 45 W
PoE per Port 30 W
Power Supply Type Internal
Operating Temperature 5 to 104°F / -15 to 40°C
Operating Humidity 10 to 90%
Cooling System Passive
Indicator Lights Link/Activity/Speed, PoE
Dimensions 7.5 x 7.3 x 1.7 in
Weight 2.6 lb




User Guides

Frequently Asked Questions

Ubiquiti UniFi Switch Lite 16 Port POE Gigabit (USW-LITE-16-POE)
Frequently Asked Questions (FAQ's)

What is the Ubiquiti UniFi Switch Lite 16 Port POE?
  • It is a 16-port managed switch with eight 802.3at PoE+ ports, delivering up to 45W of power per port for a total of 60W.
  • How much total power budget does the switch provide for PoE devices?
  • The total power budget for PoE devices is 45W.
  • What are the data transfer rates supported by the switch?
  • The switch supports data transfer rates of up to 1 Gbps per port.
  • Can this switch be managed through the UniFi Controller software?
  • Yes, it can be managed through the UniFi Controller software.
  • Does the switch support VLAN configurations?
  • Yes, the switch supports VLAN configurations.
  • Is there any fan in the UniFi Switch Lite 16 Port POE?
  • No, it is fanless, ensuring silent operation.
  • Can the switch be mounted in a rack?
  • No, it is designed for desktop use and does not include rack mounting capabilities.
  • What type of PoE standards are supported by the switch?
  • It supports 802.3af/at PoE standards.
  • Is the switch compatible with other Ubiquiti UniFi devices?
  • Yes, it is compatible with other Ubiquiti UniFi devices.
  • Does the switch include any SFP ports?
  • No, the switch does not include SFP ports.
  • What is the power consumption of the switch?
  • The switch itself consumes a maximum of 12W.
  • Can the switch be used in an outdoor environment?
  • No, the switch is designed for indoor use only.
  • What is the operating temperature range for the switch?
  • The operating temperature range is 0 to 40°C (32 to 104°F).
  • How do I update the firmware on the switch?
  • Firmware can be updated via the UniFi Controller software.
  • Is it possible to configure port mirroring on the switch?
  • Yes, port mirroring can be configured on the switch.
  • Does the switch support link aggregation?
  • Yes, it supports link aggregation.
  • Can the switch be powered by an external power adapter?
  • Yes, it includes a 60W power adapter for power input.
  • How can I reset the switch to factory settings?
  • The switch can be reset to factory settings by holding the reset button for 10 seconds.
  • Is the UniFi Switch Lite 16 Port POE suitable for small office or home office use?
  • Yes, it is ideal for small office or home office use due to its compact design and PoE capabilities.
