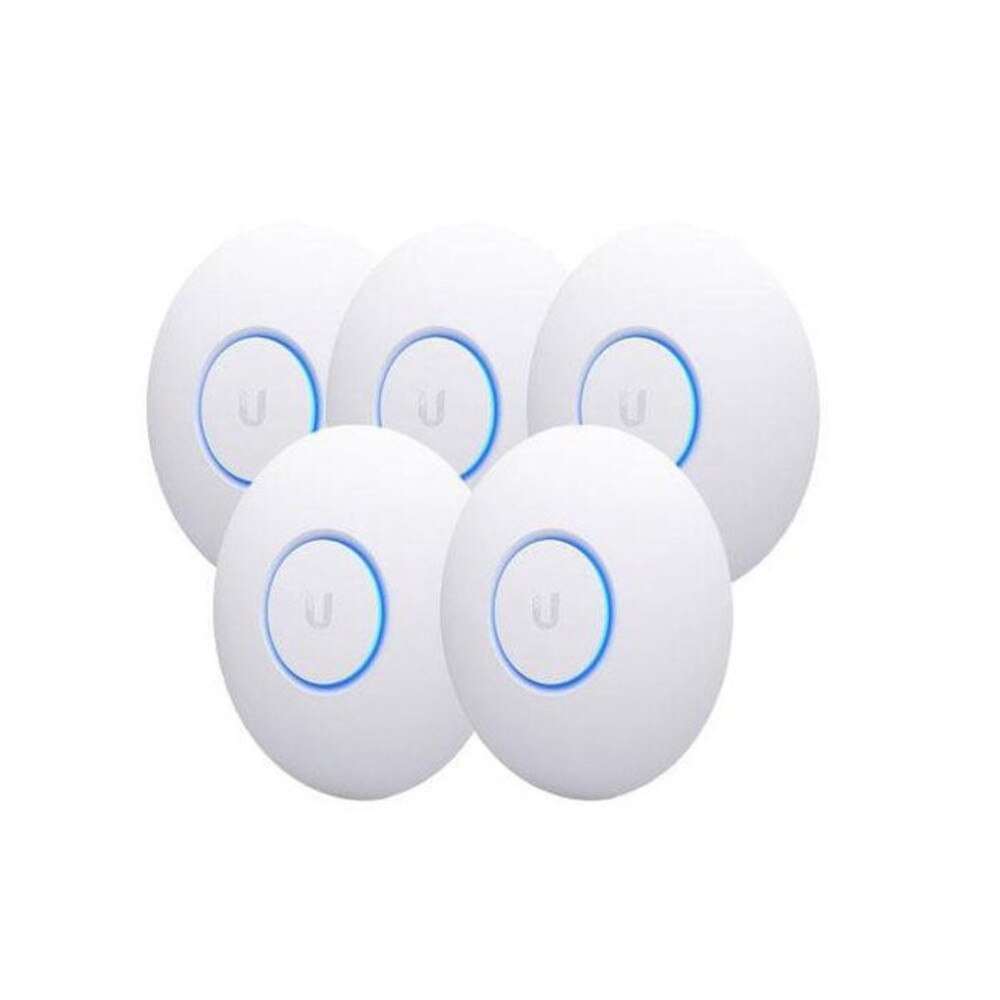

  • Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack (UAP-NANOHD-5-US) | New
Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack (UAP-NANOHD-5-US) | New

Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack (UAP-NANOHD-5-US) | New

SKU: UAP-NANOHD-5-US-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$789.99 $789.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack (UAP-NANOHD-5-US) | New

The Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (UAP-NANOHD-5-US) is a compact, dual-band access point with 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands that can achieve an aggregate throughput rate of 2+ Gbps. The UAP nanoHD can also support over 200 concurrently connected clients while providing a consistent, dependable wireless experience throughout your network. With its elegant, nano-sized design, this access point can be installed almost anywhere indoors to improve wireless speed and performance. The UAP nanoHD is designed for plug-and-play simplicity and can be fully managed via the UniFi Network web application or mobile app. It takes minutes to set up.


Features of the Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point


Save Money and Save Time

UniFi includes a non-dedicated software controller that can be installed on an on-premises PC, Mac, or Linux machine, in a private cloud, or via a public cloud service. You can also deploy the compact UniFi Cloud Key with built-in software.

Powerful Hardware

The UniFi nanoHD AP features Wi-Fi 802.11ac Wave 2 MU-MIMO technology.

Intuitive UniFi Controller Software

The user interface is simple to use to configure and manage your access points.

Expandable

Create wireless networks as large or small as you need. Begin with one (or upgrade to a five-pack) and grow to thousands while using a single, unified management system.

Extend Your Coverage

Administrators can manage multiple sites using the UniFi Controller software, which runs in a NOC or in the cloud. This includes multiple, distributed deployments and multi-tenancy for managed services providers.

UniFi Controller

The UniFi Controller allows you to provision thousands of UniFi APs, map networks, manage system traffic quickly, and add new UniFi APs.

View Your RF Environment

Use the UniFi nanoHD AP's RF environment functionality to detect and troubleshoot nearby interference, analyze radio frequencies, select the best AP placement, and configure settings.

Powerful RF Performance Features

Spectral analysis, airtime fairness, and band steering are examples of advanced radio frequency performance and configuration features.

Detailed Analytics

Use configurable reporting and analytics to manage large user populations and speed up troubleshooting.

Wireless Uplink

Wireless Uplink functionality allows APs to communicate wirelessly, extending their range. One wired UniFi AP uplink can support up to four wireless downlinks on a single operating band, allowing for the wireless adoption of devices in their default state as well as real-time network topology changes.

Guest Portal/Hotspot Support

Authentication, hotspot setup, and the ability to use your own external portal server are all options for easy customization of Guest Portals. Utilize UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Use different bandwidth rates (download/upload), limit total data usage, and limit the duration of use.

All UniFi APs include hotspot functionality:

• Built-in support for billing integration with major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager allows you to create vouchers, manage guests, and issue payment refunds.
• The hotspot portal pages are fully customizable and branded.

Multi-Site Management

A single UniFi Controller in the cloud can manage multiple sites, including distributed deployments and multi-tenancy for managed service providers. Each site is logically distinct, with its own configuration, maps, statistics, guest portal, and administrator read/write/read-only accounts.

WLAN Groups

The UniFi Controller is capable of managing flexible configurations for large deployments. Create multiple WLAN groups and assign each to an AP's radio. Each WLAN can be VLAN-tagged. Dynamic VLAN tagging for each Wi-Fi station (or RADIUS VLAN) is also supported.

RF Map

Monitor UniFi access points and examine the surrounding radio frequency environment.

Insights

UniFi displays client types over a specific time period.

UniFi Mobile App

Manage your UniFi devices via smartphone or tablet.

802.11ac Technology

The initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology enables an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time.

802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology enables a Wave 2 AP, such as the UniFi nanoHD AP, to communicate with multiple clients concurrently, significantly increasing multiuser throughput and overall user experience.

High-Density Scenarios

For high-density environments, such as a theater with many clients in a small space, we recommend the UniFi nanoHD AP, which also has a small footprint.

Both Wave 1 and Wave 2 APs have 28 independent (non-overlapping) channels: three for the 2.4 GHz band and twenty-five for the 5 GHz band, which includes DFS channels.

When using the 2.4 GHz band in a high-density area, you will experience self-interference and channel saturation. When you use the 5 GHz band, you can deploy smaller cells (coverage areas), which allows you to support more clients in any cell with more than one access point.

With the benefits of MU-MIMO technology and 4x4 spatial streams, the UniFi nanoHD AP can support more than three times the number of users as a typical Wave 1 AP.

Hardware Overview

Use the UniFi nanoHD AP in high-density environments that require maximum wireless performance and a small footprint. The UniFi nanoHD AP supports dual-band, 4x4 MU-MIMO technology and is 802.3af PoE compatible.

Low-Profile Mounting

The UniFi nanoHD AP's low-profile ceiling mount (sold separately) allows for seamless integration into its surroundings.

Compact Form Factor

The compact design provides a cost-effective balance of value and performance.

LED

The unique LED provisioning ring allows administrators to track and alert each device's location.

Power over Ethernet (PoE) Standard

The UniFi nanoHD AP can be powered by an 802.3af PoE switch. Ubiquiti recommends that you power your UniFi devices with a UniFi PoE Switch (sold separately). The UniFi nanoHD AP works with all UniFi PoE switches and 48V adapters.

Superior Processing Power

The UniFi nanoHD AP can perform complex operations (guest control, filtering, and other resource-intensive tasks) that would slow down a lesser-equipped AP.

Designed for Seamless Integration

Optional skins (sold separately) allow the UniFi nanoHD AP to blend into its surroundings.

Specifications

Specifications for Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack (UAP-NANOHD-5-US) | New

ManufacturerUbiquiti
Manufacturer Part NumberUAP-NANOHD-5-US
Product NameUbiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack
Product TypeRouter
Packaged Quantity
5 (specifications are for single item)
Ruggedized Design
Indoor
Width
6.3 in
Depth
6.3 in
Height
1.3 in
Weight
10.58 oz
Localization
United States
Form Factor
External
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz, 5 GHz
Capacity
Concurrent devices: 200+ ¦ BSSIDs per radio: 8
Features
VLAN support, DFS support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, ceiling mountable, 4T4R MIMO technology, MU-MIMO technology
Encryption Algorithm
AES, TKIP, WPA, WPA2, WPA-PSK, WEP
Compliant Standards
IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Interfaces
1 x 1000Base-T (PoE) - RJ-45
Compliant Standards
IC, FCC
Power Over Ethernet (PoE) Supported
PoE
Voltage Required
DC 44 - 57 V
Power Consumption Operational
10.5 Watt
Min Operating Temperature
14 °F
Max Operating Temperature
158 °F
Humidity Range Operating
5 - 95% (non-condensing)

User Guides

Frequently Asked Questions

Ubiquiti UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point 5 Pack
Frequently Asked Questions (FAQ's)



What is the maximum data rate of the Ubiquiti UniFi nanoHD?
  • Up to 1733 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
  • Does the nanoHD support 802.11ac Wave 2 technology?
  • Yes, it supports 802.11ac Wave 2 for faster speeds and improved efficiency.
  • What frequency bands does the nanoHD operate on?
  • Dual-band operation: 2.4 GHz and 5 GHz.
  • How many devices can connect to a nanoHD simultaneously?
  • It supports over 200 concurrent client connections.
  • What is the coverage range of the nanoHD?
  • Approximately 400 feet (122 meters) in open environments.
  • Does the nanoHD support MU-MIMO?
  • Yes, it supports 4x4 MU-MIMO for enhanced performance with multiple devices.
  • How is the nanoHD powered?
  • Via 802.3af PoE (Power over Ethernet).
  • Is the UniFi Controller software required for setup?
  • Yes, the UniFi Controller is needed for configuration and management.
  • What kind of PoE switch is compatible with the nanoHD?
  • Any switch that supports 802.3af PoE.
  • Does the nanoHD support VLANs?
  • Yes, it supports VLAN tagging for network segmentation.
  • Is the nanoHD suitable for high-density environments?
  • Yes, it is designed for high-density deployments like offices and conference centers.
  • Can the nanoHD be used outdoors?
  • No, it is intended for indoor use only.
  • How does the 5-pack differ from individual units?
  • The 5-pack includes five units but does not include power injectors.
  • Can I use the nanoHD with other UniFi devices in a network?
  • Yes, it integrates seamlessly with other UniFi devices.
  • Does the nanoHD receive firmware updates?
  • Yes, firmware updates are provided via the UniFi Controller.
  • How can I monitor network performance?
  • Through the UniFi Controller's dashboard, which provides real-time analytics.
  • What happens if the UniFi Controller is offline?
  • The nanoHD continues to operate normally but cannot be managed until the controller is online.
  • How do I reset the nanoHD to factory settings?
  • Hold the reset button for 10 seconds until the LED flashes.
  • Does the UniFi nanoHD support guest networks?
  • Yes, it supports the creation of guest networks with customizable access and security features.
  • Can the nanoHD handle voice and video calls?
  • Yes, with Quality of Service (QoS) and prioritization settings, it supports voice and video calls effectively.
