Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US) | New

Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US) | New

SKU: UAP-AC-PRO-US-N
(0)No Reviews yet

What's In The Box?

  • - Ubiquiti UniFi Access Point Enterprise Wi-Fi System
  • - 48 V, 0.5 A PoE Gigabit Adapter
  • - Wall and Ceiling Mount Adapter Kit
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$129.99 $129.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US)


The Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US) is a high-performance, enterprise-grade wireless access point designed for both indoor and outdoor environments. It is engineered for demanding network scenarios, including businesses, educational institutions, and large-scale deployments, where robust, scalable, and centrally managed Wi-Fi coverage is required


Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US) Features:

  • Wi-Fi Standard: Supports Wi-Fi 5 (802.11ac), offering simultaneous dual-band operation (2.4 GHz and 5 GHz) with 3x3 MIMO technology for each band.
  • Performance: Delivers up to 1300 Mbps on the 5 GHz band and 450 Mbps on the 2.4 GHz band, with a total throughput of 1750 Mbps.
  • Range: Coverage extends up to 400 feet (approximately 122 meters), making it suitable for large areas.
  • Capacity: Supports up to 200 concurrent clients, ideal for high-density environments such as offices, schools, and public venues.
  • Antenna: Equipped with three internal antennas, each providing 3 to 6 dBi gain, and a transmit power of 22 dBm for strong signal propagation.
  • PoE Support: Compatible with both 802.3af and 802.3at (PoE+) standards, allowing flexible placement without the need for dedicated power outlets.
  • Weatherproof Design: Suitable for both indoor and outdoor installations, featuring a weather-resistant enclosure.
  • Management: Centralized management via the UniFi Controller software (compatible with Windows, Mac, and Linux), which allows for configuration, monitoring, and firmware updates through a web interface or mobile app.
  • Security: Supports advanced wireless security protocols including AES, TKIP, WEP, WPA, WPA-PSK, and WPA2
  • Dual Gigabit Ethernet ports for high-speed wired connections and daisy-chaining.
  • Advanced QoS for optimized voice and video application performance.
  • VLAN tagging and guest portal/hotspot support for network segmentation and public Wi-Fi deployments.
  • Seamless roaming and band steering for improved user experience and device performance.

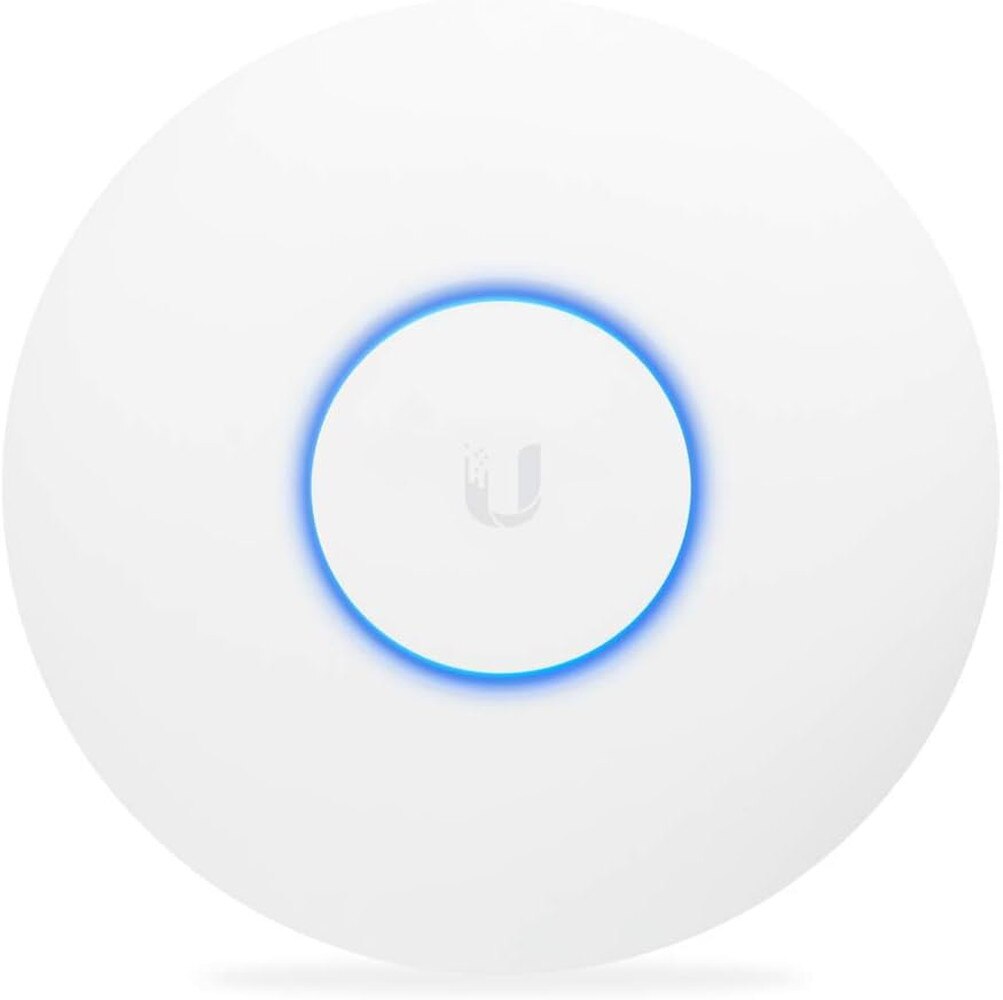

  • Intuitive LED indicator for at-a-glance status

Best Uses for Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US):

  • Enterprise Offices: Provides reliable, high-speed Wi-Fi for large numbers of users and devices, supporting business-critical applications and seamless roaming between access points.
  • Educational Institutions: Ideal for classrooms, lecture halls, and campus-wide deployments where high device density and coverage are essential.
  • Public Venues: Suitable for hotels, convention centers, and large retail spaces, offering guest access, hotspot functionality, and robust security.
  • Outdoor Areas: Weatherproof design allows installation in courtyards, stadiums, and other outdoor environments.
  • Scalable Networks: Easily integrates into existing UniFi deployments, supporting centralized management and unlimited scalability under one controller
The Ubiquiti UniFi UAP-AC-PRO-US stands out as a versatile, high-performance access point for enterprise and large-scale environments. Its combination of speed, range, scalability, and centralized management makes it a leading choice for organizations seeking robust and easily managed Wi-Fi coverage

Specifications

Specifications for Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US) | New

Manufacturer Ubiquiti
Manufacturer Part Number UAP-AC-PRO-US
Product Name Ubiquiti UniFi Access Point Enterprise Wi-Fi System
Product Type Access Point
Width
7.7 in
Depth
1.4 in
Height
7.7 in
Weight
12.34 oz
Localization
United States
Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
1.3 Gbps
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band
2.4 GHz, 5 GHz
Max Range Open Space
400 ft
Capacity
BSSIDs per radio: 1 - 4 ¦ Number of concurrent clients: 200+
Features
Uplink, VLAN support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, 3T3R MIMO technology, ceiling mountable
Encryption Algorithm
AES, TKIP, WPA, WPA2, WPA-PSK, WEP
Authentication Method
Basic Service Set Identifier (BSSID)
Compliant Standards
IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Antenna
Internal
Antenna Qty
3
Interfaces

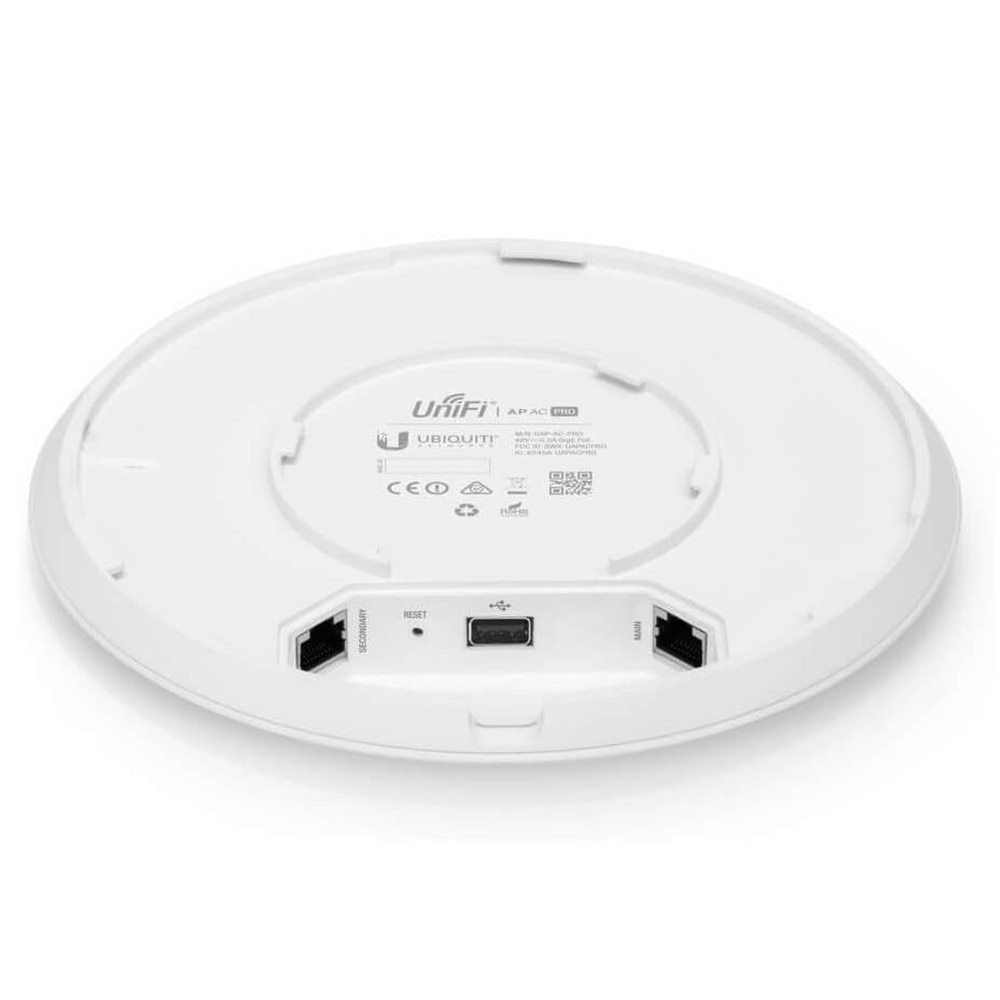

2 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0
Included Accessories
PoE injector, mounting brackets
Compliant Standards
IC, FCC
Power Over Ethernet (PoE) Supported
PoE+
Power Consumption Operational
9 Watt
Min Operating Temperature
14 °F
Max Operating Temperature
158 °F
Humidity Range Operating
5 - 95% (non-condensing)

User Guides

Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US) Data Sheet

Frequently Asked Questions

Ubiquiti UniFi Access Point Enterprise Wi-Fi System (UAP-AC-PRO-US)
Frequently Asked Questions (FAQ's)



What is the maximum wireless speed of the UAP-AC-PRO?
  • The maximum combined speed is 1300 Mbps (867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz).
    • Is the UAP-AC-PRO suitable for outdoor use?
  • Yes, it's designed for both indoor and outdoor use. It has a weather-resistant enclosure (IP54 rating) to withstand various environmental conditions.
    • Do I need a UniFi Controller to use the UAP-AC-PRO?
  • Yes, a UniFi Controller (software or hardware) is required to configure and manage the UAP-AC-PRO. It provides centralized management for all UniFi devices in your network.
    • What is the maximum number of devices the UAP-AC-PRO can support?
  • While there's no strict limit, Ubiquiti recommends a maximum of 50-75 active client devices per UAP-AC-PRO for optimal performance.
    • What is the range of the UAP-AC-PRO?
  • The range can vary depending on environmental factors, but it can typically reach up to 400 feet (122 meters) in optimal conditions.
    • Does the UAP-AC-PRO support Power over Ethernet (PoE)?
  • Yes, it supports PoE, making it easy to install and power the device using a single Ethernet cable.
    • Can I mount the UAP-AC-PRO on a ceiling or wall?
  • Yes, it comes with a mounting kit for both ceiling and wall installations.
    • Is the UAP-AC-PRO compatible with other UniFi devices?
  • Yes, it seamlessly integrates with other UniFi devices like switches, routers, and security gateways to create a unified network.
    • Does the UAP-AC-PRO support guest networks?
  • Yes, the UniFi Controller allows you to create separate guest networks with customizable settings for security and access.
    • Can I limit the bandwidth for specific devices or users?
  • Yes, the UniFi Controller offers bandwidth management features to control and prioritize traffic for different devices or user groups.
    • Does the UAP-AC-PRO support multiple SSIDs?
  • Yes, you can create multiple SSIDs (network names) for different purposes, such as separating employee and guest networks.
    • How do I update the firmware on the UAP-AC-PRO?
  • Firmware updates are handled through the UniFi Controller. It will automatically check for and install updates when available.
    • What type of power does the UAP-AC-PRO use?
  • It supports both PoE (802.3af) and 48V PoE adapters.
    • Is the UAP-AC-PRO easy to set up?
  • The initial setup requires some technical knowledge and the use of the UniFi Controller software. However, once configured, it's relatively easy to manage.
    • Can I use the UAP-AC-PRO to create a mesh Wi-Fi network?
  • While it doesn't have built-in mesh functionality, you can use multiple UAP-AC-PRO units with the UniFi Controller to create a wireless uplink network, which acts similarly to a mesh network.
    • What are the LED light indicators on the UAP-AC-PRO?
  • The LED light indicates the status of the device, such as power, connectivity and activity.
    • Does the UAP-AC-PRO have a built-in security firewall?
  • It has basic firewall features, but for advanced security, you might consider using a UniFi Security Gateway (USG) in conjunction with the UAP-AC-PRO.
    • Can the UAP-AC-PRO be powered by a PoE injector?
  • Yes, if your network switch doesn't support PoE, you can use a PoE injector to power the UAP-AC-PRO.
    • Does the UAP-AC-PRO support both 2.4 GHz and 5 GHz bands?
  • Yes, it supports dual-band operation on both 2.4 GHz and 5 GHz frequencies.
