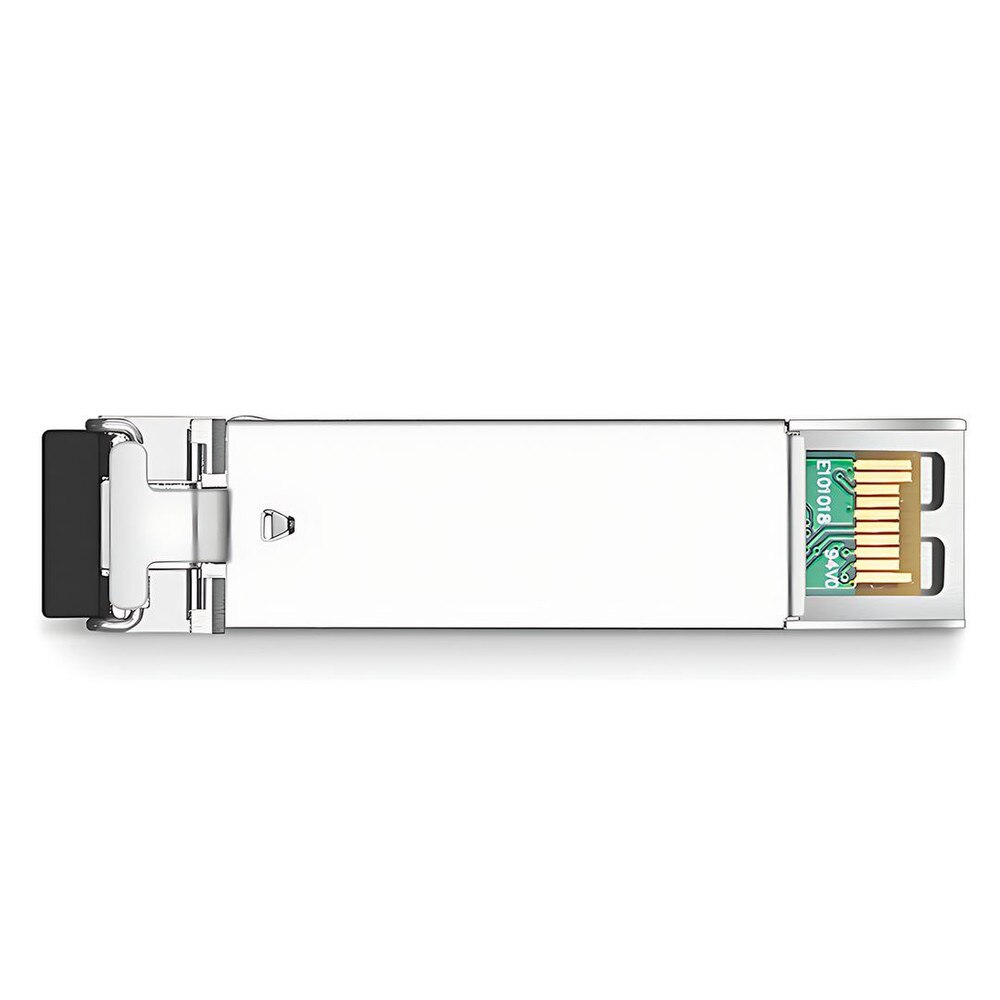

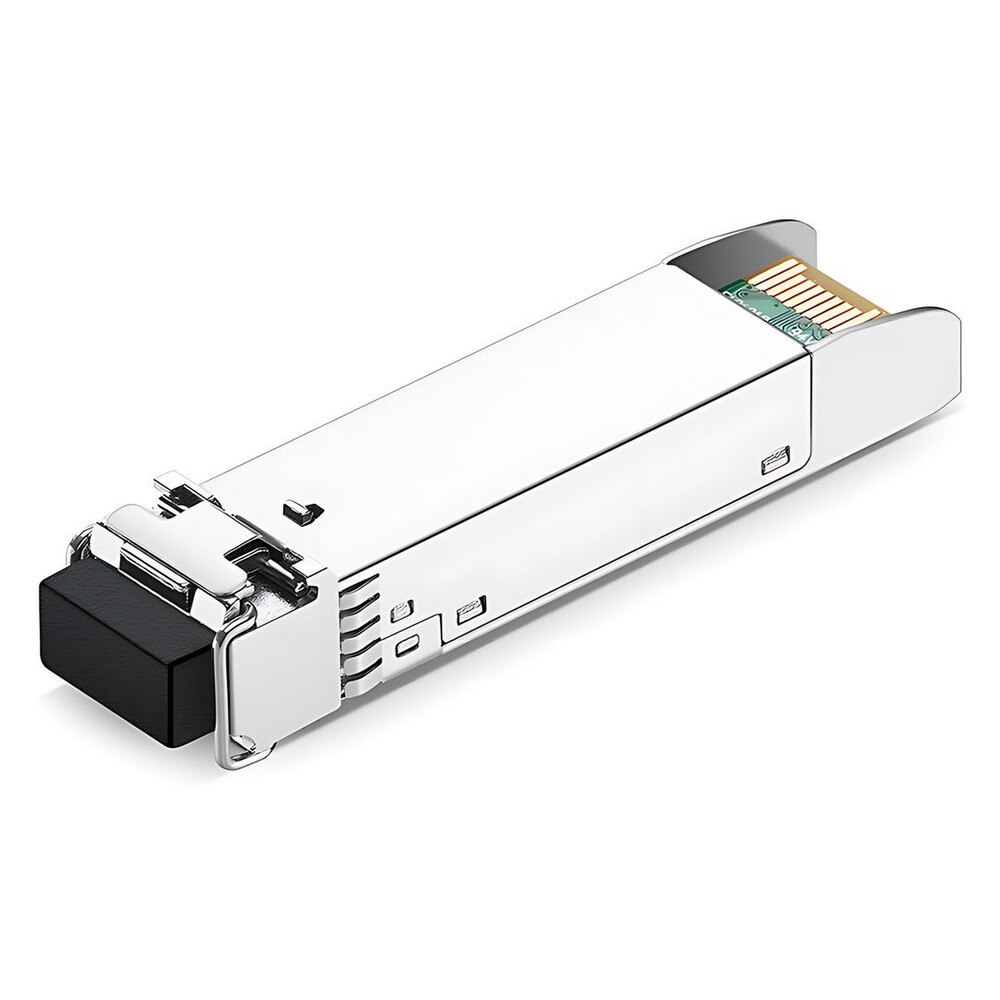

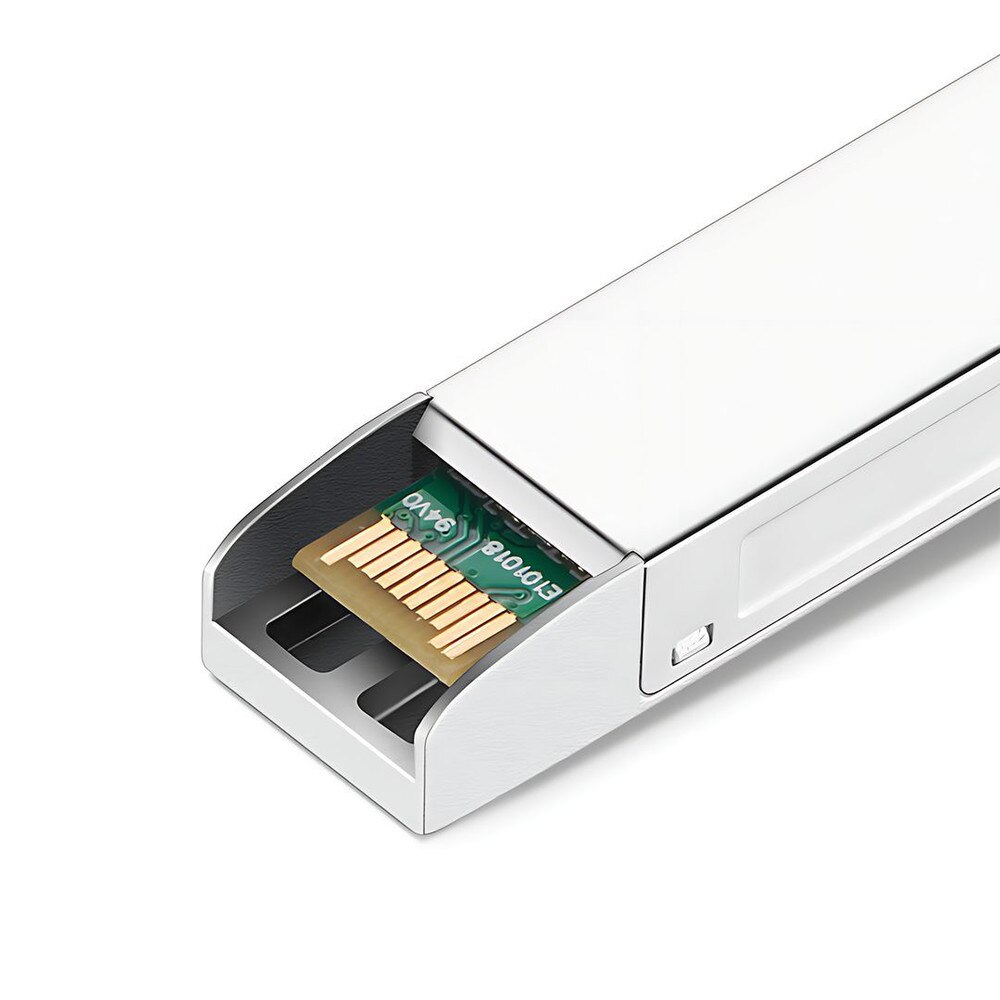

Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) | Refresh

Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) | Refresh

SKU: SFP-1G-SX-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$199.99 $199.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) | Refresh


The SFP-1G-SX enables fast, short-distance optical connectivity in campus, enterprise, or data center environments. It uses 850nm wavelength VCSEL laser technology to transmit up to 550 meters over OM3/OM4/OM5 MMF with an LC duplex connector, supporting reliable and scalable Gigabit Ethernet links.


Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) Features:

  • Hot-pluggable SFP form factor for convenient installation and replacement.
  • Supports 1Gbps (1000BASE-SX) Ethernet over MMF.
  • LC duplex optical interface.
  • 850nm VCSEL laser for short-wavelength multimode transmission.
  • Digital Optical Monitoring (DOM) support for real-time diagnostics.
  • MSA (Multi-Source Agreement) compliant, ensuring multi-vendor compatibility.
  • RoHS and TAA compliant, suitable for various procurement requirements.
  • Operating temperature 0–70°C typical; some industrial variants support wider ranges.
Best Uses for Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX):
  • Building/campus switch uplinks for connecting switches on different floors or wiring closets.
  • Data center rack-to-rack interconnects within short-range limits.
  • Connecting high-bandwidth devices where copper cabling is insufficient or unsuitable.
  • Environments sensitive to EMI/RFI where fiber is required for reliability.
  • Surveillance or security systems with high-resolution uplinks over fiber distances.

The Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) is a hot-pluggable optical module designed for gigabit short-range fibre connections on Cisco and compatible switches, providing cost-effective 1Gbps Ethernet over multimode fiber (MMF).

Specifications

Specifications for Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) | Refresh


ManufacturerCisco
Manufacturer Part NumberSFP-1G-SX-RF
Product NameCisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX)
Product TypeTransceiver
Standard1000BASE-SX (IEEE 802.3z)
Data Rate1.25 Gbps
Wavelength850 nm
Fiber TypeMultimode (MMF)
Max Distance (OM3/OM4 MMF)550 m
Max Distance (62.5μm MMF)220–300 m
ConnectorLC duplex
DDM/DOM SupportYes
Tx Power-9.5 to -3 dBm (typical)
Rx Sensitivity-17 dBm (typical)
Power Supply+3.3V
Operating Temperature0–70°C (some up to -40°C to +85°C)
ComplianceMSA, RoHS, TAA

User Guides

Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX) Data Sheet

Frequently Asked Questions

Cisco Compatible 1000BASE-SX SFP Transceiver (SFP-1G-SX)
Frequently Asked Questions (FAQ's)



What is the Cisco Compatible SFP-1G-SX used for?
  • The Cisco Compatible SFP-1G-SX is a small form-factor pluggable (SFP) transceiver used to provide 1 Gigabit Ethernet connectivity over multimode fiber for switches, routers, and network interface cards.
    • Is the SFP-1G-SX hot-swappable?
  • Yes, the Cisco Compatible SFP-1G-SX module is hot-swappable, allowing you to insert or remove it without shutting down the network device.
    • What type of fiber does the SFP-1G-SX support?
  • This module supports multimode fiber (MMF), typically using OM2, OM3, or OM4 fiber types for short-range data transmission.
    • What is the maximum transmission distance of the SFP-1G-SX?
  • The Cisco Compatible SFP-1G-SX supports distances of up to 550 meters over OM2 multimode fiber and up to 1,000 meters over OM3/OM4 MMF using 850nm wavelength.
    • Can the SFP-1G-SX be used with Cisco switches?
  • Yes, this transceiver is fully compatible with a wide range of Cisco switches and routers that support 1G SFP slots.
    • What is the data transfer rate of the Cisco Compatible SFP-1G-SX?
  • It supports data rates of up to 1.25 Gbps, ideal for Gigabit Ethernet applications.
    • Does the SFP-1G-SX support DDM/DOM?
  • Many compatible models include Digital Diagnostics Monitoring (DDM), which allows real-time monitoring of optical parameters such as temperature, voltage, and optical power.
    • What connector type does the SFP-1G-SX use?

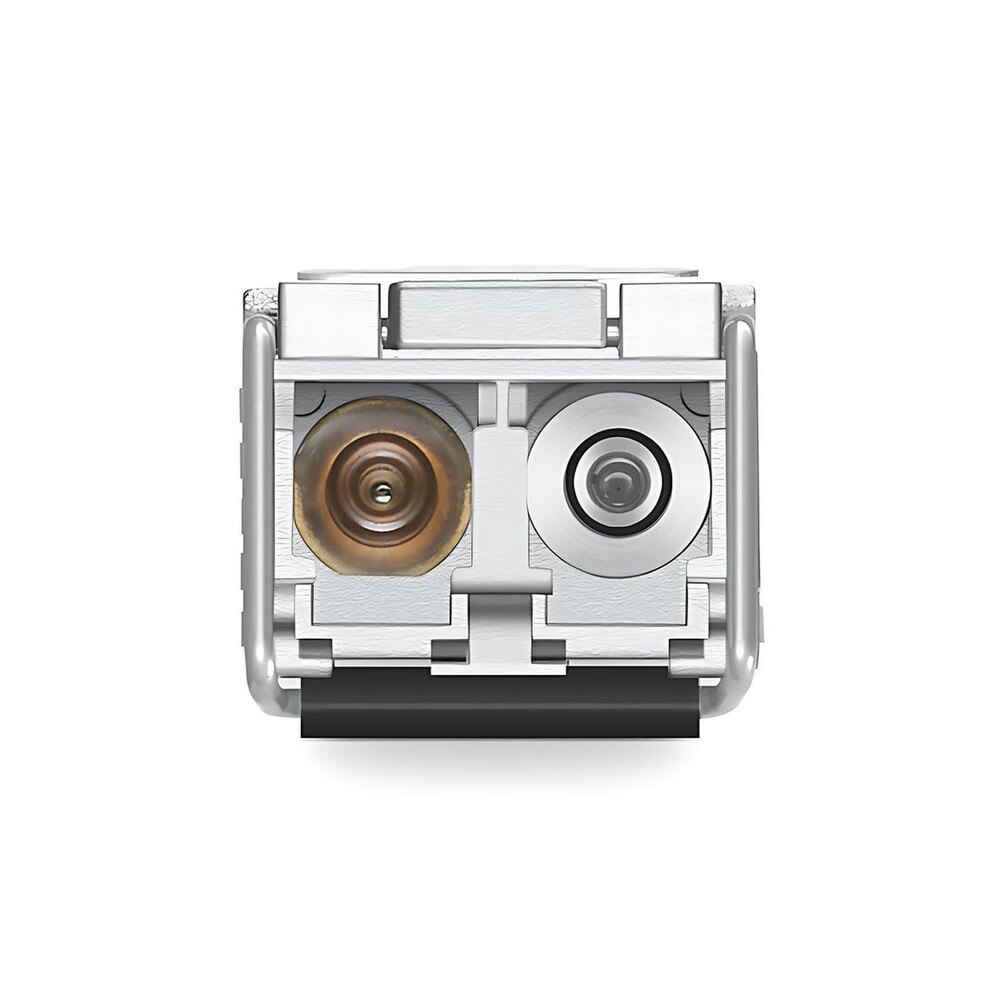

  • It uses a standard LC duplex connector, which is widely used for fiber optic connections.
    • Is the SFP-1G-SX compatible with other brands besides Cisco?
  • Yes, while optimized for Cisco devices, this module may also be compatible with other networking equipment that supports SFP modules, depending on the vendor’s coding requirements.
    • Can I use the SFP-1G-SX in both data centers and enterprise networks?
  • Absolutely. The SFP-1G-SX is ideal for high-speed data center interconnects, campus networks, and enterprise LAN applications.
    • What wavelength does the SFP-1G-SX operate on?
  • It operates on an 850nm wavelength, which is standard for short-range multimode fiber optics.
    • How do I install the Cisco Compatible SFP-1G-SX module?
  • Insert the module into the SFP slot of your network device until it clicks into place, then connect the LC fiber cable to the transceiver.
    • Does the SFP-1G-SX support full-duplex communication?
  • Yes, this module supports full-duplex communication for efficient and reliable data transmission.
    • What environments is the SFP-1G-SX suitable for?
  • It is suitable for indoor, climate-controlled environments such as data centers, wiring closets, and network core infrastructures.
    • Is any special configuration needed after inserting the SFP-1G-SX?
  • Generally, no configuration is needed. Once inserted, the switch or router typically auto-detects the transceiver and brings up the link if fiber is connected.
    • Can the SFP-1G-SX be used with media converters?
  • Yes, it can be used with compatible SFP-based media converters to connect fiber to copper networks.
    • What is the typical power consumption of the SFP-1G-SX?
  • The module typically consumes less than 1W, making it energy-efficient for high-density deployments.
    • How do I identify a Cisco Compatible SFP-1G-SX module?
  • Look for the product label that includes the part number and ensure that it's coded for Cisco compatibility.
    • What temperature range does the SFP-1G-SX support?
  • Standard models typically support 0°C to 70°C (32°F to 158°F), suitable for most office and data center environments.
    • Can I mix SFP-1G-SX modules with other SFP types in the same switch?
  • Yes, as long as each SFP slot supports the inserted transceiver type and the connected devices are configured correctly.
