Juniper 1000BASE SX SFP Mini Gigabit Transceiver (EX-SFP-1GE-SX) | New

Juniper 1000BASE SX SFP Mini Gigabit Transceiver (EX-SFP-1GE-SX) | New

SKU: EX-SFP-1GE-SX-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$36.99 $36.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

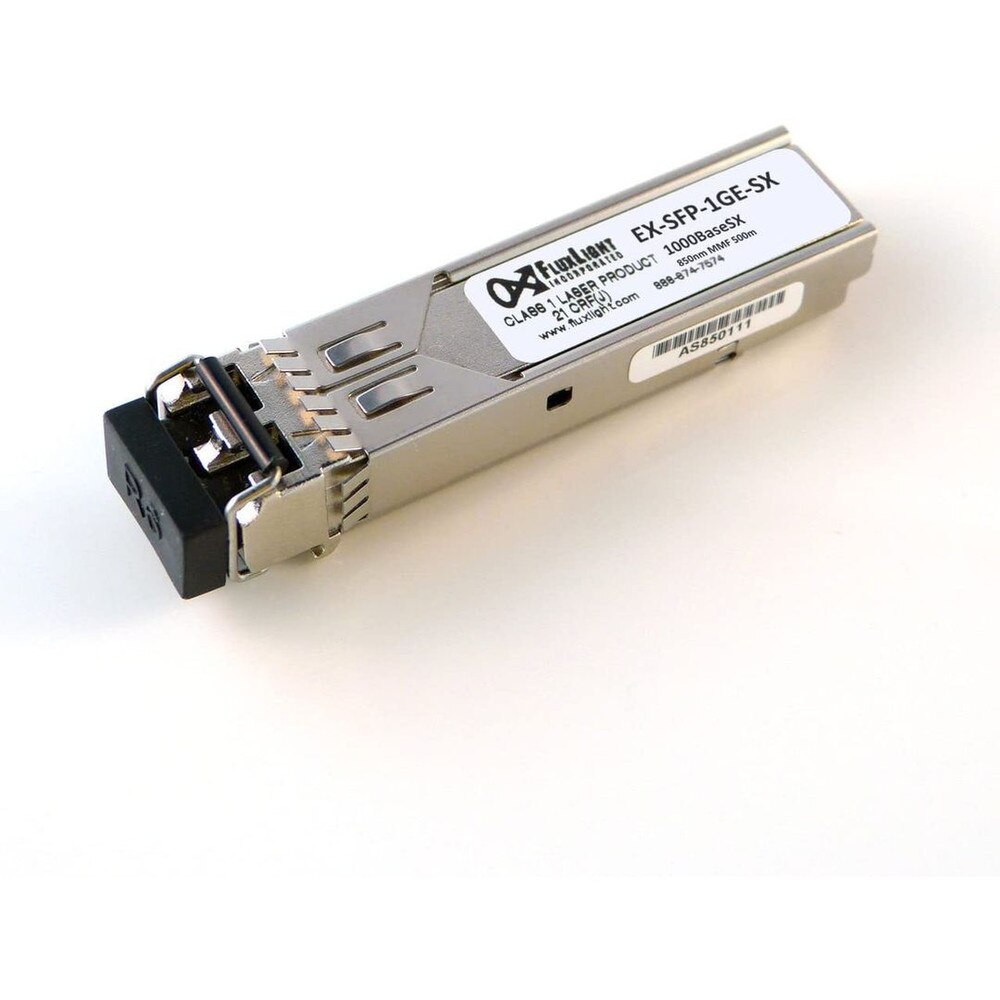

Juniper EX-SFP-1GE-SX 1000BASE-SX SFP F/Juniper MMF LC 850NM 550M



Overview

The Juniper EX-SFP-1GE-SX 1000BASE-SX SFP F/Juniper MMF LC 850NM 550M is a compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Juniper switches, routers, servers, network interface card (NICs) etc.

Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Features

  • Wavelength: 850 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multimode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550 m (1804 ft)
  • MTBF: 3,381,761 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Specifications

Juniper EX-SFP-1GE-SX 1000BASE-SX SFP F/Juniper MMF LC 850NM 550M Specifications



Specifications

Technical Specification
Compatible OEMJuniper Networks®
Compatible With OEM Part Number(s)EX-SFP-1GE-SX
ConnectorLC
DOMNon-DOM
Form TypeSFP
MediaMMF
Reach550m
Speed1000Base
Speed Description1-Gigabit
Transceiver TypeSX
Wavelength850nm
Physical Specification
Product Shipping Dimension(HxWxD)1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.4
Miscellaneous
Country Of OriginUSA/UK
HTS-Harmonized Code (US)8517.62.0090
UNSPSC Code43201553
What's In The Box1x transceiver
ECCN5A991
TAA CompliantYes

Frequently Asked Questions

Juniper 1000BASE SX SFP Mini Gigabit Transceiver (EX-SFP-1GE-SX)
Frequently Asked Questions (FAQ's)



What is Juniper 1000BASE-SX?
  • It is a gigabit Ethernet standard that transmits data at 1 Gbps via multimode fiber (MMF) using a short-wavelength laser (850 nm).
    • What type of fiber does 1000BASE-SX use?
  • Multimode fiber (MMF).
    • What is the maximum distance 1000BASE-SX can support?
  • Depending on the fiber kind and quality, up to 550 meters.
    • Which connector type is used with 1000BASE-SX modules?
  • Typically LC connectors.
    • Can 1000BASE-SX be used with single-mode fiber?
  • No, it is designed specifically for multimode fiber.
    • What is the wavelength used by 1000BASE-SX?
  • 850 nanometers.
    • Is Juniper 1000BASE-SX hot-swappable?
  • Yes, it can be inserted and removed without powering down the device.
    • Does 1000BASE-SX support full-duplex operation?
  • Yes, it supports full-duplex communication.
    • Can a Juniper 1000BASE-SX transceiver work in a Cisco switch?
  • Not natively; vendor lock determines compatibility, and a third-party or programmed transceiver can be needed.
    • What devices are compatible with 1000BASE-SX?
  • Juniper switches and routers with Gigabit Ethernet and SFP slot support.
    • Is digital optical monitoring (DOM) supported?
  • Some Juniper SFP modules support DOM; check the specific model.
    • What is the typical power consumption of a 1000BASE-SX transceiver?
  • Around 0.8 to 1.0 watts.
    • Are there environmental limitations for 1000BASE-SX transceivers?
  • Indeed, unless they are industrial-grade, they usually function in temperatures between 0°C and 70°C.
    • What is the data rate of 1000BASE-SX?
  • 1.25 Gbps line rate (1 Gbps payload).
    • Can I use a 1000BASE-SX module for long-range communication?
  • No, it is designed for short-range over MMF; for extended distances, use long-range optics like the 1000BASE-LX.
    • Can third-party 1000BASE-SX modules be used in Juniper devices?
  • However, for compatibility and support, Juniper occasionally suggests their branded optics.
    • How do I troubleshoot a non-working 1000BASE-SX link?
  • Verify the link settings, compatibility, module seating, fiber polarity, and cleanliness.
    • Is 1000BASE-SX still commonly used today?
  • Yes, particularly for short-distance connectivity in campus, workplace, and legacy data center settings.
    • Is the 1000BASE-SX transceiver backward compatible with 100BASE-FX?
  • No, because of their disparate signaling and speeds, 1000BASE-SX and 100BASE-FX are incompatible.
    • Can I mix 1000BASE-SX with other SFP types on the same switch?
  • Yes, provided that every port is set up correctly and works with the transceiver that is plugged.
