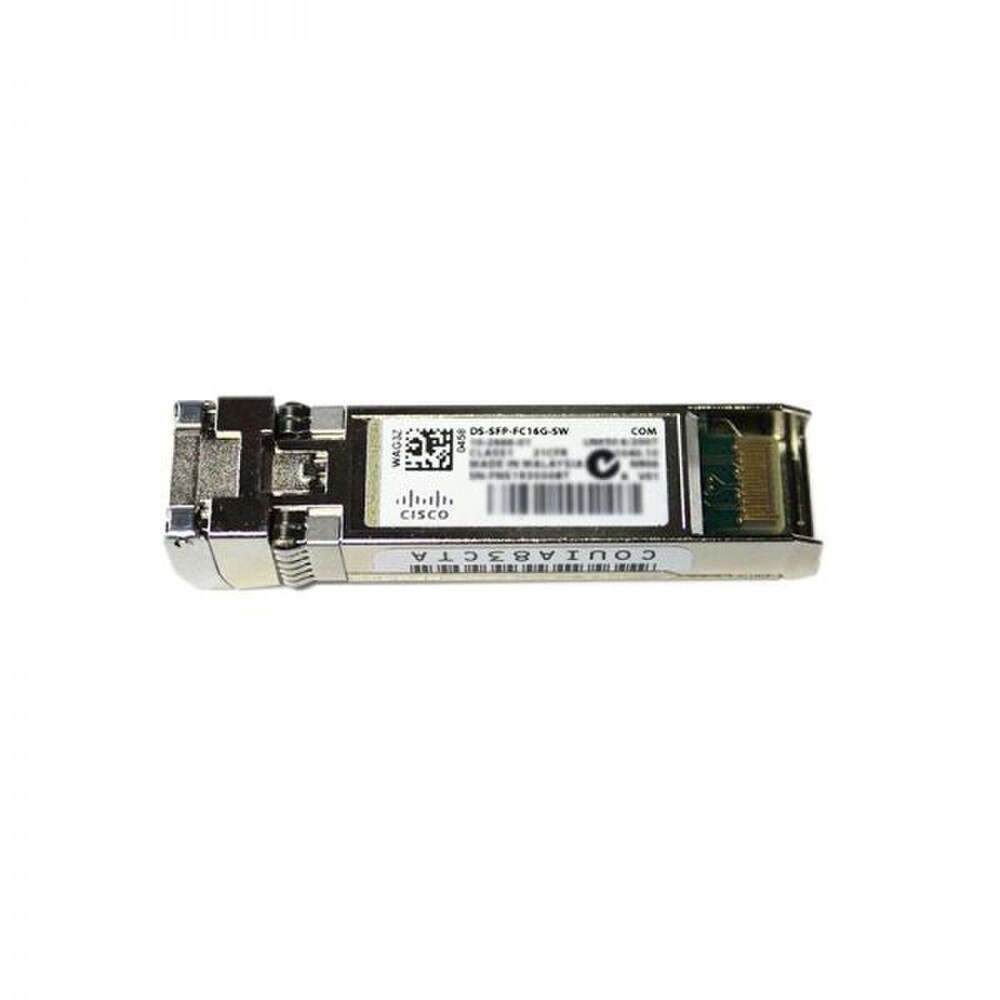

Cisco Original 16 Gb Fibre Channel SW SFP+ Transceiver Module (DS-SFP-FC16G-SW) | Refresh

Cisco Original 16 Gb Fibre Channel SW SFP+ Transceiver Module (DS-SFP-FC16G-SW) | Refresh

SKU: DS-SFP-FC16G-SW-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$16.99 $16.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Cisco Original 16 Gb Fibre Channel SW SFP+ Transceiver Module (DS-SFP-FC16G-SW) | Refresh

Cisco Fibre Channel switches provide high-performance connectivity options for modern data centres and storage networks. The MDS 9000 Family, which includes the MDS 9396T and MDS 9148T devices, offers cutting-edge 32-Gbps Fibre Channel technology with autosensing capabilities to ensure backward compatibility. These switches include enterprise-class capabilities including VSANs, hardware-based zoning, and intelligent traffic control, assuring optimal performance and security in SAN settings.

Key features of Cisco Fibre Channel switches include:

  1. High port density, with up to 96 ports in a compact form factor
  2. Intelligent network services, including VSAN technology and access control lists
  3. Advanced diagnostics and troubleshooting tools
  4. Support for long-distance SAN extension
  5. Telemetry capabilities for enhanced network visibility

Specifications

Cisco Original 16 Gb Fibre Channel SW SFP+ Transceiver Module (DS-SFP-FC16G-SW) | Refresh

DS-SFP-FC16G-SW Specifications

Type

Short wavelength

Wavelength (nanometers)

850

Fiber Type

MMF

Core Size (microns)

62.5

50.0

50.0

50.0

62.5

50.0

50.0

50.0

62.5

50.0

50.0

50.0

50.0

Baud Rate (GBd)

14.025

14.025

14.025

14.025

8.5

8.5

8.5

8.5

4.25

4.25

4.25

4.25

4.25

Cable Distance

49 ft (15m) (OM1)

115 ft (35m) (OM2)

328 ft (100m) (OM3)

410 ft (125m) (OM4)

69 ft (21m) (OM1)

164 ft (50m) (OM2)

492 ft (150m) (OM3)

623 ft (190m) (OM4)

230 ft (70m) (OM1)

492 ft (150m) (OM2)

1247 ft (380m) (OM3)

1312 ft (400m) (OM4)

1312 ft (400m) (OM5)

Average Transmit Power (dBm)

Max: -1.3

Min: -9 (4 Gbps) -8.2 (8 Gbps) -7.8 (16 Gbps)

Average Receive Power (dBm)

Max: 0

Min: -

Fiber Loss Budget (dBm)

12

Operating Temperature

0°C - 40°C

Storage Temperature

-40°C - 85°C

Frequently Asked Questions

Cisco Original 16 Gb Fibre Channel SW SFP+ Transceiver Module (DS-SFP-FC16G-SW)

Frequently Asked Questions (FAQ's)



What is the Cisco DS-SFP-FC16G-SW?
  • It is a 16Gbps Fibre Channel shortwave SFP+ transceiver used in Cisco networking equipment to transmit data at high speeds over multimode fiber.
    • What type of fiber is compatible with this transceiver?
  • It is compatible with multimode fiber (MMF).
    • What is the maximum transmission distance of the Cisco DS-SFP-FC16G-SW?
  • Up to 100 meters on OM3 fiber and 125 meters on OM4 fiber.
    • What connector type does it use?
  • It uses an LC duplex connector.
    • What is the wavelength of this transceiver?
  • The wavelength is 850nm (nanometers).
    • What data rates are supported?
  • It supports 4Gbps, 8Gbps, and 16Gbps Fibre Channel speeds.
    • Is the Cisco DS-SFP-FC16G-SW hot-swappable?
  • Yes, it is hot-swappable, which allows installation and removal without turning off the device.
    • Which Cisco switches support this transceiver?
  • It works with several Cisco MDS series switches and several Nexus switches. Always reference the official Cisco compatibility matrix.
    • Does this module support Digital Optical Monitoring (DOM)?
  • Yes, it supports DOM (Digital Optical Monitoring), which allows real-time monitoring of optical power, temperature, and voltage.
    • Can it be used in Ethernet applications?
  • No, it is made exclusively for Fibre Channel applications, not Ethernet.
    • What is the power consumption of the Cisco DS-SFP-FC16G-SW?
  • It typically consumes less than 1W of power.
    • Does this transceiver require any special configuration?
  • It requires no extra configuration and works seamlessly with supported Fibre Channel switches.
    • Is the Cisco DS-SFP-FC16G-SW backward compatible with lower-speed transceivers?
  • Yes, it is backward compatible with 8Gbps and 4Gbps Fibre Channel ports.
    • What environmental conditions can this transceiver operate in?
  • It operates within a temperature range of 0°C to 70°C (32°F to 158°F).
    • How do I check if the transceiver is working properly?
  • To verify the health and diagnostics of a Cisco device, run the show interface transceiver detail command.
    • What Cisco part number corresponds to this transceiver?
  • The official part number is DS-SFP-FC16G-SW.
    • Can I mix this transceiver with different speeds in the same switch?
  • Yes, but the interface will negotiate the lowest common speed among the connected devices.
    • How do I install the Cisco DS-SFP-FC16G-SW?
  • Insert it into an SFP+ slot on a suitable switch and attach the fiber optic cable to the LC ports.
    • Is this transceiver supported by third-party networking equipment?
  • While built for Cisco equipment, it may function with third-party brands, but Cisco does not guarantee compatibility.
    • Can the Cisco DS-SFP-FC16G-SW be used for long-distance connections?
  • No, this is a shortwave (SW) transceiver that uses multimode fiber to communicate over short distances. Consider using a longwave (LW) variation for long distance communication.
