Overview of Cisco Catalyst C9200L Stack Kit (C9200L-STACK-KIT) | New
The Cisco Catalyst C9200L Stack Kit (C9200L-STACK-KIT) is an essential component for enterprises who want to grow and optimize their network infrastructure with Cisco Catalyst 9200L Series switches. This stack kit allows users to connect multiple Catalyst 9200L switches, resulting in a unified switching device with improved performance and manageability. The C9200L-STACK-KIT uses Cisco's StackWise-80 technology to provide 80 Gbps of stack capacity, enabling continuous data movement and better network resiliency. This kit is suitable for enterprises that want to expand their network capabilities while simplifying management and improving operational efficiency.
Key Features of Cisco Catalyst C9200L Stack Kit
• Compatible with all Cisco Catalyst 9200L Series switches
• Utilizes Cisco StackWise-80 technology for high-speed stacking
• Provides 80 Gbps of stack bandwidth for efficient data transfer
• Supports stacking of up to 8 switches in a single logical unit

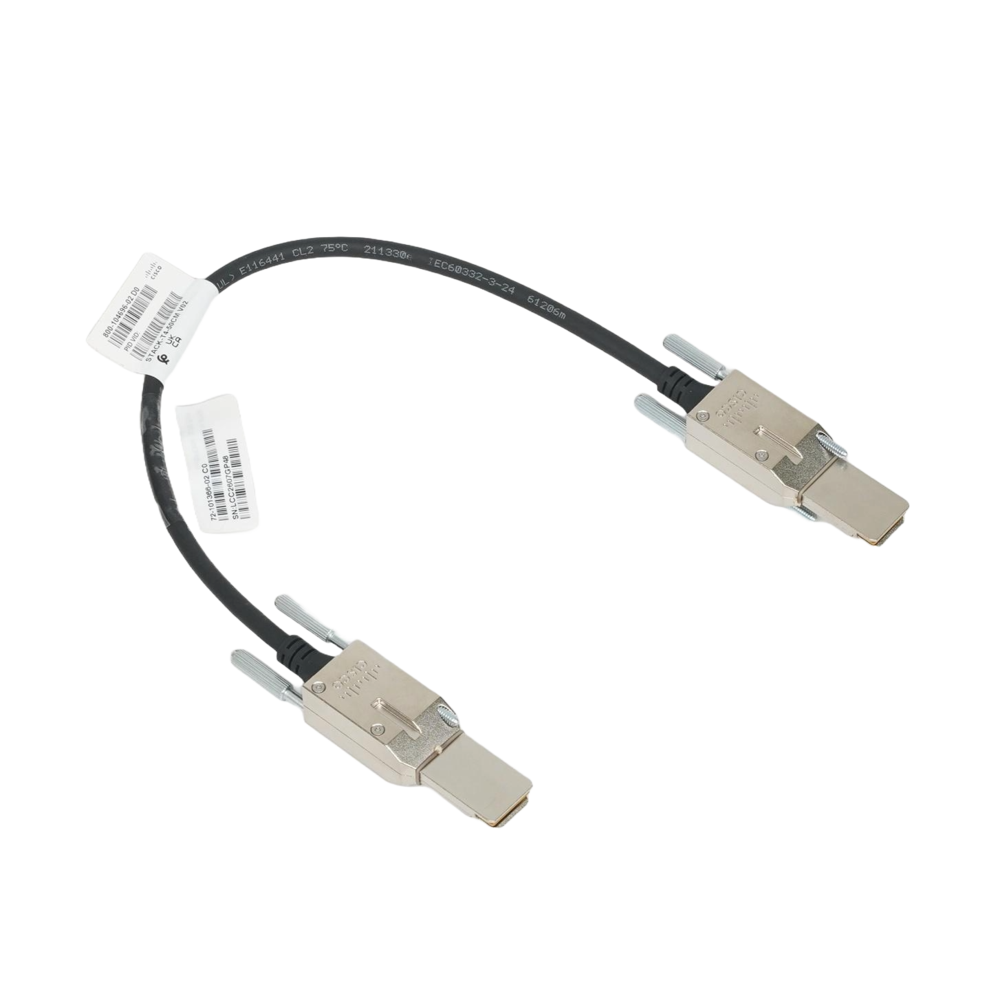

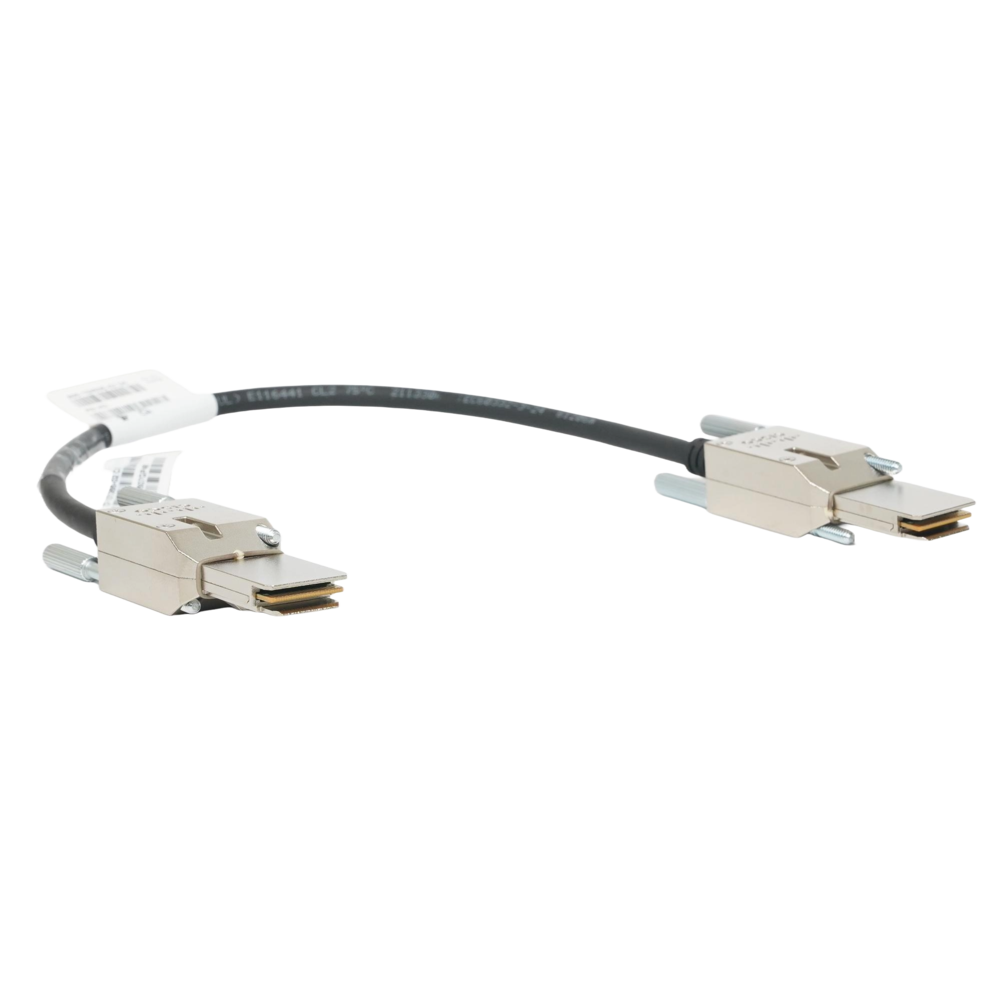

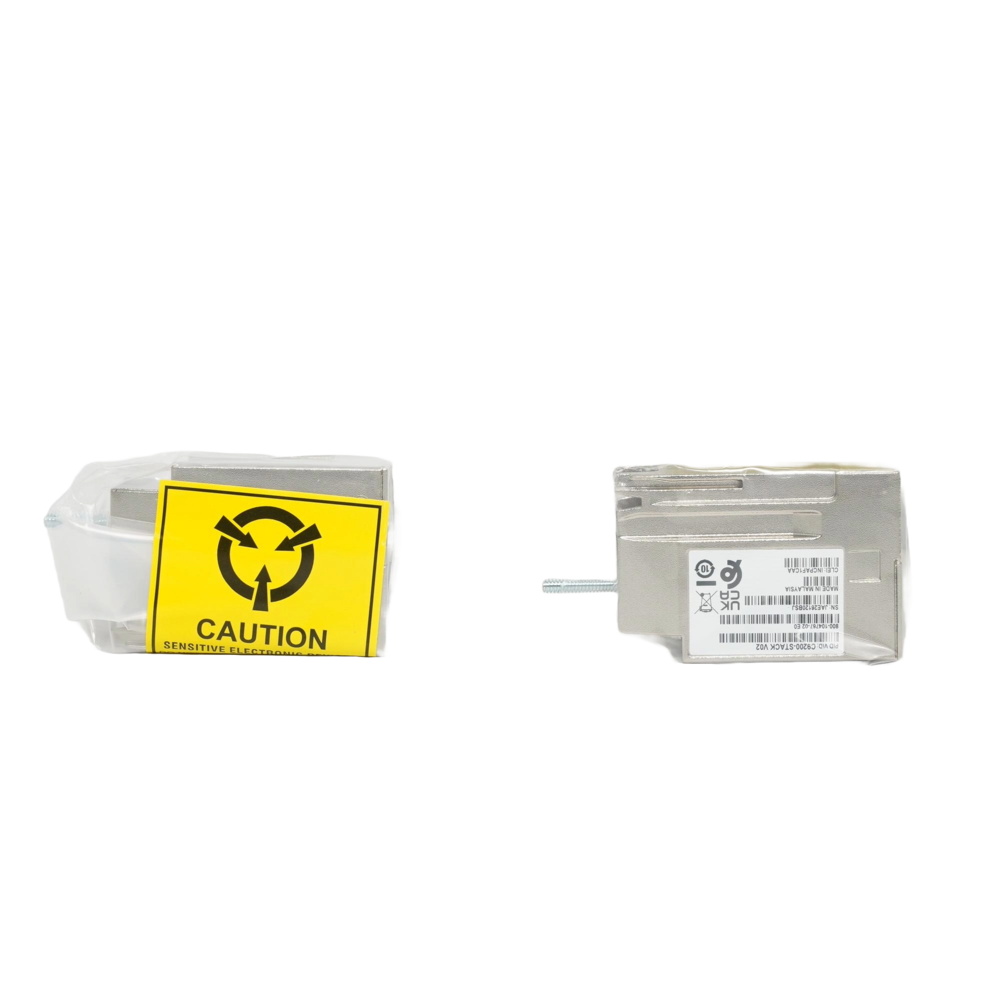

• Includes two stack modules and one 0.5m stacking cable
• Enables single IP management for the entire stack
• Facilitates automatic configuration of newly added switches
• Enhances network resiliency through redundant stack links
• Supports hot-swappable stack members for minimal downtime
• Allows for simplified software upgrades across the stack
• Enables cross-stack EtherChannel for improved bandwidth utilization
• Provides automatic role negotiation for primary and secondary switches
• Supports stack power for efficient power distribution
• Enables in-service stack merge and split capabilities
• Backed by Cisco's limited lifetime warranty
Specifications
Specifications of Cisco Catalyst C9200L Stack Kit (C9200L-STACK-KIT) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9200L-STACK-KIT |
| Product Name | Cisco Catalyst C9200L Stack Kit |
| Product Type | Stack Module |
Form Factor | Plug-in module |
Connectivity Technology | Wired |
Performance | Bandwidth: 80 Gbps |
Features | Cisco StackWise-80 technology |
Interfaces | 1 x stack port |
Cables Included | 1 x stacking cable (external) - 1.6 ft |
Designed For | Cisco Catalyst 9200L |
User Guides
Frequently Asked Questions
Cisco Catalyst C9200L Stack Kit (C9200L-STACK-KIT)
Frequently Asked Questions (FAQ's)
What is the C9200L-STACK-KIT? It's a stacking kit designed exclusively for Cisco Catalyst 9200L series switches, including two data stack adapters and one data stack cable.
Is the C9200L-STACK-KIT compatible with regular C9200 switches? No, it is only compatible with the C9200L switches. The C9200 switches require the C9200-STACK-KIT.
What's the maximum number of switches that can be stacked using C9200L-STACK-KIT? Up to 8 switches can be stacked.
What's the stacking bandwidth for C9200L switches? The stacking bandwidth is 80 Gbps.
Can I mix C9200 and C9200L switches in the same stack? Due to differences in stacking bandwidths, C9200 and C9200L switches cannot be combined in the same stack.
Are there different versions of the C9200L-STACK-KIT? Yes, there may be distinct hardware upgrades (e.g., V01, V02), but they all provide the same functionality.
What's the difference between C9200L-STACK-KIT V01 and V02? They are different hardware revisions that provide the same functionality. It is advisable to use the same revision throughout a stack.
How do I install the C9200L-STACK-KIT? Follow the installation instructions provided by Cisco, which normally include placing the adapters into appropriate slots and connecting the cables.
Can I hot-swap stack members or add new members to an existing stack? Yes, Cisco StackWise technology enables hot-swapping and adding new members without disturbing the stack.
What's the maximum cable length for stacking C9200L switches? The maximum cable length depends on the exact cable used, although it is usually up to three meters.
Do I need a special license to use stacking on C9200L switches? No special license is required for basic stacking functionality.
Can I use third-party stacking cables with the C9200L-STACK-KIT? To ensure compatibility and performance, utilize only Cisco-approved stacking cables.
How do I troubleshoot stacking issues with C9200L switches? Check cable connections, validate stack member numbers, ensure software compatibility, and refer to Cisco documentation for specific troubleshooting instructions.
Can I stack C9200L switches with different models (e.g., 24-port and 48-port models)? Yes, different C9200L models can be stacked as long as they all belong to the C9200L family.
What happens if a stack member fails? The stack will rearrange itself, and the standby switch will take over if the master switch fails.
How do I determine which switch is the master in a C9200L stack? The "show switch" command displays stack information, including the master switch.
Can I use the C9200L-STACK-KIT for data transfer between switches? The stacking connection serves primarily to create a unified switch, but it also enables high-speed data flow across stack members.
Is there a recommended stacking topology for C9200L switches? A full ring topology is recommended for maximum resiliency.
How do software upgrades work in a C9200L stack? Software upgrades can be executed on the entire stack at once, simplifying management.
Do I need to power down switches to install the stack modules? It is recommended to power down, however the modules can be hot-swapped.
