Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch | New
SKU: C9200L-48PXG-4X-E-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

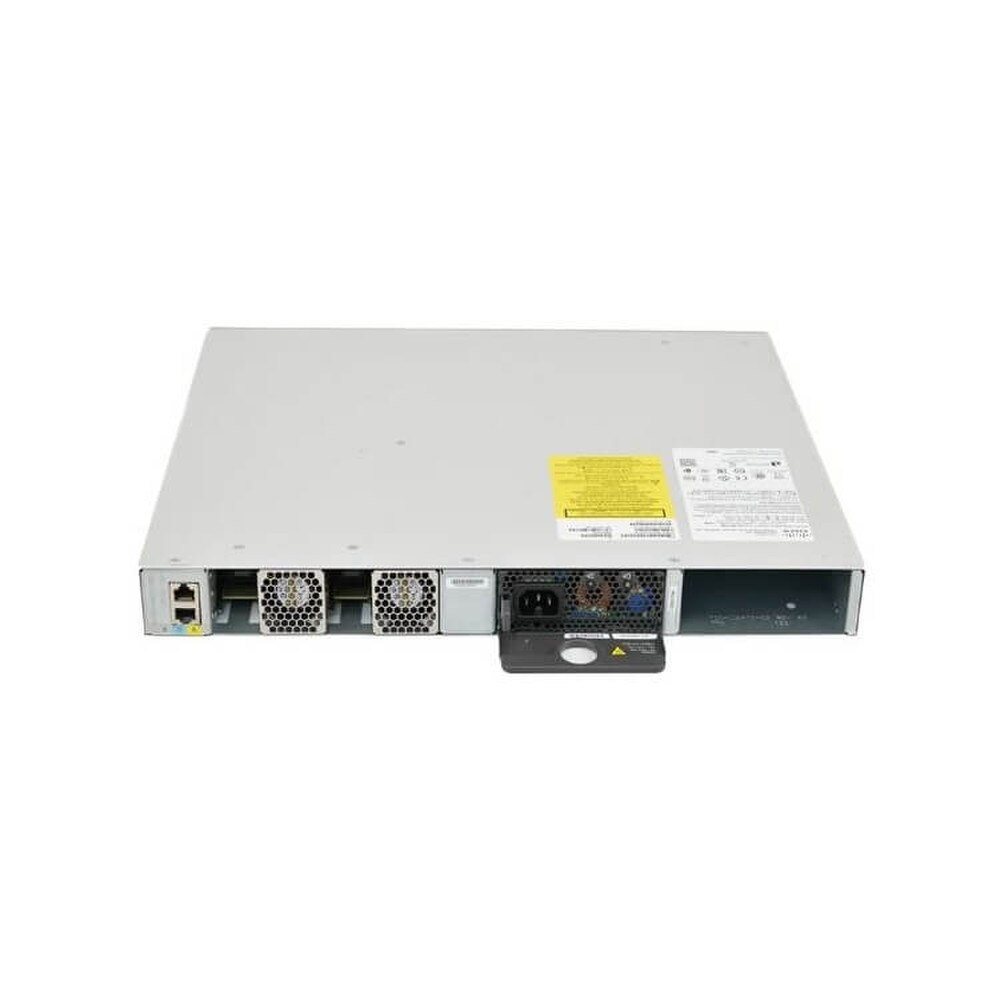

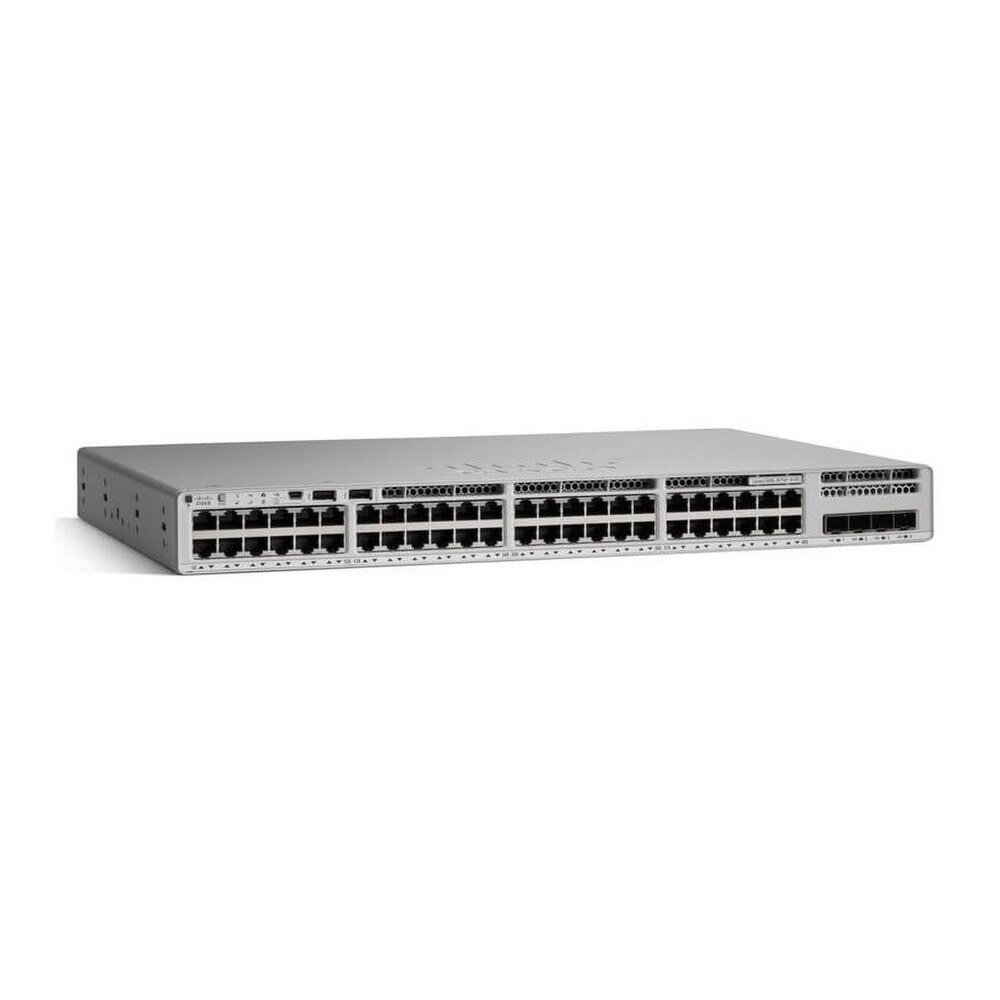

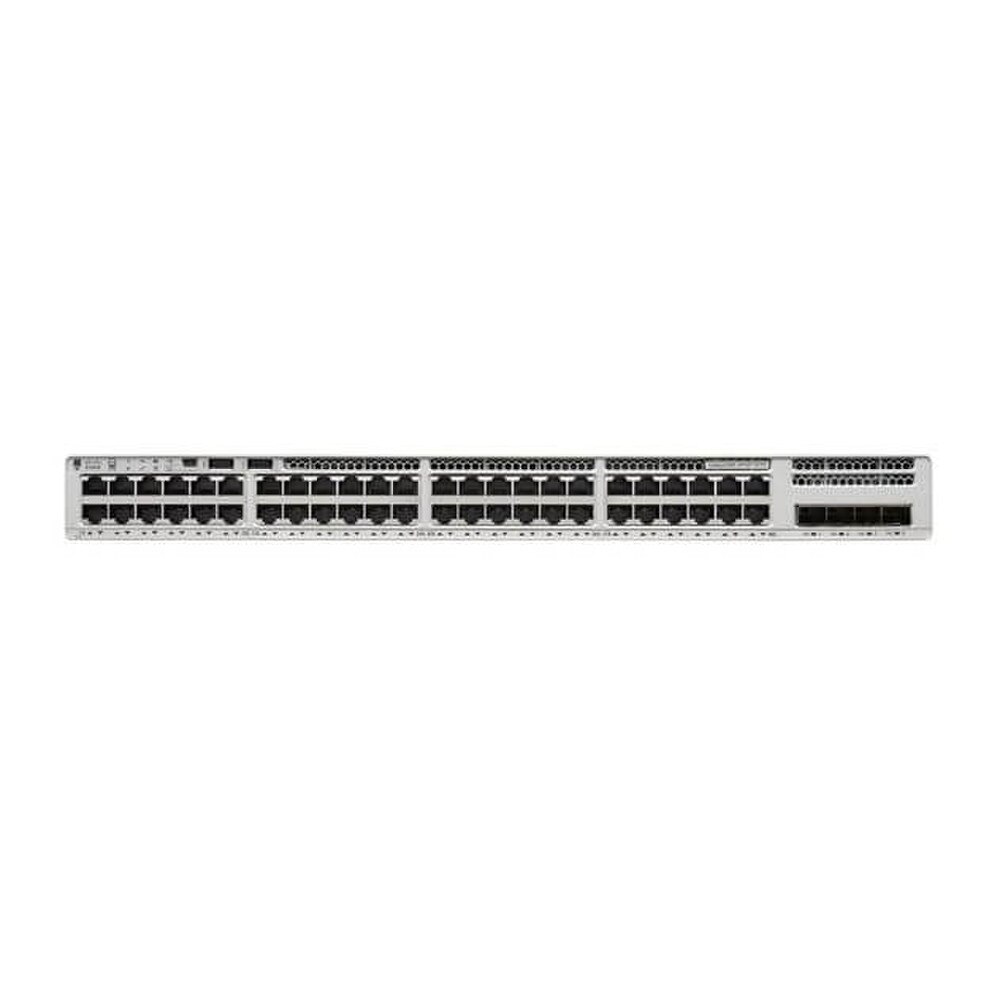

Overview of Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch | New
The Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch is a high-performance network switch intended for small to medium-sized organizations and branch offices that require advanced connectivity and power capabilities. This versatile switch combines enterprise-level capabilities with a scalable architecture, making it ideal for modern network deployments. With 36 Gigabit Ethernet PoE+ ports, 12 Multigigabit Ethernet PoE+ ports, and 4 10G SFP+ uplink ports, the C9200L-48PXG-4X-E provides wide connectivity and power delivery for a variety of network devices. It runs on the Cisco IOS XE operating system and includes Network Essentials software, which delivers increased security, programmability, and analytics capabilities to address the changing needs of developing networks.
Key Features of Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch
• 36 Gigabit Ethernet ports with PoE+ support (up to 30W per port)
• 12 Multigigabit Ethernet ports (100M/1G/2.5G/5G) with PoE+ support
• 4 fixed 10G SFP+ uplink ports for high-speed network expansion
• 1440W PoE budget for powering a wide range of devices
• 176 Gbps switching capacity and 261.9 Mpps forwarding rate
• Cisco IOS XE operating system with Network Essentials feature set
• StackWise-80 technology with 80 Gbps stacking bandwidth
• Advanced security features including MACsec encryption and Cisco TrustSec
• Cisco DNA-ready for intent-based networking
• Zero Touch Provisioning for easy deployment
• Full Flexible NetFlow for enhanced network visibility
• Layer 2 and basic Layer 3 switching capabilities
• 4GB flash memory and 2GB DRAM for smooth operation
• Energy-efficient design with ENERGY STAR certification
• Limited lifetime warranty with next-business-day replacement
Specifications
Specifications for Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9200L-48PXG-4X-E |
| Product Name | Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 1440 W |
Performance | Stacking bandwidth: 80 Gbps ¦ Switching capacity: 392 Gbps ¦ Forwarding rate: 291.66 Mpps |
Capacity | Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Encryption Algorithm | 128-bit AES |
Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
RAM | 2 GB |
Flash Memory | 4 GB |
Interfaces | 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 36 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 |
Power Device | Internal power supply - hot-plug |
Max Supported Qty | 2 |
Power Redundancy | Optional |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
MTBF | 337,360 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Width | 17.5 in |
Depth | 13.8 in |
Height | 1.7 in |
Weight | 12.59 lbs |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C9200L-48PXG-4X-E 48-Port PoE+ Network Essentials Switch
Frequently Asked Questions (FAQ's)
What are the key features of the Cisco Catalyst C9200L-48PXG-4X-E switch?This switch has 48 PoE+ Gigabit Ethernet ports, four 10G SFP+ uplink ports, enhanced security features, and is powered by Cisco Network Essentials software.
What is the maximum power output per PoE+ port on the C9200L-48PXG-4X-E?Each PoE+ port can deliver up to 30W of power, making it ideal for devices such as IP phones and wireless access points.
Does the C9200L-48PXG-4X-E support stacking?Yes, it allows stacking, which enables several switches to function as a single unit for easier management.
What uplink options are available on this switch?It features four 10G SFP+ uplink ports for fast access to core networks.
Is the C9200L-48PXG-4X-E suitable for enterprise environments?Yes, it is designed for enterprise networks and provides scalability, security, and excellent performance.
What software does the C9200L-48PXG-4X-E run?It runs Cisco's Network Essentials software, which includes critical networking functionality and security.
How does this switch enhance network security?It protects against threats with technologies such as Secure Boot, 802.1X authentication, and Access Control Lists (ACLs).
Can the C9200L-48PXG-4X-E be managed remotely?Yes, it allows remote management via a variety of Cisco tools and interfaces.
Does the C9200L-48PXG-4X-E support advanced Layer 3 features?The Network Essentials license enables this model to support basic Layer 3 functionalities. A Network Advantage license is required to enable advanced Layer 3 features.
Does the switch support Layer 3 routing?Yes, it has basic Layer 3 routing capabilities, including inter-VLAN routing and static routing.
What are the stacking capabilities of this switch?The C9200L-48PXG-4X-E offers stacking of up to eight switches, increasing scalability and simplifying management.
Is there a fanless version of this switch?No, because of its great performance, this model comes with cooling fans.
What is the power consumption of the switch without PoE load?The normal power usage without a PoE load is around 65W.
Can the switch be mounted in a standard 19-inch rack?Yes, it is intended for normal 19-inch rack mounting.
Does the C9200L-48PXG-4X-E support VLANs?Yes, it does support VLANs for network segmentation and management.
What type of power supply does the switch use?It operates on an internal AC power supply; redundancy options may be available.
Is the switch compatible with Cisco DNA Center?Yes, it is compatible with Cisco DNA Center, which provides comprehensive network management capabilities.
Can the switch operate in a temperature-controlled environment?The operating temperature range is 32°F to 113°F (0°C to 45°C).
Does the switch support Quality of Service (QoS)?Yes, it provides QoS for prioritizing vital network traffic.
Does the switch support IPv6?Yes, the C9200L-48PXG-4X-E provides IPv6 routing and features.
