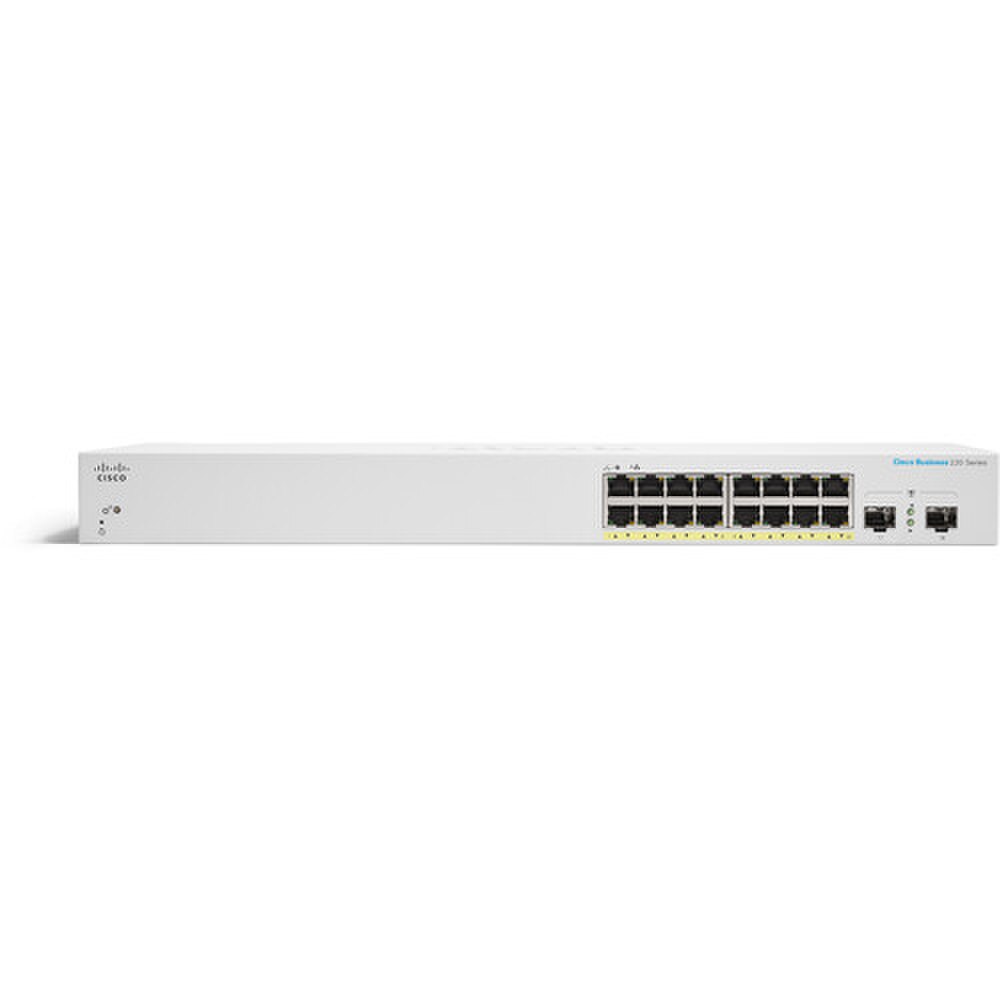

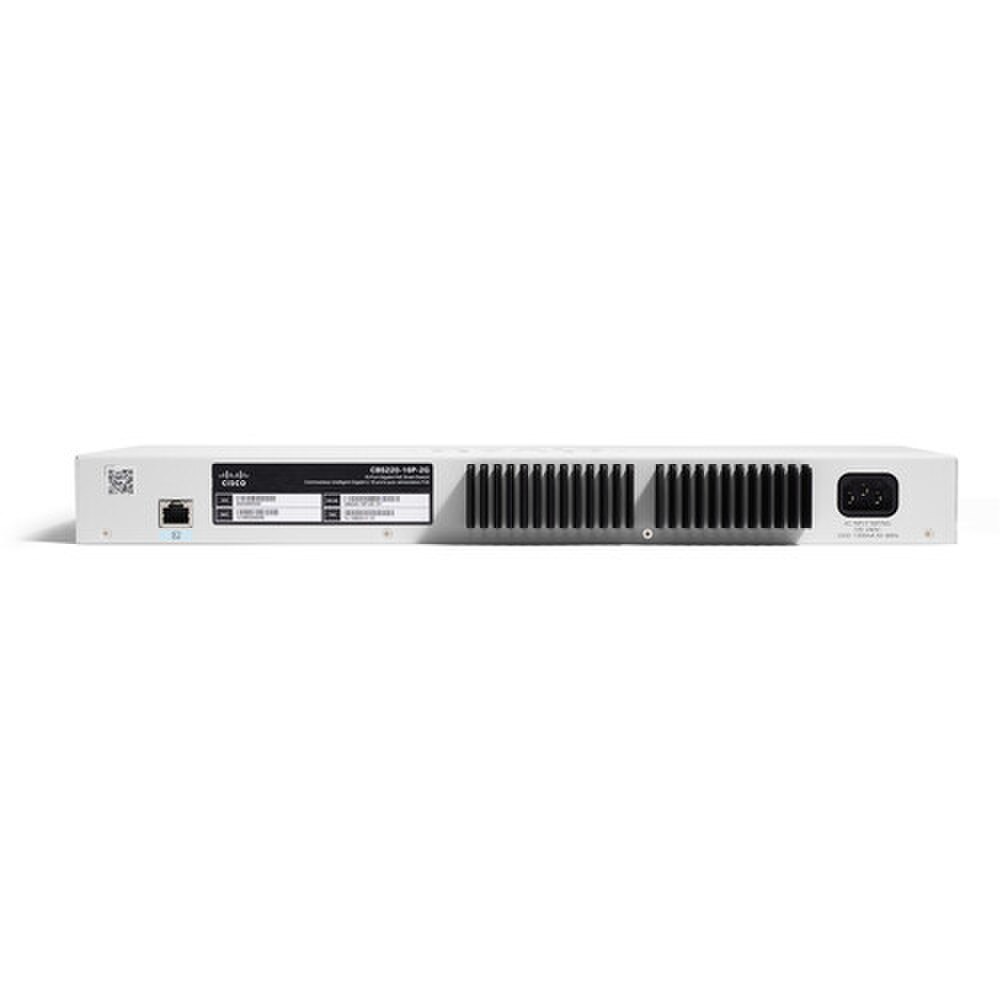

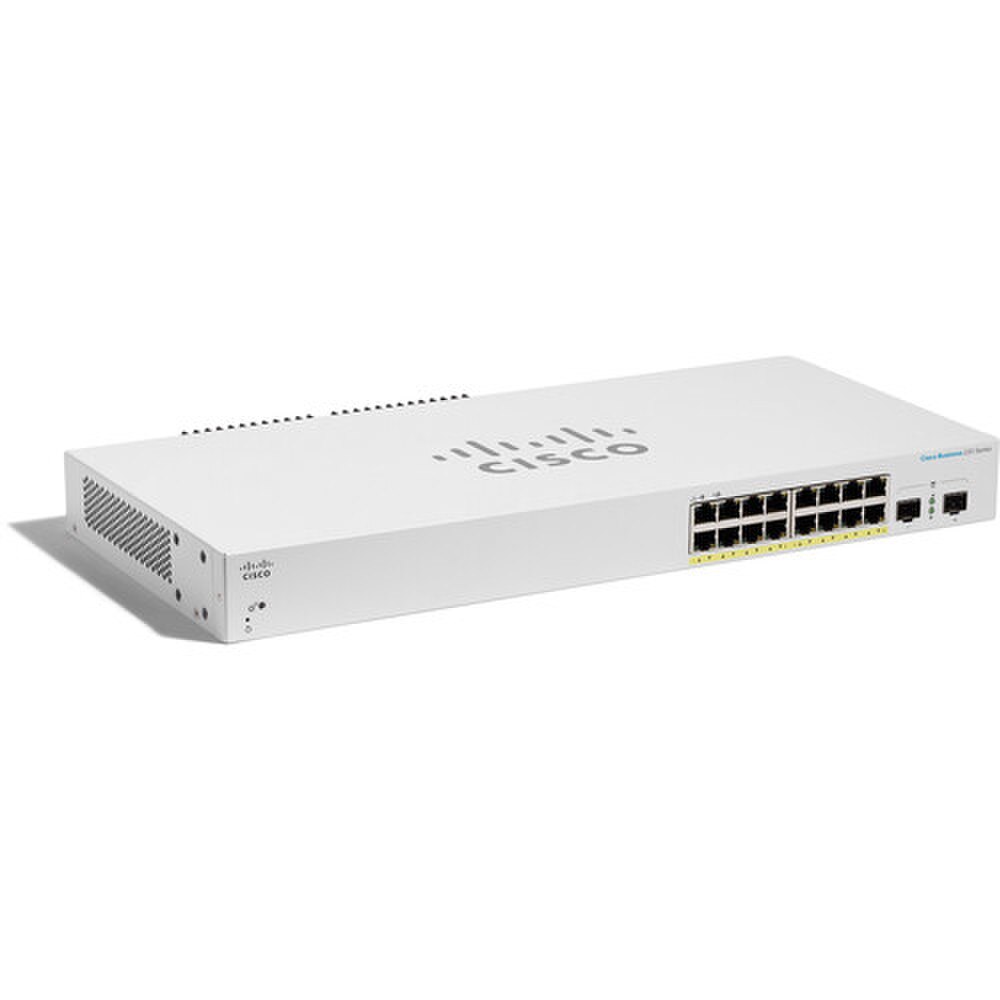

Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

SKU: CBS220-16P-2G-NA-RF
(0)No Reviews yet

🗹 16 x Gigabit Ethernet PoE Ports
🗹 2 x Gigabit SFP Slots
🗹 36 Gbs Switching Capacity
🗹 26.78 Mpps Forwarding Rate
🗹 130W Power Budget
🗹 Rack-Mountable Design
🗹 Works with Cisco Business Dashboard

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$149.99 $149.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

The Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP is a robust and versatile 16-port Gigabit PoE managed network switch intended for small to medium-sized companies. This smart switch has 16 Gigabit Ethernet ports that support PoE+ and two additional SFP ports for fiber uplinks. With a powerful 130W PoE budget, it's great for powering IP phones, cameras, and wireless access points. The CBS220-16P-2G provides excellent performance, with a switching capacity of 36 Gbps and extensive network management and security capabilities.


Key Features of Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP


• 16 Gigabit Ethernet ports with PoE+ support (up to 30W per port)

• 2 Gigabit SFP ports for fiber connectivity options

• 130W total PoE budget for powering multiple devices

• 36 Gbps switching capacity for efficient data transfer

• Advanced QoS features for traffic prioritization

• Comprehensive security features including ACLs and 802.1X authentication

• Easy configuration via web interface and Cisco Business Dashboard

• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

• Fanless design for quiet operation

• VLAN support for network segmentation

• IPv6 support for future-proof networking

• Layer 2 switching capabilities with RSTP and MSTP support

• 8K MAC address table for improved network performance

• Jumbo frame support (up to 9216 bytes)

• Limited lifetime warranty with next-business-day replacement

Specifications

Specifications for Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS220-16P-2G-NA-RF
Product Name Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
130 W
Performance
Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps
Capacity
MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1
MAC Address Table Size
8192 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, fanless, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM
256 MB
Flash Memory
64 MB
Status Indicators
System, link/activity/speed
Interfaces
16 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP uplink
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
160.2 Watt
Rack Mounting Kit
Included
MTBF
611,476 hours
Compliant Standards
C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
17.3 in
Depth
8 in
Height
1.7 in
Weight
6.68 lbs
Service & Support
Limited warranty - replacement - 3 years - response time: next business day
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP Data Sheet

Frequently Asked Questions

Cisco CBS220-16P-2G 16-Port Gigabit PoE Managed Network Switch with SFP (NA)
Frequently Asked Questions (FAQ's)



What is the total number of ports on the Cisco CBS220-16P-2G?
  • The switch has 18 ports in total, including 16 Gigabit Ethernet PoE ports and 2 Gigabit SFP uplink ports.​
    • Does the Cisco CBS220-16P-2G support Power over Ethernet (PoE)?
  • Yes, it has 16 Ethernet ports that support PoE for powering connected devices.
    • What is the power budget for PoE on this switch?
  • The switch's PoE power budget is 120 watts.
    • Can the CBS220-16P-2G be mounted in a rack?
  • Yes, it has rack-mounting hardware and can be installed in a standard 19-inch rack.
    • What type of management does the Cisco CBS220-16P-2G offer?
  • It provides web-based management via a user-friendly GUI for simple configuration and administration.
    • Does this switch support VLANs?
  • Yes, it supports VLANs for better traffic segmentation and network management.
    • Can I configure QoS on this switch?
  • Yes, Quality of Service (QoS) can be set up to prioritize network traffic and ensure critical applications receive adequate bandwidth.
    • Is there support for IPv6?
  • Yes, the Cisco CBS220-16P-2G supports IPv6, which ensures future-proof operation as networks evolve.
    • What are the security features available on this switch?
  • It includes strong security protocols like 802.1X port security, ACLs, and guest VLANs to help protect your network.
    • How do I reset the switch to factory defaults?
  • You can reset the switch by pressing the reset button on the front panel or using the management interface.
    • Does the CBS220-16P-2G support SNMP?
  • Yes, it supports SNMP for network administration and monitoring.
    • What are the dimensions of the switch?
  • The switch dimensions are approximately 440 mm x 44 mm x 257 mm.
    • What is the warranty for the Cisco CBS220-16P-2G?
  • Cisco typically provides a limited lifetime warranty; however, check with your supplier for specific terms.
    • How does this switch handle power failures?
  • It lacks a built-in battery backup; to deal with power outages, an uninterrupted power supply (UPS) is recommended.
    • Can the SFP ports on the CBS220-16P-2G use fiber optic cables?
  • Yes, the SFP ports are intended for fiber connections that extend the network over longer distances.
    • Does the switch support link aggregation?
  • Yes, it supports link aggregation to improve throughput and redundancy.
    • How can I update the firmware on the Cisco CBS220-16P-2G?
  • Firmware can be updated using the web management interface by uploading the downloaded firmware file.
    • What is the operating temperature range for this switch?
  • The operating temperature ranges from 0 to 50 degrees Celsius.​
    • Can I configure the switch remotely?
  • Yes, it can be configured remotely as long as it is properly and securely networked.​
    • What are the cooling requirements for the Cisco CBS220-16P-2G?
  • To maintain optimal operating temperatures, the switch includes built-in cooling fans and should be kept in a well-ventilated area.
