Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).
Clean Serial: YES
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

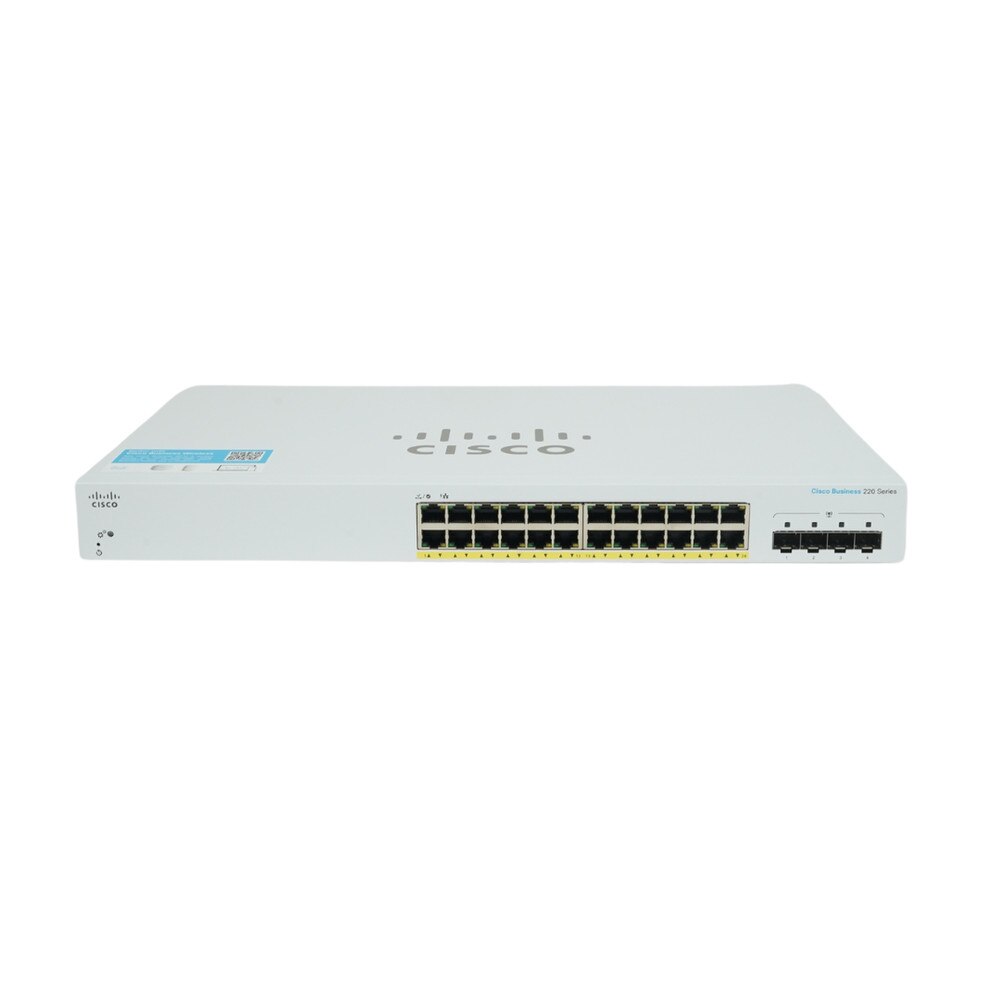

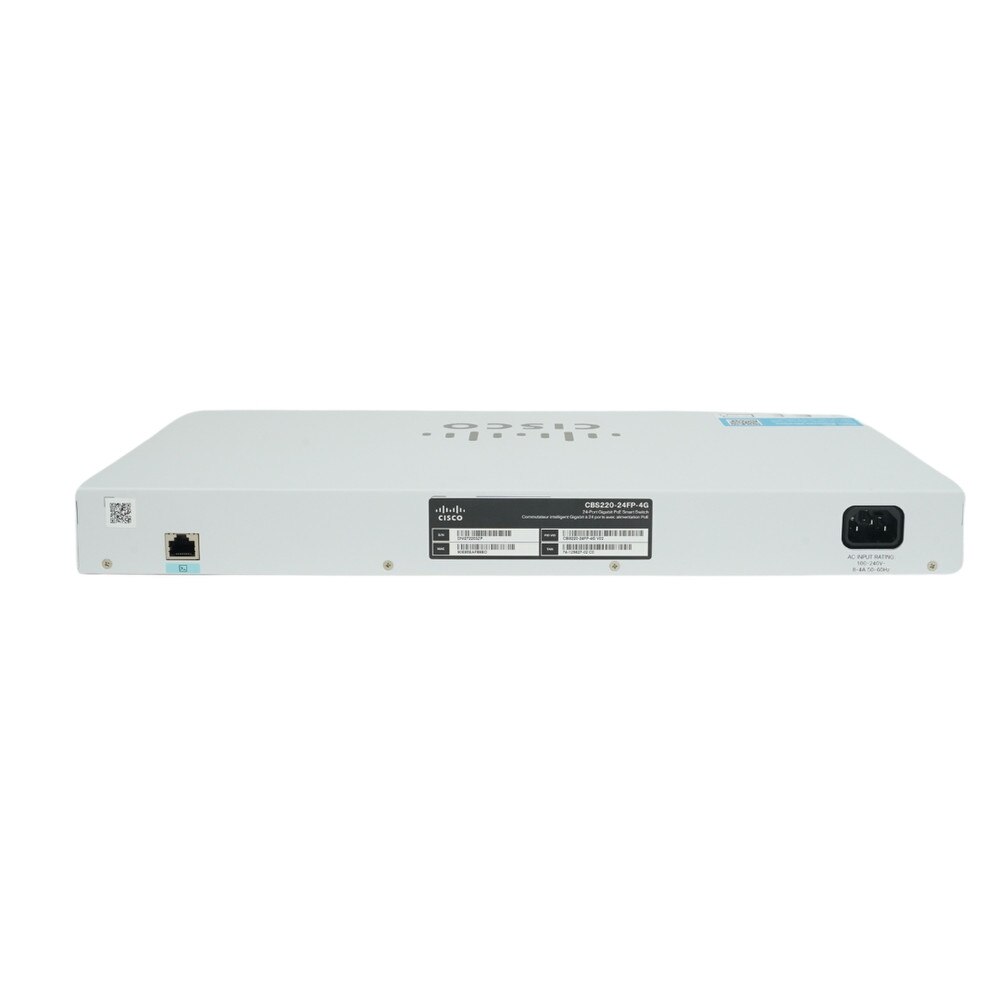

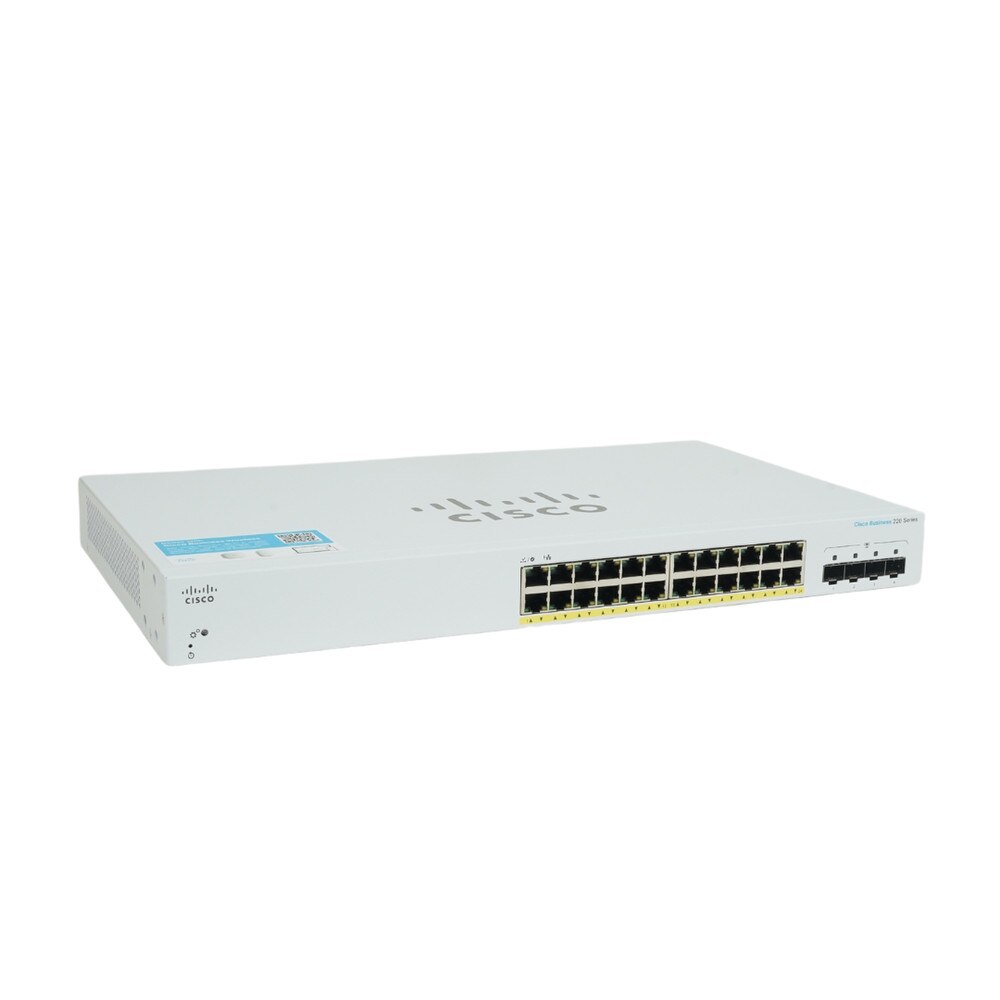

The Cisco CBS220-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch with SFP (NA) is a powerful managed network switch built for small and medium-sized enterprises that want dependable, secure, and cost-effective networking solutions. This adaptable switch combines great performance, innovative functionality, and ease of use to meet the demands of current corporate applications and networking. The CBS220-24FP-4G has 24 Gigabit Ethernet ports that support PoE+ and a huge 382W power budget, allowing you to power devices like IP phones, wireless access points, and security cameras directly from the switch. It also includes four 1GbE SFP connectors for high-speed fiber connections, which allow for network expansion and uplink choices. With a switching capability of 56 Gb/s and a forwarding rate of 41.66 Mpps, this switch offers smooth and dependable data transfers for your mission-critical applications.
• 24 Gigabit Ethernet ports with PoE+ support (382W budget)
• Four 1GbE SFP ports for flexible network expansion
• 56 Gb/s switching capacity and 41.66 Mpps forwarding rate
• Layer 2 switching capabilities with advanced QoS features
• Comprehensive security features including 802.1X and ACLs
• Easy management via Cisco Business Dashboard and mobile app
• Energy-efficient design with ENERGY STAR certification
• Support for up to 8,192 MAC addresses
• 9216-byte jumbo frame support
• IPv4 and IPv6 compatible for future-proof networking
🗹 Enhance network performance with Gigabit speeds and PoE+ support
🗹 Simplify deployment of IP phones, cameras, and wireless access points
🗹 Improve network reliability with advanced QoS and security features
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with flexible SFP uplink options
🗹 Simplify management and troubleshooting with intuitive interfaces
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with IPv6 support and software updates
🗹 Optimize application performance with advanced traffic management
🗹 Leverage Cisco's renowned quality and support for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS220-24FP-4G-NA-RF |
| Product Name | Cisco CBS220-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch with SFP |
| Product Type | Networking Switch |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 382 W |
| Performance | Forwarding performance (64-byte packet size): 41.66 Mpps ¦ Switching capacity: 56 Gbps |
| Capacity | MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1 |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | System, link/activity/speed |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP uplink |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 459 Watt |

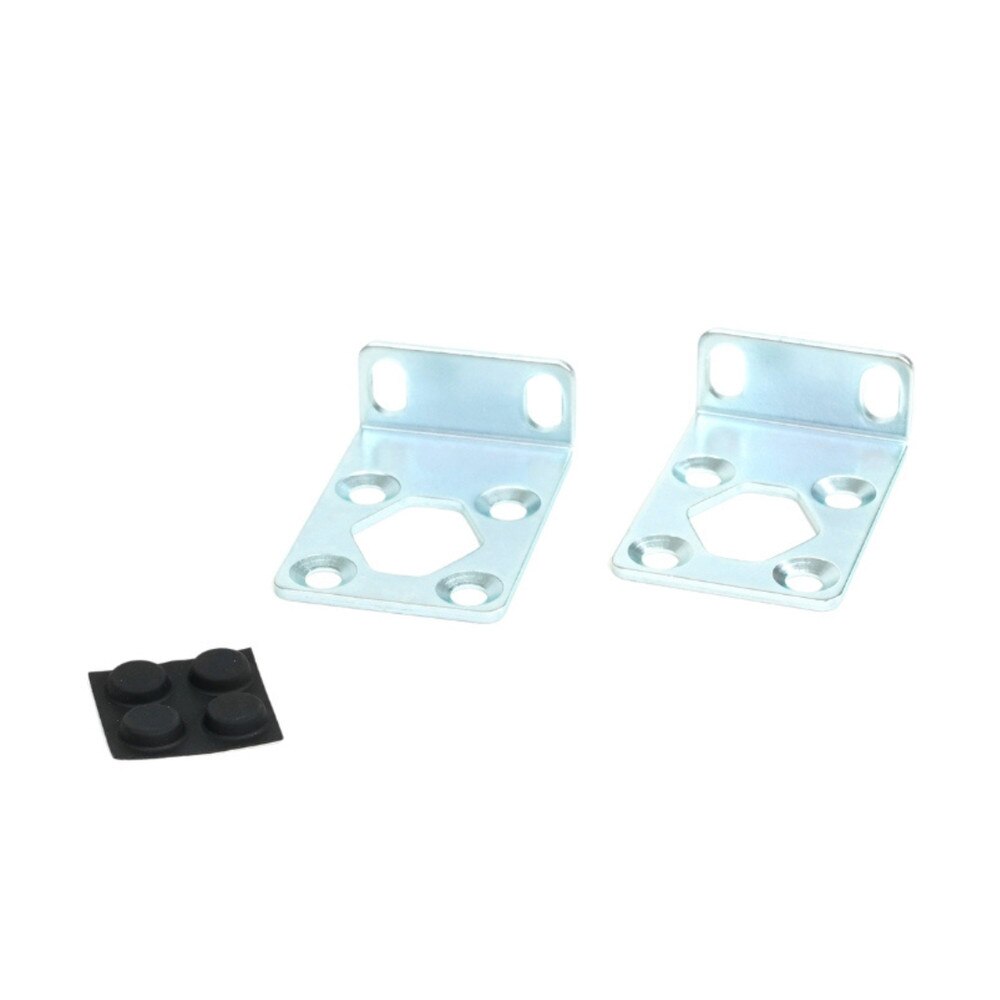

| Rack Mounting Kit | Included |
| MTBF | 588,411 hours |
| Compliant Standards | C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localization | United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area |
| Width | 44 cm |
| Depth | 25.7 cm |
| Height | 4.4 cm |
| Weight | 4.1 kg |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
