Overview

Overview of Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

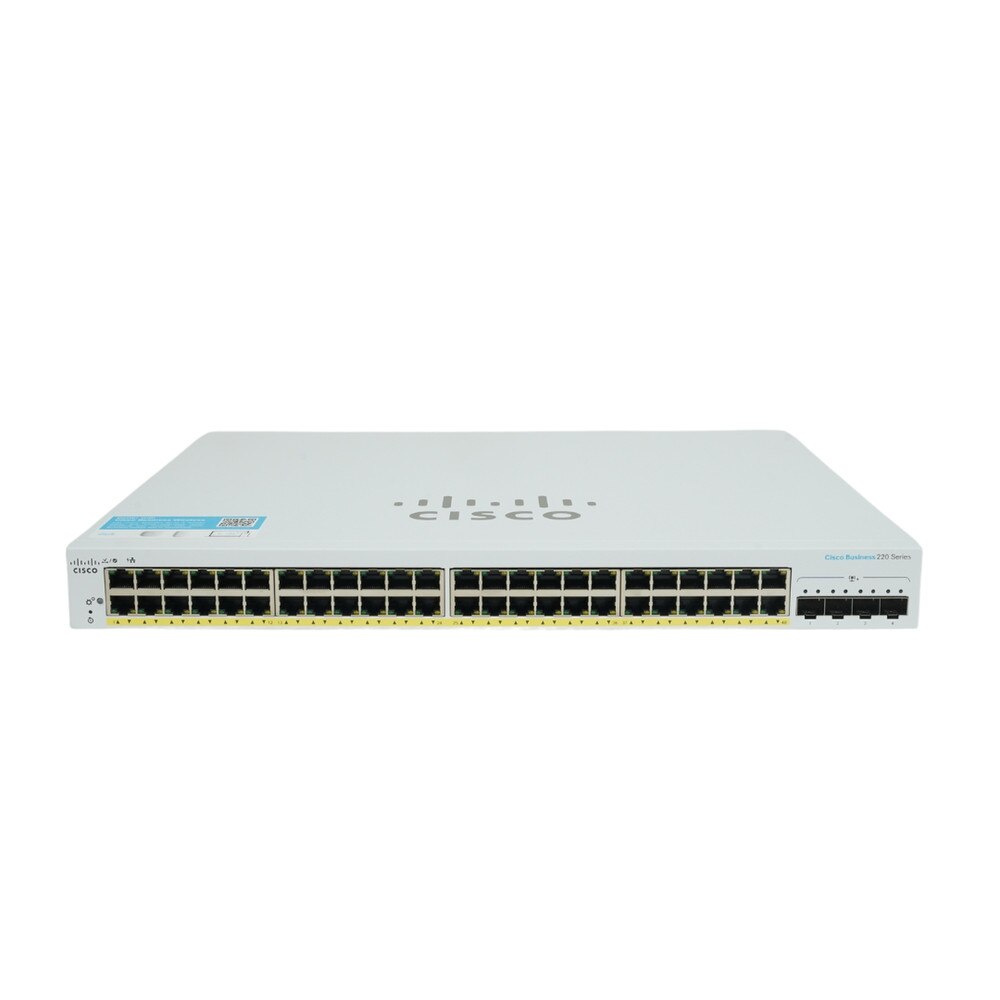

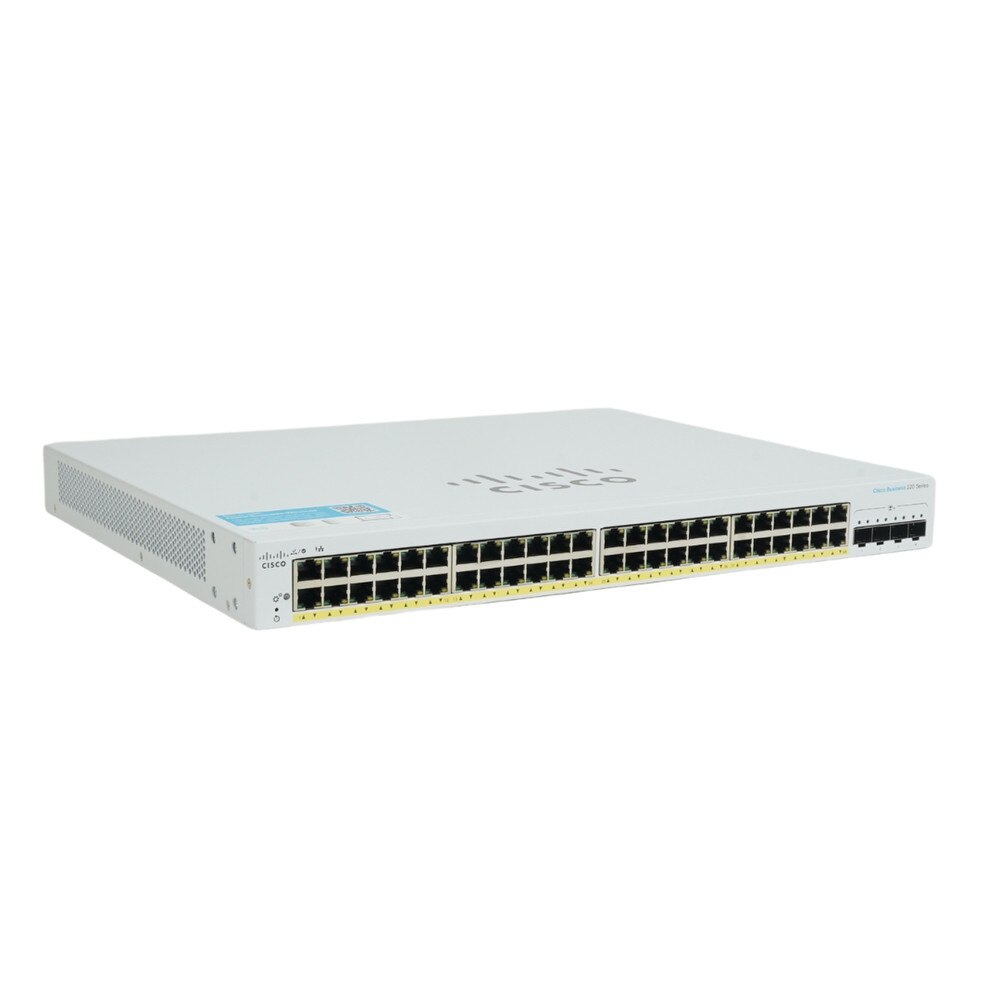

The Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Managed Network Switch with SFP+ is a reliable networking solution for small and medium-sized enterprises. This switch has advanced features and excellent performance, making it ideal for situations requiring dependable communication and power delivery. The CBS220-48P-4X has 48 Gigabit Ethernet ports that all support Power over Ethernet Plus (PoE+), with a total power budget of 382W. This enables you to power devices such as IP cameras, wireless access points, and VoIP phones directly via Ethernet cable, minimizing installation complexity and removing the need for additional power supplies. This switch, which includes four 10G SFP+ uplink ports, provides various options for high-speed network growth while allowing for smooth interaction with existing infrastructure. The switch has a switching capacity of 104 Gbps and a forwarding rate of 74.38 million packets per second (mpps), ensuring effective data handling even when under heavy load.

The CBS220 series is meant to be user-friendly, with an easy web-based administration interface that facilitates configuration and monitoring. The Cisco Business Dashboard enables managers to manage the switch and its linked devices from any location, improving network visibility and management. Security is a primary emphasis, with features like 802.1X authentication, Access Control Lists (ACLs), and Denial-of-Service (DoS) attack protection to secure the network from illegal access and preserve data integrity. The switch also supports advanced Layer 2 technologies such as VLANs and link aggregation, which boost performance. The Cisco CBS220-48P-4X is a fantastic alternative for enterprises seeking to improve their networking capabilities with a dependable, high-performance solution that can adapt to changing business needs.


Key Features of Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Managed Network Switch with SFP+


• 48 Gigabit ethernet ports provides reliable connectivity with PoE+ support.

• 382W PoE budget powers connected devices directly through Ethernet cables.

• 4 x 10G SFP+ uplink ports flexible options for high-speed network expansion.

• 104 Gbps switching capacity ensures efficient data handling under heavy loads.

• User-Friendly management interface with intuitive web-based management for easy configuration.

• Advanced security features supports 802.1X authentication, ACLs, and DoS attack prevention.

• Layer 2 features includes VLAN support and link aggregation for enhanced performance.

Specifications

Specifications for Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS220-48P-4X-NA-RF
Product Name Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Managed Network Switch with SFP+
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
382 W
Performance
Forwarding performance (64-byte packet size): 130.94 Mpps ¦ Switching capacity: 176 Gbps
Capacity
MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 16
MAC Address Table Size
8192 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, ACL support, QoS, Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, MIB, dual firmware images, NDP, GVRP, 802.1x authentication, ToS, DSCP support, 1 fan, VLAN management, LLDP-MED, Guest VLAN, UDP, STP loop guard, WRR, HOL Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, CDP, DAD, TCP support, auto voice VLAN, Auto MDIX
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM
256 MB
Flash Memory
64 MB
Status Indicators
System, link/activity/speed
Interfaces
48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ uplink
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
482 Watt

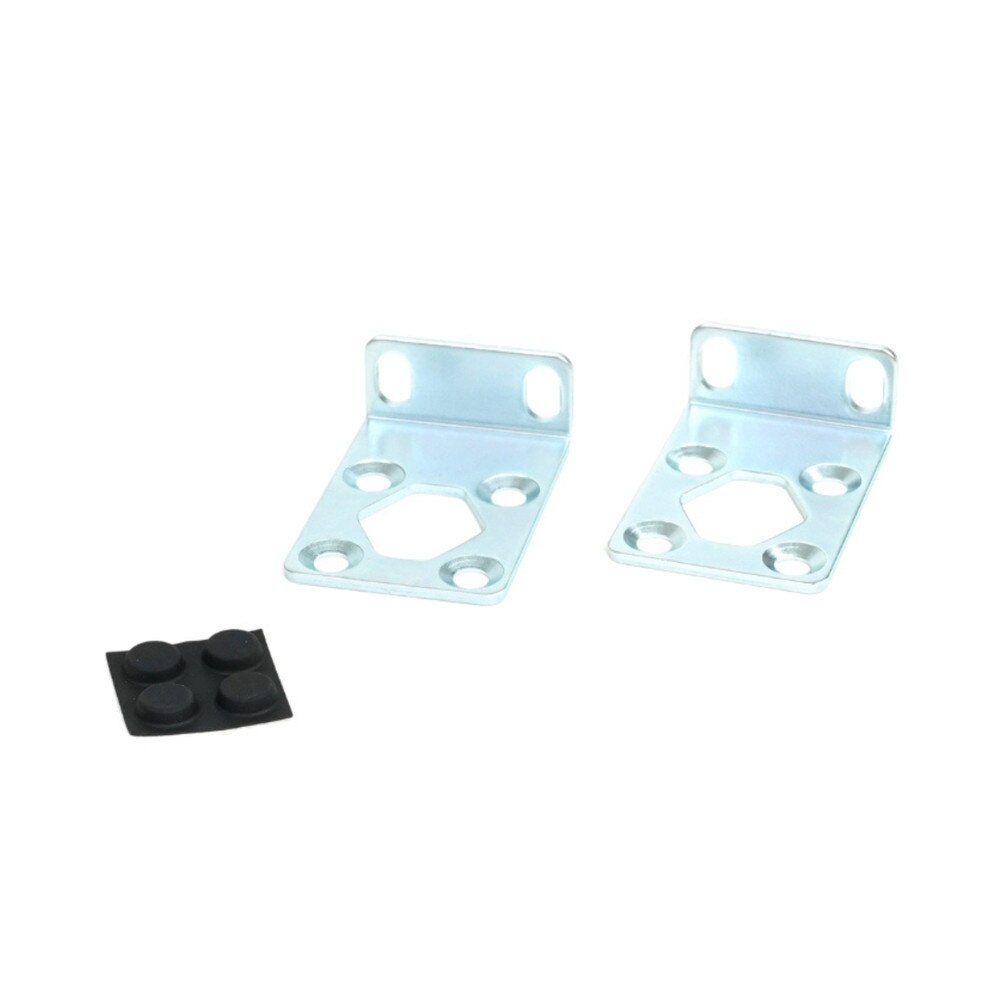

Rack Mounting Kit
Included
MTBF
265,589 hours
Compliant Standards
C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
17.3 in
Depth
13.8 in
Height
1.7 in
Weight
11.82 lbs
Service & Support
Limited warranty - replacement - 3 years - response time: next business day
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA)
Frequently Asked Questions (FAQ's)



What is the total PoE budget of the Cisco CBS220-48P-4X?
  • The switch has a total PoE budget of 382W and supports up to 30W per port via PoE+.
  • How many uplink ports does the Cisco CBS220-48P-4X have?
  • It features 4 SFP+ uplink ports that enable 10 Gigabit fiber access.
  • What is the maximum power output per PoE+ port?
  • Each PoE+ port may provide up to 30 watts of electricity.
  • Does the Cisco CBS220-48P-4X support Layer 3 routing?
  • No, this model is a Layer 2 switch, which does not support Layer 3 routing.
  • Is the Cisco CBS220-48P-4X managed or unmanaged?
  • It's a controlled switch with a web-based management interface and powerful networking capabilities.
  • What type of devices can be powered by the PoE+ ports?
  • The PoE+ ports can provide power to IP phones, wireless access points, security cameras, and other PoE-enabled devices.
  • Does the switch support VLANs?
  • Yes, it enables VLAN setups for better network segmentation and security.
  • What is the maximum switching capacity of the Cisco CBS220-48P-4X?
  • The highest switch capacity is 176 Gbps.
  • Does the switch support Quality of Service (QoS)?
  • Yes, the switch supports QoS, which prioritizes traffic for crucial applications such as audio and video.
  • Can I stack multiple Cisco CBS220-48P-4X switches?
  • No, this model does not enable stacking; nevertheless, it can be controlled alongside other switches in a network.
  • How do I manage the Cisco CBS220-48P-4X switch?
  • It may be managed using a web-based interface, the Cisco Business Dashboard, or the CLI via Telnet/SSH.
  • Does the Cisco CBS220-48P-4X support Energy Efficient Ethernet?
  • Yes, it meets Energy Efficient Ethernet (IEEE 802.3az) standards, which reduce power usage.
  • Is the switch compatible with third-party SFP modules?
  • Yes, it is compatible with Cisco-certified and some third-party SFP modules.
  • Does the switch support port mirroring?
  • Yes, it does allow port mirroring for traffic monitoring and troubleshooting.
  • Does this switch support MAC-based port security?
  • Yes, the switch provides MAC-based port security, which controls network access by restricting the amount of MAC addresses on a port.
  • Does the switch support Link Aggregation (LAG)?
  • Yes, the switch offers link aggregation, which combines numerous network connections to improve throughput.
  • Is there a fan in the Cisco CBS220-48P-4X switch?
  • Yes, the switch features internal fans for cooling.
  • Can the Cisco CBS220-48P-4X switch operate in high-temperature environments?
  • Yes, the switch can function from 0°C to 40°C (32°F to 104°F).

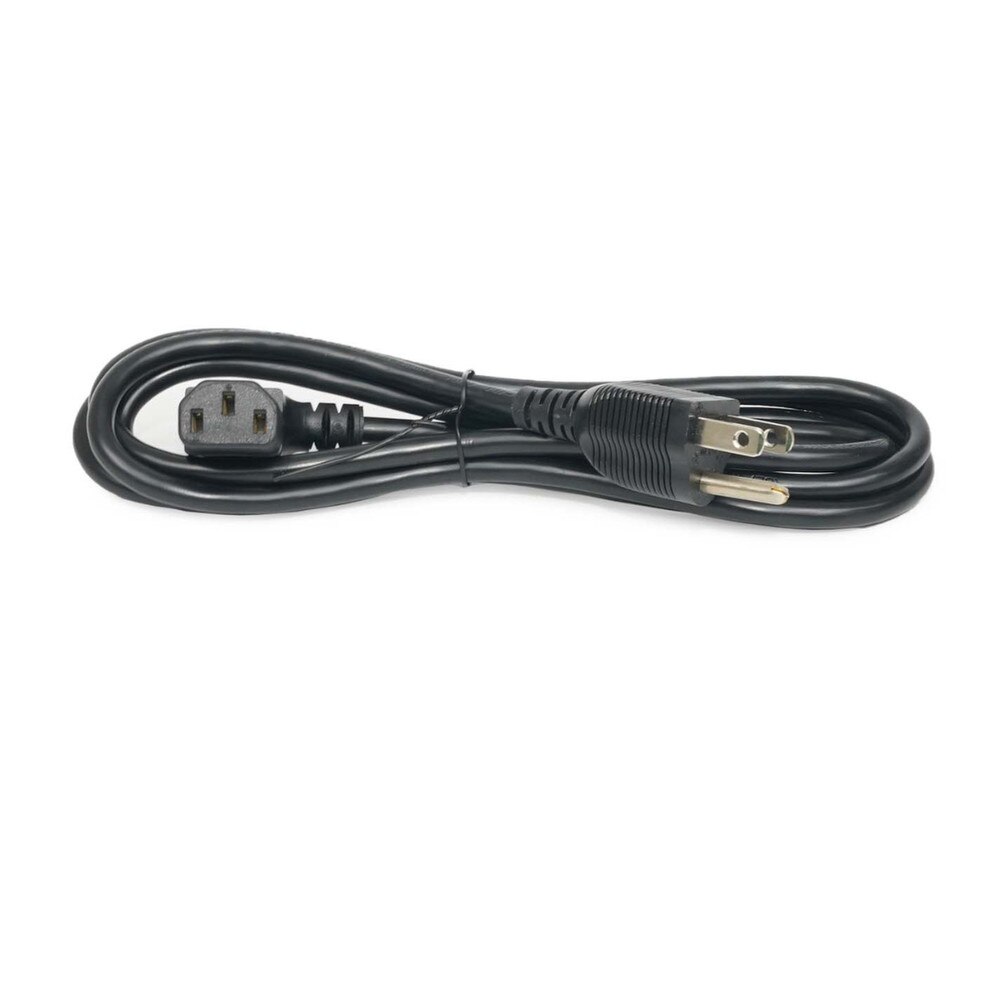

  • What kind of power supply does the Cisco CBS220-48P-4X use?
  • The switch includes an internal AC power supply.
  • Can the switch be mounted in a rack?
  • Yes, it is rack-mountable and includes rack-mounting components.
