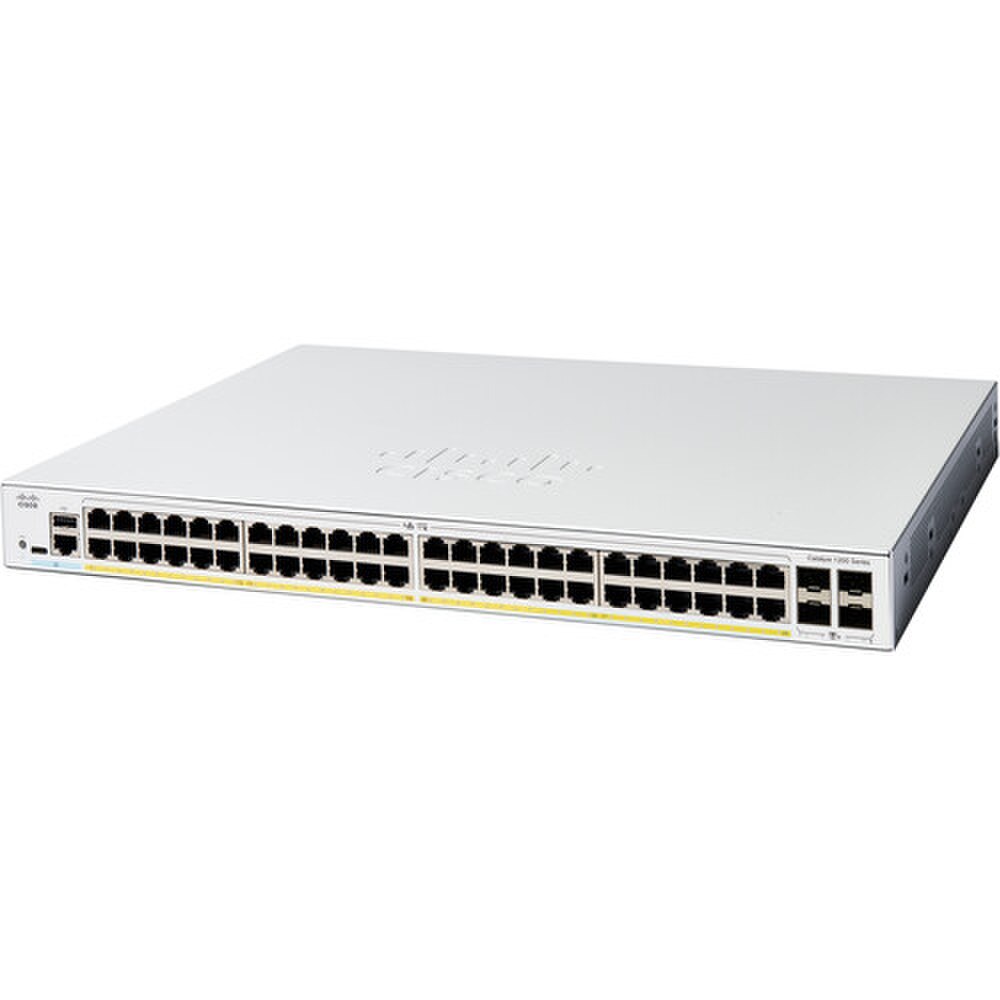

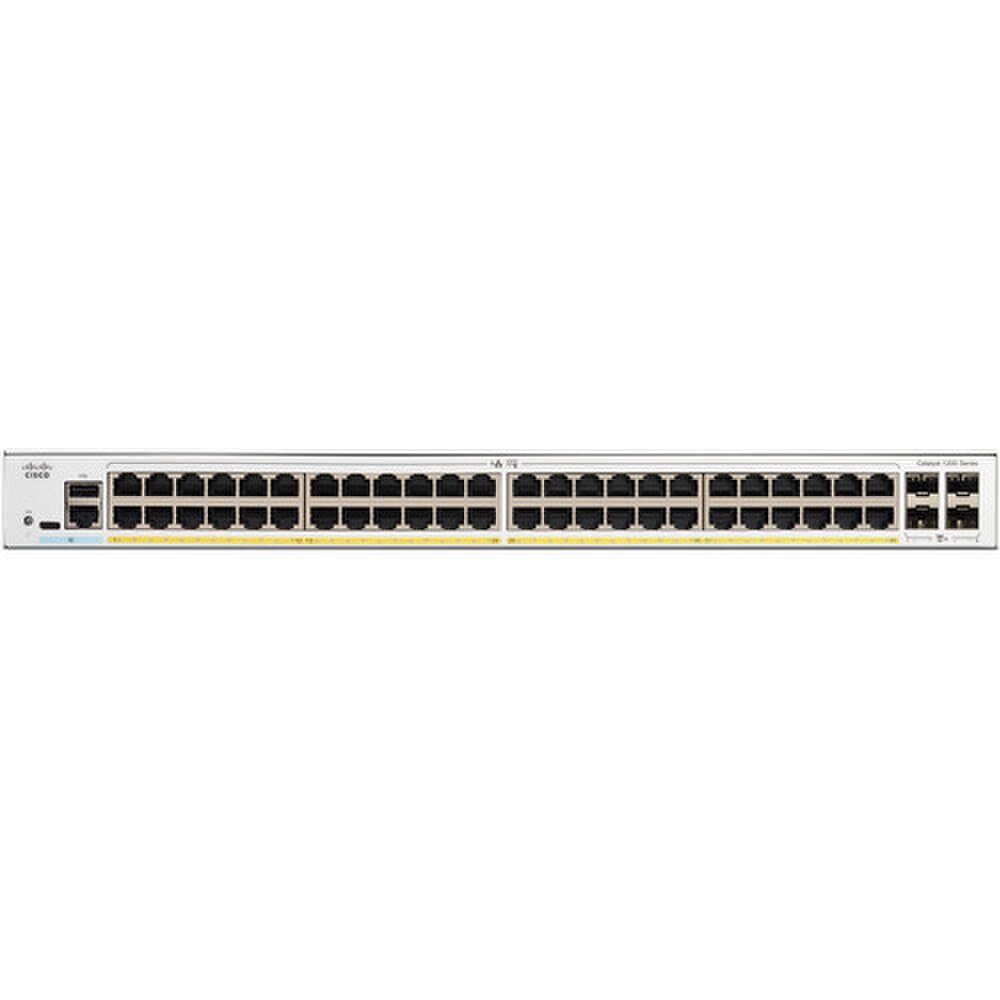

Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch | Refresh

Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch | Refresh

SKU: C1200-48P-4G-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$529.99 $529.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch | Refresh

The Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch was designed specifically to power and secure large-scale modern business networks. With its four SFP uplinks and 48 Gigabit PoE+ ports, this rack-mountable switch easily provides up to 375W of smart PoE+ for IP phones, wireless access points, cameras and the Internet of Things. It is all controlled via an easy-to-use interface that supports Layer 2/3. Combining enterprise-grade security, smooth management and sturdy hardware, the C1200-48P-4G offers expanding businesses non-blocking, future-proof performance.


Key Features of Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch


• 48 x 10/100/1000 RJ45 PoE+ ports with up to 375W total PoE+ power (802.3at) for seamless device integration.

• 4 x Gigabit SFP uplink ports with fiber/copper uplink flexibility for expanded stacking and WAN access.

• Layer 2/3 smart management with VLAN, link aggregation, static/dynamic routing, advanced QoS, multicast, IGMP/MLD snooping, policy-based control.

• Powerful hardware with dual-core ARM 1.4GHz processor, 1GB DDR4 RAM, 3MB dynamic buffer, 512MB flash, 104Gbps switching capacity.

• Rack-mountable design with 1U height, robust metal chassis, built for mid-sized and enterprise deployments.

• Comprehensive security with 802.1X/RADIUS, port security, ACLs, DHCP snooping, DoS mitigation, secure SSH and HTTPS management.

• App/web-based UI with intuitive Cisco Business management for rapid deployment, configuration and monitoring.

• Indicators on System, Link/Act, PoE, Speed for real-time troubleshooting.

• Green tech with IEEE 802.3az energy-efficient ethernet and advanced power management reduce OPEX and environmental impact.

• Trusted by Cisco for hardware protection and continuous firmware support.


Benefits of Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch


🗹 Centralized device power that streamline installation and reduce clutter by powering up to 48 devices from a single network switch.

🗹 Network expansion that 4 SFP uplinks allow fast backbone/WAN or stacking connections to keep pace with organizational growth.

🗹 Robust security with advanced policy controls and real-time protection safeguard critical data, users and applications.

🗹 Enterprise-class performance that non-blocking architecture and high-capacity hardware deliver wire-speed switching even under demanding loads.

🗹 Efficient management with intuitive GUI/tools minimize IT overhead and accelerate troubleshooting/discovery.

🗹 Energy-conscious that smart power draw and green hardware save costs over the switch’s lifecycle.

🗹 Long-term value with Cisco reliability and broad compatibility make it a smart investment for campus and business networks.

Specifications

Specifications for Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch | Refresh

ManufacturerCisco
Manufacturer Part NumberC1200-48P-4G-RF
Product NameCisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch
Product TypeSwitch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Forwarding rate (64‑byte packets): 77.38 Mpps ¦ Switching capacity: 104 Gbps
Capacity
MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB
MAC Address Table Size
8000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Encryption Algorithm
SSL
Authentication Method
RADIUS
Features
BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, 1 fan, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 1.4 GHz
RAM
1 GB DDR4 SDRAM
Flash Memory
512 MB
Status Indicators
System, PoE, link/activity/speed
Interfaces
48 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 10GBase-X SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories
Mounting kit, pointer card
MTBF
856,329 hours
Compliant Standards
Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595
Width
17.5 in
Depth
13.8 in
Height
1.7 in
Weight
11.97 lbs
Service & Support
Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% RH (non-condensing)

User Guides

Cisco Catalyst 1200 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)



What is the total PoE budget of the Cisco C1200-48P-4G?
  • The switch provides a PoE budget of up to 370W, sufficient for multiple high-power devices.
    • Does this switch support Layer 3 routing?
  • No, this model is a Layer 2 managed switch and does not support Layer 3 routing features.
    • Can I manage the switch using a web interface?
  • Yes, the C1200 series supports an intuitive web GUI for easy configuration and monitoring.
    • Are the SFP uplink ports shared with the Ethernet ports?
  • No, the 4 SFP uplinks are dedicated and do not consume any of the 48 RJ-45 ports.
    • Is this switch suitable for VoIP or IP camera networks?
  • Absolutely. With 48 PoE+ ports and advanced QoS, it’s optimized for VoIP, IP cameras and wireless access points.
    • Does it come with rack-mounting hardware?
  • Yes, the switch includes rack ears and screws for mounting in a standard 19" server rack.
    • What security features are available?
  • The switch supports ACLs, port security, DHCP snooping and other enterprise-grade security measures.
    • Is this switch fanless or does it have active cooling?
  • The C1200-48P-4G features a fanless design, making it completely silent during operation.
    • How do I update the firmware on this switch?
  • Firmware updates can be applied through the web interface or via Cisco’s centralized management tools.
    • Can it be integrated with Cisco Meraki or Catalyst Center?
  • While it is not Meraki-native, it can be integrated into broader Cisco network environments with manual configuration.
    • Is this switch suitable for outdoor use?
  • No, it is designed for indoor use only, in temperature-controlled environments.
    • Does the switch support link aggregation?
  • Yes, it supports IEEE 802.3ad Link Aggregation Control Protocol (LACP) for combining multiple ports.
    • Can I create VLANs on this switch?
  • Yes, full VLAN support is included for traffic segmentation and security.
    • Does the switch support Spanning Tree Protocol (STP)?
  • Yes, it supports STP and RSTP for loop prevention and network stability.
    • How do I perform a factory reset?
  • You can reset the device using the reset button on the front panel or through the management interface.
    • What’s the maximum switching capacity?
  • The switch supports up to 104 Gbps switching capacity.
    • Is this switch Energy Efficient Ethernet (EEE) compliant?
  • Yes, it supports IEEE 802.3az standards for energy efficiency.
    • Can I monitor port activity and bandwidth usage on this switch?
  • Yes, the switch includes traffic monitoring tools via the web GUI, allowing you to view port statistics, monitor bandwidth usage and diagnose network issues in real-time.
    • Can this switch operate in a data center environment?
  • While it is suitable for small to medium-sized networks, larger data centers might require higher-end Catalyst models.
    • How does this compare to unmanaged switches?
  • Managed switches like the C1200-48P-4G offer advanced control, security and monitoring—far superior to unmanaged models.
