Avaya IP500 Digital Station 8 Base Card (700417330) | Like New

Avaya IP500 Digital Station 8 Base Card (700417330) | Like New

SKU: 700417330-LN
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$39.99 $39.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Avaya IP500 Digital Station 8 Base Card (700417330) | Like New

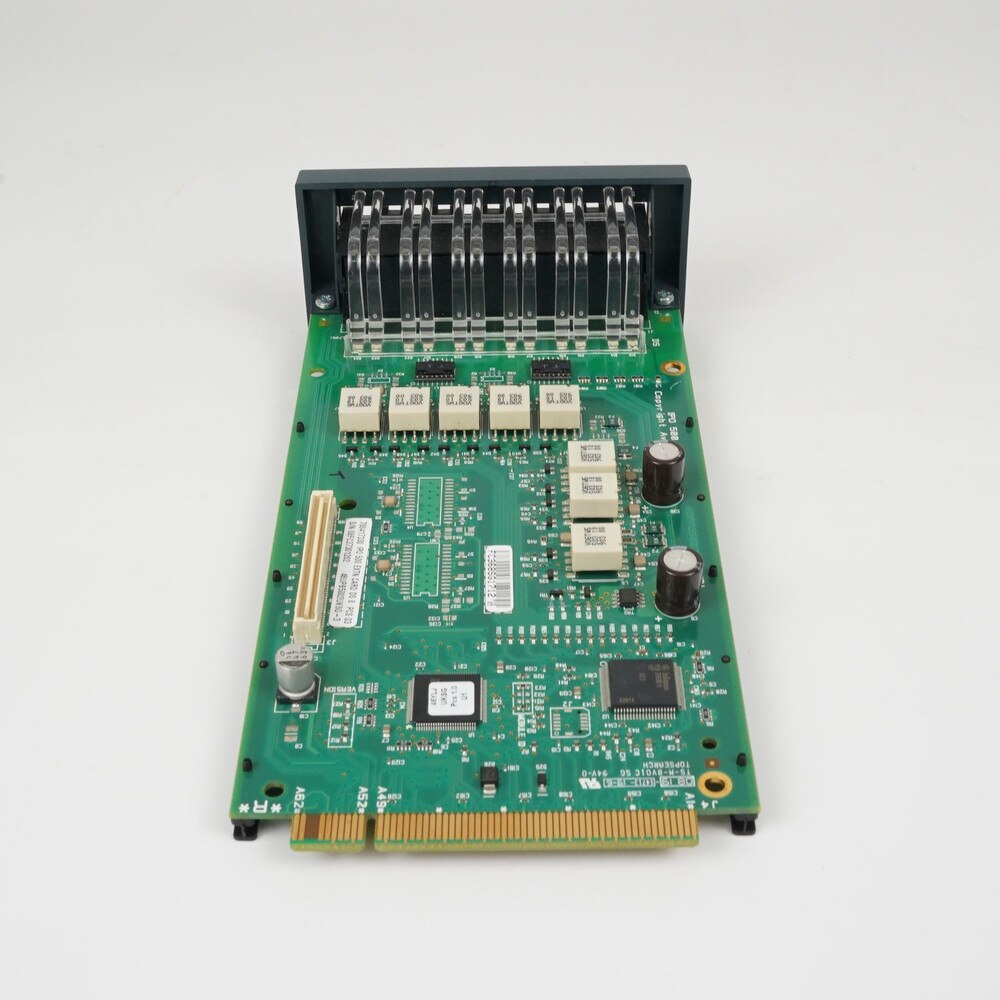

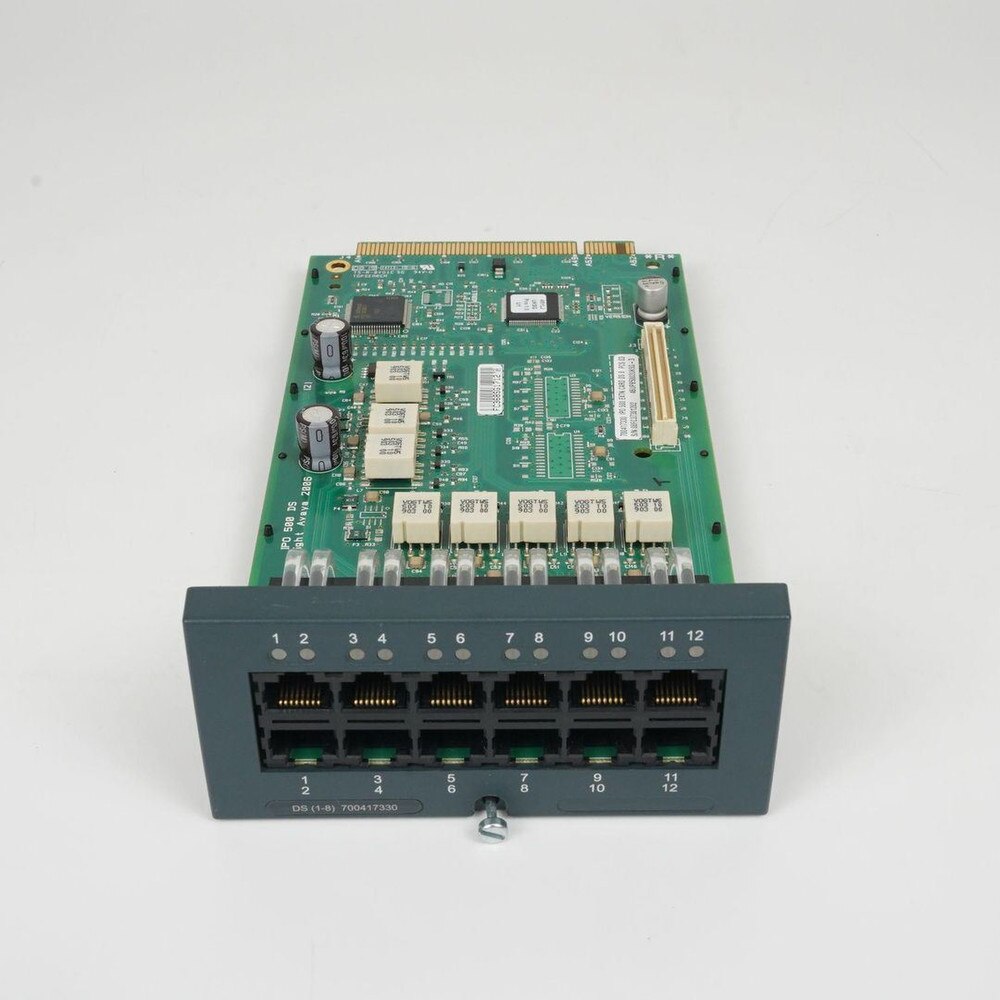

The Avaya IP500 Digital Station 8 Base Card (700417330) is a key component of the Avaya IP Office system, designed for connecting Avaya digital phones. It features eight Digital Station (DS) ports, allowing for the connection of up to eight Avaya digital phones directly.

This card is part of the IP500 system, which is a versatile and scalable communications platform that supports a wide range of communication needs, from small businesses to large enterprises

One of the primary benefits of the Avaya IP500 Digital Station 8 Base Card is its ability to support a high number of phone connections, making it an ideal solution for businesses that require a large number of phone lines. Additionally, the card can be fitted with a daughtercard to add four extra ports, further expanding its capacity and versatility

The card is also designed for easy installation and integration into existing IP Office systems, with clear instructions and support available through the Avaya IP Office Knowledgebase. This makes it a convenient and cost-effective solution for businesses looking to expand their communication capabilities without the need for a complete system overhaul.

The Avaya IP500 Digital Station 8 Base Card (700417330) is a versatile and scalable solution for businesses looking to connect a large number of Avaya digital phones. Its eight DS ports, expandability through daughtercards, and easy installation make it a popular choice for businesses of all sizes.

Specifications

Specifications for Avaya IP500 Digital Station 8 Base Card (700417330) | Like New

Manufacturer‎Avaya
Brand‎Avaya
Item model number‎700417330
Item Weight‎1.6 ounces
Product Dimensions‎10.5 x 6.4 x 3.2 inches
Is Discontinued By Manufacturer‎No
Date First AvailableJune 10, 2009


User Guides

Avaya 700417330 data sheet

Frequently Asked Questions

Avaya IP500 Digital Station 8 Base Card (700417330)
Frequently Asked Questions (FAQ's)



What is the Avaya IP500 Digital Station 8 Base Card?
  • Eight digital station (DS) connections are available for connecting Avaya digital phones to this expansion module for the Avaya IP Office system.
    • Which Avaya phones are compatible with the IP500 Digital Station 8 card?
  • It supports Avaya 1400, 9500, and 5400 series digital phones.
    • Can I use analog phones with the IP500 Digital Station 8 card?
  • No, it does not support analog or IP phones; it only supports Avaya digital phones.
    • How many Digital Station 8 cards can be installed in an IP500 V2 control unit?
  • Depending on the system configuration and available slots, the IP500 V2 chassis can accommodate up to four base cards.
    • Does the Digital Station 8 card require a daughter card?
  • No, the DS8 card can be used alone, but it can also be used in conjunction with supplementary trunk daughter cards to provide more capability.
    • Is the IP500 Digital Station 8 hot-swappable?
  • No, before putting the card in or taking it out, the system needs to be turned off.
    • What is the part number for the IP500 Digital Station 8 card?
  • The Avaya part number is 700417330.
    • Can the DS8 card be used in the IP500 V1 system?
  • Yes, although compatibility with the V1 is contingent upon firmware and setup; it is primarily made for the IP500 V2.
    • What type of connection does the DS8 card use for phones?

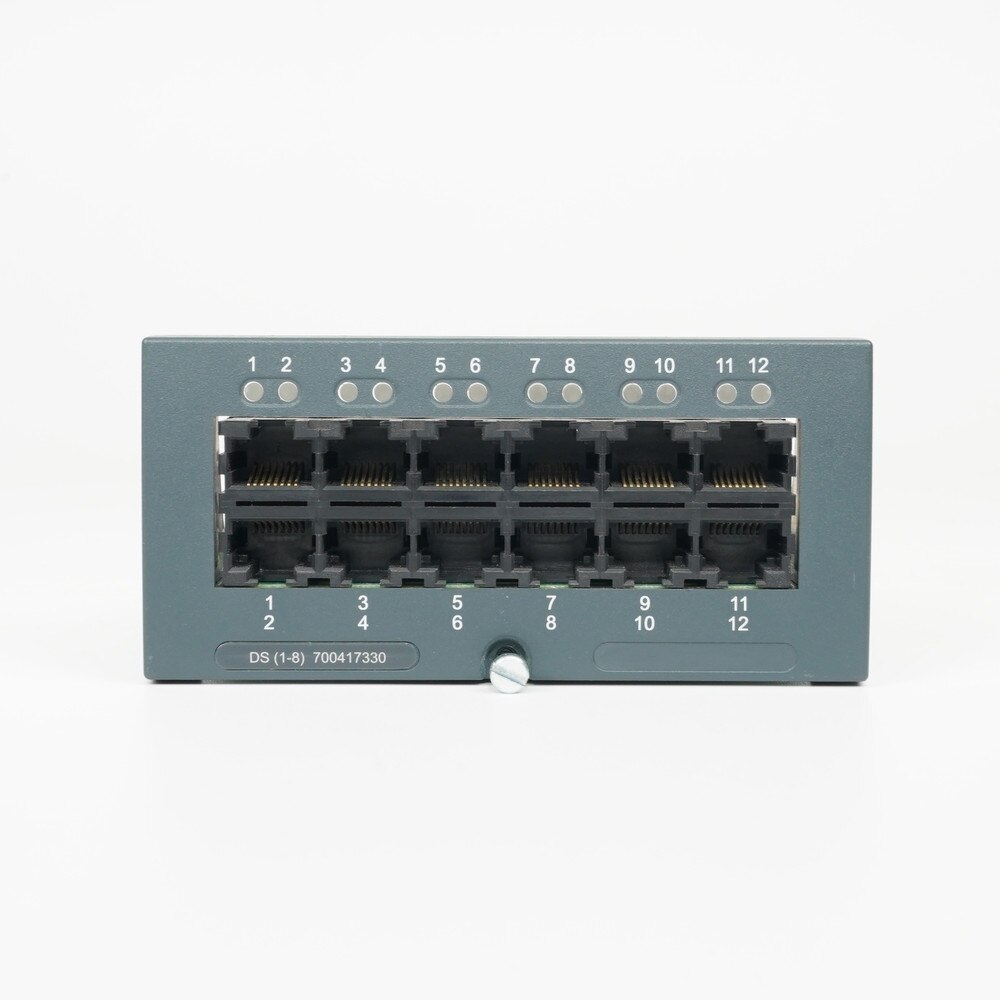

  • Digital phones are connected to it by twisted pair wire (Cat 3, Cat 5, or higher) via RJ45 ports.
    • Is a license required to use the DS8 card?
  • The DS8 card itself can be used without a license, however system capacity licensing is still required.
    • How do I check if the DS8 card is functioning properly?
  • Check port status and alarms with the IP Office Manager program.
    • Does the DS8 card support hot desking?
  • Yes, if set up properly, digital phones linked to the card can be utilized with Avaya's hot desking capability.
    • Can I mix digital and IP phones in the same system?
  • Yes, both kinds are supported by IP Office; however, their interfaces differ.
    • What is the default firmware for the IP500 Digital Station 8 card?
  • During system upgrades, firmware is updated through the IP Office management unit; the card itself lacks separate firmware.
    • What is the power consumption of the DS8 card?
  • It usually uses about 10 watts, though this depends on how much is used.
    • Can I use the DS8 card in a Small Office Edition (SOE) system?
  • No, only IP500 and IP500 V2 control units are compatible with it.
    • What are the physical dimensions of the DS8 card?
  • Approximately 11.5" x 3.5" x 1.5", designed to fit inside the IP500 chassis.
    • Does the DS8 card support voicemail?
  • No, the IP Office system's voicemail module or server manages voicemail independently.
    • What happens if a DS8 card fails?
  • Digital extensions that are impacted may cease to function; replacement and IP Office Manager modification may be required.
    • How are digital extensions numbered when using DS8?
  • Instead of being linked to physical ports, extension numbering is assigned through the IP Office Manager software.
